Video to Fiber Installation Kits

As surveillance and security infrastructures continue to evolve, so does the demand for technologies that support long-distance transmission, high-speed video streaming, and noise-free connectivity. Whether it’s securing critical infrastructure, monitoring expansive campuses, or protecting high-risk environments, today’s systems require more than just coaxial cabling—they require fiber optic performance.

This is where Video to Fiber Installation Kits come into play. These kits are specially engineered to convert analog CCTV video signals into light signals that travel through fiber optic cables, delivering exceptional clarity, extended range, and zero interference.

What Is a Video to Fiber Installation Kit?

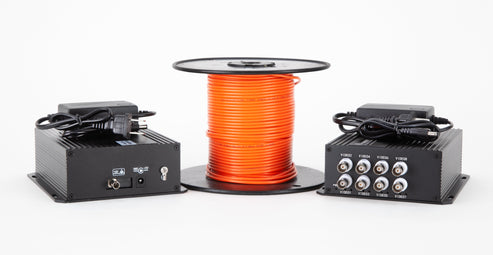

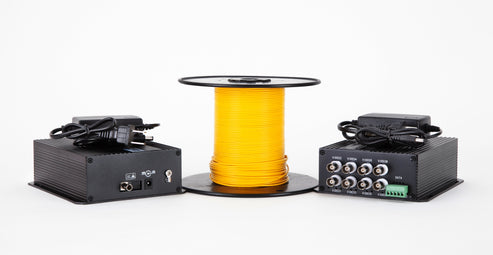

A Video to Fiber Installation Kit is a plug-and-play solution that enables analog video transmission over fiber optic cabling. Each kit is designed to provide a complete hardware set to seamlessly convert and transmit analog CCTV signals via fiber, enabling secure, high-fidelity video transmission over long distances—up to 30 kilometers.

Each kit typically includes:

  • Video Transmitter
  • Video Receiver
  • 100 meters of Multimode or Singlemode Fiber Cable
  • Power Supplies
  • Support for optional Data, Audio, and Contact Closure (CC)
  • ST Fiber Connectors


Explore Our Video to Fiber Installation Kits Collection



How Do Video to Fiber Converters Work?

  1. Signal Input: The analog video signal enters the transmitter via a BNC connector using coaxial cable from the CCTV camera.
  2. Conversion to Optical Signal: The signal is digitized into 8-bit uncompressed video and transformed into an optical signal.
  3. Fiber Transmission: The optical signal is transmitted over Singlemode (SM) or Multimode (MM) fiber cable to the receiving end.
  4. Signal Output: The receiver converts the optical signal back to analog, making it viewable on monitors or recorders.

Key Features of Video to Fiber Installation Kits

  • Digitally Encoded 8-Bit Video Transmission: Preserves the original quality of your analog CCTV feed.
  • NTSC, PAL, and SECAM Compatibility: Supports major analog video formats for global integration.
  • Support for Multimode and Singlemode Fiber: Flexible deployment for up to 30km range.
  • Multiple Channel Options: Available in 1, 2, 4, 8, and 16-channel configurations.
  • Integrated Data, Audio, and Contact Closure: Bi-directional data and optional audio/alarm support.
  • Rugged, Industrial-Grade Design: Operates in harsh and mission-critical environments.
  • Real-Time LED System Monitoring: Visual indicators for quick troubleshooting.
  • Hot-Swappable and Rack-Mount Capable: Supports centralized management with the FVC18 chassis.

Choosing the Right Video to Fiber Installation Kit

Number of Cameras/Video Channels

  • 1-Channel Kits: Retail stores, homes, gates.

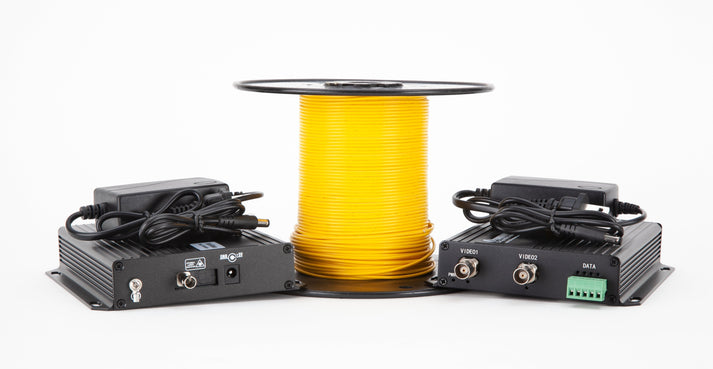

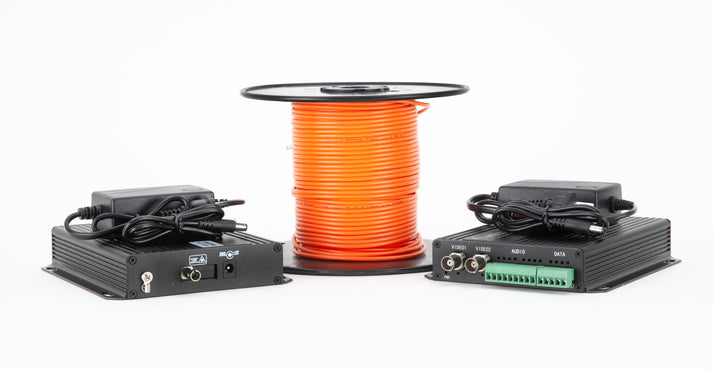

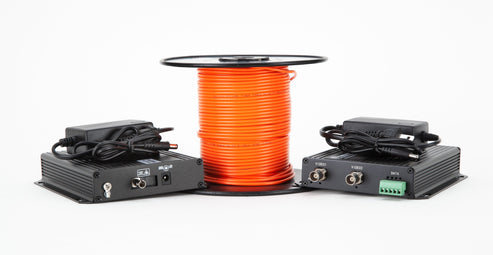

  • 2-Channel Kits: Small offices, entry/exit points.

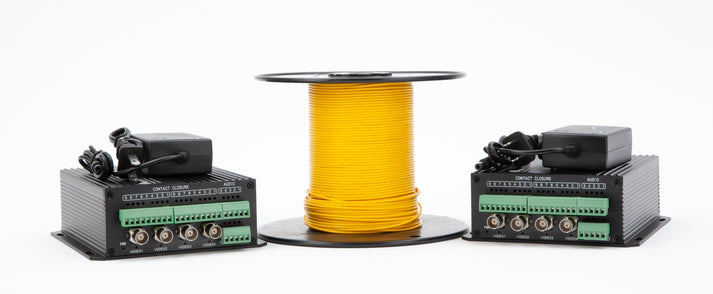

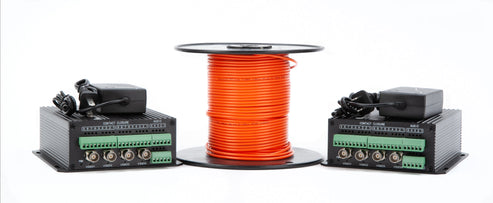

  • 4-Channel Kits: Warehouses, campuses.
  • 8-Channel Kits: Multi-zone surveillance.

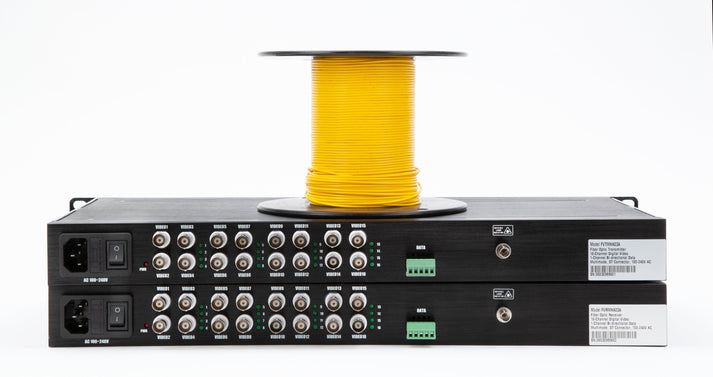

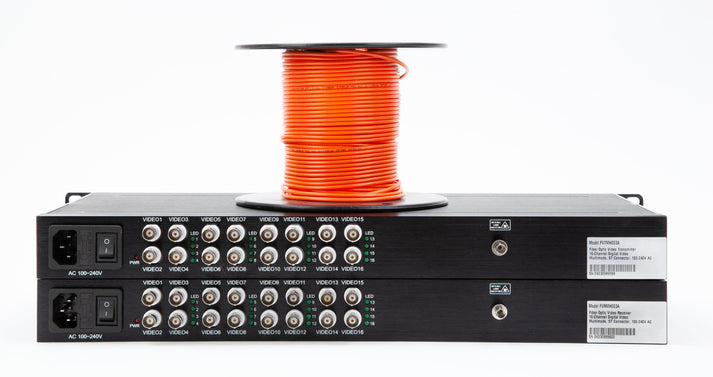

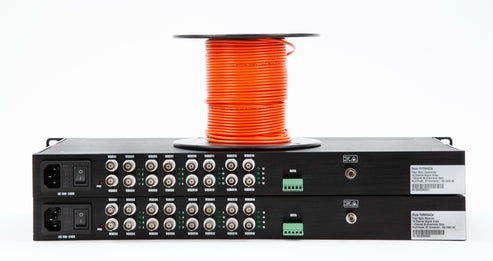

  • 16-Channel Kits: Enterprises, military zones.

Fiber Type and Distance

  • Multimode (MM): Up to 2km
  • Singlemode (SM): Up to 30km

Signal Requirements

  • Video only
  • Data (PTZ)
  • Audio (microphones)
  • Contact Closure (alarms, sensors)

Environment Type

  • Indoor: Standard/rack-mount kits
  • Outdoor/Industrial: Ruggedized enclosures

Interface Options

  • Supports RS-232, RS-422, RS-485

Advantages of Using Video Over Fiber for CCTV Systems

  • Extended Transmission Distance: Up to 30km without repeaters.
  • Immune to Interference: Resistant to EMI, RFI, power surges.
  • High-Resolution Video Quality: Uncompressed, digital-quality video.
  • Secure Signal Transmission: Tamper-proof fiber lines.
  • Future-Proof Scalability: Add more channels or switch to IP easily.
  • Reduced Signal Loss: Fiber retains quality over distance.

Installation: Simple and Reliable Setup

  1. Connect camera to the video transmitter via BNC cable.
  2. Lay fiber optic cable from transmitter to receiver location.
  3. Connect receiver and link to DVR/NVR or monitor.
  4. Attach optional interfaces (data, audio, CC).
  5. Power the units—auto transmission begins.
  6. Monitor LEDs for operational status.

No complex setup required—just connect and go.

Why Choose VERSITRON?

With over 60 years of experience, VERSITRON delivers rugged, industrial-grade communication systems trusted worldwide. Our solutions come with:

  • Lifetime Warranty
  • U.S.-Based Technical Support
  • Build-to-Spec Options (RS-232, RS-422, RS-485)
  • Rack-Mount and Standalone Options

We’re not just a supplier—we’re your strategic partner in securing data and video transmissions.
