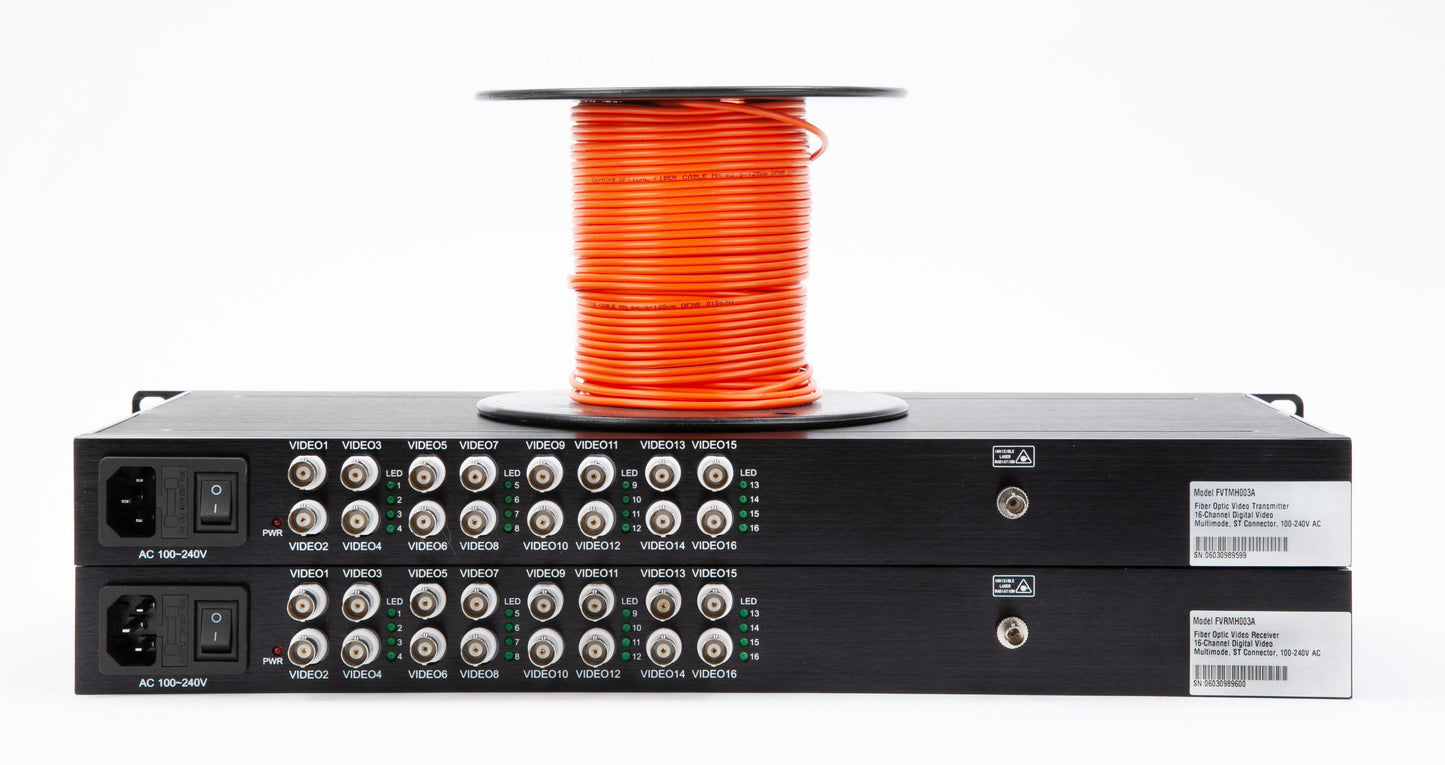

16-Channel Video Installation Kit | ST, MM
16-Channel Video Installation Kit | ST, MM
SKU:FVMTRH003A
-
Free Ground Shipping For Online Store Orders
-
Free Unlimited Support
-
Lifetime Warranty
Couldn't load pickup availability
The FVMTRH003A installation kit includes 16-channel video transmitter and receiver devices for converting an analog CCTV signal over fiber. Power supplies and 100 meters of Multimode fiber cable are also provided.
Technical Specifications of FVMTRH003A: 16-Channel Digital Fiber Optic Video Converter
Video Input
2 Volt pk-pk (75 Ohms)
Input/Output Channels
16
Bandwidth
5 Hz – 8 MHz
Bit Resolution
8-Bit
Differential Gain
<±1%
Differential Phase
<±1°
Tilt
<1%
S/N Ratio
60dB (Weighted)
Wavelength
1310nm
Number of Fibers
1
Video Connector
BNC
Optical Connector
ST
Power Supply
100-240VAC / 50-60 Hz
MTBF
>100,000 Hours
Operating Temperature
-35°C to +65°C
Storage Temperature
-45°C to +85°C
Relative Humidity
0% to 95% (non-condensing)
Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status. A typical installation utilizes a transmitter unit at the camera end of the link, connected via a single fiber optic cable, to a receiver unit at the monitoring end of the link.
As with all VERSITRON products, these video converters carry a lifetime warranty. Please give us a call (1-800-537-2296) or open a chat with any questions. We would be delighted to speak with you!
FVMTRH003A: 16-Channel Digital Fiber Optic Video Converter Installation Kit
VERSITRON’S VersiVision Product Series
Everything you need in a complete package for connecting your analog camera to your monitoring equipment. The FVMTRH003A supports 8-bit digitally encoded broadcast quality video over one multimode optical fiber. The transmitter and receiver modules are directly compatible with NTSC, PAL, and SECAM camera systems. These devices are typically used in applications with a fixed camera.
*All VersiVision Installation Kits include: Transmitter, Receiver, Power Supplies & 100 Meters of Fiber.
ST optical connectors are standard for both standalone and rackmount versions. These devices are available for installation into a standard 19” rack.
Technical Specifications of FVMTRH003A: 16-Channel Digital Fiber Optic Video Converter
Video Input
2 Volt pk-pk (75 Ohms)
Input/Output Channels
16
Bandwidth
5 Hz – 8 MHz
Bit Resolution
8-Bit
Differential Gain
<±1%
Differential Phase
<±1°
Tilt
<1%
S/N Ratio
60dB (Weighted)
Wavelength
1310nm
Number of Fibers
1
Video Connector
BNC
Optical Connector
ST
Power Supply
100-240VAC / 50-60 Hz
MTBF
>100,000 Hours
Operating Temperature
-35°C to +65°C
Storage Temperature
-45°C to +85°C
Relative Humidity
0% to 95% (non-condensing)
Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status. A typical installation utilizes a transmitter unit at the camera end of the link, connected via a single fiber optic cable, to a receiver unit at the monitoring end of the link.
As with all VERSITRON products, these video converters carry a lifetime warranty. Please give us a call (1-800-537-2296) or open a chat with any questions. We would be delighted to speak with you!
Key Features of FVMTRH003A: 16-Channel Digital Fiber Optic Video Converter
- 8-Bit Digitally Encoded Video Transmission
- Compatible with NTSC, PAL, or SECAM CCTV
- Transmit up to 30 Km without Optical Attenuation
- Wide Optical Dynamic Range
- No EMI, RFI Cross Talk or Video Distortion
- LED Indicators for Instant System Monitoring No Electrical or Optical Adjustments Required Standalone or Rackmount
