16-Channel Video Installation Kit | Data, ST, SM

SKU:FVMTRHA05A

Free Ground Shipping For Online Store Orders
Free Unlimited Support
Lifetime Warranty

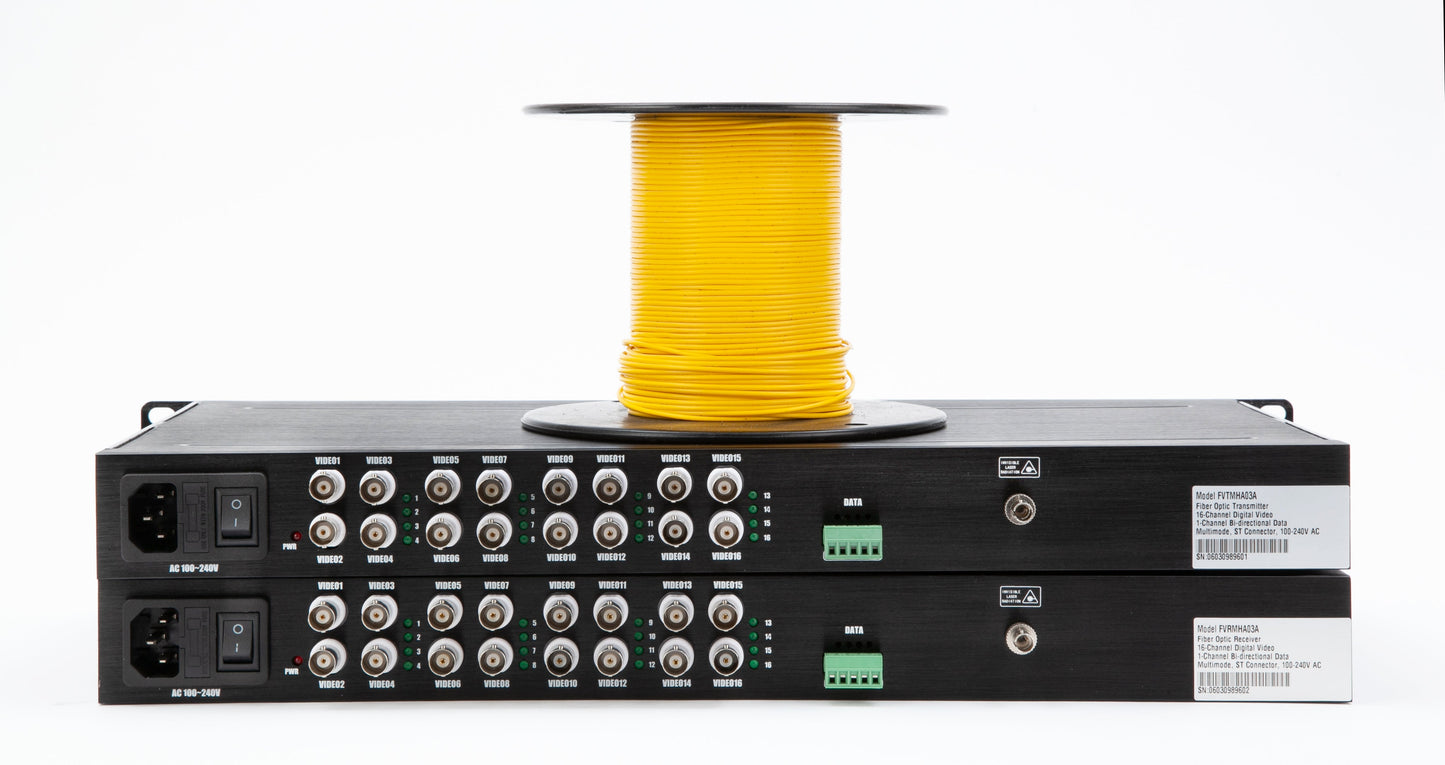

The FVMTRHA05A installation kit includes 16-channel video transmitter and receiver devices for converting an analog CCTV signal over fiber. These units also support 1-channel bi-directional data. Power supplies and 100 meters of Singlemode fiber cable are also provided.

View full details

FVMTRHA05A: 16-Channel Digital Fiber Optic Video Converter Installation Kit

VERSITRON’S VersiVision Product Series

Everything you need in a complete package for connecting your analog camera to your monitoring equipment. The FVMTRHA05A supports 8-bit digitally encoded broadcast quality video over one singlemode optical fiber. The transmitter and receiver modules are directly compatible with NTSC, PAL, and SECAM camera systems and support RS-485 data protocols. RS-232 and RS-422 data are available upon request. Use this VersiVision product with your PTZ cameras requiring return data.

*All VersiVision Installation Kits include: Transmitter, Receiver, Power Supplies & 100 Meters of Fiber.

ST optical connectors are standard for both standalone and rackmount versions. These devices are available for installation into a standard 19” rack.

Technical Specifications of FVMTRHA05A: 16-Channel Digital Fiber Optic Video Converter

Video Input

2 Volt pk-pk (75 Ohms)

Input/Output Channels

Bandwidth

5 Hz – 8 MHz

Bit Resolution

8-Bit

Differential Gain

<±1%

Differential Phase

<±1°

Tilt

<1%

S/N Ratio

60dB (Weighted)

Wavelength

1310nm

Number of Fibers

Video Connector

BNC

Optical Connector

Power Supply

5VDC, 2A

Data Interface

RS-485 (RS-422, RS-232 Optional)

Data Rate

Up to 300 Kbps

Data Channels

One Bi-Directional

Bit Error Rate

10⁻⁹

Data Contact

Screw Terminal Strip

MTBF

>100,000 Hours

Operating Temperature

-35°C to +65°C

Storage Temperature

-45°C to +85°C

Relative Humidity

0% to 95% (non-condensing)

Key Features of FVMTRHA05A: 16-Channel Digital Fiber Optic Video Converter

8-Bit Uncompressed Video Transmission
NTSC, PAL, or SECAM Camera System Compatible
RS-485 Data Protocol
RS-232, RS-422 available upon request
Transmit up to 30km without Optical Attenuation
WDM Technology for Higher Reliability No EMI, RFI, Cross Talk, or Video Distortion No Electrical or Optical Adjustments Required LED Indicators for Instant System Monitoring Standalone or Rackmount

HA0xA-RM_SPECS

16-channel_video_mux_bidata2

16-channel_video_mux_bidata

16-Channel Video Installation Kit (FVMTRHA05A) is used across the following Applications:

High-Density PTZ Surveillance Systems

Control of up to 16 PTZ cameras via RS-485
High-capacity video aggregation over a single fiber
Centralized monitoring of large surveillance networks
Efficient long-distance deployment

City-Wide Surveillance Infrastructure

Aggregation of multiple urban camera feeds
Long-distance transmission to central command centers
High-channel density reduces fiber usage
PTZ control for dynamic city monitoring

Smart City Monitoring Systems

Integration of large-scale surveillance networks
Centralized monitoring of multiple camera zones
Efficient backbone for smart infrastructure
Reliable fiber-based communication

Highway & Transportation Surveillance

Monitoring multiple highways and intersections
Long-distance connectivity between field and control rooms
Aggregation of 16 camera feeds
PTZ control for traffic management

Railway Network Monitoring

Monitoring extensive rail infrastructure
Long-range fiber transmission between stations
Centralized aggregation of multiple cameras
PTZ control for track surveillance

Airport Surveillance Systems

Monitoring terminals, runways, and security zones
High-density camera aggregation into central systems
Long-distance fiber backbone
PTZ control for wide-area coverage

Oil & Gas Field Surveillance

Monitoring large and remote industrial fields
Long-distance transmission between sites
Aggregation of multiple camera feeds
Reliable performance in harsh environments

Power Grid & Substation Monitoring

Monitoring multiple substations from central control rooms
Long-distance fiber communication links
High-channel aggregation for grid visibility
PTZ camera control for inspection

Military & Defense Installations

Monitoring large-scale secure facilities
Long-distance fiber transmission infrastructure
Centralized high-channel surveillance systems
PTZ control for tactical operations

Seaport & Logistics Hub Monitoring

Monitoring extensive port and cargo areas
Aggregation of multiple camera feeds
Centralized monitoring centers
Long-distance fiber backbone connectivity

Large Campus Surveillance Backbones

Connecting multiple buildings across large campuses
Centralized monitoring of up to 16 cameras
Scalable infrastructure for expansion
Efficient use of fiber resources

Industrial Complex Monitoring

Monitoring large manufacturing and processing plants
Fiber transmission resistant to EMI interference
Centralized multi-camera viewing systems
PTZ control for operational oversight

Border Security Surveillance Systems

Monitoring extended border regions with multiple cameras
Long-distance transmission to command centers
High-density video aggregation
Reliable fiber-based communication

Remote Infrastructure Monitoring

Monitoring multiple remote facilities from one location
Long-distance video transmission over singlemode fiber
Centralized aggregation of 16 channels
Reliable communication backbone

Pipeline & Utility Monitoring Systems

Monitoring extended utility and pipeline routes
Long-distance fiber connectivity
Aggregation of multiple surveillance points
Centralized monitoring systems

Multi-Site Enterprise Surveillance

Connecting multiple facilities into one monitoring center
High-density video aggregation across sites
Long-distance fiber transmission
Scalable enterprise surveillance infrastructure

Rack-Mounted Control Room Systems

Integration into standard 19" rackmount systems
Centralized receiver deployment
High-density multi-channel monitoring
Efficient control room configuration

Large Facility Perimeter Surveillance

Monitoring extensive perimeters with multiple cameras
Long-distance connectivity between zones
Centralized aggregation of video feeds
Reliable and scalable surveillance infrastructure

Versitron is one of the leading FVMTRHA05A 16-Channel Video Installation Kit manufacturing companies in the USA (based in Delaware). If your industry or installation location isn't listed above, feel free to reach out to us!

Buy the Best 16-Channel Video Installation Kit with Data over Singlemode Fiber from VERSITRON at a Competitive Price!
