10 Gigabit Media Converter | 1-RJ45 Ethernet Port | 1-SFP+ Fiber Port
10 Gigabit Media Converter | 1-RJ45 Ethernet Port | 1-SFP+ Fiber Port
SKU:M7280
-
Free Ground Shipping For Online Store Orders
-
Free Unlimited Support
-
Lifetime Warranty
Couldn't load pickup availability
The VERSITRON M7280 10Gigabit Ethernet Media Converter connects copper and fiber networks, offering reliable, high-speed data transmission in environments where 10Gigabit networking speeds are required. It converts 10/100/1G/10G Ethernet to 10G-FX Fiber utilizing 10G SFP+ fiber modules.
Product Highlights
- 10/100/1G/10G Copper Port
- 10G Fiber Optic SFP+ Slot
- Supports Auto-Negotiation
- Supports Hot-Plugging of SFP Modules
- MCC-14R Chassis Compatible
Product Highlights
- 10/100/1G/10G Copper Port
- 10G Fiber Optic SFP+ Slot
- Supports Auto-Negotiation
- Supports Hot-Plugging of SFP Modules
- MCC-14R Chassis Compatible
The 10 Gigabit media converter is essential for use in high-performance networks that require faster data transmission such as various security and surveillance applications utilizing IP-based cameras as well as data centers, and other mission critical applications.
The device operates by taking cat5/cat6 copper twisted-pair cabling and converting the signals to either Multimode or Singlemode fiber cable through the use of 10G SFP+ modules. Data transmission distances of up to 80km can be achieved.
Typical Application
- Mission Critical applications where faster data transmission speeds are necessary.
- Campus network extension where users in remote buildings need 10G speed through fiber optic cabling, whereby they are connected to a HUB switch at a central site.
- Video surveillance systems where IP networking cameras transmit high-resolution video signaling to a server using fiber optic cabling.
- Connecting high-bandwidth wireless access points to a central networking device or switch using fiber optic connections.
- Used in data centers where large packets and data traffic are exchanged between servers and other networking devices.
Benefits of Using a 10G Media Converter
- High-speed 10Gps data transfer rate allows for extended reach with fiber optic connectivity and improved signal quality.
- EMI/RFI Immunity ensures a more reliable and stable connection.
- Mix and Match copper and fiber infrastructure
- Ensure scalability by upgrading a network to a higher bandwidth without replacing all current infrastructure.
- Leverage existing copper infrastructure by simply adding higher speed connectivity, thereby reducing costs over time.
Standards
IEEE 802.3ab, 802.3ae, 802.3an, 802.3u, 802.3x
Copper Port (TP)
Supports 10/100/1G/10G, Shielded RJ-45 jack, Cat5e or higher UTP cable up to 100m, Auto-negotiation for duplex and flow control
Fiber Port (FX)
10G SFP+ compliant, Multi-Mode 50/125 or 62.5/125, Single-Mode 9/125 Fiber
LEDs
Power Status, Copper Link/Activity, 10G Copper Port Speed, Fiber Link/Activity, Fiber Signal
Forwarding Mode
Store and Forward
Forwarding Rate
14880000pps
Forwarding Delay
<5µs

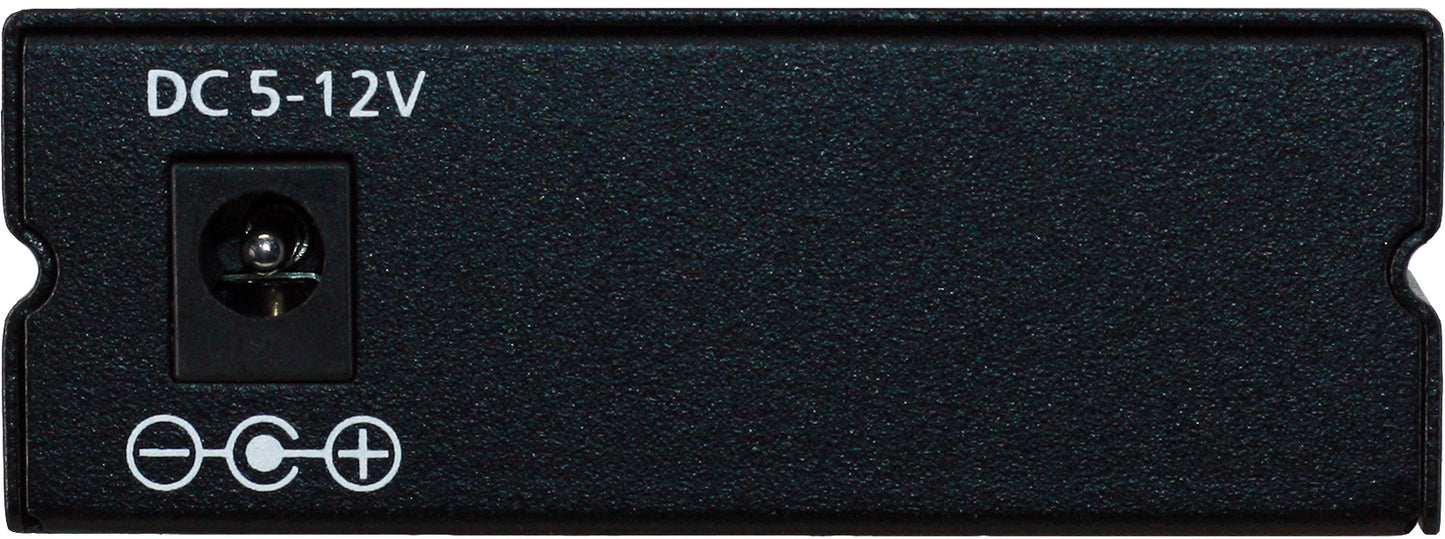

Power Input
+5-12VDC, 3A
Power Consumption
≤4.1W
Environment
Operating Temperature: -20° C ~ 70° C
Storage Temperature: -40° C ~ 85° C
Humidity: 5% ~ 95% non-condensing
Dimensions
3.74 x 2.79 x 1.06 inches (95 x 71 x 27 mm)
Weight
7.05 ounces
Installation Options
Desktop, Wall-Mount, MCC-14R Chassis, DIN-Rail (optional)
Protections
ESD: IEC 61000-4-2 Level 4 (8K/15K)
Surge Copper Port: IEC 61000-4-5 Level 3 (2KV, 10/700µs)
Surge Power: IEC 61000-4-5 Level 4 (4KV, 8/20µs)
Free Fall: 1.64 feet (0.5 meter)
Certifications
CE, FCC, RoHS
- 10/100/1G/10G Copper Port
- 10G Fiber Optic SFP+ Slot
- Full wire speed conversion
- Supports Auto MDI/MDI-X
- Supports Auto-Negotiation
- Supports jumbo packets up to 9K bytes
- Supports Watchdog Function
- High-Efficiency SRAM for packet buffer
- Supports Hot-Plugging of SFP Modules
- MCC-14R Chassis Compatible
- SFP+ flexibility (see Page 2)
| Product Name | Model | Speed (Mbps) | Wavelength | Media | Distance | Connector | TX Power | RX Sens | Temp | RFQ |
|---|---|---|---|---|---|---|---|---|---|---|
| 10GB SFP Module, 850nm, LC, MM | 10GBMM | 10G | 850nm | MMF | 62.5µ: 30m / 50µ: 80m / OM3: 300m | LC | -7 ~ -1 | < -10 | 0 to 70° C | |
| 10GB Ethernet SFP Module, 1310nm, LC, SM, 10km | 10GB10SM | 10G | 1310nm | SMF | 10km | LC | -6 ~ +1 | < -14 | 0 to 70° C | |
| 10GB40SM SFP Module, 10GBase, 1550nm, LC, SM, 40km | 10GB40SM | 10G | 1550nm | SMF | 40km | LC | -1 ~ +2 | < -16 | 0 to 70° C | |
| 10GB80SM SFP Module, 10GBase, 1550nm, LC, SMF, 80km | 10GB80SM | 10G | 1550nm | SMF | 80km | LC | 0 ~ +4 | < -23 | 0 to 70° C |
The VxS1A05 Series is widely deployed across military, surveillance, industrial, and infrastructure monitoring programs.
Enterprise & Business Campuses
- Core-to-distribution 10G fiber links
- Data center server cabinet uplinks
- High-speed VLAN backbones between buildings
- Aggregating access switches to central switch/router
Research & Scientific Facilities
- Lab instrument data aggregation
- High-throughput data capture stations
- Fiber-isolated zones in EMI-sensitive environments
- Supercomputing center interconnects
Healthcare & Medical Facilities
- Hospital PACS imaging system uplinks
- Cleanroom and diagnostic lab networking
- Medical device uplinks to central servers
- Redundant 10G links between departments
Military & Defense
- Command and control center fiber links
- Real-time ISR feeds
- Hardened edge devices needing 10G core access
- High-bandwidth tactical data networks
Public Safety & Emergency Services
- Dispatch center network backbones
- City surveillance network fiber junctions
- EOC high-speed fiber conversion
- Fiber handoff from remote field units
Transportation & Railways
- Smart traffic data aggregation points
- Rail operations control center uplinks
- Tunnel monitoring sensor aggregation
- Airport terminal-to-data center connections
Smart Cities & Municipal Networks
- 10G fiber backbone for IoT sensors
- Traffic camera and LPR systems
- Smart pole Ethernet-to-fiber bridges
- Public Wi-Fi infrastructure backhaul
Utilities & Energy
- Industrial Inspection and Monitoring Drones
- Power Utility Drone Monitoring
- Oil & Gas Inspection Platforms
- Commercial Security Surveillance Systems
Industrial & Commercial
- Substation data collector fiber uplinks
- Power grid control room networking
- Renewable energy SCADA fiber access
- Utility building high-speed fiber conversion
Maritime & Offshore
- Port terminal 10G uplinks
- Shipboard bridge-to-data deck fiber feeds
- Offshore rig surveillance and control connectivity
- Dock crane camera and PLC network expansion
Construction & Infrastructure
- Backbone uplink for temporary smart construction hubs
- Tunnel boring telemetry stations
- Fiber-to-Ethernet for lift control systems
- Bridge monitoring sensor feeds
Education & University Campuses
- High-speed fiber for research buildings
- Dormitory access network uplinks
- Smart classroom backbone connectivity
- Media labs and broadcasting uplinks
Media & Broadcasting
- Video production to CDN bridges
- Broadcast studio 10G file servers
- Live-streaming encoder uplinks
- AV-over-IP 10G switch connections
Data Centers & Colocation
- Server rack-to-switch 10G copper links
- Edge device to top-of-rack switch conversion
- Aggregation switch fiber expansion
- 10G demarcation from ISPs or fiber handoffs
Government Agencies
- Inter-building secure fiber conversion
- Surveillance and access control data aggregation
- High-throughput document imaging systems
- Secure VLAN uplinks for sensitive departments
