8-Channel Video Installation Kit | Data, ST, MM

SKU:FVMTR8A03A

Free Ground Shipping For Online Store Orders
Free Unlimited Support
Lifetime Warranty

The VERSITRON FVMTR8A03A 8-Channel Video Installation Kit provides a complete fiber optic solution for transmitting eight analog CCTV video signals plus one channel of bidirectional data over a single multimode optical fiber. The kit includes the transmitter, receiver, power supplies, and 100 meters of multimode fiber cable.

The VersiVision system provides 8-bit digitally encoded, broadcast-quality video and is directly compatible with NTSC, PAL, and SECAM camera systems. The multimode configuration supports transmission distances up to 2 km and provides an RS-485 bidirectional data channel, making it well suited for multi-camera surveillance systems that also require serial camera control or other data communications.

Product Highlights

8-channel digital video transmission
1-channel bidirectional data
Includes transmitter, receiver, power supplies, and 100 meters of multimode fiber
8-bit uncompressed video
Compatible with NTSC, PAL, and SECAM
Up to 2 km over multimode fiber
850/1310 nm multimode wavelength
Eight video channels plus data over one optical fiber
RS-485 bidirectional data
Data rates up to 300 Kbps
RS-232 or RS-422 available as an option
ST simplex optical connector
BNC video connections
Screw-terminal data connection
Plug-and-play installation
LED indicators for system monitoring
Standalone or rack-mount installation
Compatible with the FVC18 18-slot chassis

View full details

Complete 8-Channel Video and Data Fiber Optic Installation Kit

The FVMTR8A03A combines eight channels of digital video with a bidirectional serial data channel over a single multimode fiber connection.

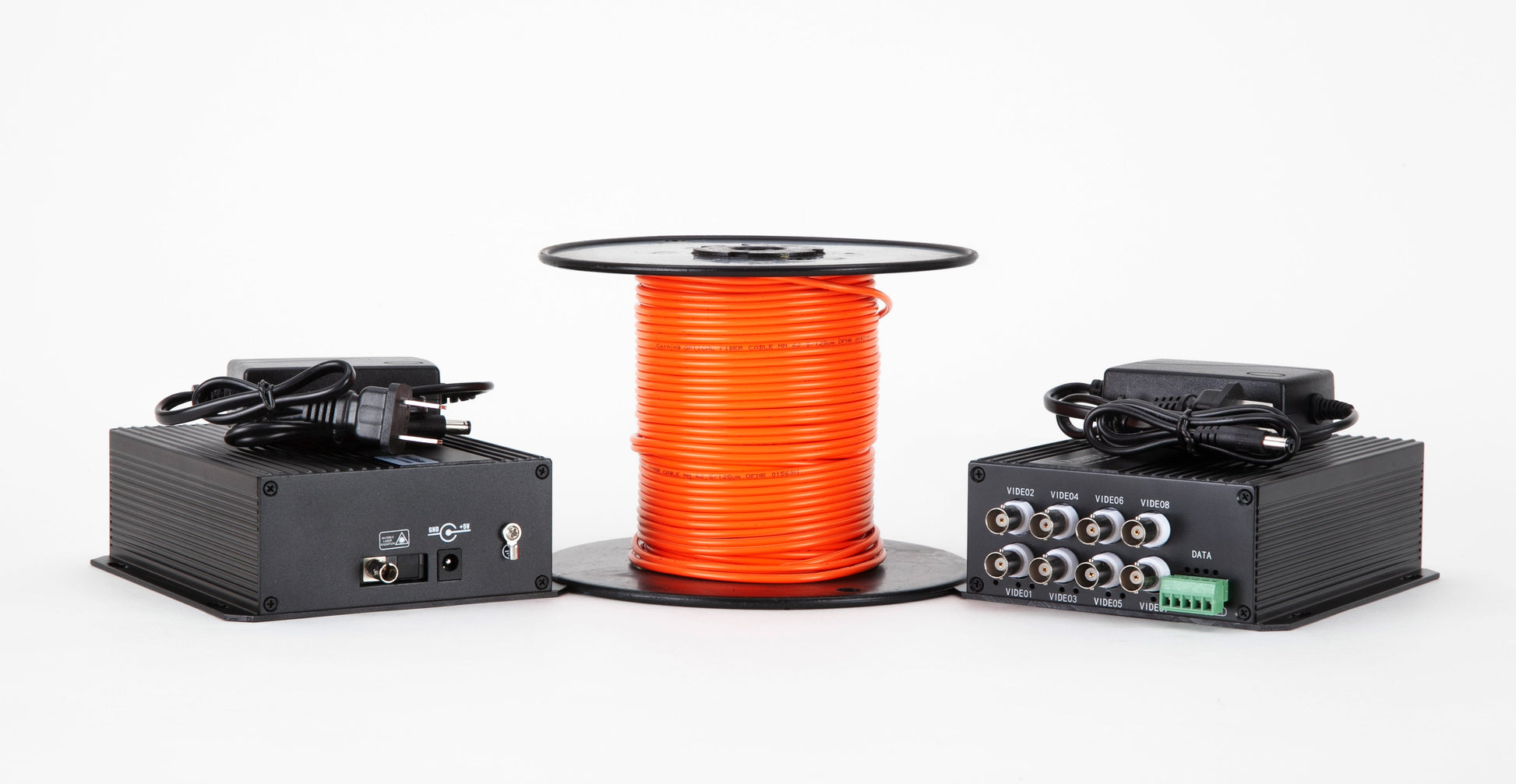

The installation kit includes the video transmitter, video receiver, power supplies, and 100 meters of multimode fiber cable, providing the primary components needed to establish a complete fiber optic video and data link.

A typical installation places the transmitter at the camera or video-source location and the receiver at the monitoring or control location. A single fiber optic cable connects the two units.

Eight Channels of Digital Video

The FVMTR8A03A supports eight channels of 8-bit digitally encoded, broadcast-quality video over one multimode optical fiber.

The transmitter and receiver are directly compatible with NTSC, PAL, and SECAM camera systems, allowing the system to integrate with a variety of analog CCTV equipment.

The eight video channels provide a practical way to connect multiple analog cameras to a remote monitoring location without requiring a separate fiber connection for every camera.

Bidirectional RS-485 Data

In addition to eight video channels, the FVMTR8A03A provides one channel of bidirectional RS-485 data.

The data interface supports rates up to 300 Kbps, while RS-232 and RS-422 are available as optional configurations.

This data channel can be used where cameras or other equipment require two-way serial communications, including applications involving PTZ camera control.

Eight Video Channels Plus Data Over One Fiber

The FVMTR8A03A is designed to transport eight video channels and one bidirectional data channel over a single optical fiber.

This provides an efficient fiber optic connection for multi-camera systems where video and serial data need to be transmitted together between remote locations.

Multimode Fiber Transmission up to 2 km

The multimode version uses 850/1310 nm optical transmission and supports distances up to 2 km.

This makes the FVMTR8A03A well suited for facilities and surveillance installations where multiple cameras are located within a 2 km multimode fiber transmission range.

8-Bit Uncompressed Video

The VersiVision system provides 8-bit uncompressed video transmission with a video bandwidth of 5 Hz–8 MHz.

The datasheet specifies differential gain below ±1%, differential phase below ±1°, tilt below 1%, and a 60 dB weighted signal-to-noise ratio.

Reliable Fiber Optic Video and Data Transmission

The FVMTR8A03A incorporates WDM technology for higher reliability and is designed without EMI, RFI, crosstalk, or video distortion.

Fiber optic transmission also provides electrical isolation between connected locations, making it useful for video and data communications in environments where electrical interference can be a concern.

Plug-and-Play Installation

The FVMTR8A03A uses a plug-and-play design for adjustment-free installation and operation. No electrical or optical adjustments are required, while LED indicators provide immediate visibility into system operating status.

The wiring diagram on page 3 of the datasheet illustrates the eight video connections and the bidirectional data connection between the transmitter and receiver, with the complete link carried over a single simplex singlemode or multimode fiber.

Standard ST, BNC and Data Connections

The FVMTR8A03A provides:

ST simplex optical connection
BNC video connections
Screw-terminal data connection
One multimode optical fiber

ST-SC adapters are also available for applications using SC fiber connectors.

Standalone or Rack-Mount Installation

The transmitter and receiver can be deployed as standalone units or installed in the VERSITRON FVC18 18-slot chassis. The units are also hot-pluggable into the FVC18 chassis, providing a flexible option for higher-density installations.

8-Channel Video and Data Applications

The FVMTR8A03A is suited for applications requiring multiple analog video signals and bidirectional serial data to be transmitted over fiber, including:

CCTV video surveillance
PTZ camera systems
Multi-camera security systems
Remote video monitoring
Security control rooms
Industrial video monitoring
Manufacturing facilities
Transportation monitoring
Facility surveillance
Remote camera installations
Fiber optic video and camera-control links

Technical Specifications

Specification	FVMTR8A03A
Video Channels	8
Video Format	8-bit uncompressed
Video Compatibility	NTSC, PAL, SECAM
Data Channels	1 bidirectional
Data Interface	RS-485
Data Rate	Up to 300 Kbps
RS-232 / RS-422	Optional
Fiber Type	Multimode
Wavelength	850/1310 nm
Maximum Distance	2 km
Number of Fibers	1
Optical Connector	ST
Video Connector	BNC
Data Connector	Screw Terminal Strip
Video Input	2 Vp-p, 75Ω
Bandwidth	5 Hz–8 MHz
Bit Resolution	8-bit
Differential Gain	< ±1%
Differential Phase	< ±1°
Tilt	<1%
S/N Ratio	60 dB weighted
Optical Emitter	Laser diode
Power Supply	5VDC, 2A
Dimensions	5.98 × 5.12 × 1.95 inches
MTBF	>100,000 hours
Operating Temperature	-35°C to +65°C
Storage Temperature	-45°C to +85°C
Relative Humidity	0–95%, non-condensing
Bit Rate Error	10⁻⁹

Why Choose the VERSITRON FVMTR8A03A?

The FVMTR8A03A combines eight channels of digital video with one channel of bidirectional serial data over a single multimode fiber. This makes it a practical choice for multi-camera surveillance systems that require both video transmission and two-way data communications.

With 8-bit uncompressed video, NTSC/PAL/SECAM compatibility, 2 km multimode transmission, RS-485 data, ST optical connectivity, plug-and-play operation, and standalone or rack-mount installation, the FVMTR8A03A provides a flexible fiber optic solution for multi-camera video and data applications.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has provided fiber optic communication and video transmission solutions for demanding applications. The VersiVision FVMTR8A03A continues that tradition by combining multi-channel digital video and bidirectional data transmission over a single fiber optic connection.

For assistance selecting the appropriate VersiVision video transmitter, receiver, installation kit, or fiber optic video and data solution, contact VERSITRON for technical support.

Technical Specifications of FVMTR8A03A: 8-Channel Digital Fiber Optic Video Converter

Video Input

2 Volt pk-pk (75 Ohms)

Input/Output Channels

Bandwidth

5 Hz – 8 MHz

Bit Resolution

8-Bit

Differential Gain

<±1%

Differential Phase

<±1°

Tilt

<1%

S/N Ratio

60dB (Weighted)

Wavelength

1310nm

Number of Fibers

Video Connector

BNC

Optical Connector

Power Supply

5VDC, 2A

Data Interface

RS-485 (RS-422, RS-232 Optional)

Data Rate

Up to 300 Kbps

Data Channels

One Bi-Directional

Bit Error Rate

10⁻⁹

Data Contact

Screw Terminal Strip

MTBF

>100,000 Hours

Operating Temperature

-35°C to +65°C

Storage Temperature

-45°C to +85°C

Relative Humidity

0% to 95% (non-condensing)

Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status. A typical installation utilizes a transmitter unit at the camera end of the link, connected via a single fiber optic cable, to a receiver unit at the monitoring end of the link.

As with all VERSITRON products, these video converters carry a lifetime warranty. Please give us a call (1-800-537-2296) or open a chat with any questions. We would be delighted to speak with you!

Key Features of FVMTR8A03A: 8-Channel Digital Fiber Optic Video Converter

8-Bit Uncompressed Video Transmission
NTSC, PAL, or SECAM Camera System Compatible
RS-485 Data Protocol
RS-232, RS-422 Available Upon Request
Transmit up to 30km without Optical Attenuation
WDM Technology for Higher Reliability No EMI, RFI, Cross Talk, or Video Distortion No Electrical or Optical Adjustments Required LED Indicators for Instant System Monitoring Hot-Pluggable Standalone or Rackmount in FVC18 Chassis VersiVision Chassis

8A0xA SPECS

8-channel_video_mux_data2

8-channel_video_mux_data

8-Channel Video Installation Kit (FVMTR8A03A) is used across the following Applications:

Campus PTZ Surveillance Systems

Control of multiple PTZ cameras across campus environments
8-channel video transmission over multimode fiber
Centralized monitoring of academic or corporate campuses
Efficient short-range fiber deployment

Building-to-Building Surveillance Links

Connecting nearby buildings using multimode fiber
Aggregation of multiple camera feeds into one link
PTZ control via RS-485 data channel
Reliable short-distance transmission

Multi-Floor Facility Monitoring

Connecting cameras across different floors of a building
Centralized video monitoring systems
PTZ camera control for flexible viewing
Efficient use of internal fiber infrastructure

Industrial Plant Internal Surveillance

Monitoring production areas within a facility
Fiber transmission immune to electrical interference
Centralized viewing of multiple camera feeds
PTZ control for operational oversight

Warehouse PTZ Monitoring Systems

Monitoring large storage areas with PTZ cameras
Aggregation of multiple camera feeds
Reliable multimode fiber backbone
Centralized control and monitoring

Retail Complex Surveillance Systems

Monitoring multiple stores and corridors
Centralized control room video management
PTZ control for dynamic surveillance
Short-range fiber connectivity across the complex

Hospital Campus Monitoring

Monitoring multiple buildings within a medical campus
Reliable video transmission over multimode fiber
PTZ control for security personnel
Centralized monitoring of critical areas

Office Park Surveillance Systems

Connecting multiple office buildings
Aggregation of 8 camera feeds into one fiber link
Centralized monitoring systems
Efficient short-distance deployment

Data Center Facility Monitoring

Monitoring server rooms and access points
High-density camera deployment
Reliable fiber-based video transmission
Centralized surveillance systems

Transportation Hub Surveillance

Monitoring terminals and indoor transit areas
Aggregation of multiple camera feeds
PTZ control for wide-area observation
Short-range fiber communication within facilities

School & University Security Systems

Monitoring classrooms, hallways, and campuses
Centralized video recording systems
PTZ control for flexible coverage
Efficient multimode fiber backbone

Indoor Stadium & Arena Surveillance

Monitoring seating areas and entrances
Aggregation of multiple camera feeds
Centralized control room operations
PTZ camera control for event monitoring

Shopping Mall Surveillance Networks

Monitoring corridors and public areas
Centralized multi-camera video systems
PTZ control for enhanced visibility
Short-distance fiber connectivity

Logistics & Distribution Center Monitoring

Monitoring sorting and loading areas
Aggregation of multiple camera feeds
Centralized video management systems
Reliable multimode fiber infrastructure

Parking Garage Surveillance Systems

Monitoring multi-level parking structures
PTZ camera control for dynamic viewing
Centralized monitoring of all levels
Efficient indoor fiber deployment

Factory Floor Multi-Zone Monitoring

Monitoring multiple production zones
Fiber transmission resistant to EMI
Centralized viewing of 8 camera feeds
PTZ control for process monitoring

Multi-Building Corporate Surveillance

Connecting multiple buildings within a campus
Centralized monitoring systems
Aggregation of multiple camera feeds
Efficient use of multimode fiber links

Rack-Mounted Control Room Systems

Integration into 19" rackmount chassis
Centralized receiver installations
Scalable multi-channel video systems
Efficient monitoring infrastructure
