8-Channel Video Installation Kit | MM, ST

Complete 8-Channel Fiber Optic Video Installation Kit

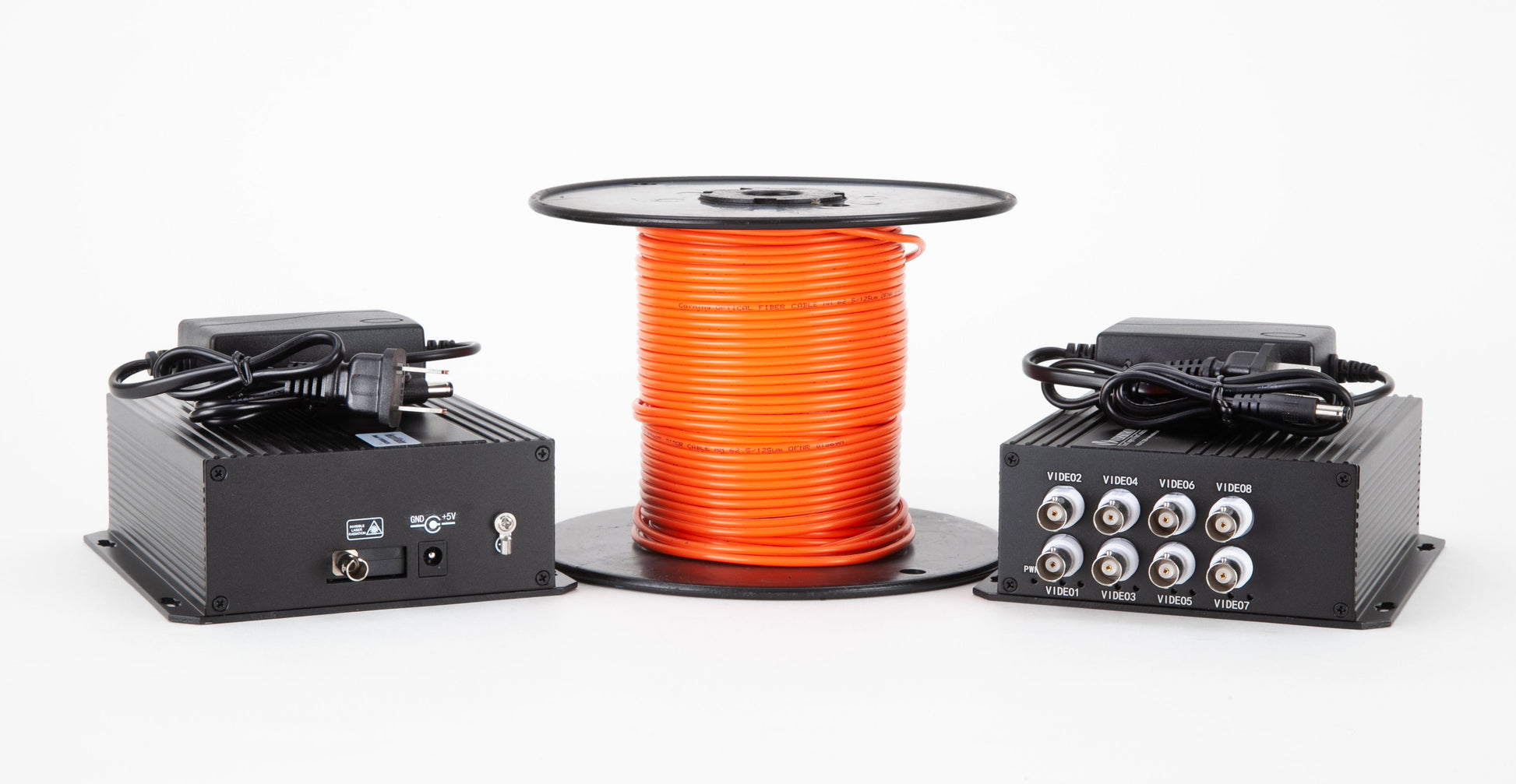

The FVMTR8003A provides the components needed to establish an eight-channel analog video link over multimode fiber. The installation kit includes an 8-channel video transmitter, receiver, power supplies, and 100 meters of multimode fiber cable.

A typical installation places the transmitter at the camera or video-source location and the receiver at the monitoring location. A single fiber optic cable connects the two units, allowing eight separate video signals to be transmitted between locations.

The wiring diagram on page 3 of the datasheet illustrates eight video sources connected to the transmitter and eight corresponding video monitors connected to the receiver through a single simplex singlemode or multimode fiber connection.

Eight Video Channels Over One Fiber

The VersiVision FVTM8003A transmitter and FVRM8003A receiver support eight channels of 8-bit digitally encoded broadcast-quality video over one multimode optical fiber. This allows multiple camera signals to share a single fiber connection between the camera location and monitoring equipment.

The system is directly compatible with NTSC, PAL, and SECAM camera systems.

8-Bit Uncompressed Digital Video

The FVMTR8003A provides 8-bit uncompressed digital video transmission across all eight channels.

The technical specifications identify eight video input/output channels, a video bandwidth of 5 Hz–8 MHz, 8-bit resolution, differential gain below ±1%, differential phase below ±1°, and a 60 dB weighted signal-to-noise ratio.

Multimode Fiber Transmission up to 2 km

The FVMTR8003A uses the FVTM8003A transmitter and FVRM8003A receiver, which are specified for multimode fiber transmission up to 2 km at 1310 nm.

This makes the kit well suited for installations where multiple analog camera signals need to be transported between locations over multimode fiber.

One Fiber for Eight Video Channels

The system uses one optical fiber to carry all eight video channels. This provides an efficient way to connect multiple cameras to a remote monitoring location without requiring a separate fiber for every video signal.

WDM Technology for Higher Reliability

The VersiVision 8-channel system incorporates WDM technology for higher reliability. The datasheet also specifies no EMI, RFI, crosstalk, or video distortion.

Plug-and-Play Installation

The FVMTR8003A is designed for adjustment-free installation and operation. No electrical or optical adjustments are required, and LED indicators provide immediate system operating-status information.

The transmitter is positioned at the video-source end of the fiber link, while the receiver is positioned at the monitoring end. The page 3 wiring diagram shows the eight video connections and the power/video indicators used during installation.

Standard ST and BNC Connections

The FVMTR8003A uses:

• ST simplex optical connector
• BNC video connectors
• One multimode optical fiber

ST-SC adapters are available for applications using SC fiber connectors.

Standalone or Rack-Mount Installation

The FVTM8003A transmitter and FVRM8003A receiver can be used as standalone units or installed in the VERSITRON FVC18 18-slot chassis. The units are hot-pluggable into the FVC18 chassis, providing a flexible option for higher-density video installations.

8-Channel Fiber Optic Video Applications

The FVMTR8003A is suited for applications requiring multiple analog video signals to be transmitted over one multimode fiber connection, including:

• CCTV video surveillance
• Multi-camera security systems
• Remote video monitoring
• Security control rooms
• Industrial video monitoring
• Manufacturing facilities
• Transportation monitoring
• Facility surveillance
• Remote camera installations
• Multi-camera fiber optic video links

Technical Specifications

Why Choose the VERSITRON FVMTR8003A?

The FVMTR8003A provides a complete eight-channel fiber optic video installation solution for applications that need to transport multiple analog camera signals over a single multimode fiber.

With eight channels of 8-bit uncompressed digital video, NTSC/PAL/SECAM compatibility, 2 km multimode transmission, ST optical connectivity, plug-and-play operation, and standalone or rack-mount installation, the FVMTR8003A provides a practical solution for multi-camera surveillance and video monitoring applications.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has provided fiber optic communication and video transmission solutions for demanding applications. The VersiVision FVMTR8003A continues that tradition by providing eight-channel digital video transmission over a single fiber optic connection.

For assistance selecting the appropriate VersiVision video transmitter, receiver, installation kit, or fiber optic video transmission solution, contact VERSITRON for technical support.
