Complete 8-Channel Fiber Optic Video Installation Kit

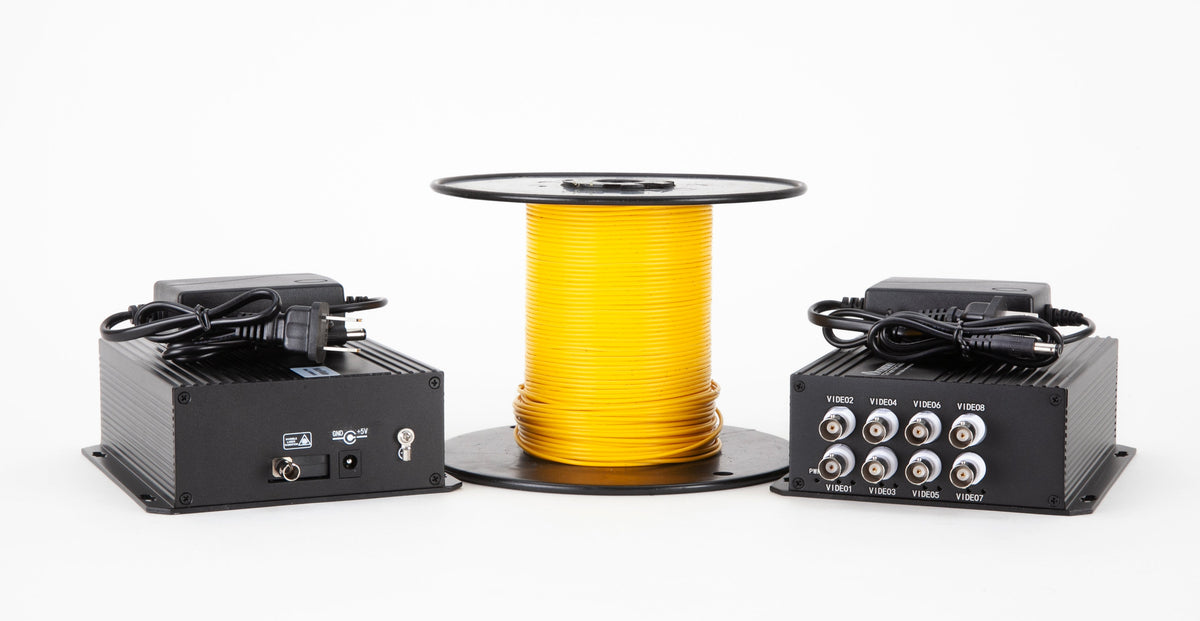

The FVMTR8005A provides the components needed to establish an eight-channel analog video link over singlemode fiber. The installation kit includes an 8-channel video transmitter, receiver, power supplies, and 100 meters of singlemode fiber cable.

A typical installation places the transmitter at the camera or video-source location and the receiver at the monitoring location. A single fiber optic cable connects the two units, allowing eight separate video signals to be transmitted between locations.

The VersiVision transmitter and receiver are designed for either standalone operation or rack-mount installation in the FVC18 18-slot chassis.

Eight Video Channels Over One Fiber

The FVTM8005A transmitter and FVRM8005A receiver support eight channels of 8-bit digitally encoded broadcast-quality video over one singlemode optical fiber. This allows multiple camera signals to share one fiber connection between the camera location and monitoring equipment.

The system is directly compatible with NTSC, PAL, and SECAM camera systems, providing flexibility when integrating with existing analog video equipment.

8-Bit Uncompressed Digital Video

The FVMTR8005A provides 8-bit uncompressed digital video transmission across all eight channels.

The technical specifications identify eight video input/output channels, a video bandwidth of 5 Hz–8 MHz, 8-bit resolution, differential gain below ±1%, differential phase below ±1°, and a 60 dB weighted signal-to-noise ratio.

Long-Distance Singlemode Fiber Transmission

The FVMTR8005A is designed for long-distance video transmission using 1310 nm singlemode fiber. The FVTM8005A transmitter and FVRM8005A receiver are specified for distances of up to 30 km.

This makes the kit particularly useful when cameras and monitoring equipment are separated by significant distances, such as large industrial facilities, transportation infrastructure, remote surveillance locations, and other distributed video systems.

One Fiber for Eight Video Channels

All eight video channels are transmitted over one optical fiber, reducing the amount of fiber infrastructure required for multi-camera installations. The system uses a simplex fiber connection between the transmitter and receiver.

Reliable Video Transmission

The VersiVision 8-channel system incorporates WDM technology for higher reliability and is designed to provide video transmission without EMI, RFI, crosstalk, or video distortion.

Fiber also provides an electrically isolated transmission path between the camera and monitoring locations, making fiber optic video an effective choice for installations where long-distance signal transmission is required.

Plug-and-Play Installation

The FVMTR8005A uses a plug-and-play design for adjustment-free installation and operation. No electrical or optical adjustments are required, while LED indicators provide immediate monitoring of system operating status.

The wiring diagram in the datasheet illustrates the transmitter connected to multiple video sources and the receiver connected to multiple video monitors through a single simplex singlemode or multimode fiber connection.

Standard ST and BNC Connections

The FVMTR8005A uses:

• ST simplex optical connectors
• BNC video connectors
• One singlemode optical fiber
• 1310 nm optical transmission

ST-SC adapters are also available for applications using SC fiber connectors.

Standalone or Rack-Mount Installation

The transmitter and receiver can be deployed as standalone units or installed in the VERSITRON FVC18 18-slot chassis. The units are also hot-pluggable into the FVC18 chassis, making the system suitable for installations requiring multiple video transmission modules.

8-Channel Fiber Optic Video Applications

The FVMTR8005A is suited for applications requiring multiple analog video signals to be transmitted over long distances using singlemode fiber, including:

• CCTV video surveillance
• Multi-camera security systems
• Remote video monitoring
• Security control rooms
• Industrial video monitoring
• Manufacturing facilities
• Transportation monitoring
• Facility surveillance
• Remote camera installations
• Long-distance fiber optic video links

Technical Specifications

Why Choose the VERSITRON FVMTR8005A?

The FVMTR8005A provides a complete eight-channel fiber optic video installation solution for applications that require long-distance transmission of multiple analog camera signals over a single fiber.

With eight channels of 8-bit uncompressed digital video, NTSC/PAL/SECAM compatibility, 30 km singlemode transmission, 1310 nm optics, ST connectivity, plug-and-play operation, and standalone or rack-mount installation, the FVMTR8005A is a practical solution for demanding multi-camera surveillance and remote video monitoring applications.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has provided fiber optic communication and video transmission solutions for demanding applications. The VersiVision FVMTR8005A continues that tradition by providing reliable eight-channel digital video transmission over a single long-distance fiber optic connection.

For assistance selecting the appropriate VersiVision video transmitter, receiver, installation kit, or fiber optic video transmission solution, contact VERSITRON for technical support.

Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status. A typical installation utilizes a transmitter unit at the camera end of the link, connected via a single fiber optic cable, to a receiver unit at the monitoring end of the link.

Key Features of FVMTR8005A: 8-Channel Digital Fiber Optic Video Converter

• 8-Bit Digitally Encoded Video Transmission
• Compatible with NTSC, PAL, or SECAM CCTV
• Transmit up to 30km without Optical Attenuation
• Wide Optical Dynamic Range
• No EMI, RFI Cross Talk, and Video Distortion
• LED Indicators for Instant System Monitoring No Electrical or Optical Adjustments Required Hot-Pluggable Standalone or Rackmount VersiVision Chassis
