16-Channel Video Installation Kit | Data, ST, MM
16-Channel Video Installation Kit | Data, ST, MM
SKU:FVMTRHA03A
-
Free Ground Shipping For Online Store Orders
-
Free Unlimited Support
-
Lifetime Warranty
Couldn't load pickup availability
The VersiVision system provides 8-bit digitally encoded, broadcast-quality video and is directly compatible with NTSC, PAL, and SECAM camera systems. The multimode configuration supports transmission distances up to 1 km and includes RS-485 bidirectional data, making it well suited for multi-camera surveillance systems requiring both video and serial data communications.
Product Highlights
- 16-channel digital video transmission
- 1-channel bidirectional data
- Includes transmitter, receiver, power supplies, and 100 meters of multimode fiber
- 8-bit uncompressed video
- Compatible with NTSC, PAL, and SECAM
- Up to 1 km over multimode fiber
- 850/1310 nm multimode wavelength
- 16 video channels plus data over one optical fiber
- RS-485 bidirectional data
- Data rates up to 300 Kbps
- RS-232 or RS-422 available as an option
- ST simplex optical connector
- BNC video connections
- Screw-terminal data connection
- Plug-and-play installation
- No electrical or optical adjustments required
- LED indicators for instant system monitoring
- 1U, 19-inch rack-mount design
Video Input
2 Volt pk-pk (75 Ohms)
Input/Output Channels
16
Bandwidth
5 Hz – 8 MHz
Bit Resolution
8-Bit
Differential Gain
<±1%
Differential Phase
<±1°
Tilt
<1%
S/N Ratio
60dB (Weighted)
Wavelength
1310nm
Number of Fibers
1
Video Connector
BNC
Optical Connector
ST
Power Supply
5VDC, 2A
Data Interface
RS-485 (RS-422, RS-232 Optional)
Data Rate
Up to 300 Kbps
Data Channels
One Bi-Directional
Bit Error Rate
10⁻⁹
Data Contact
Screw Terminal Strip
MTBF
>100,000 Hours
Operating Temperature
-35°C to +65°C
Storage Temperature
-45°C to +85°C
Relative Humidity
0% to 95% (non-condensing)
Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status. A typical installation utilizes a transmitter unit at the camera end of the link, connected via a single fiber optic cable, to a receiver unit at the monitoring end of the link.
As with all VERSITRON products, these video converters carry a lifetime warranty. Please give us a call (1-800-537-2296) or open a chat with any questions. We would be delighted to speak with you!
Complete 16-Channel Video and Data Installation Kit
The FVMTRHA03A combines 16 channels of digital video with one channel of bidirectional serial data over a single multimode fiber connection.

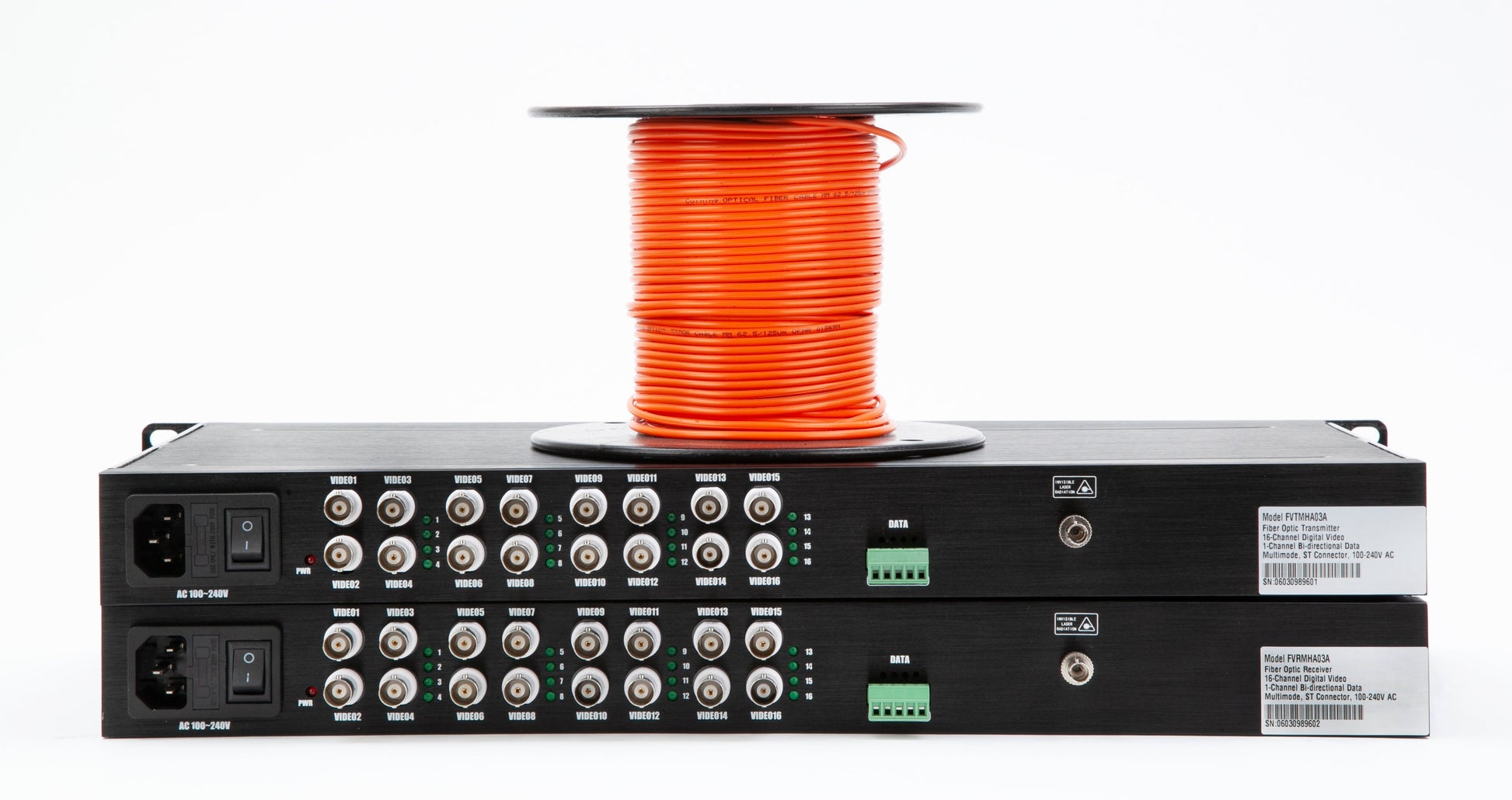

The installation kit includes the 16-channel video transmitter, receiver, power supplies, and 100 meters of multimode fiber cable, providing the primary components needed to establish a complete fiber optic video and data link.
A typical installation places the transmitter at the camera or video-source location and the receiver at the monitoring location. A single fiber optic cable connects the two units, allowing the video and data signals to be transmitted between locations.
16 Channels of Digital Video Over One Fiber
The FVMTRHA03A supports 16 channels of 8-bit digitally encoded, broadcast-quality video over one multimode optical fiber.
The transmitter and receiver are directly compatible with NTSC, PAL, and SECAM camera systems, making the system suitable for a wide range of analog CCTV equipment.
Using a single fiber for 16 video channels provides an efficient solution for high-density surveillance installations where multiple camera feeds need to be transported to a centralized monitoring or control location.
Bidirectional RS-485 Data
In addition to 16 video channels, the FVMTRHA03A provides one channel of bidirectional RS-485 data.
The data interface supports rates up to 300 Kbps, while RS-232 and RS-422 are available as optional configurations.
The additional data channel makes the FVMTRHA03A suitable for applications where video systems also require two-way serial communications, including PTZ camera control.
Multimode Fiber Transmission up to 1 km
The FVMTRHA03A uses 850/1310 nm multimode optics and supports transmission distances up to 1 km. The corresponding FVTMHA03A transmitter and FVRMHA03A receiver are both specified for 1 km multimode operation.
8-Bit Uncompressed Video
The VersiVision system provides 8-bit uncompressed video transmission with a video bandwidth of 5 Hz–8 MHz.
The technical specifications include differential gain below ±1%, differential phase below ±1°, tilt below 1%, and a 60 dB weighted signal-to-noise ratio.
Reliable Fiber Optic Video and Data Transmission
The FVMTRHA03A incorporates WDM technology for higher reliability and is designed to provide transmission without EMI, RFI, crosstalk, or video distortion.
Fiber optic transmission also provides an electrically isolated communications path between connected locations, making it useful for video and data systems deployed across electrically noisy environments.
Plug-and-Play Installation
The FVMTRHA03A uses a plug-and-play design for adjustment-free installation and operation. No electrical or optical adjustments are required, while LED indicators provide immediate visibility into system operating status.
The wiring diagram on page 3 of the datasheet illustrates the 16 video connections, bidirectional data connection, and single-fiber connection between the transmitter and receiver.
Standard ST, BNC and Data Connections
The FVMTRHA03A provides:
- ST simplex optical connector
- BNC video connectors
- Screw-terminal data connection
- One multimode optical fiber
ST-SC adapters are available for applications using SC fiber connectors.
1U Rack-Mount Design
The FVMTRHA03A is designed for installation in a standard 19-inch rack. The transmitter and receiver use a 1U-high rack-mount format, with dimensions of 17.60 × 9.33 × 1.77 inches.
This rack-mount design makes the system well suited for centralized security rooms, monitoring centers, and other professional video installations where multiple camera feeds need to be organized in equipment racks.
16-Channel Video and Data Applications
The FVMTRHA03A is suited for applications requiring multiple analog video signals and bidirectional serial data to be transmitted over multimode fiber, including:
- CCTV video surveillance
- PTZ camera systems
- Multi-camera security systems
- Remote video monitoring
- Security control rooms
- Industrial video monitoring
- Manufacturing facilities
- Transportation monitoring
- Facility surveillance
- Remote camera installations
- Fiber optic video and camera-control links
Technical Specifications
| Specification | FVMTRHA03A |
|---|---|
| Video Channels | 16 |
| Video Format | 8-bit uncompressed |
| Video Compatibility | NTSC, PAL, SECAM |
| Data Channels | 1 bidirectional |
| Data Interface | RS-485 |
| Data Rate | Up to 300 Kbps |
| RS-232 / RS-422 | Optional |
| Fiber Type | Multimode |
| Wavelength | 850/1310 nm |
| Maximum Distance | 1 km |
| Number of Fibers | 1 |
| Optical Connector | ST |
| Video Connector | BNC |
| Data Connector | Screw Terminal Strip |
| Video Input | 2 Vp-p, 75Ω |
| Bandwidth | 5 Hz–8 MHz |
| Bit Resolution | 8-bit |
| Differential Gain | < ±1% |
| Differential Phase | < ±1° |
| Tilt | <1% |
| S/N Ratio | 60 dB weighted |
| Optical Emitter | Laser diode |
| Power Supply | 100–240VAC |
| Dimensions | 17.60 × 9.33 × 1.77 inches |
| Installation | 1U, 19-inch rack-mount |
| MTBF | >100,000 hours |
| Operating Temperature | -35°C to +65°C |
| Storage Temperature | -45°C to +85°C |
| Relative Humidity | 0–95%, non-condensing |
Why Choose the VERSITRON FVMTRHA03A?
The FVMTRHA03A combines 16 channels of digital video and one channel of bidirectional serial data over a single multimode fiber. Its high channel density and 1U rack-mount design make it a practical solution for centralized surveillance and video monitoring installations.
With 8-bit uncompressed video, NTSC/PAL/SECAM compatibility, 1 km multimode transmission, RS-485 data, ST optical connectivity, plug-and-play operation, and 19-inch rack-mount installation, the FVMTRHA03A provides a flexible solution for multi-channel fiber optic video and data transmission.
VERSITRON — Safeguarding Communications Since 1958
Since 1958, VERSITRON has provided fiber optic communication and video transmission solutions for demanding applications. The VersiVision FVMTRHA03A continues that tradition by combining 16-channel digital video and bidirectional data transmission over a single fiber optic connection.
For assistance selecting the appropriate VersiVision video transmitter, receiver, installation kit, or fiber optic video and data solution, contact VERSITRON for technical support.
Video Input
2 Volt pk-pk (75 Ohms)
Input/Output Channels
16
Bandwidth
5 Hz – 8 MHz
Bit Resolution
8-Bit
Differential Gain
<±1%
Differential Phase
<±1°
Tilt
<1%
S/N Ratio
60dB (Weighted)
Wavelength
1310nm
Number of Fibers
1
Video Connector
BNC
Optical Connector
ST
Power Supply
5VDC, 2A
Data Interface
RS-485 (RS-422, RS-232 Optional)
Data Rate
Up to 300 Kbps
Data Channels
One Bi-Directional
Bit Error Rate
10⁻⁹
Data Contact
Screw Terminal Strip
MTBF
>100,000 Hours
Operating Temperature
-35°C to +65°C
Storage Temperature
-45°C to +85°C
Relative Humidity
0% to 95% (non-condensing)
Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status. A typical installation utilizes a transmitter unit at the camera end of the link, connected via a single fiber optic cable, to a receiver unit at the monitoring end of the link.
As with all VERSITRON products, these video converters carry a lifetime warranty. Please give us a call (1-800-537-2296) or open a chat with any questions. We would be delighted to speak with you!
Key Features of FVMTRHA03A: 16-Channel Digital Fiber Optic Video Converter
- 8-Bit Uncompressed Video Transmission
- NTSC, PAL, or SECAM Camera System Compatible
- RS-485 Data Protocol
- RS-232, RS-422 available upon request
- Transmit up to 30km without Optical Attenuation
- WDM Technology for Higher Reliability No EMI, RFI, Cross Talk, or Video Distortion No Electrical or Optical Adjustments Required LED Indicators for Instant System Monitoring Standalone or Rackmount
16-Channel Video Installation Kit (FVMTRHA03A) is used across the following Applications:
High-Density PTZ Surveillance Systems
- Control of up to 16 PTZ cameras via RS-485
- Aggregation of multiple camera feeds over one fiber
- Centralized monitoring of large indoor systems
- Efficient short-range deployment
Campus Surveillance Networks
- Monitoring multiple buildings within a campus
- Centralized aggregation of 16 camera feeds
- Reliable multimode fiber backbone
- PTZ control for flexible surveillance
Building-to-Building Surveillance Systems
- Connecting nearby buildings using multimode fiber
- High-density video aggregation into a single link
- Centralized monitoring systems
- Efficient short-distance connectivity
Multi-Floor Facility Monitoring
- Connecting cameras across multiple floors
- Centralized video monitoring systems
- PTZ control for enhanced visibility
- Efficient indoor fiber infrastructure
Industrial Plant Internal Surveillance
- Monitoring large production areas with multiple cameras
- Fiber transmission resistant to EMI interference
- Centralized high-channel monitoring systems
- PTZ control for operational oversight
Warehouse & Distribution Monitoring
- Monitoring large storage and logistics facilities
- Aggregation of multiple camera feeds
- Centralized video management systems
- Reliable multimode fiber connectivity
Retail Complex & Mall Surveillance
- Monitoring large retail environments
- Centralized multi-camera surveillance systems
- PTZ control for wide-area visibility
- Efficient short-range fiber deployment
Hospital Campus Monitoring
- Monitoring multiple buildings within healthcare facilities
- Centralized aggregation of camera feeds
- Reliable fiber-based communication
- PTZ control for security operations
Office Park Surveillance Systems
- Connecting multiple office buildings
- Centralized monitoring of 16 camera feeds
- Efficient use of multimode fiber links
- Scalable surveillance infrastructure
Data Center Surveillance Systems
- Monitoring server rooms and access points
- High-density camera deployment
- Secure and interference-free transmission
- Centralized monitoring systems
Transportation Hub Monitoring
- Monitoring terminals and indoor transit areas
- Aggregation of multiple camera feeds
- Centralized control room systems
- PTZ control for dynamic observation
School & University Security Systems
- Monitoring classrooms, hallways, and campus zones
- Centralized video aggregation systems
- Reliable multimode fiber backbone
- PTZ control for enhanced surveillance
Indoor Stadium & Arena Surveillance
- Monitoring large indoor venues with multiple cameras
- Centralized high-channel video systems
- PTZ control for wide-area coverage
- Efficient indoor fiber deployment
Shopping Mall Surveillance Networks
- Monitoring corridors and public areas
- Centralized aggregation of camera feeds
- PTZ control for improved visibility
- Reliable short-distance fiber connectivity
Parking Garage Monitoring Systems
- Monitoring multi-level parking facilities
- Centralized multi-camera systems
- PTZ control for flexible viewing
- Efficient multimode fiber usage
Factory Multi-Zone Monitoring
- Monitoring multiple production zones simultaneously
- Centralized aggregation of 16 camera feeds
- Reliable fiber transmission
- PTZ control for process optimization
Multi-Building Corporate Surveillance
- Connecting nearby buildings within a campus
- Centralized high-channel monitoring systems
- Efficient fiber backbone deployment
- Scalable infrastructure for growth
Rack-Mounted Control Room Systems
- Integration into standard 19" rackmount systems
- Centralized receiver deployment
- High-density video aggregation
- Efficient monitoring system design
