4-Channel Video Installation Kit | Data, Audio, CC, ST, MM
4-Channel Video Installation Kit | Data, Audio, CC, ST, MM
SKU:FVMTR4AC3A-C0
-
Free Ground Shipping For Online Store Orders
-
Free Unlimited Support
-
Lifetime Warranty
Couldn't load pickup availability
The VersiVision system provides 8-bit digitally encoded broadcast-quality video and is directly compatible with NTSC, PAL, and SECAM camera systems. The multimode configuration supports transmission distances up to 3 km and includes RS-485 bidirectional data, 24-bit digital audio, and bidirectional contact closure for installations requiring multiple signal types over one fiber connection.
Product Highlights
- 4-channel digital video
- 1-channel bidirectional data
- 4-channel bidirectional audio
- 4-channel bidirectional contact closure

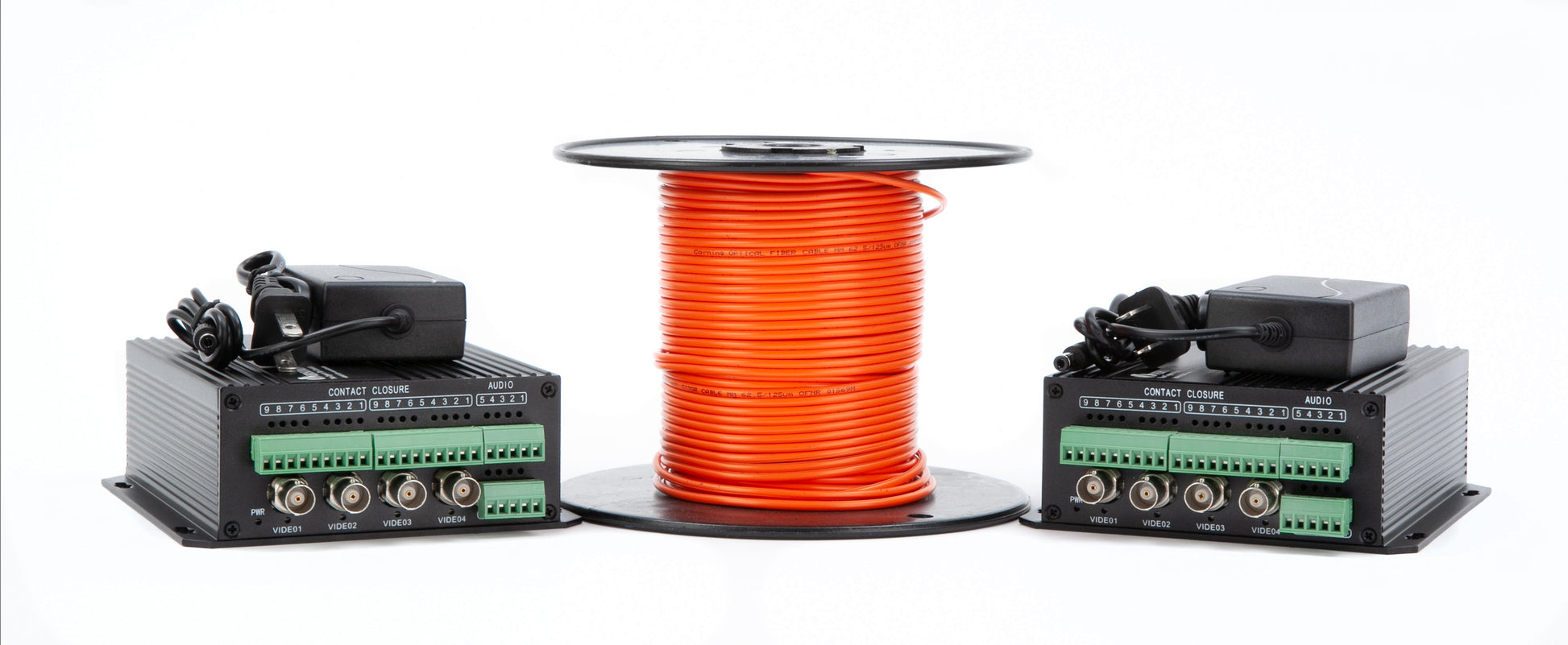

- Includes transmitter, receiver, power supplies, and 100 meters of multimode fiber
- 8-bit uncompressed video transmission
- Compatible with NTSC, PAL, and SECAM
- RS-485 bidirectional data
- RS-232 or RS-422 available as an option
- Data rates up to 300 Kbps
- 24-bit digitally encoded audio
- Audio frequency response of 10 Hz–20 kHz
- Transmission up to 3 km over multimode fiber
- 850/1310 nm multimode wavelength
- All signals transmitted over one optical fiber
- Standard ST simplex optical connector
- BNC video connections
- Screw-terminal connections for data, audio, and contact closure
- Plug-and-play installation
- No electrical or optical adjustments required
- LED indicators for system monitoring
- Standalone or rack-mount installation
- Compatible with the FVC18 18-slot chassis
Complete 4-Channel Video, Data, Audio and Contact Closure Fiber Optic Kit
The FVMTR4AC3A-C0 is designed for applications where video transmission alone is not enough. This feature-rich VersiVision installation kit combines multiple communication functions into a single fiber optic link.
The system supports:
- 4 channels of video
- 1 channel of bidirectional data
- 4 channels of bidirectional audio
- 4 channels of bidirectional contact closure
All of these signals are transmitted over one multimode optical fiber, helping simplify fiber cabling between camera locations and monitoring or control facilities.
Four Channels of Digital Video
The FVMTR4AC3A-C0 provides four channels of 8-bit digitally encoded, uncompressed video over one multimode optical fiber.
The transmitter and receiver are directly compatible with NTSC, PAL, and SECAM camera systems. The video interface uses standard BNC connections, making the system suitable for integrating analog cameras and video equipment into a fiber optic transmission link.
Bidirectional RS-485 Data
In addition to video, the system provides one channel of bidirectional RS-485 data with data rates up to 300 Kbps. RS-232 and RS-422 are available as optional configurations.
The bidirectional data channel can be used for applications requiring serial communication between the camera location and monitoring or control equipment.
Four Channels of Bidirectional Audio
The FVMTR4AC3A-C0 supports four channels of bidirectional audio. Audio is digitally encoded at 24-bit resolution and provides a frequency response of 10 Hz–20 kHz with a signal-to-noise ratio greater than 95 dB weighted.
This allows audio signals to travel in both directions over the same fiber connection as the video and data channels.
Four Channels of Bidirectional Contact Closure
The system also provides four channels of bidirectional contact closure, allowing contact-based control or status signals to be transmitted between locations over the fiber link.
The contact-closure interface supports normally open relay contacts rated at 24 VDC, 0.5A or 125 VAC, 0.1A.
Multiple Signals Over One Fiber
One of the primary advantages of the FVMTR4AC3A-C0 is its ability to combine multiple signal types onto a single optical fiber.
One fiber carries:
4 Video + 1 Data + 4 Audio + 4 Contact Closure
This can reduce the amount of fiber cabling required when video surveillance equipment also requires communications, audio, and contact-based control or monitoring.
Multimode Fiber Transmission up to 3 km
The FVMTR4AC3A-C0 multimode transmitter and receiver operate at 850/1310 nm and support transmission distances up to 3 km over multimode fiber.
The system uses one simplex optical fiber for the complete video, data, audio, and contact-closure link.
WDM Technology for Higher Reliability
The VersiVision system incorporates WDM technology for higher reliability while transmitting multiple signal types over a single fiber. The datasheet also identifies the system as having no EMI, RFI, crosstalk, or video distortion.
Plug-and-Play Installation
The FVMTR4AC3A-C0 is designed for adjustment-free installation and operation. No electrical or optical adjustments are required, while LED indicators provide immediate visibility into system operating status.
A typical installation places the transmitter at the camera or video source location and the receiver at the monitoring or control location, with one fiber optic cable connecting the two units.
Standard ST, BNC and Screw-Terminal Connections
The system provides:
- ST simplex optical connection
- BNC video connections
- Screw-terminal connections for data, audio, and contact closure
- One multimode optical fiber
ST-SC adapters are available for applications using SC fiber connectors.
Standalone or Rack-Mount Installation
The VersiVision transmitter and receiver can be deployed as standalone units or installed in the FVC18 18-slot chassis. The product is hot-pluggable into the FVC18 chassis, providing an option for installations requiring multiple fiber optic video systems.
4-Channel Video, Data, Audio and Contact Closure Applications
The FVMTR4AC3A-C0 is well suited for applications where multiple signal types need to be transmitted between remote locations, including:
- CCTV video surveillance
- PTZ camera systems
- Security and monitoring systems
- Industrial video monitoring
- Manufacturing facilities
- Transportation and traffic monitoring
- Remote security locations
- Industrial control systems
- Access and facility monitoring
- Applications requiring remote audio communications
- Systems requiring contact-closure monitoring or control
- Fiber optic video and control links
Technical Specifications
| Specification | FVMTR4AC3A-C0 |
|---|---|
| Video Channels | 4 |
| Video Format | 8-bit uncompressed |
| Video Compatibility | NTSC, PAL, SECAM |
| Data Channels | 1 bidirectional |
| Data Interface | RS-485 |
| Data Rate | Up to 300 Kbps |
| RS-232 / RS-422 | Optional |
| Audio Channels | 4 bidirectional |
| Audio Resolution | 24-bit |
| Audio Impedance | 600Ω |
| Audio Input/Output | 2.0 Vp-p |
| Audio Frequency Response | 10 Hz–20 kHz |
| Audio S/N Ratio | >95 dB weighted |
| Contact Closure Channels | 4 bidirectional |
| Contact Closure | Normally Open |
| Relay Rating | 24 VDC, 0.5A / 125 VAC, 0.1A |
| Fiber Type | Multimode |
| Wavelength | 850/1310 nm |
| Maximum Distance | 3 km |
| Number of Fibers | 1 |
| Optical Connector | ST |
| Video Connector | BNC |
| Data/Audio/CC Connector | Screw Terminal Strip |
| Video Input | 2 Vp-p, 75Ω |
| Video Bandwidth | 5 Hz–8 MHz |
| Differential Gain | < ±1% |
| Differential Phase | < ±1° |
| Tilt | <1% |
| Video S/N Ratio | 60 dB weighted |
| Optical Emitter | Laser diode |
| Power Supply | 5VDC, 2A |
| Dimensions | 5.98 × 5.12 × 1.95 inches |
| MTBF | >100,000 hours |
| Operating Temperature | -35°C to +65°C |
| Storage Temperature | -45°C to +85°C |
| Relative Humidity | 0–95%, non-condensing |
| Bit Error Rate | 10⁻⁹ |
Why Choose the VERSITRON FVMTR4AC3A-C0?
The FVMTR4AC3A-C0 provides considerably more than a conventional fiber optic video converter. It combines four channels of digital video, bidirectional data, four channels of bidirectional audio, and four channels of bidirectional contact closure over a single multimode fiber.
For installations where cameras also require serial control, audio communications, or contact-based monitoring and control, the FVMTR4AC3A-C0 provides a single fiber optic platform for transporting these signals between locations.
With 3 km multimode transmission, 8-bit uncompressed video, 24-bit digital audio, RS-485 data, bidirectional contact closure, plug-and-play operation, and ST optical connectivity, it provides a flexible solution for demanding multi-signal video transmission applications.
VERSITRON — Safeguarding Communications Since 1958
Since 1958, VERSITRON has provided fiber optic communication and video transmission solutions for demanding applications. The VersiVision FVMTR4AC3A-C0 continues that tradition by combining video, data, audio, and contact-closure transmission into a single fiber optic system.
For assistance selecting the appropriate VersiVision video transmitter, receiver, installation kit, or fiber optic video and data solution, contact VERSITRON for technical support.
Technical Specifications of FVMTR4AC3A-C0: 4-Channel Digital Fiber Optic Video Converter
Video Input
2 Volt pk-pk (75 Ohms)
Input/Output Channels
4
Bandwidth
5 Hz ~ 8 MHz
Bit Resolution
8 – Bit
Differential Gain
< ±1%
Differential Phase
< ±1°
Tilt
< 1%
S/N Ratio
60dB (Weighted)
Wavelength
850/1310nm
Number of Fibers
1
Video Connector
BNC
Optical Connector
ST
Power Supply
5VDC, 2A
Data Interface
RS-485 (RS-422, RS-232 Optional)
Data Rate
Up to 300 Kbps
Data Channels
One Bi-Directional
Bit Error Rate
10⁻⁹
Data Contact
Screw Terminal Strip
Contact Closure Relay
24VDC, 0.5A
125VAC, 0.1A (Normally Open)
Contact Closure Channel
Four Bi-Directional
Audio Channels
Four Bi-Directional
Audio Impedance
600 Ohms
Input/Output Voltage
2.0Vp-p
Frequency Response
10Hz ~ 20KHz
Bit Resolution
24-bit
Audio S/N Ratio
>95dB (Weighted)
MTBF
>100,000 Hours
Operating Temperature
-35°C to +65°C
Storage Temperature
-45°C to +85°C
Relative Humidity
0% to 95% (non-condensing)
Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status. A typical installation utilizes a transmitter unit at the camera end of the link, connected via a single fiber optic cable, to a receiver unit at the monitoring end of the link.
As with all VERSITRON products, these video converters carry a lifetime warranty. Please give us a call (1-800-537-2296) or open a chat with any questions. We would be delighted to speak with you!
Key Features of FVMTR4AC3A-C0: 4-Channel Digital Fiber Optic Video Converter
- 8-Bit Uncompressed Video Transmission
- 24-Bit Digitally Encoded Audio
- NTSC, PAL, or SECAM Camera System Compatible
- RS-485 Data Protocol
- RS-232 and RS-422 data protocols optional
- Transmit up to 30km without Optical Attenuation WDM Technology for Higher Reliability No EMI, RFI, Cross Talk, or Video Distortion No Electrical or Optical Adjustments Required LED Indicators for Instant System Monitoring Hot-Pluggable Standalone or Rackmount in FVC18 Chassis VersiVision Chassis
4-Channel Video Installation Kit (FVMTR4AC3A-C0) is used across the following Applications:
Integrated Video, Audio & Control Systems
- Simultaneous transmission of video, audio, and control signals
- Unified fiber infrastructure for surveillance systems
- Reduced cabling complexity with multi-signal support
- Efficient system integration over a single fiber link
Intercom & Surveillance Integration
- Two-way audio communication with video monitoring
- Integration of intercom systems with CCTV cameras
- Real-time voice and visual verification
- Secure communication across remote locations
Access Control with Video Verification
- Door control using contact closure signals
- Visual verification before granting access
- Remote unlocking and locking mechanisms
- Integrated security monitoring and response
Remote Gate & Barrier Control Systems
- Control of gates and barriers via contact closure
- Live video monitoring of entry points
- Audio communication with visitors or drivers
- Centralized control from security stations
Elevator Monitoring & Emergency Communication
- Video surveillance inside elevator cabins
- Two-way emergency audio communication
- Alarm signal transmission via contact closure
- Real-time monitoring from control rooms
Alarm System Integration
- Trigger-based video recording using contact closure
- Integration with intrusion detection systems
- Real-time alert and monitoring capabilities
- Synchronized audio and video response
Public Address & Monitoring Systems
- Audio announcements with visual monitoring
- Centralized PA system integration
- Real-time communication with remote zones
- Coordinated emergency broadcasting systems
Secure Facility Communication Networks
- Private fiber-based communication systems
- Secure transmission of audio and video signals
- Reduced risk of interception
- Reliable communication across sensitive areas
Control Room Command Systems
- Centralized monitoring of multiple remote inputs
- Two-way communication with field personnel
- Control signal transmission for remote operations
- Integrated command and response capabilities
Industrial Process Monitoring with Feedback
- Video monitoring of production processes
- Audio communication with field operators
- Equipment control using contact closure signals
- Real-time operational feedback systems
Emergency Response Communication Systems
- Real-time audio and video coordination
- Trigger alerts using contact closure inputs
- Rapid response monitoring systems
- Centralized emergency management integration
Building Automation Integration
- Integration with building control systems
- Trigger lighting, alarms, or locks remotely
- Video verification of automated actions
- Centralized smart building control
Parking Facility Communication Systems
- Driver assistance via two-way audio
- Barrier and gate control integration
- Video monitoring of entry and exit points
- Automated event triggering with sensors
Remote Equipment Control & Monitoring
- Control remote devices using relay outputs
- Monitor equipment status via video feeds
- Audio-assisted troubleshooting
- Efficient remote system management
Campus Security Communication Systems
- Emergency call stations with video support
- Two-way communication with security personnel
- Door and gate control integration
- Centralized campus-wide monitoring
Border & Perimeter Control Systems
- Video verification of perimeter breaches
- Audio communication with field units
- Trigger alarms and responses via contact closure
- Integrated multi-signal perimeter monitoring
Broadcast & Studio Communication Links
- Transmission of video with synchronized audio
- Studio-to-control room communication
- Low-latency signal delivery over fiber
- Reliable high-quality media transport
Multi-Signal Fiber Backbone Systems
- Transport of video, audio, and control over one fiber
- Efficient infrastructure for complex systems
- Reduced installation and maintenance costs
- Scalable architecture for future expansion
Versitron is one of the leading FVMTR4AC3A-C0 4-Channel Video Installation Kit manufacturing companies in the USA (based in Delaware). If your industry or installation location isn't listed above, feel free to reach out to us!
Buy the Best 4-Channel Video Installation Kit with Audio, Data & Contact Closure from VERSITRON at a Competitive Price!
Call / Chat With Us During Business Hours
Talk To A Real Person - No Phone Loops, Just The Support You Need.
Why Choose Us
Technical Support
Life Time Warranty
NDAA / TAA Compliant
Submit Enquiry
