16-Channel Video Installation Kit | ST, SM

Complete 16-Channel Singlemode Fiber Optic Video Installation Kit

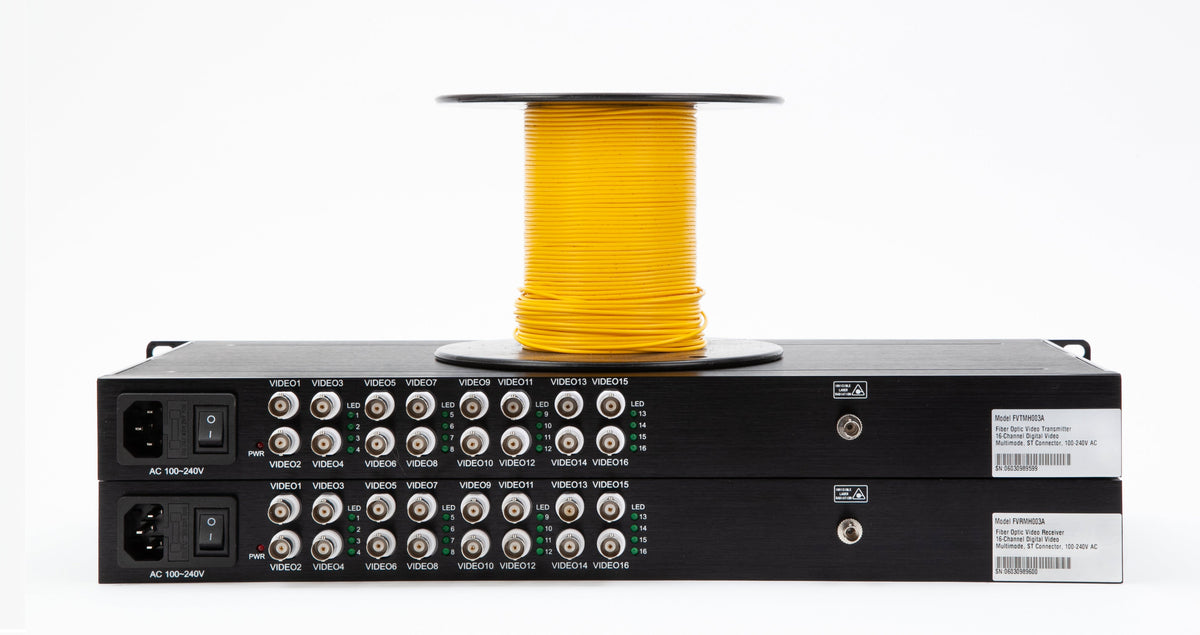

The FVMTRH005A provides the components needed to establish a high-density 16-channel analog video link over singlemode fiber. The installation kit includes a 16-channel video transmitter, receiver, power supplies, and 100 meters of singlemode fiber cable.

A typical installation places the transmitter at the camera or video-source location and the receiver at the monitoring location. A single fiber optic cable connects the two units, allowing 16 separate video signals to be transmitted between locations.

16 Video Channels Over One Fiber

The VersiVision FVMTRH005A supports 16 channels of 8-bit digitally encoded, broadcast-quality video over one singlemode optical fiber.

The transmitter and receiver are directly compatible with NTSC, PAL, and SECAM camera systems, making the system suitable for a wide range of analog CCTV equipment.

Using a single fiber connection for 16 video channels provides an efficient solution for centralized surveillance systems where multiple camera feeds need to be transported from a remote location to a monitoring or control facility.

8-Bit Uncompressed Digital Video

The FVMTRH005A provides 8-bit uncompressed video transmission across all 16 channels.

The technical specifications provide a video bandwidth of 5 Hz–8 MHz, 8-bit resolution, differential gain below ±1%, differential phase below ±1°, tilt below 1%, and a 60 dB weighted signal-to-noise ratio.

Long-Distance Singlemode Fiber Transmission

The FVMTRH005A uses 1310 nm singlemode optics and supports transmission distances up to 30 km. The corresponding FVTMH005A transmitter and FVRMH005A receiver are both specified for 30 km singlemode operation.

This extended transmission distance makes the FVMTRH005A particularly useful for surveillance and video monitoring systems where cameras and monitoring equipment are separated by significant distances.

Reliable Fiber Optic Video Transmission

The VersiVision 16-channel system incorporates WDM technology for higher reliability and is designed to provide video transmission without EMI, RFI, crosstalk, or video distortion.

Fiber optic transmission provides an electrically isolated communications path between locations, making it a practical choice for video systems operating across electrically noisy environments or between separate facilities.

Plug-and-Play Installation

The FVMTRH005A uses a plug-and-play design for adjustment-free installation and operation. No electrical or optical adjustments are required, while LED indicators provide immediate visibility into system operating status.

The wiring diagram on page 3 of the datasheet illustrates the 16 video connections between the transmitter and receiver and shows the video link being carried over a single simplex singlemode or multimode fiber.

Standard ST and BNC Connections

The FVMTRH005A provides:

• ST simplex optical connector
• BNC video connectors
• One singlemode optical fiber
• 1310 nm optical transmission

ST-SC adapters are also available for applications using SC fiber connectors.

Rack-Mount Video Installation

The FVMTRH005A is designed for professional video installations and is available in a 1U, 19-inch rack-mount format. The chassis dimensions are 17.60 × 9.33 × 1.77 inches.

The rack-mount design makes the system well suited for centralized security rooms, monitoring centers, and other installations where multiple video channels need to be organized in professional equipment racks.

16-Channel Singlemode Video Applications

The FVMTRH005A is suited for applications requiring multiple analog video signals to be transmitted over long-distance singlemode fiber, including:

• CCTV video surveillance
• Security monitoring systems
• Centralized security control rooms
• Industrial video monitoring
• Manufacturing facilities
• Transportation monitoring
• Facility surveillance
• Remote camera installations
• Large-scale video monitoring systems
• Long-distance fiber optic CCTV networks

Technical Specifications

Why Choose the VERSITRON FVMTRH005A?

The FVMTRH005A combines 16 channels of digital video with long-distance singlemode fiber transmission over one optical fiber. With support for distances up to 30 km, it provides a practical solution for centralized monitoring systems and remote CCTV installations where conventional copper video cabling is not suitable.

With 8-bit uncompressed video, NTSC/PAL/SECAM compatibility, 30 km singlemode transmission, 1310 nm optics, ST connectivity, plug-and-play operation, and professional rack-mount installation, the FVMTRH005A provides a reliable solution for high-channel-count fiber optic video applications.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has provided fiber optic communication and video transmission solutions for demanding applications. The VersiVision FVMTRH005A continues that tradition by providing 16-channel digital video transmission over a single long-distance fiber optic connection.

For assistance selecting the appropriate VersiVision video transmitter, receiver, installation kit, or fiber optic video transmission solution, contact VERSITRON for technical support.

Technical Specifications of FVMTRH005A: 16-Channel Digital Fiber Optic Video Converter

Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status. A typical installation utilizes a transmitter unit at the camera end of the link, connected via a single fiber optic cable, to a receiver unit at the monitoring end of the link.

As with all VERSITRON products, these video converters carry a lifetime warranty. Please give us a call (1-800-537-2296) or open a chat with any questions. We would be delighted to speak with you!

Key Features of FVMTRH005A: 16-Channel Digital Fiber Optic Video Converter

• 8-Bit Digitally Encoded Video Transmission
• Compatible with NTSC, PAL, or SECAM CCTV
• Transmit up to 30 Km without Optical Attenuation
• Wide Optical Dynamic Range
• No EMI, RFI Cross Talk or Video Distortion
• LED Indicators for Instant System Monitoring No Electrical or Optical Adjustments Required Standalone or Rackmount
