How to Choose the Right Unmanaged Switch: Industry-Specific Use Cases and Insights

Unmanaged Ethernet Switches

Not every network requires advanced configuration, centralized management, or complex security controls. In many applications, the primary requirement is straightforward: connect multiple Ethernet devices and allow them to communicate reliably.

This is where unmanaged Ethernet switches provide a practical solution.

Unlike managed switches, unmanaged switches generally require no configuration. Devices can be connected to the available Ethernet ports, and the switch automatically handles basic network communication. This plug-and-play operation makes unmanaged switches particularly useful for straightforward network expansion, equipment connectivity, surveillance systems, industrial applications, and other installations where advanced network management is unnecessary.

However, choosing the right unmanaged switch involves more than simply selecting the correct number of ports. Network speed, fiber connectivity, PoE requirements, operating environment, power input, mounting method, and future expansion should all be considered.

Understanding these requirements helps ensure that the selected switch provides reliable connectivity without adding unnecessary complexity or cost.

What Is an Unmanaged Ethernet Switch?

An unmanaged Ethernet switch is a networking device that connects multiple Ethernet-enabled devices within a local network without requiring manual configuration.

Depending on the application, connected devices may include:

• Computers and workstations
• IP cameras
• Network video recorders
• Industrial controllers
• Sensors and monitoring equipment
• Wireless access points
• Access-control equipment
• Building automation devices

In a basic network, the switch receives Ethernet traffic through one port and forwards it toward the appropriate connected device.

Features such as auto-negotiation and Auto-MDI/MDIX, when supported by the selected model, can simplify installation by automatically detecting compatible connection parameters and cable configurations.

The result is a straightforward networking solution that can often be installed without specialized network configuration.

Managed vs. Unmanaged Switches

One of the first decisions when selecting an Ethernet switch is whether the application requires a managed or unmanaged device.

When an Unmanaged Switch Makes Sense

An unmanaged switch may be appropriate when:

• The network is relatively simple
• Devices primarily need basic Ethernet connectivity
• No VLAN configuration is required
• Advanced traffic prioritization is unnecessary
• Remote switch management is not needed
• Detailed network monitoring is not required
• Plug-and-play deployment is preferred

For these applications, an unmanaged switch can provide the required connectivity without the additional cost and configuration associated with managed networking equipment.

When a Managed Switch May Be the Better Choice

More complex networks often require capabilities that an unmanaged switch cannot provide.

A managed switch should generally be considered when the application requires features such as:

• VLAN segmentation
• Configurable Quality of Service
• SNMP network monitoring
• Port-level configuration
• Access Control Lists
• Advanced network security controls
• Redundancy protocols
• Remote diagnostics and management
• Traffic monitoring or port mirroring

The choice between managed and unmanaged equipment should therefore be based on the operational requirements of the network rather than simply on price.

An unmanaged switch is often the right tool for a straightforward application. It should not, however, be used as a substitute for a managed switch when network control, visibility, or segmentation is required.

Key Factors When Choosing an Unmanaged Switch

Once an unmanaged architecture has been selected, several additional factors determine which switch is appropriate.

1. Determine the Required Port Count

The first consideration is the number of devices that need to connect to the switch.

Common configurations may include:

• 4 or 5 ports for small edge networks
• 8 or 9 ports for surveillance and industrial applications
• Higher port counts for larger device groups

It is generally useful to consider some capacity for future expansion rather than selecting a switch that uses every available port immediately.

For example, if a surveillance location currently contains six IP cameras, selecting a switch with additional capacity may make future camera expansion easier.

Fiber uplink ports should also be considered separately from copper Ethernet ports when evaluating total connectivity.

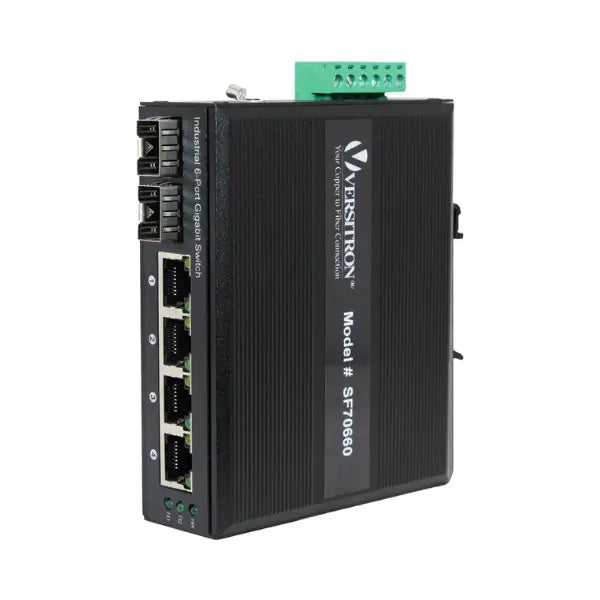

A switch described as having both RJ45 and SFP ports may provide a combination of local copper connections and fiber uplinks rather than making every port interchangeable.

2. Choose the Appropriate Network Speed

Network speed should be selected according to the bandwidth requirements of the connected devices and the overall network architecture.

Fast Ethernet supports data rates up to 100 Mbps.

It may still be sufficient for certain legacy equipment and lower-bandwidth industrial applications.

However, network designers should consider future requirements before deploying new Fast Ethernet infrastructure.

Gigabit Ethernet supports data rates up to 1 Gbps and is generally better suited to modern applications with higher bandwidth requirements.

Potential applications include:

• IP surveillance systems
• Industrial automation
• High-bandwidth edge devices
• Business networks
• Building automation
• Network aggregation

When several devices share the same uplink, the combined traffic requirements should also be considered.

A Gigabit connection to an individual device does not necessarily mean every device will continuously consume 1 Gbps of bandwidth, but sufficient uplink capacity is still important when traffic from multiple endpoints is aggregated.

3. Determine Whether Fiber Connectivity Is Required

Standard unmanaged Ethernet switches may provide only copper RJ45 ports.

Other models include fiber connectivity through fixed optical ports or SFP slots.

Fiber may be beneficial when:

• Network connections must extend beyond standard copper Ethernet distances
• Equipment is located in separate buildings
• Electromagnetic interference is a concern
• Electrical isolation is desirable
• Existing fiber infrastructure is available

An unmanaged switch with SFP connectivity can allow local Ethernet devices to connect through copper while providing a fiber uplink to another part of the network.

For example, several devices at a remote facility could connect to the switch through RJ45 ports, while an SFP-based fiber connection provides the long-distance link back to the main network.

4. Fixed Fiber Ports vs. SFP Slots

Not all fiber-capable switches provide the same type of optical connectivity.

A switch with fixed fiber ports includes the optical interface as part of the equipment.

This can simplify product selection when the required fiber type, connector, wavelength, and transmission distance are already known.

A switch with SFP slots provides greater flexibility because compatible transceiver modules can be selected according to the application.

Depending on the switch and supported SFP modules, this may allow network designers to choose between:

• Multimode fiber
• Single-mode fiber
• Different transmission distances
• Different optical wavelengths

When selecting an SFP-based switch, compatibility between the switch, transceiver, fiber type, and connector should always be verified.

5. Determine Whether PoE Is Required

An important distinction in switch selection is whether connected devices require Power over Ethernet.

PoE allows compatible network devices to receive electrical power and Ethernet data through the same twisted-pair cable.

Common PoE-powered devices include:

• IP cameras
• Wireless access points
• VoIP phones
• Access-control devices
• Certain sensors and IoT equipment

If connected devices require PoE, a standard non-PoE unmanaged switch will not provide the required power.

The selected switch should support the appropriate PoE standard and have sufficient total power budget for all connected devices.

Depending on the equipment, this may involve:

• IEEE 802.3af PoE
• IEEE 802.3at PoE+
• IEEE 802.3bt PoE++

The power requirement of each connected device and the total available PoE budget should be calculated before selecting the switch.

6. Commercial vs. Industrial Unmanaged Switches

A switch designed for an office environment may not be appropriate for installation in a factory, roadside cabinet, utility facility, or other demanding location.

Commercial unmanaged switches are generally suited to controlled indoor environments.

Industrial switches may provide features such as:

• Wider operating temperature ranges
• Rugged metal enclosures
• DIN-rail mounting
• Industrial DC power inputs
• Redundant power inputs
• Greater resistance to vibration and electrical disturbances

The exact specifications vary significantly between products, so terms such as industrial, rugged, and hardened should always be evaluated against the actual product specifications.

The operating environment not simply the application name should determine whether industrial-grade equipment is necessary.

Unmanaged Switches for IP Surveillance Systems

IP surveillance is one of the most common applications for Ethernet switches.

Multiple IP cameras may connect to a local switch, which then provides connectivity to a network video recorder, server, or broader surveillance network.

An unmanaged switch can work well in straightforward surveillance deployments where cameras simply need network connectivity and advanced traffic management is unnecessary.

Important considerations include:

• Number of cameras
• Camera bandwidth requirements
• Required uplink capacity
• PoE requirements
• Transmission distance
• Fiber connectivity
• Installation environment

For remote camera groups, an unmanaged switch with fiber connectivity can provide a particularly useful architecture.

Several cameras may connect locally through copper Ethernet, while fiber carries the aggregated network traffic back to the primary surveillance network.

However, larger or more complex surveillance systems may benefit from managed switching when VLAN segmentation, network monitoring, traffic prioritization, or redundancy is required.

Unmanaged Switches for Industrial Automation

Industrial automation networks may contain PLCs, sensors, machine controllers, HMIs, and other Ethernet-enabled equipment.

In straightforward applications, an industrial unmanaged switch can provide reliable connectivity between these devices without requiring network configuration.

Potential applications include:

• Manufacturing equipment
• Machine-to-machine communication
• Production monitoring
• Control cabinets
• Building automation
• Industrial sensors
• Local PLC networks

The most important selection factors in these environments often extend beyond basic Ethernet performance.

System designers should consider:

• Operating temperature
• Power input requirements
• Mounting method
• Vibration exposure
• Electrical environment
• Fiber connectivity
• Required port count

Where the network requires segmentation, redundancy protocols, detailed diagnostics, or remote management, a managed industrial switch may be more appropriate.

Unmanaged Switches for Utilities and Infrastructure

Utility and infrastructure networks often contain remote equipment that requires straightforward Ethernet connectivity.

Potential applications include:

• Water and wastewater facilities
• Utility substations
• Transportation infrastructure
• Remote monitoring locations
• Traffic systems
• Public facilities

Fiber-capable unmanaged switches can be useful when these devices are separated from the main network by long distances.

For example, several Ethernet devices inside a remote facility could connect to an industrial unmanaged switch, while fiber provides the long-distance uplink to another building or central network location.

The equipment selected for these applications should be based on the actual environmental and operational requirements of the installation.

A switch installed in a climate-controlled control room may have very different requirements from one installed inside an outdoor roadside or utility cabinet.

Unmanaged Switches for Commercial and Campus Networks

Commercial buildings, campuses, and smaller business networks often contain areas where devices simply need reliable Ethernet connectivity without advanced network management.

Potential applications include:

• Small office networks
• Building security systems
• IP surveillance
• Digital signage
• Local device connectivity
• Wireless access point connections
• Remote buildings
• Equipment rooms

An unmanaged switch can provide a cost-effective solution when the network requirements are straightforward.

For example, a remote building may contain several Ethernet devices that need to connect to the primary network in another facility. An unmanaged switch with fiber uplink capability can aggregate those local Ethernet connections while using fiber for the building-to-building connection.

However, larger campus networks often require VLANs, network monitoring, redundancy, and centralized management. In those environments, unmanaged switches may still be useful at selected network edges, but managed switches are generally more appropriate for the core infrastructure.

Government and Public Infrastructure Applications

Government and municipal networks can range from simple device connections to highly complex communication infrastructure.

An unmanaged switch may be appropriate for localized applications where connected devices require basic Ethernet connectivity without advanced configuration.

Potential applications include:

• Public buildings
• Municipal facilities
• Local surveillance networks
• Remote monitoring equipment
• Access-control infrastructure
• Traffic equipment
• Utility facilities

The important distinction is that deployment within a government facility does not automatically make an unmanaged switch a security-focused device.

An unmanaged switch typically does not provide advanced cybersecurity functions such as configurable access controls, VLAN segmentation, authentication, or detailed traffic monitoring.

If these capabilities are required, a managed switch should be selected instead.

For straightforward connectivity applications, however, an industrial or commercial unmanaged switch can provide a simple solution depending on the installation environment.

Transportation Networks

Transportation systems frequently contain Ethernet-connected equipment distributed across large physical areas.

Potential applications include:

• Traffic monitoring systems
• Railway facilities
• Airports
• Parking infrastructure
• Transit facilities
• Roadside equipment
• Transportation surveillance

An unmanaged switch can provide local connectivity for devices at a remote location, while a fiber uplink connects that location to the broader network.

For example, several Ethernet devices installed in a roadside cabinet could connect to a local industrial switch. Fiber could then carry the aggregated network traffic back toward a traffic management facility.

The correct switch for these applications depends heavily on the installation environment.

Equipment installed inside a climate-controlled transportation facility may require only commercial operating specifications. A switch installed in an outdoor cabinet may require a wider operating temperature range, industrial power inputs, and other environmental capabilities.

The enclosure protecting the equipment should also be considered separately. An industrial switch should not automatically be assumed to be weatherproof unless its specifications explicitly state an appropriate environmental or ingress-protection rating.

Designing Fiber Uplinks with Unmanaged Switches

Fiber connectivity is one of the most useful features available on certain unmanaged switches.

Standard copper Ethernet connections are generally limited to 100 meters under conventional structured-cabling standards. Fiber can extend network connections significantly farther while also providing immunity to electromagnetic and radio-frequency interference.

A common architecture looks like this:

At the remote location:

• IP cameras, controllers, or other Ethernet devices
• An unmanaged switch with copper Ethernet ports
• A fixed fiber port or compatible SFP transceiver

Across the network link:

• Single-mode or multimode fiber optic cable

At the central location:

• A compatible fiber-capable switch or media converter
• Connection to the broader network infrastructure

This architecture can be useful for connecting:

• Separate buildings
• Remote surveillance zones
• Industrial equipment areas
• Utility facilities
• Transportation infrastructure
• Large campuses

When designing the fiber connection, verify:

• Fiber type
• Optical wavelength
• Connector type
• Transmission distance
• SFP compatibility
• Required network speed

Both ends of the optical connection must use compatible equipment.

Power Input and Redundancy Considerations

Power requirements are particularly important when selecting industrial unmanaged switches.

Commercial switches commonly operate from a standard external AC power adapter, while industrial switches may accept DC power from industrial power supplies.

Depending on the model, an industrial switch may also support dual power inputs.

Dual power inputs can allow the switch to receive power from two separate sources, providing additional power resilience if one source becomes unavailable.

However, redundant power inputs should not be confused with complete network redundancy.

Even if a switch has two power inputs, the network can still be disrupted by:

• Fiber failure
• Uplink failure
• Switch hardware failure
• Upstream network failure

Applications requiring comprehensive network redundancy may need managed switches with appropriate redundancy protocols and a network architecture designed to eliminate single points of failure.

Common Mistakes When Choosing an Unmanaged Switch

Selecting a switch based only on port count or price can create problems later.

Some of the most common mistakes include:

A switch that is completely filled on the day it is installed provides no capacity for expansion.

Consider expected future devices when determining the appropriate port count.

Multiple devices may share a single uplink.

The combined bandwidth requirements of those devices should be considered when choosing the switch and uplink speed.

A standard Ethernet switch does not automatically provide power to connected devices.

If IP cameras, wireless access points, or other powered devices require PoE, select equipment that explicitly supports the appropriate PoE standard and power budget.

Industrial construction and outdoor environmental protection are different considerations.

Always verify the actual enclosure and environmental ratings for the intended installation.

If the application requires VLANs, SNMP, traffic prioritization, remote configuration, advanced security controls, or redundancy protocols, an unmanaged switch is probably not the right choice.

When an Unmanaged Switch Is the Wrong Choice

The simplicity of unmanaged switches is one of their greatest advantages, but it is also their primary limitation.

A managed switch should generally be considered when the network requires:

• VLAN segmentation
• Quality of Service configuration
• SNMP monitoring
• Remote administration
• Port-level security controls
• Access Control Lists
• Traffic analysis
• Port mirroring
• Network redundancy protocols
• Detailed troubleshooting capabilities

This is especially important in larger surveillance, industrial, government, and mission-critical networks.

For example, a small group of cameras at a remote facility may work perfectly well with an unmanaged switch.

A large surveillance network carrying hundreds of camera streams across multiple facilities may require managed switches to provide traffic control, network segmentation, monitoring, and redundancy.

The goal should not be to choose the most sophisticated switch available. It should be to select the appropriate level of network functionality for the application.

A Practical Unmanaged Switch Selection Checklist

Before choosing an unmanaged Ethernet switch, consider the following:

Count the current devices and consider future expansion.

Determine whether Fast Ethernet is sufficient or Gigabit connectivity is more appropriate.

Consider transmission distance, existing infrastructure, and the electrical environment.

SFP slots can provide additional flexibility when different optical requirements must be supported.

Verify the required PoE standard and total power budget.

Determine whether the environment requires commercial or industrial equipment.

Check voltage requirements and whether redundant power inputs are needed.

If VLANs, monitoring, security controls, or redundancy protocols are required, consider a managed switch instead.

Answering these questions before selecting equipment can significantly reduce the risk of deploying a switch that does not meet the long-term requirements of the network.

Choosing Between Copper, Fiber, and Hybrid Connectivity

Many networks use a combination of copper and fiber rather than relying exclusively on one transmission medium.

Copper Ethernet is well suited to local device connections because it is widely supported and straightforward to deploy.

Fiber is particularly useful for:

• Long-distance network connections
• Building-to-building links
• Electrically noisy environments
• Infrastructure requiring electrical isolation
• Existing fiber backbones

An unmanaged switch offering both RJ45 and fiber connectivity can combine these advantages.

Local devices connect through copper Ethernet ports, while fiber provides the uplink to another network location.

This hybrid architecture is commonly used in surveillance, industrial, transportation, utility, and campus networks.

Selecting the Right Unmanaged Switch for Long-Term Reliability

The best unmanaged switch is not necessarily the model with the highest port count or the longest list of specifications.

The appropriate switch is the one that matches the actual requirements of the network.

For a small commercial installation, that may be a straightforward Gigabit Ethernet switch.

For a remote surveillance location, it may be a switch combining copper device connections with an SFP fiber uplink.

For an industrial control cabinet, the priorities may instead include DIN-rail mounting, wide-temperature operation, DC power input, and a rugged enclosure.

System designers should evaluate the complete application rather than selecting equipment based on a single feature.

Important factors include:

• Port count
• Network speed
• Fiber connectivity
• PoE requirements
• Operating environment
• Power architecture
• Mounting requirements
• Future expansion
• Network management requirements

Matching these characteristics to the application helps ensure reliable operation without adding unnecessary cost or complexity.

Conclusion

Unmanaged Ethernet switches provide a simple and practical way to connect network devices when advanced configuration and management are not required.

Their plug-and-play operation makes them useful across a wide range of applications, including IP surveillance, industrial automation, commercial networks, transportation infrastructure, utilities, and remote network expansion.

However, not every unmanaged switch is appropriate for every application.

Port count, network speed, fiber connectivity, PoE requirements, environmental conditions, power input, and future expansion should all be evaluated before selecting equipment.

Just as importantly, organizations should recognize when an unmanaged switch is not the right solution. Networks requiring VLAN segmentation, advanced security controls, centralized monitoring, traffic management, or redundancy protocols will generally benefit from managed switching.

By defining the network requirements first and selecting the equipment second, system integrators and network designers can choose an unmanaged switch that provides the right balance of simplicity, connectivity, reliability, and cost for the application.
