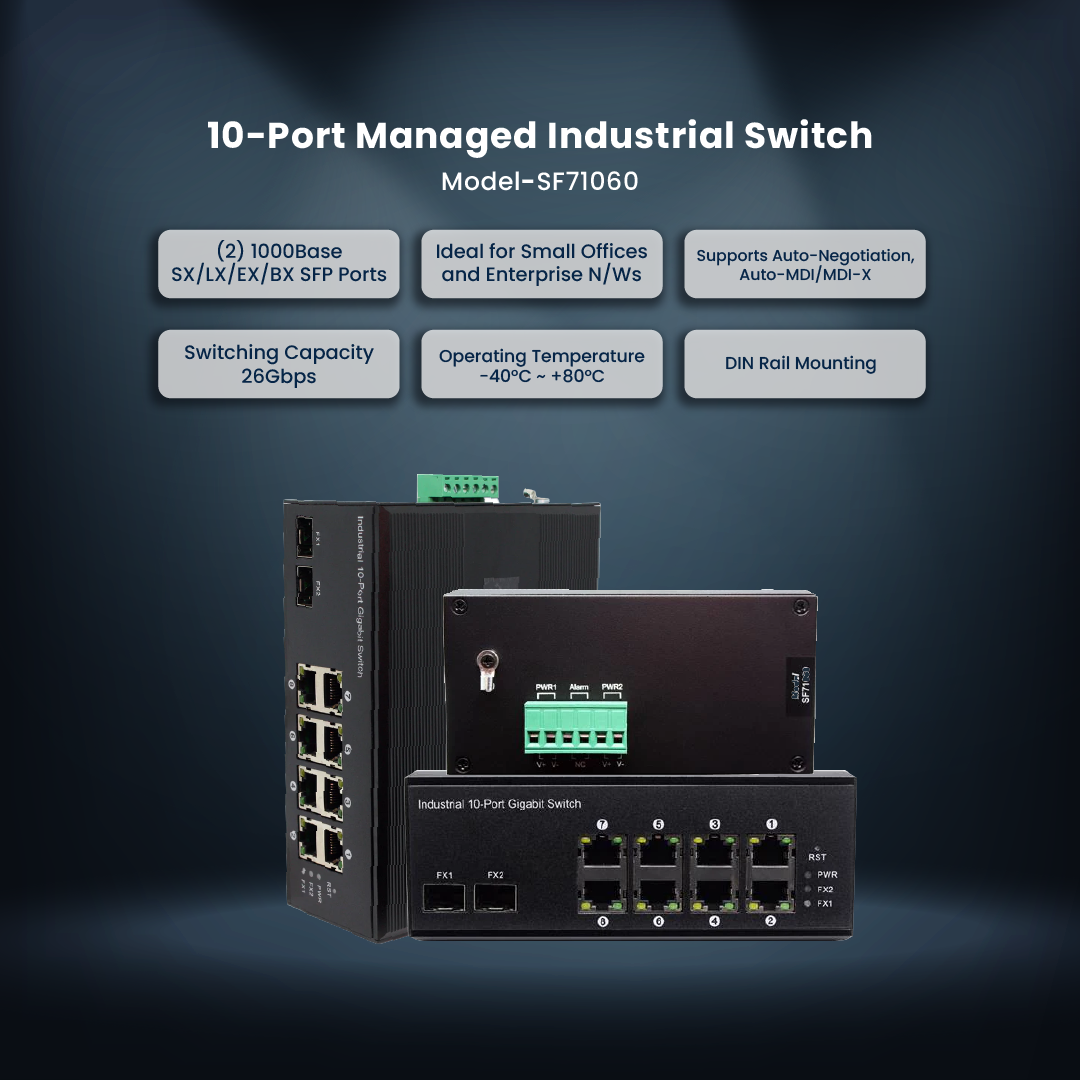

Rugged 10-Port Gigabit Industrial Ethernet Switch

The SF71060 is designed for industrial Ethernet networks requiring reliable Gigabit connectivity between copper Ethernet devices and fiber optic network segments.

With eight 10/100/1000Mbps RJ-45 ports and two 1000Mbps SFP slots, the switch provides a flexible platform for mixed copper and fiber networks.

Its unmanaged architecture provides straightforward Ethernet connectivity without requiring configuration through a network management interface, while the industrial hardware is designed for demanding operating environments.

Gigabit Copper and Fiber Connectivity

The SF71060 provides eight 10/100/1000Mbps copper Ethernet ports and two 1000Mbps SFP fiber slots.

The RJ-45 ports support:

• 10Mbps Ethernet
• 100Mbps Fast Ethernet
• 1000Mbps Gigabit Ethernet
• Auto-negotiation
• Auto-MDI/MDI-X
• Full-duplex flow control
• Half-duplex back-pressure flow control

The SFP slots provide flexible fiber connectivity using compatible Gigabit SFP transceivers.

Flexible SFP Fiber Options

The SF71060 accepts compatible 1000Mbps SFP modules, allowing the fiber connections to be selected according to the network's fiber type and required transmission distance.

VERSITRON's available Gigabit SFP modules include:

• Multimode fiber up to 220 meters
• Multimode fiber up to 550 meters
• Multimode fiber up to 2 km
• Single-mode fiber up to 10 km
• Single-mode fiber up to 20 km
• Single-mode fiber up to 40 km
• Single-mode fiber up to 70 km
• Single-mode fiber up to 100 km
• Single-fiber bidirectional options up to 80 km

The available SFP modules use LC connectors. CWDM and DWDM modules are also available.

The appropriate SFP module should be selected according to fiber type, transmission distance, wavelength, and connector requirements.

26Gbps Switching Capacity

The SF71060 provides 26Gbps switching capacity with a non-blocking store-and-forward switching architecture. The switch supports an 8K MAC address table and maximum frame sizes of 9.6K bytes.

This provides the switching capacity needed to efficiently move Ethernet traffic between the switch's Gigabit copper and fiber interfaces.

Unmanaged Plug-and-Play Connectivity

The SF71060 is designed as an unmanaged industrial Ethernet switch, making it suitable for applications where reliable Ethernet connectivity is required without the configuration and administration associated with managed switching.

Auto-negotiation and Auto-MDI/MDI-X simplify connections to compatible Ethernet equipment by automatically detecting supported speed and cable configuration.

Redundant DC Power

The SF71060 supports dual 9–52VDC power inputs, providing redundant power capability for installations where network availability is important.

Power consumption is approximately 6W, helping keep operating power requirements low.

4KV Ethernet Surge Protection

The SF71060 incorporates 4KV Ethernet surge protection as part of its industrial protection design. The switch also provides industrial-rated emission and immunity performance.

These features help the switch maintain reliable operation in environments where network equipment can be exposed to electrical disturbances.

IP44 Metal Enclosure

The SF71060 is housed in an IP44 metal enclosure designed for industrial applications. The enclosure is corrosion resistant and supports DIN-rail installation.

This rugged construction makes the switch suitable for industrial control cabinets, equipment enclosures, transportation systems, manufacturing facilities, and other field installations.

Extended Temperature Operation

The SF71060 is designed to operate from -40°C to +80°C, with the same temperature range specified for storage. Relative humidity is rated at 0% to 95%, non-condensing.

This extended temperature capability makes the switch suitable for industrial environments where standard commercial Ethernet switches may not provide the required operating range.

DIN-Rail Installation

The SF71060 supports DIN-rail mounting, allowing it to be installed inside industrial control cabinets and equipment enclosures.

The switch measures approximately 6.14 × 4.53 × 2.36 inches and weighs approximately 1.65 lbs.

High-Reliability Industrial Design

The SF71060 has an MTBF greater than 100,000 hours, supporting long-term operation in industrial Ethernet applications.

The combination of redundant DC power, surge protection, corrosion-resistant construction, extended temperature operation, and DIN-rail mounting makes the SF71060 a strong choice for demanding network installations.

Typical Applications

The SF71060 is designed for industrial networks requiring a combination of Gigabit copper and fiber connectivity.

Typical applications include:

• Industrial automation
• Industrial Ethernet networks
• Manufacturing facilities
• Intelligent transportation systems
• Transportation infrastructure
• Industrial surveillance
• Security and access control
• Remote Ethernet networks
• Utility and infrastructure networks
• Equipment monitoring
• Control cabinets
• Networks combining copper and fiber
• Industrial IP connectivity

Technical Capabilities

The SF71060 supports:

• 8 × 10/100/1000Mbps RJ-45 ports
• 2 × 1000Mbps SFP fiber slots
• Non-blocking store-and-forward switching
• 26Gbps switching capacity
• 8K MAC address table
• 9.6K maximum frame size
• Auto-negotiation
• Auto-MDI/MDI-X
• IEEE 802.3x flow control
• Back-pressure flow control
• Multimode SFP modules
• Single-mode SFP modules
• Single-fiber SFP options
• Redundant 9–52VDC power
• 4KV Ethernet surge protection
• IP44 metal enclosure
• Corrosion-resistant construction
• DIN-rail mounting
• MTBF greater than 100,000 hours
• -40°C to +80°C operating temperature
• 0%–95% relative humidity, non-condensing

Available Fiber Configurations

The SF71060 can be configured with compatible VERSITRON Gigabit SFP modules for different fiber types and transmission distances.

The SFP options and distances are taken from the fiber-module table in the VERSITRON industrial unmanaged switch datasheet.

Electrical, Mechanical, and Environmental Specifications

These specifications are taken from the SF71060 model column in the VERSITRON Industrial 10/100/1000Base Unmanaged Switches datasheet.

Why Choose the VERSITRON SF71060?

The SF71060 combines eight Gigabit copper ports and two Gigabit SFP fiber slots in a rugged industrial unmanaged switch.

Its 26Gbps switching capacity, redundant 9–52VDC power, 4KV Ethernet surge protection, IP44 metal enclosure, >100,000-hour MTBF, DIN-rail mounting, and -40°C to +80°C operating range provide a strong combination of performance and industrial reliability.

The two SFP slots also provide flexibility to select compatible Gigabit fiber modules based on the required fiber type and transmission distance, including single-mode configurations reaching up to 100 km.

VERSITRON Fiber Optic and Ethernet Solutions Since 1958

Since 1958, VERSITRON has provided fiber optic and Ethernet communication solutions for demanding network applications.

The SF71060 continues that tradition with a rugged unmanaged Gigabit Ethernet platform designed to provide reliable copper and fiber connectivity in industrial environments.

For pricing, availability, SFP module selection, or assistance determining the appropriate fiber configuration for your network, contact VERSITRON at sales@versitron.com or 1-800-537-2296.

• 8-Port 10/100/1000Base-T Gigabit Ethernet RJ-45 Ports
• 2-Port 1000Base-SX/LX/EX/BX SFP Type Ports
• Non-blocking store-and-forward switching
• RJ45 Port supports 10/100/1000Mbps-Ful/Half-duplex, Auto—negotiation, Auto-MDI/MDIX
• Prevents Packet Loss w/Back Pressure (Half-Duplex) and IEEE 802.3x PAUSE Frame Flow Control (Full-Duplex)
• Uses interchangeable SFP modules for fiber type, distance, and connector. (Ordered Separately)
• Distances up to 100 km with optional SFPs
• Available for operation over singlemode or multimode fiber over a variety of link budget
• Available for operation over 1 or 2 fibers
• No in-field optical adjustment required
• Redundant dual power supply inputs 48/52 VDC
• 4KV Ethernet Surge Protection for harsh environment
• -40°C to 80°C wide range operating temperature
• Compact, corrosion resistant case attaches to a standard DIN Rail
