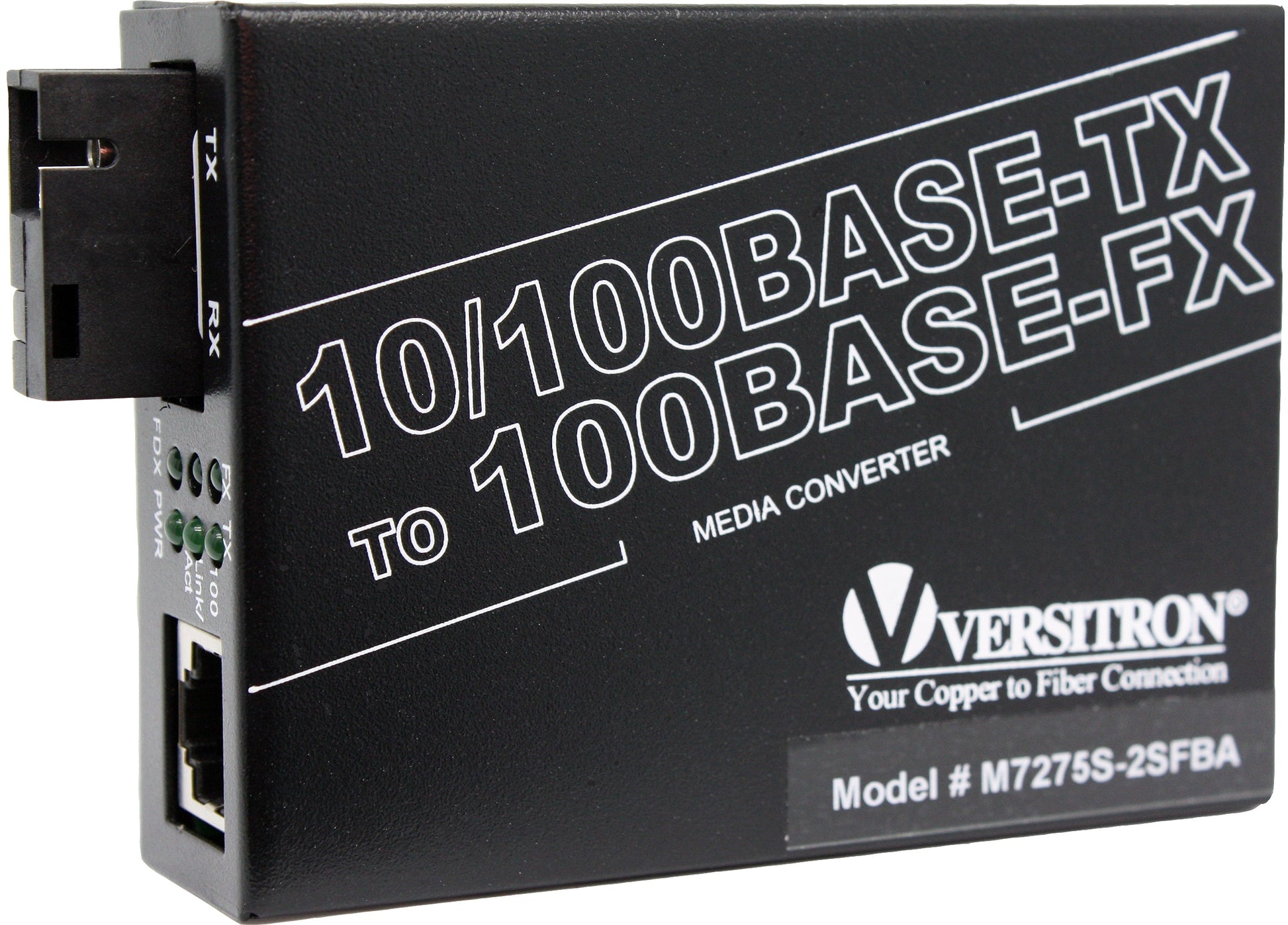

10/100TX-FX Single Fiber Media Converter | 1-RJ45 Ethernet Port, 1-SC Fiber Port, SM

SKU:M7275S-2SFBA

Free Ground Shipping For Online Store Orders
Free Unlimited Support
Lifetime Warranty

VERSITRON’s M7275S-2SFBA 10/100TX-FX Single Fiber Media Converter converts 10/100Mbps Ethernet over copper to 100Mbps fiber and transmits and receives data over a single strand of single-mode fiber. Using WDM technology, this SC fiber media converter operates at 1550nm transmit and 1310nm receive wavelengths and supports fiber distances up to 20 kilometers.

The M7275S-2SFBA is designed to operate with the complementary M7275S-2SFAA converter, allowing bidirectional Ethernet communication over a single fiber strand. This makes it an efficient solution for extending Ethernet networks when fiber availability is limited.

Product Highlights

10/100Mbps Copper to 100Mbps Fiber
Single-Mode Fiber with SC Connector
Single-Fiber WDM Transmission
20km Maximum Fiber Distance
1550nm TX / 1310nm RX
Full Wire-Speed Conversion
Auto-Negotiation for Speed and Duplex
Auto MDI/MDI-X Detection
Link Fault Pass-Through
Built-In Watchdog Timer
Standalone or MCC-14R Chassis Installation
Optional DIN Rail Mounting

View full details

Single-Fiber Ethernet Connectivity Over 20km

The M7275S-2SFBA provides a reliable way to extend 10/100Mbps Ethernet beyond the distance limitations of copper cabling. The converter connects a standard RJ45 Ethernet network to a single-mode fiber link and supports transmission distances up to 20 kilometers.

Unlike conventional fiber media converters that require separate fiber strands for transmit and receive, the M7275S-2SFBA uses different optical wavelengths to transmit and receive data over one single-mode fiber strand.

The M7275S-2SFBA uses 1550nm for transmission and 1310nm for reception and is designed to operate with the complementary M7275S-2SFAA converter, which uses the opposite wavelength configuration.

Reduce Fiber Requirements With WDM Technology

Single-fiber technology provides an efficient solution when only one fiber strand is available between network locations.

The M7275S-2SFBA can help:

Extend existing Ethernet networks without installing additional fiber
Make use of available single-strand fiber infrastructure
Connect remote buildings and facilities
Reduce fiber requirements for network connections
Extend Ethernet connectivity across long distances

The M7275S-2SFBA and M7275S-2SFAA are used together as a matched pair for bidirectional communication over one fiber strand.

10/100Mbps Ethernet-to-Fiber Conversion

The M7275S-2SFBA features a shielded RJ45 copper port supporting 10Mbps and 100Mbps Ethernet. The copper interface provides auto-negotiation for speed and duplex and can also be configured for forced operating modes when manual configuration is required.

Auto MDI/MDI-X detection simplifies installation by automatically accommodating straight-through and crossover Ethernet connections.

The fiber interface operates at 100Mbps full-duplex and includes far-end fault detection to help identify problems with the remote fiber connection.

Reliable Network Monitoring and Fault Detection

The M7275S-2SFBA incorporates several features designed to simplify installation, monitoring, and troubleshooting.

Link Fault Pass-Through helps communicate link failures between the copper and fiber sides of the connection, while Far End Fault Detection helps identify problems at the remote end of the fiber link.

LED indicators provide visibility into:

Power status
Copper link and activity
Copper speed and duplex status
Fiber link and activity
Fiber signal detection

DIP switches provide manual configuration options for copper operating mode, duplex, speed, link fault pass-through, and auto status reporting.

Watchdog Timer and Data Buffering

The M7275S-2SFBA includes a 128Kb RAM data buffer and built-in watchdog timer to support reliable operation.

The converter supports packet sizes up to 1600 bytes in store-and-forward mode and has no packet-size limit in smart-forward mode for 100-to-100Mbps traffic.

Flexible Installation Options

The M7275S-2SFBA can be installed as a standalone media converter or installed in the MCC-14R 14-slot media converter chassis. Optional DIN rail mounting provides additional flexibility for network cabinets and equipment installations.

The compact enclosure measures approximately 3.70 × 2.79 × 1.02 inches, making it suitable for installations where equipment space is limited.

20km Single-Mode Fiber Transmission

The M7275S-2SFBA is configured specifically for 20km single-mode fiber transmission using an SC connector.

Specification	M7275S-2SFBA
Copper Interface	10/100Mbps RJ45
Fiber Interface	100Mbps
Fiber Type	Single-Mode Fiber
Fiber Connector	SC
Fiber Distance	Up to 20km
Transmit Wavelength	1550nm
Receive Wavelength	1310nm
Copper Duplex	Full/Half-Duplex
Fiber Duplex	Full-Duplex
Standards	IEEE 802.3, IEEE 802.3u
Fiber Technology	Single-Fiber WDM
Power	+5VDC
Operating Temperature	-5°C to +60°C
Storage Temperature	-20°C to +70°C
Humidity	5–90%, Non-Condensing
Installation	Standalone, MCC-14R Chassis, Optional DIN Rail

Typical Applications

The M7275S-2SFBA is well suited for applications requiring reliable 10/100Mbps Ethernet connectivity over long-distance single-mode fiber.

Building-to-building Ethernet connectivity
Campus network extensions
Remote network connections
Security and surveillance networks
Traffic monitoring systems
Government and municipal networks
Industrial Ethernet connections
Telecommunications infrastructure
Remote office connectivity
Networks with limited fiber availability

Why Choose the M7275S-2SFBA?

The M7275S-2SFBA provides an efficient solution when you need to extend 10/100Mbps Ethernet over long-distance single-mode fiber but have only one fiber strand available.

Its 20km transmission capability, SC connector, single-fiber WDM operation, automatic Ethernet configuration, link fault detection, watchdog timer, and flexible installation options make it a practical choice for extending existing Ethernet infrastructure.

For a complete single-fiber connection, the M7275S-2SFBA is paired with the complementary M7275S-2SFAA, which uses the opposite transmit and receive wavelengths.

VERSITRON— Safeguarding Communications Since 1958

Since 1958, VERSITRON has provided fiber optic communication and networking solutions for commercial, industrial, government, security, transportation, and telecommunications applications.

Our experience in fiber optic communications is reflected in products designed to provide dependable connectivity across challenging network environments. The M7275S-2SFBA Single-Fiber Media Converter continues that tradition by providing a straightforward way to extend 10/100Mbps Ethernet over up to 20km of single-mode fiber using a single fiber strand.

For help selecting the correct single-fiber converter pair, fiber configuration, or transmission distance, contact VERSITRON at 1-800-537-2296.

Standards

IEEE 802.3, 802.3u

Copper Port (TP)

Shielded RJ-45 jack

Cat5 UTP cable up to 100m

Auto-negotiation for speed and duplex

Forced mode with speed and duplex settings

Speed for 10Mbps or 100Mbps, Full-duplex or Half-duplex support

Fiber Port (FX)

Forced 100Mbps, Full-duplex (factory default)

Far end fault detection

SMF: 9/125, SC Connector

LEDs

Unit: Power Status

Copper Port: Link/Activity/Speed/Duplex status

Fiber Port: Link/Activity status, Fiber signal detected

DIP Switches

Copper Port: Mode, Duplex, Speed, Link fault pass-through, Auto status report

Packet Size

Up to 1600 bytes for store-and-forward mode

No packet size limit for smart-forward mode (100-to-100)

Environment

Operating Temperature: -5°C ~ 60°C

Storage Temperature: -20°C ~ 70°C

Humidity: 5% ~ 90% non-condensing

Dimensions

3.70 x 2.79 x 1.02 inches (94 x 71 x 26 mm)

Power

+5VDC

Converts speed and media type
Supports full wire speed conversion
Supports 10/100M dual speed on TP connections
Each TP port supports auto-negotiation and auto-MDI/MDI-X detection
Link fault pass-through function
Transparent to 802.1Q VLAN tagged packets Far End Fault function on FX port Supports desktop and center chassis mounting Low Power consumption Supports options of single SC, single fiber over 20 km, 40 km or 80 km fiber optic cable Media Converter Chassis

10/100TX-FX Single Fiber Media Converter (M7275S-2SFBA) is used across the following Industries:

Telecommunications Providers

Long-distance Ethernet extension over single fiber
Access network backhaul using SC singlemode links
Cost-effective fiber deployment in dense transport networks
Copper-to-fiber conversion for metro networks

Internet Service Providers (ISP)

Last-mile copper-to-fiber integration
Single-fiber installations for bandwidth optimization
Long-reach connectivity between remote cabinets
Reliable Ethernet bridging for subscriber networks

Security & CCTV Surveillance

Long-distance camera connectivity using single fiber
Stable transmission for NVR and monitoring rooms
Low-latency fiber uplinks in outdoor locations
Secure point-to-point video links

Campus & Educational Institutions

Fiber links between buildings and departments
Long-distance LAN extension for dormitories
SC fiber backbone for secure data connectivity
Copper device integration into fiber networks

Healthcare Facilities

Fiber-based connectivity between hospital wings
Secure patient data transmission with EMI immunity
Long-range networking for medical complexes
Reliable single-fiber Ethernet extension

Government & Municipal Infrastructure

Secure fiber links for municipal networks
Connectivity for government buildings and facilities
Traffic management and roadside cabinet networking
Point-to-point Ethernet transport over long distances

Transportation Systems

Fiber connectivity for road, tunnel, and rail systems
Long-span networking using single-mode fiber
Reliable data links for control and monitoring
Interconnecting traffic control units

Industrial Automation

Integrating copper-based devices into fiber networks
Reliable point-to-point communication for control systems
EMI-resistant fiber links in harsh environments
Single-fiber backbone for industrial floors

Energy & Power Utilities

Networking for substations and remote facilities
Fiber links resistant to electromagnetic interference
Reliable SC singlemode connectivity for grid management
Backhaul for field monitoring equipment

Oil, Gas & Pipeline Monitoring

Long-distance Ethernet transmission via single fiber
Remote SCADA location connectivity
Hazard zone communication using fiber
Reliable single-fiber uplinks for pipeline sites

Smart City Infrastructure

Fiber uplinks for IoT and sensor systems
Long-range connections to traffic and lighting units
Secure backhaul for city surveillance cameras
Single-fiber networking to reduce deployment costs

Retail & Hospitality Chains

Fiber extension between distant buildings
Secure connectivity for POS and management systems
Reliable long-distance Ethernet-to-fiber conversion
Stable data transmission for surveillance networks

Broadcast & Media Production

Long-distance data link for control rooms
Fiber-based connectivity for remote camera systems
Secure studio-to-studio communication
Low-latency signal extension over single fiber

Warehouses & Distribution Centers

Long-range connectivity for large buildings
Fiber extension for automation & tracking systems
Point-to-point linking of remote areas
Stable data transmission for security systems

Aviation & Airport Facilities

Long-distance networking across terminals
Ethernet-to-fiber conversion for airfield systems
Reliable communication between control zones
Stable fiber uplinks for security and monitoring

Maritime & Port Operations

Fiber connectivity for port monitoring systems
Long-distance network extension across docks
Weather-resistant single-fiber communication
Connecting remote maritime control units

Data Collection & Remote Monitoring Sites

Point-to-point fiber connectivity for far locations
Low-power, long-distance data transmission
Reliable fiber uplinks for environmental sensors
Ethernet extension to remote monitoring stations
