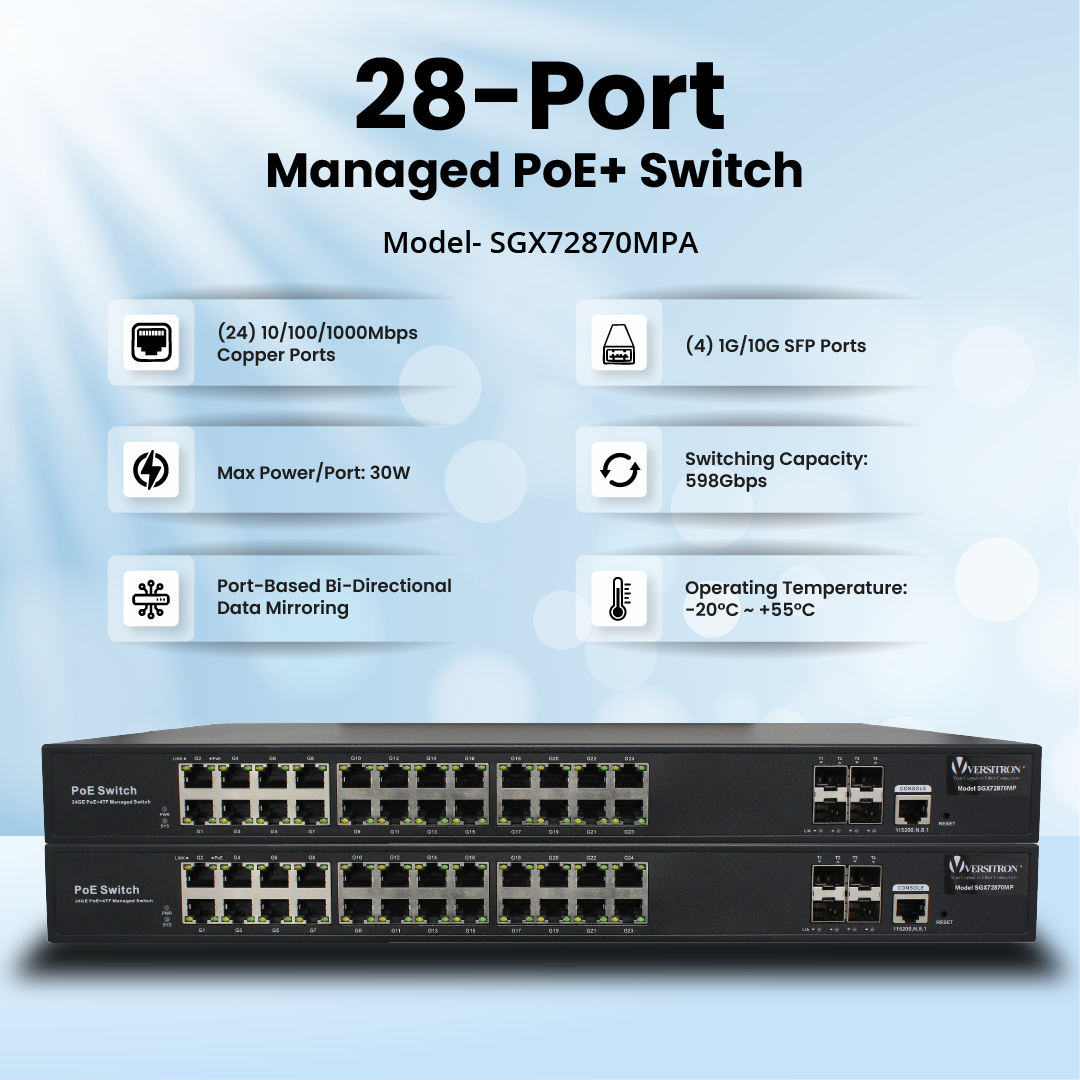

28-Port Managed PoE+ Switch | 24-RJ45 Ethernet Ports, 4-SFP Fiber Ports

High-Density PoE+ and 10G Fiber Connectivity

The SGX72870MPA combines 24 Gigabit PoE/PoE+ copper ports with four 1G/10G SFP/SFP+ fiber slots, providing a flexible platform for connecting powered Ethernet devices, network infrastructure, and high-speed fiber uplinks.

The copper ports support 10/100/1000Mbps operation with auto-negotiation and auto-MDI/MDI-X. The SFP/SFP+ interfaces support 1Gbps and 10Gbps fiber connectivity, allowing the switch to accommodate both current Gigabit infrastructure and higher-bandwidth network uplinks.

600W PoE+ Power Budget

The SGX72870MPA provides PoE/PoE+ power across ports 1 through 24 and supports IEEE 802.3af and IEEE 802.3at. Each port can provide up to 30W, with a total PoE power budget of 600W.

PoE management functions include:

• PoE working-status monitoring
• Delayed start
• PoE output priority configuration
• Total PoE power-limit configuration
• PoE operation and time scheduling
• PoE output power allocation

These controls allow network administrators to manage and allocate available PoE power according to the requirements of connected devices.

598Gbps Switching Capacity

The SGX72870MPA uses a store-and-forward, full-wire-speed switching architecture with 598Gbps switching capacity and 95.23Mpps throughput.

The switch also provides:

• 32K MAC table entries
• 32M buffer memory
• 10K jumbo frame support
• Full-wire-speed forwarding

These specifications provide the switching capacity needed for networks with numerous connected devices and high volumes of Ethernet traffic.

1G/10G SFP/SFP+ Fiber Uplinks

The four fiber interfaces support 1Gbps and 10Gbps SFP/SFP+ modules, providing a significant advantage over switches limited to Gigabit-only uplinks.

The VERSITRON datasheet lists compatible Gigabit and 10 Gigabit fiber modules for multimode and single-mode fiber.

Available 1G SFP options include multimode and single-mode configurations extending from short-distance links to 100 km over single-mode fiber. The listed 10G SFP+ options include:

• 10G multimode up to 300m over OM3
• 10G single-mode up to 10km
• 10G single-mode up to 40km
• 10G single-mode up to 80km

All listed fiber modules use LC connectors.

The appropriate SFP or SFP+ module should be selected based on network speed, fiber type, transmission distance, wavelength, and connector requirements.

L2+ Managed Network Functions

The SGX72870MPA provides multiple management interfaces, including:

• Console
• AUX modem
• Telnet
• SSH 2.0 CLI
• HTTPS web management
• FTP
• TFTP
• Xmodem
• SFTP
• SNMP v1/v2c/v3

Additional management functions include one-key recovery, NTP, system work logs, ping testing, cable diagnosis, LLDP, CPU utilization monitoring, and the VERSITRON NMS Smart Network Management Systems platform.

Layer 3 Soft Routing and IPv4/IPv6 Management

The SGX72870MPA provides L2+ management with additional Layer 3 functionality, including:

• IPv4 management
• IPv6 management
• Layer 3 soft routing forwarding
• Static routing
• DHCP client
• DHCP snooping
• DHCP server
• DHCP relay

These capabilities provide additional flexibility for network administrators managing segmented or interconnected Ethernet networks.

VLAN Support and Network Segmentation

The SGX72870MPA supports multiple VLAN technologies for controlling and segmenting network traffic.

Supported VLAN functions include:

• Port-based VLAN
• IEEE 802.1Q tag-based VLAN
• Up to 4,000 active VLANs
• MAC-based VLAN
• Protocol-based VLAN
• Voice VLAN
• Q-in-Q
• Access, trunk, and hybrid port configurations

These capabilities allow network administrators to separate traffic according to devices, applications, users, or network functions.

Quality of Service and Traffic Management

The SGX72870MPA provides advanced QoS functions for prioritizing and controlling network traffic.

Features include:

• Diff-Serv QoS
• Priority marking and remarking
• Eight output queues per port
• 802.1p/DSCP priority mapping
• SP, WRR, and SP+WRR queue scheduling
• Flow-based packet filtering
• Flow-based rate limiting

These capabilities help administrators establish traffic-priority policies across the network.

Link Aggregation and Network Redundancy

The SGX72870MPA supports LACP and static link aggregation, with up to 14 aggregation groups and up to 8 ports per group.

The switch also supports:

• Spanning Tree Protocol (STP)
• Rapid Spanning Tree Protocol (RSTP)
• Multiple Spanning Tree Protocol (MSTP)

These protocols provide options for managing redundant network paths and maintaining connectivity in appropriately designed network architectures.

Port Mirroring and Network Monitoring

The SGX72870MPA supports port-based bidirectional data mirroring, allowing network traffic to be copied to another port for monitoring, diagnostics, and troubleshooting.

The switch also provides cable diagnosis, LLDP, CPU utilization monitoring, system work logs, ping testing, and other management tools that provide administrators with greater visibility into network operation.

Multicast Management

The SGX72870MPA supports multicast management functions including:

• IGMP Snooping v1/v2
• Up to 1,024 multicast groups
• Fast Log Out
• MLD Snooping v1/v2
• Multicast VLAN

These features provide greater control over multicast traffic in managed Ethernet networks.

Advanced Network Security

The SGX72870MPA includes extensive security and access-control functions designed to help administrators control network access and protect network traffic.

Security features include:

• L2-to-L4 packet filtering
• MAC-based ACL
• Source and destination MAC filtering
• Source and destination IP filtering
• IP protocol filtering
• TCP/UDP port filtering
• VLAN-based ACL
• Port-based ACL
• IEEE 802.1X authentication
• MAC address authentication
• IP source protection
• AAA and RADIUS
• ARP inspection
• MAC learning limits
• Broadcast storm control
• MAC black holes
• Anti-DoS attack protection
• IP-MAC-VLAN-port binding
• Port isolation
• SSH 2.0 and SSL

1U Rack-Mount Design

The SGX72870MPA is designed for desktop or 19-inch rack mounting in a 1U-high chassis.

The chassis measures 17.32 × 11.42 × 1.75 inches, and the SGX72870MPA weighs approximately 9.48 pounds.

This compact rack-mount design makes the switch well suited for centralized network installations where a high number of Ethernet, PoE, and fiber connections need to be consolidated within a standard equipment rack.

Operating Environment

The SGX72870MPA has an operating temperature range of -20°C to +55°C, with a storage temperature range of -40°C to +80°C. Relative humidity is specified at 5% to 90%, non-condensing.

Typical Applications

The SGX72870MPA is suited for network environments requiring high port density, PoE+ power delivery, fiber-optic uplinks, high switching capacity, and advanced network management.

Typical applications include:

• Enterprise networks
• IP surveillance systems
• Security and access-control networks
• Large-scale Wi-Fi deployments
• Educational networks
• Healthcare facilities
• Retail and hospitality networks
• Smart building infrastructure
• Business network infrastructure
• Fiber-connected LANs
• PoE device aggregation
• Networks requiring 10G fiber uplinks

Technical Capabilities

The SGX72870MPA supports:

• 24 × 10/100/1000Mbps PoE/PoE+ RJ-45 ports
• 4 × 1G/10G SFP/SFP+ slots
• IEEE 802.3af/at
• Up to 30W per PoE port
• 600W total PoE power budget
• 598Gbps switching capacity
• 95.23Mpps throughput
• 32K MAC address table
• 32M buffer memory
• 10K-byte jumbo frames
• Store-and-forward full-wire-speed switching
• L2+ network management
• IPv4/IPv6 management
• Layer 3 soft routing
• Static routing
• DHCP client, snooping, server, and relay
• STP, RSTP, and MSTP
• LACP and static aggregation
• Up to 14 aggregation groups
• Up to 8 ports per aggregation group
• Port-based bidirectional data mirroring
• IGMP/MLD snooping
• Up to 1,024 multicast groups
• Up to 4,000 active VLANs
• Port-, MAC-, and protocol-based VLAN
• Voice VLAN
• Q-in-Q
• Access, trunk, and hybrid port configurations
• Eight QoS output queues per port
• 802.1p/DSCP priority mapping
• Flow-based filtering and rate limiting
• L2-L4 packet filtering
• Advanced ACL functions
• IEEE 802.1X
• MAC authentication
• RADIUS
• ARP inspection
• Anti-DoS protection
• IP-MAC-VLAN-port binding
• Port isolation
• SNMP v1/v2c/v3
• HTTPS web management
• SSH 2.0
• LLDP
• Cable diagnosis
• NTP
• CPU utilization monitoring

Electrical, Mechanical, and Environmental Specifications

The physical and environmental specifications are taken directly from the SGX72870MPA datasheet.

Why Choose the VERSITRON SGX72870MPA?

The SGX72870MPA brings together 24 Gigabit PoE/PoE+ ports, four 1G/10G SFP/SFP+ fiber slots, 600W of PoE power, 598Gbps switching capacity, L2+ management, Layer 3 soft routing, advanced VLAN and QoS capabilities, link aggregation, and extensive network security features.

Its four SFP/SFP+ interfaces also provide a straightforward path from Gigabit fiber connectivity to 10 Gigabit uplinks, while the 1U rack-mount chassis provides a compact solution for centralized network installations.

VERSITRON Fiber Optic and Ethernet Solutions Since 1958

Since 1958, VERSITRON has provided fiber optic and Ethernet communication solutions for demanding network applications.

The SGX72870MPA combines high-density Gigabit Ethernet, PoE+ power delivery, 1G/10G fiber connectivity, advanced network management, and network security functions in a single 1U platform.

For pricing, availability, SFP/SFP+ selection, or assistance determining the appropriate configuration for your network, contact VERSITRON at sales@versitron.com or 1-800-537-2296.

• 24-10/100/1000Mbps PoE/PoE+ Copper Ports (600 Watt Budget)
• 4-1G/10G SFP Slots
• L2+ Management
• Supports Multiple VLAN Protocols
• Supports Jumbo Frames up to 10K
• Port Mirroring for Network Monitoring
• Supports STP, RSTP, MSTP Protocols
• Advanced Security Features
