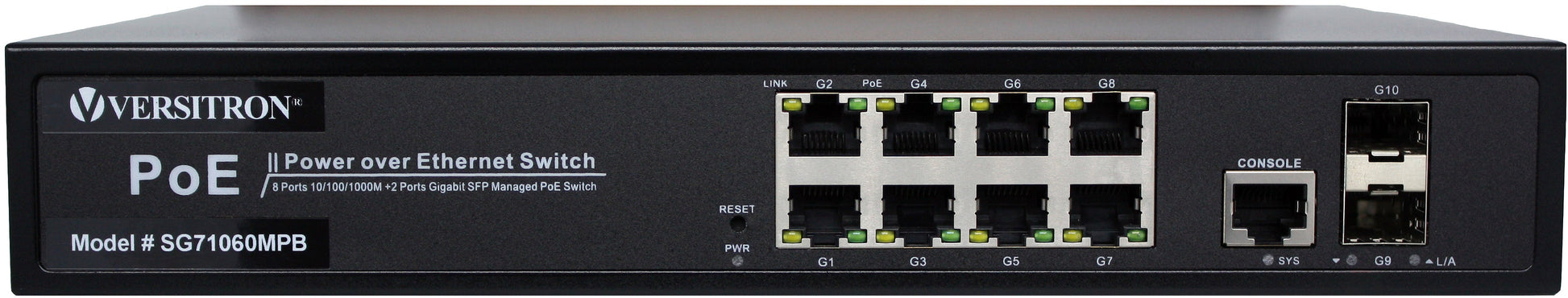

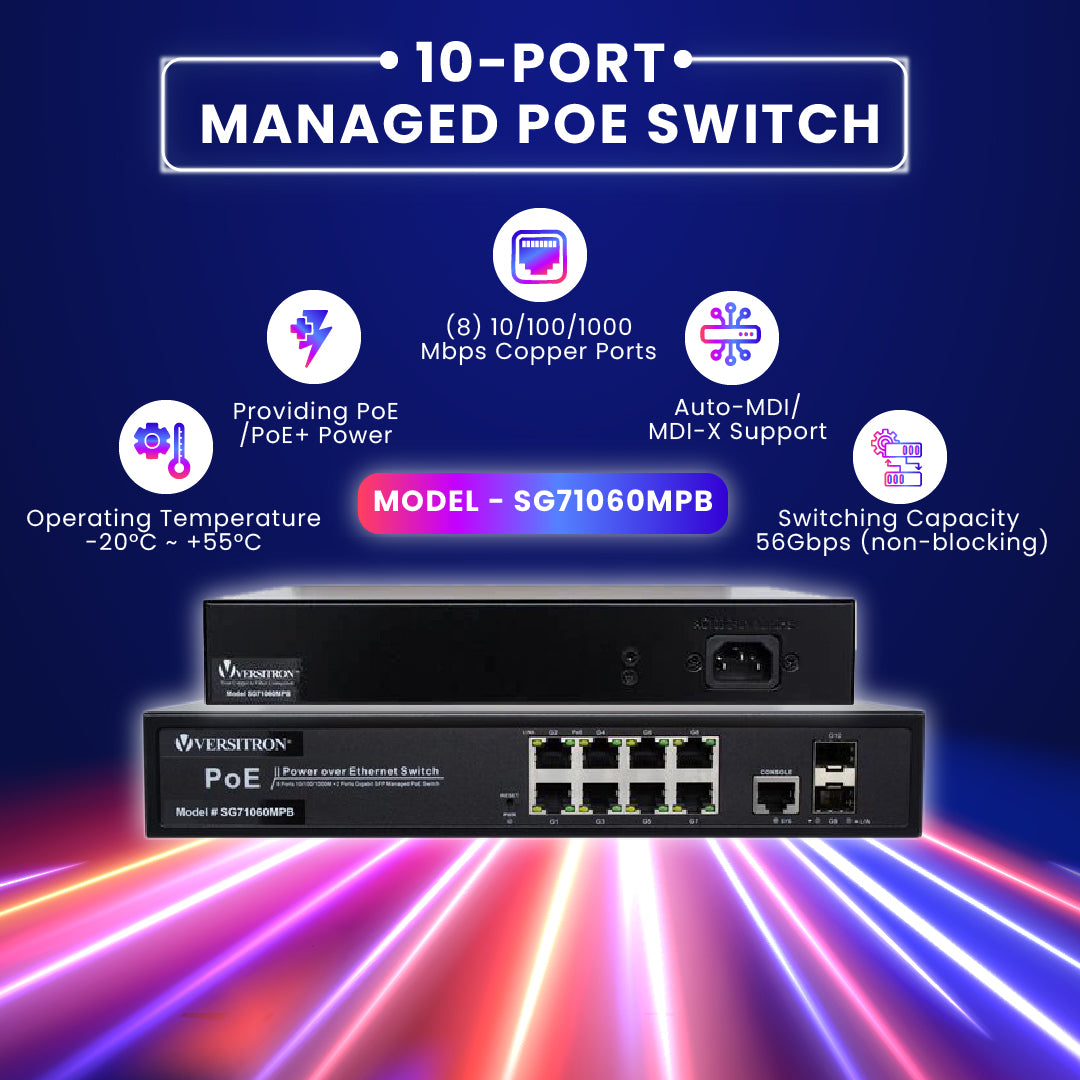

10-Port Managed PoE Switch | 8-RJ45 Ethernet Ports, 2-SFP Ports

Managed PoE+ Connectivity for Network Edge Devices

The SG71060MPB is designed to connect Ethernet-powered devices at the network edge while providing fiber-optic connectivity to an upstream network, backbone, or other fiber-connected equipment.

Eight 10/100/1000Mbps shielded RJ-45 ports provide Gigabit Ethernet connectivity and PoE/PoE+ power, while two 100/1000Mbps SFP ports provide flexible fiber-optic uplinks.

This combination allows the switch to serve as a central connection point for IP cameras, access-control systems, intercoms, telephones, transportation equipment, and other Ethernet devices while extending connectivity over copper and fiber infrastructure.

250W PoE/PoE+ Power Budget

The SG71060MPB provides 250 watts of total PoE power across its eight PoE/PoE+ ports.

Each port supports:

• IEEE 802.3af PoE up to 15.4W
• IEEE 802.3at PoE+ up to 25.5W
• Automatic detection of connected powered devices
• Per-port power consumption monitoring
• Per-port PoE state configuration
• Per-port power priority configuration
• Circuit protection to prevent power interference between ports

The switch also monitors powered-device status, detection, power level, and power-feeding priority, giving network administrators greater control over connected PoE equipment.

Fiber Uplinks for Long-Distance Network Connectivity

Two 100/1000Mbps SFP ports provide fiber-optic uplink connectivity for extending the network beyond the limits of standard copper Ethernet cabling.

The SG71060MPB supports compatible multimode and single-mode SFP modules with LC connectors. VERSITRON's documented SFP options include Gigabit multimode modules for distances up to 550 meters and single-mode modules extending to 100 km, depending on the selected optical module and fiber infrastructure.

Available SFP options include:

• 100Mbps multimode and single-mode modules
• Gigabit multimode modules
• Gigabit single-mode modules
• Single-mode modules for 10 km, 20 km, 40 km, 70 km, and 100 km links
• Bi-directional single-mode SFP modules for selected distances
• CWDM and DWDM modules

The appropriate SFP should be selected according to the required transmission speed, fiber type, distance, wavelength, and optical link requirements.

56Gbps Non-Blocking Switching Performance

The SG71060MPB provides a 56Gbps switching capacity with non-blocking performance across its Gigabit Ethernet ports.

The switch supports:

• 8K MAC addresses
• Jumbo frames up to 10K
• Auto-negotiation
• Auto-MDI/MDI-X
• 10/100/1000Mbps copper connectivity
• 100/1000Mbps SFP connectivity

This architecture provides the bandwidth needed to efficiently connect multiple Gigabit Ethernet edge devices while maintaining fiber uplink connectivity.

Layer 2+ Management and Network Control

The SG71060MPB provides Layer 2+ management through a web-based management interface, with support for Console CLI, Web Browser Software, and SNMP.

Network administrators can configure ports, segment network traffic, establish VLANs, prioritize traffic, monitor network activity, and apply security controls.

Management capabilities include:

• Console CLI
• Web-based management
• SNMP
• Port configuration
• Port mirroring
• Flow-based packet filtering
• Traffic redirection
• Rate limiting
• DHCP client, snooping, server, and relay functions

VLAN Support for Network Segmentation

The SG71060MPB supports multiple VLAN configurations for separating network traffic and organizing devices across a shared network infrastructure.

VLAN capabilities include:

• Port-based VLAN
• IEEE 802.1Q tag-based VLAN
• Up to 4,000 active VLANs
• MAC-based VLAN
• Management VLAN
• Voice VLAN

These capabilities allow different types of network traffic and devices to be logically separated while using the same physical switching infrastructure.

QoS and Traffic Management

The SG71060MPB provides Quality of Service capabilities for networks where different types of traffic may require different levels of priority.

The switch supports:

• Port-based QoS
• IEEE 802.1p QoS
• DiffServ IPv4 packet classification
• Strict Priority (SP) scheduling
• Weighted Round Robin (WRR) scheduling
• SP+WRR scheduling
• Eight output queues per port
• Flow-based packet filtering
• Traffic redirection
• Rate limiting

These functions provide administrators with tools for managing network traffic and assigning priority to selected data flows.

Industrial Ring Network Protection

For applications requiring rapid network recovery, the SG71060MPB supports G.8032 Ethernet Ring Protection Switching (ERPS).

The datasheet specifies a recovery time of less than 20 milliseconds, with support for up to 255 rings and up to 1,024 devices per ring.

The switch also supports STP, RSTP, and MSTP protocols, providing multiple options for network redundancy and loop prevention.

Network Security and Access Control

The SG71060MPB incorporates a broad range of network security functions designed to help administrators control access and protect network traffic.

Security capabilities include:

• 802.1x authentication
• MAC address authentication
• User hierarchical management
• Password protection
• SSH 2.0
• SSL
• Port isolation
• Broadcast storm control
• ARP message speed limiting
• MAC black holes
• IP source protection
• AAA and RADIUS
• MAC learning limits
• ARP inspection
• Anti-DoS attack protection
• IP-MAC-VLAN port binding

These features allow the switch to be configured for networks where access control, traffic isolation, and network security are important considerations.

Multicast Management

The SG71060MPB supports multicast traffic management through IGMP and MLD Snooping.

The switch supports:

• IGMP Snooping v1/v2
• Up to 1,024 multicast groups
• Fast Log Out
• MLD Snooping v1/v2
• Multicast VLAN

Multicast management can help control the distribution of network traffic in applications that use multiple receivers for shared data streams.

Designed for Security, Transportation, and Network Infrastructure

The SG71060MPB combines PoE/PoE+ connectivity, fiber uplinks, Layer 2+ management, network redundancy, and security features in a single 10-port platform.

Typical applications include:

• IP video surveillance networks
• PTZ security cameras
• Access-control systems
• Intercom systems
• VoIP telephones
• Transportation and intelligent transportation systems (ITS)
• Variable message signs
• Industrial Ethernet networks
• Network infrastructure requiring fiber uplinks
• Applications requiring redundant ring network configurations
• PoE-powered network edge devices

Technical Capabilities

The SG71060MPB supports:

• 8 × 10/100/1000Mbps shielded RJ-45 PoE/PoE+ ports
• 2 × 100/1000Mbps SFP fiber ports
• 56Gbps switching capacity
• 8K MAC address table
• Jumbo frames up to 10K
• 250W total PoE power budget
• 15.4W PoE or 25.5W PoE+ per port
• IEEE 802.3af and IEEE 802.3at
• G.8032 ERPS
• STP, RSTP, and MSTP
• Port-based, 802.1Q, MAC-based, management, and voice VLANs
• QoS with eight output queues per port
• LACP and other IEEE 802.3 standards support
• IGMP and MLD Snooping
• Port mirroring
• Rate limiting
• 802.1x authentication
• RADIUS and AAA
• ARP inspection
• IP source protection
• Anti-DoS protection
• SNMP management
• Console CLI and web-based management

Electrical and Environmental Specifications

Why Choose the VERSITRON SG71060MPB?

The SG71060MPB combines Gigabit PoE+ connectivity, fiber-optic uplinks, Layer 2+ management, network security, QoS, VLAN segmentation, multicast management, and rapid ring recovery in a single 10-port Ethernet switch.

Its eight PoE/PoE+ ports provide power and data connectivity to network edge devices, while its two SFP ports allow the network to extend over multimode or single-mode fiber. Advanced management and security features provide the control required for networks that need more than basic Ethernet switching.

For installations where network continuity is important, the switch's support for G.8032 ERPS with recovery in less than 20ms, along with STP, RSTP, and MSTP, provides multiple options for designing redundant network architectures.

VERSITRON Fiber Optic and Ethernet Solutions Since 1958

Since 1958, VERSITRON has provided fiber optic and Ethernet communication solutions for demanding network applications. The SG71060MPB combines that experience with managed PoE/PoE+ switching and fiber-optic connectivity for modern security, transportation, industrial, and enterprise networks.

For pricing, availability, SFP selection, or assistance determining the appropriate configuration for your network, contact VERSITRON at sales@versitron.com or 1-800-537-2296.

• 8-10/100/1000Mbps Copper Ports
• Each port provides 15.4W or 25.5W of PoE power
• 250 Watts PoE Power Budget
• 2-100/1000Mbps Fiber Optic SFP Slots
• L2+ Web-based Management
• Supports jumbo frames up to 10K
• Port Mirroring for network monitoring
• Supports STP, RSTP, MSTP protocols
• Supports port-based and 802.1q Tag-based VLAN
• Supports 802.1x Access Control for improved security
• CE, FCC, and RoHs Compliant
