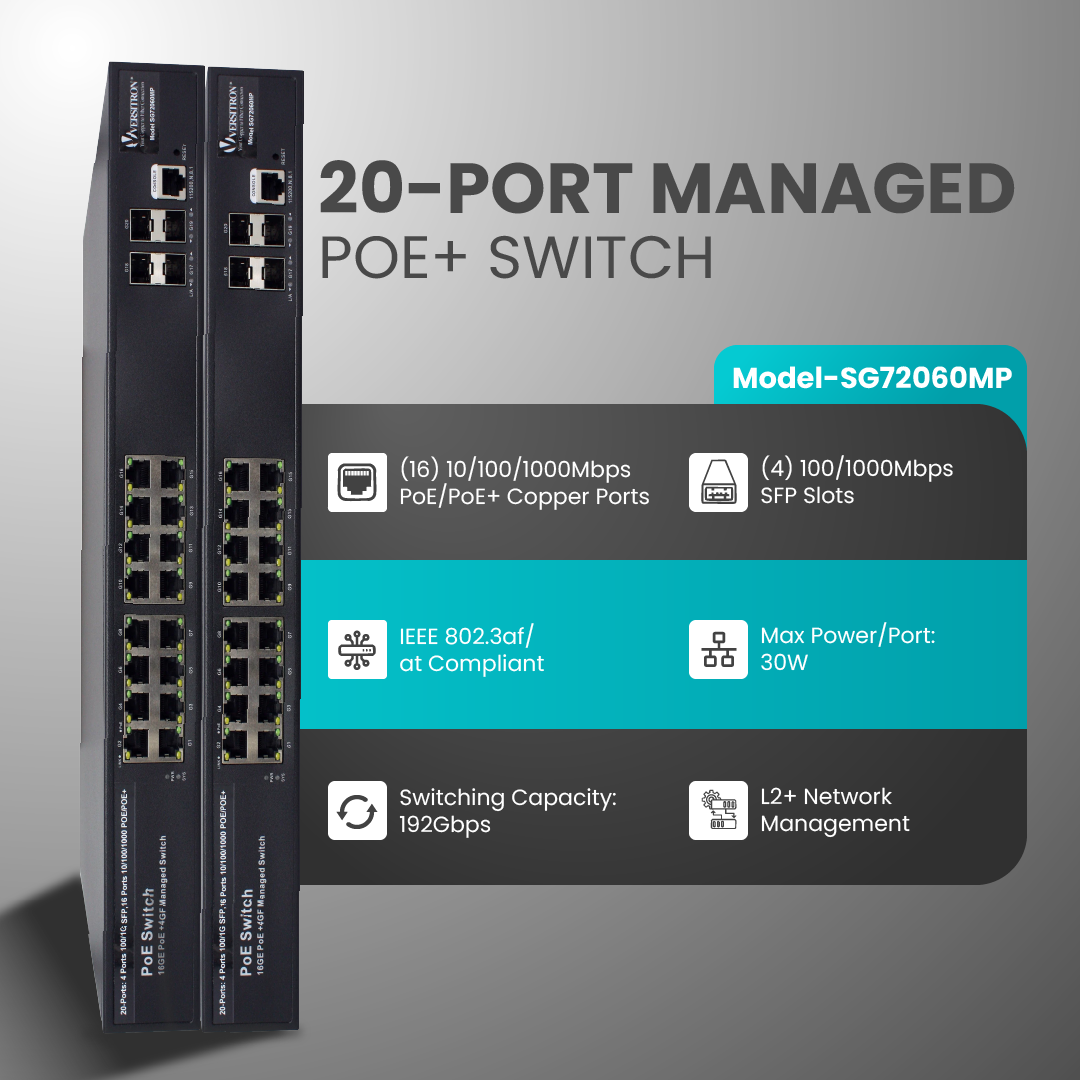

20-Port Managed PoE+ Switch | 16-RJ45 Ethernet Ports, 4-SFP Fiber Ports
20-Port Managed PoE+ Switch | 16-RJ45 Ethernet Ports, 4-SFP Fiber Ports
SKU:SG72060MP
-
Free Ground Shipping For Online Store Orders
-
Free Unlimited Support
-
Lifetime Warranty
Couldn't load pickup availability
The SG72060MP provides 192Gbps switching capacity, 29.76Mpps throughput, 8K MAC table entries, and jumbo frame support up to 10K bytes. Its L2+ management platform includes VLAN, QoS, link aggregation, port mirroring, multicast management, Layer 3 soft routing, static routing, DHCP functions, and extensive network security controls.
The sixteen PoE ports support IEEE 802.3af/at, with up to 30W per port and a 400W total PoE power budget. The SG72060MP is housed in a 1U chassis designed for desktop or 19-inch rack mounting.
Product Highlights
- 16 × 10/100/1000Mbps PoE/PoE+ RJ-45 Ports
- 4 × 100/1000Mbps SFP Fiber Slots
- IEEE 802.3af/at PoE/PoE+ Support
- 400W Total PoE Power Budget
- Up to 30W PoE Power Per Port
- L2+ Managed Switching with Layer 3 Features
- Advanced VLAN, QoS, and Security Functions
- STP, RSTP, and MSTP Support
- 10K Jumbo Frame Support
- Desktop or 19-Inch 1U Rack Mount
High-Density Managed PoE+ and Fiber Connectivity
The SG72060MP combines sixteen Gigabit PoE/PoE+ Ethernet ports with four 100/1000Mbps SFP slots, providing a high-density platform for networks that need both powered copper connections and fiber-optic uplinks.
The shielded RJ-45 ports support auto-negotiation and auto-MDI/MDI-X, while the SFP interfaces provide connectivity over compatible multimode or single-mode fiber using LC connectors. Copper connections can use Category 5 cable for 10/100/1000Mbps applications up to 100 meters, with Category 5e or higher specified for Gigabit operation up to 100 meters.
IEEE 802.3af/at PoE+ Power Delivery
The SG72060MP provides PoE/PoE+ on ports 1 through 16 and supports IEEE 802.3af and IEEE 802.3at. The switch provides up to 30W maximum power per port and a total PoE power budget of 400W.
PoE management functions include:
- PoE working-status monitoring
- Delayed start
- PoE output priority configuration
- Total PoE power limit
- PoE operation and time scheduling
- PoE output power allocation
These functions provide administrators with control over how power is delivered and managed across the sixteen PoE ports.
192Gbps Switching Capacity
The SG72060MP uses a store-and-forward, full-wire-speed switching architecture with 192Gbps switching capacity and 29.76Mpps throughput. It also provides an 8K MAC address table and 4.1M bytes of buffer memory.
The switch supports jumbo frames up to 10K bytes, providing additional flexibility for networks handling large Ethernet frames.
Four 100/1000Mbps SFP Fiber Uplinks
The SG72060MP includes four 100/1000Mbps SFP slots, allowing fiber-optic uplinks to be configured according to the requirements of the network.
The VERSITRON datasheet lists compatible fiber modules supporting multimode and single-mode fiber, with Gigabit transmission options extending from short-distance multimode connections to 100 km over single-mode fiber.
Available options include:
- 100Mbps multimode fiber
- 100Mbps single-mode fiber
- Gigabit multimode fiber
- Gigabit single-mode fiber
- Bi-directional single-mode Gigabit modules
- CWDM modules
- DWDM modules
Documented Gigabit SFP options include 10km, 20km, 40km, 70km, and 100km single-mode configurations, along with bidirectional options from 10km through 80km.
The appropriate SFP should be selected based on network speed, fiber type, transmission distance, wavelength, and connector requirements.
L2+ Managed Network Functions
The SG72060MP provides extensive management capabilities through multiple interfaces, including:
- Console
- AUX modem
- Telnet
- SSH 2.0 CLI
- HTTPS web management
- FTP
- TFTP
- Xmodem
- SFTP
- SNMP v1/v2c/v3
Additional management functions include one-key recovery, NTP, system work logs, ping testing, cable diagnosis, LLDP, CPU utilization monitoring, and the VERSITRON NMS Smart Network Management Systems platform.
Layer 3 Soft Routing and Static Routing
In addition to its L2+ switching capabilities, the SG72060MP supports several Layer 3 functions.
These include:
- IPv4 management
- Layer 3 soft routing forwarding
- Static routes
- DHCP client
- DHCP snooping
- DHCP server
- DHCP relay
These functions provide additional flexibility for network administrators managing larger or more segmented Ethernet networks.
VLAN Support for Network Segmentation
The SG72060MP supports multiple VLAN technologies for network segmentation and traffic management.
Supported VLAN functions include:
- Port-based VLAN
- IEEE 802.1Q tag-based VLAN
- Up to 4,000 active VLANs
- MAC-based VLAN
- Protocol-based VLAN
- Q-in-Q configuration
- Access, trunk, and hybrid port configurations
These capabilities allow administrators to organize network traffic according to devices, applications, users, or network segments.
Quality of Service and Traffic Control
The SG72060MP provides advanced Quality of Service functions for prioritizing and controlling network traffic.
The switch includes:
- Diff-Serv QoS
- Priority marking and remarking
- Eight output queues per port
- 802.1p/DSCP priority mapping
- SP queue scheduling
- WRR queue scheduling
- SP+WRR scheduling
- Flow-based packet filtering
- Flow-based redirection
- Flow-based rate limiting
These capabilities allow administrators to prioritize traffic and apply traffic-management policies throughout the network.
Link Aggregation
The SG72060MP supports IEEE 802.3ad LACP and static link aggregation.
The switch can support up to 10 aggregation groups with up to 8 ports per group, providing flexibility for network architectures requiring aggregated connections.
Spanning Tree and Network Redundancy
The SG72060MP supports:
- Spanning Tree Protocol (STP)
- Rapid Spanning Tree Protocol (RSTP)
- Multiple Spanning Tree Protocol (MSTP)
These protocols provide options for managing redundant network paths and helping maintain network connectivity in appropriately designed network architectures.
Port Mirroring for Network Monitoring
The SG72060MP supports port-based bidirectional data mirroring, allowing selected network traffic to be copied to another port for monitoring and troubleshooting.
The switch also provides cable diagnosis, LLDP, CPU utilization monitoring, system work logs, and other management functions that give administrators additional visibility into network operation.
Multicast Management
The SG72060MP supports:
- IGMP Snooping v1/v2
- Up to 1,024 multicast groups
- Fast Leave
- MLD Snooping v1/v2
- Multicast VLAN
These features provide administrators with control over multicast traffic within managed Ethernet networks.
Advanced Network Security
The SG72060MP provides a broad range of security and access-control functions.
Security capabilities include:
- L2-to-L4 packet filtering
- MAC-based ACL
- Source and destination MAC filtering
- Source and destination IP filtering
- IP protocol filtering
- TCP/UDP port filtering
- VLAN-based ACL
- Port-based ACL
- IEEE 802.1X authentication
- MAC address authentication
- IP source protection
- AAA and RADIUS
- ARP inspection
- MAC learning limits
- Broadcast storm control
- MAC black holes
- Anti-DoS attack protection
- IP-MAC-VLAN-port binding
- Port isolation
- SSH 2.0 and SSL
These functions provide multiple layers of network access control and traffic security.
1U Rack-Mount Design
The SG72060MP is designed as a 1U-high chassis suitable for desktop installation or mounting in a standard 19-inch equipment rack.
The chassis measures 17.32 × 11.42 × 1.75 inches and weighs approximately 9.23 pounds.
This rack-mount form factor makes the switch suitable for centralized network installations where multiple Ethernet and fiber connections need to be organized within an equipment rack.
Operating Environment
The SG72060MP is rated for an operating temperature range of -20°C to +55°C. Storage temperature is specified from -40°C to +75°C, with relative humidity from 5% to 90%, non-condensing.
The switch is therefore best positioned for controlled indoor network environments rather than the extreme-temperature industrial applications associated with VERSITRON's ruggedized industrial switch lines.
Typical Applications
The SG72060MP is suited for networks requiring high port density, PoE/PoE+ power delivery, fiber-optic uplinks, and advanced network management.
Typical applications include:
- Enterprise Ethernet networks
- IP surveillance systems
- Security and access-control networks
- Educational networks
- Healthcare networks
- Retail environments
- Hospitality networks
- Smart building networks
- Business network infrastructure
- Fiber-connected LANs
- Networks requiring centralized PoE power
- Networks requiring VLAN segmentation
- Networks requiring redundant or aggregated links
Technical Capabilities
The SG72060MP supports:
- 16 × 10/100/1000Mbps PoE/PoE+ RJ-45 ports
- 4 × 100/1000Mbps SFP slots
- IEEE 802.3af/at
- Up to 30W per PoE port
- 400W total PoE power budget
- 192Gbps switching capacity
- 29.76Mpps throughput
- 8K MAC address table
- 4.1M buffer memory
- 10K-byte jumbo frames
- Store-and-forward full-wire-speed switching
- L2+ network management
- IPv4 management
- Layer 3 soft routing
- Static routing
- DHCP client, snooping, server, and relay
- STP, RSTP, and MSTP
- LACP and static aggregation
- Up to 10 aggregation groups
- Up to 8 ports per aggregation group
- Port-based bidirectional data mirroring
- IGMP/MLD snooping
- Up to 1,024 multicast groups
- Multicast VLAN
- Up to 4,000 active VLANs
- Port-, MAC-, and protocol-based VLAN
- Q-in-Q
- Eight QoS output queues per port
- 802.1p/DSCP priority mapping
- Flow-based filtering, redirection, and rate limiting
- L2-L4 packet filtering
- IP- and MAC-based ACLs
- IEEE 802.1X
- MAC authentication
- RADIUS
- ARP inspection
- Anti-DoS protection
- IP-MAC-VLAN-port binding
- SNMP v1/v2c/v3
- HTTPS web management
- SSH 2.0
- LLDP
- Cable diagnosis
- NTP
- System work log
- CPU utilization monitoring
Electrical, Mechanical, and Environmental Specifications
| Specification | SG72060MP |
|---|---|
| Copper Ports | 16 × 10/100/1000Mbps PoE/PoE+ |
| Fiber Ports | 4 × 100/1000Mbps SFP |
| PoE Standards | IEEE 802.3af/at |
| Maximum PoE per Port | 30W |
| Total PoE Power | 400W |
| Input Power | 100–240VAC, 50/60Hz, 5.0A |
| Standby Power Consumption | <18W |
| Full-Load Power Consumption | <380W |
| Switching Architecture | Store-and-forward |
| Switching Capacity | 192Gbps |
| Throughput | 29.76Mpps |
| MAC Address Table | 8K entries |
| Buffer Memory | 4.1M |
| Maximum Frame Size | 10K bytes |
| VLANs | Up to 4,000 active VLANs |
| QoS | 8 output queues per port |
| Link Aggregation | LACP/static, up to 10 groups |
| Multicast Groups | Up to 1,024 |
| Mounting | Desktop or 19-inch rack |
| Rack Height | 1U |
| Dimensions | 17.32 × 11.42 × 1.75 inches |
| Weight | 9.23 lbs. |
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -40°C to +75°C |
| Humidity | 5% to 90%, non-condensing |
| Certifications | CE, FCC Part 15 Class B, RoHS |
The physical and environmental specifications above are taken directly from the SG72060MP datasheet.
Why Choose the VERSITRON SG72060MP?
The SG72060MP provides a combination of high-density Gigabit Ethernet, 16 PoE/PoE+ ports, four fiber-optic SFP uplinks, 400W PoE capacity, L2+ management, Layer 3 soft routing, extensive VLAN and QoS functions, link aggregation, and advanced network security.
With 192Gbps switching capacity and 29.76Mpps throughput, the switch provides substantial switching performance for networks with numerous connected Ethernet and PoE devices.
The four SFP interfaces provide additional flexibility for connecting fiber-optic network segments, while the 1U rack-mount design allows the SG72060MP to be integrated into centralized network equipment installations.
VERSITRON Fiber Optic and Ethernet Solutions Since 1958
Since 1958, VERSITRON has provided fiber optic and Ethernet communication solutions for commercial, industrial, telecommunications, surveillance, transportation, and other demanding network applications.
The SG72060MP combines high-density Gigabit Ethernet switching with PoE/PoE+ power delivery, fiber-optic connectivity, advanced network management, and extensive security functions for modern network infrastructure.
For pricing, availability, SFP selection, or assistance determining the appropriate configuration for your network, contact VERSITRON at sales@versitron.com or 1-800-537-2296.
Network Ports
16-10/100/1000Mbps PoE/PoE+ Copper Ports
4-100/1000Mbps SFP Slots
Shielded RJ-45, Auto-Negotiate, Auto-MDI/MDI-X Support
Back-pressure flow control for half-duplex
802.3x flow control for full duplex
Network Cables
10/100/1000Mbps: Cat.5 up to 100m
1Gbps: Cat.5e or higher up to 100m
Multimode or Singlemode fiber with LC Connectors
Switch Parameters
Store and Forward (Full Wire Speed)
192Gbps Switching Capacity
29.76Mpps Throughput
Supports Jumbo Frames up to 10K
8K MAC Table Entries
4.1M Buffer Memory
500MHz CPU
1G DRAM
256M Flash
LED Indicators
Power, System, Link/Activity, PoE
PoE Ports
Ports 1-16
IEEE802.3af/at
15.4W or 25.5W of PoE Power
PoE Management
PoE Working Status
Delay Start
PoE Output Priority Configuration
Total Power Limit of PoE Power Supply
PoE Operation & Time Scheduling
PoE Output Power Allocation
PoE Pin-Out
Pins 1 & 2 (+)
Pins 3 & 6 (-)
Max Power per Port
30W
Total Power
400W
Input Power
100-240VAC, 50/60Hz, 5.0A
Power Consumption
Standby: <18W
Full Load: <380W
Interfaces
Console/AUX Modem/Telnet/SSH2.0 CLI
Web Management (HTTPS)
Download & Management on FTP, TFTP, Xmodem, SFTP
SNMP V1/V2C/V3
One-Key Recovery
NTP, System Work Log, Ping Test
Cable Diagnosis, LLDP
CPU Instant Utilization Status View
NMS – Smart Network Management System
Layer 3 Features
L2+ Network Management
IPV4 Management
L3 Soft Routing Forwarding
Static Route
DHCP
Client, Snooping, Server, Relay
Port Mirroring
Port-Based Bidirectional Data Mirroring
Port Aggregation
LACP, Static Aggregation
Max of 10 Aggregation Groups with 8 Ports per Group
Spanning Tree
STP, RSTP, MSTP
Multicast
IGMP Snooping v1/v2, Max 1024 Multicast Groups
Fast Log Out
MLD Snooping v1/v2
Multicast VLAN
VLAN
Port-Based VLAN
802.1Q Tag-Based VLAN
MAC-Based VLAN
Protocol Based VLAN
Q-in-Q Configuration
Port Configuration of Access, Trunk, Hybrid
QoS
Diff-Serv QoS, Priority Mark/Remark
8 Output Queues for Each Port
802.1p/DSCP Priority Mapping
Queue Scheduling Algorithm (SP, WRR, SP+WRR)
Flow-Based Packet Filtering
Flow-Based Redirection
Flow-Based Rate Limiting
ACL
L2 to L4 Packet Filtering
MAC-Based ACL
Destination MAC Address
IP Source
Destination IP
IP Protocol Type
TCP/UDP Port
TCP/UDP Port Range
VLAN
Port-Based Issuing ACL
Security
User Hierarchical Management and Password Protection
SSH 2.0, SSL, Port Isolation, ARP Message Speed Limit
Broadcast Storm Control
IEEE802.1x & MAC Address Authentication
MAC Black Holes
IP Source Protection
AAA & RADIUS
MAC Learning Limit
ARP Inspection
Anti-DOS Attack
IP-MAC-VLAN-Port Binding
Dimensions
17.32 x 11.42 x 1.75 inches (440 x 290 x 44.5mm) (WxDxH)
Weight: 9.23 LBS
Desktop or 19" Rack-Mount, 1U High
Temperature
Operating: -20°C to 55°C
Storage: -40°C to 75°C
Humidity: 5% to 90% relative, non-condensing
Certifications
CE Mark
FCC Part 15, Class B
RoHs
- 16-10/100/1000Mbps PoE/PoE+ Copper Ports
- Supports 15.4W or 25.5W of PoE/PoE+ Power
- 4-100/1000Mbps SFP Slots
- L2+ Management
- Supports Multiple VLAN Protocols
- Supports Jumbo Frames up to 10K
- Port Mirroring for Network Monitoring
- Supports STP, RSTP, MSTP Protocols
- Advanced Security Features
20-Port Managed PoE/PoE+ Switch (SG72060MP) Review
The SG72060MP has been a great addition to our network. With 20 ports and PoE/PoE+ support, it easily powers IP cameras, phones and other devices without extra adapters or hassle. Even with heavy use, it runs smoothly and reliably. I don’t have to worry about slowdowns or performance issues even in demanding environments. If you need a powerful and easy-to-use switch, this one gets the job done.
Apr 28, 2024
4.0 out of 5 stars
20 Port Managed PoE+ Switch is used across the following Industries:
Enterprise & Office Networks
- VoIP phone networks with PoE
- Wireless APs across office floors
- Fiber uplinks from branch switches to core switch
- Conference room AV system powering
- Centralized switch in IDF for multiple office segments
Educational Institutions
- Campus Wi-Fi access point powering via PoE+
- Smart classroom control panels or displays
- Inter-building fiber backbone using SFP ports
- IP bell, clock, and intercom systems
- PoE IP surveillance cameras in hallways
Healthcare & Medical Facilities
- PoE+ for wireless nurse call and alert systems
- Medical cart docking station networks
- Security and access control systems over PoE
- Fiber uplinks between surgical wing IDFs
- Touchscreen terminals in patient rooms
Retail & Hospitality
- PoE+ IP surveillance (storefront, back office, POS area)
- Digital signage and kiosks in retail environments
- In-room IPTV endpoints and Wi-Fi APs (hotels)
- PoE door lock/access controllers
- Central switch per floor for fiber backhaul to core
Industrial Automation & Manufacturing
- IP surveillance for production lines
- PoE-connected sensor hubs or environmental controls
- Fiber uplinks between production building zones
- PoE+ access points in large warehouses
- Managed VLANs for segmented control and monitoring
Smart Buildings & Commercial Real Estate
- Building-wide IP access control systems
- Environmental and lighting systems using PoE
- Security camera clusters on each floor
- Elevator and HVAC control cabinets
- Fiber-based uplinks to building MDF/core switch
Video Surveillance & Security
- Distributed PoE IP camera deployments
- Network video recorder (NVR) cabinet switch
- Remote gate and intercom systems powered via PoE+
- Backbone fiber to monitoring station or HQ
- PoE-powered IR cameras and pan-tilt-zoom systems
Research Labs & Universities
- Fiber uplinks from distributed research labs
- IP-based lab control systems and instrumentation
- VLAN management for student and research networks
- Access-controlled lab doors using PoE-powered controllers
- PoE+ network access for classroom tech (mic systems, tablets)
System Integrators / Network Contractors
- Modular switch for PoE deployment kits
- Managed switch for client projects with fiber/PoE
- Fiber uplink to core, PoE to client devices
- VLAN segmentation and diagnostics via port mirroring
- Event-based or mobile project deployments with dual power/fiber needs
Utilities, Energy & Power Distribution
- PoE-enabled smart grid equipment
- Fiber uplink to utility control centers
- Security camera and sensor systems in substations
- Smart lighting controller hubs powered via PoE
- Field switchboards combining Ethernet + fiber links
Municipalities & Smart Cities
- PoE-powered surveillance at intersections
- Fiber uplink to city data centers
- Public Wi-Fi APs managed via this switch
- Access control at city-owned facilities
- Utility pole sensor aggregation
Construction Sites & Temporary Installations
- Trailer-based surveillance powered via PoE
- APs and client devices in temporary offices
- Fiber uplink to on-site command trailer or generator-based hub
- Event/construction perimeter monitoring systems
Maritime & Offshore
- PoE IP surveillance on vessels or platforms
- Crew communication APs powered by PoE+
- Managed switch for VLAN-based segmented control networks
- Fiber backhaul to main control center
- Rugged cabinet installations with low space requirements
Agriculture & Precision Farming
- PoE IP camera networks across barns or greenhouses
- Remote access points in fields or silos
- Fiber uplinks between control rooms and sensor hubs
- Precision irrigation system controllers powered via PoE
Defense & Military Installations
- Field-deployable networks requiring PoE+ and fiber uplinks
- Tactical trailers with fiber uplinks and powered edge devices
- VLAN-secured access control at perimeters
- Surveillance and communication APs powered by PoE+
- Hardened installations with anti-DoS protections
Events, Stadiums & Exhibition Venues
- PoE cameras and ticketing devices
- APs for high-density Wi-Fi
- Switches for AV systems and digital signage
- Fiber uplinks to centralized NOC
- Fast deployment switches for production crews
Emergency Response & Disaster Recovery
- Rapid-deploy trailers or command posts
- Satellite-based backhaul to SFP fiber ports
- IP phones, access points, and cameras powered via PoE
- VLAN-based segmentation for first responder teams
- Mobile shelter monitoring via powered sensors
Broadcast & Media Production
- Studio AV routers powered over PoE+
- Camera and microphone controller networks
- NVR switch uplinks via SFP fiber
- Managed VLANs for media streaming separation
- Temporary PoE AV gear during live event productions
Versitron is one of the leading 20 Port Managed PoE+ Switch manufacturing companies in the USA (based in Delaware). If your industry or installation location isn't listed above, feel free to reach out to us!
Buy the Best 20 Port Managed PoE+ Switch from VERSITRON at a Competitive Price!!
Call / Chat With Us During Business Hours
Talk To A Real Person - No Phone Loops, Just The Support You Need.
Why Choose Us
Technical Support
Life Time Warranty
NDAA / TAA Compliant
Submit Enquiry
