Description Technical Specification Key Features

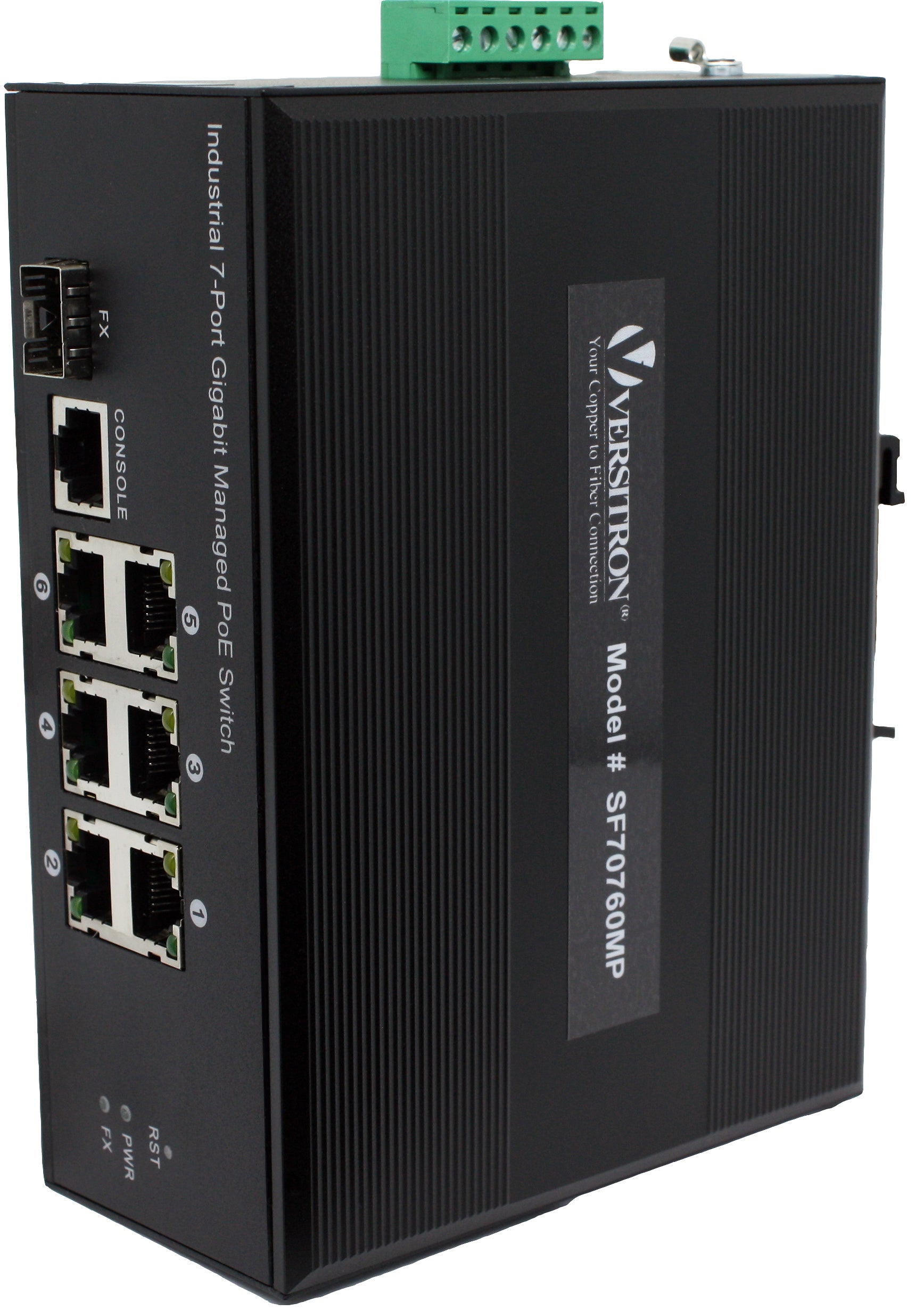

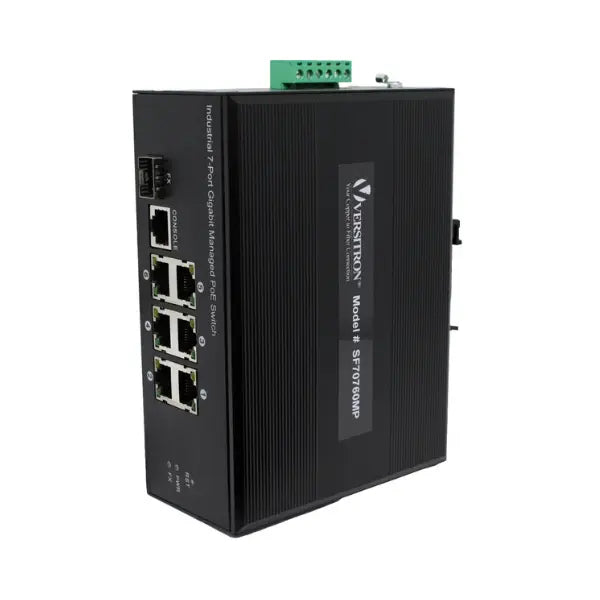

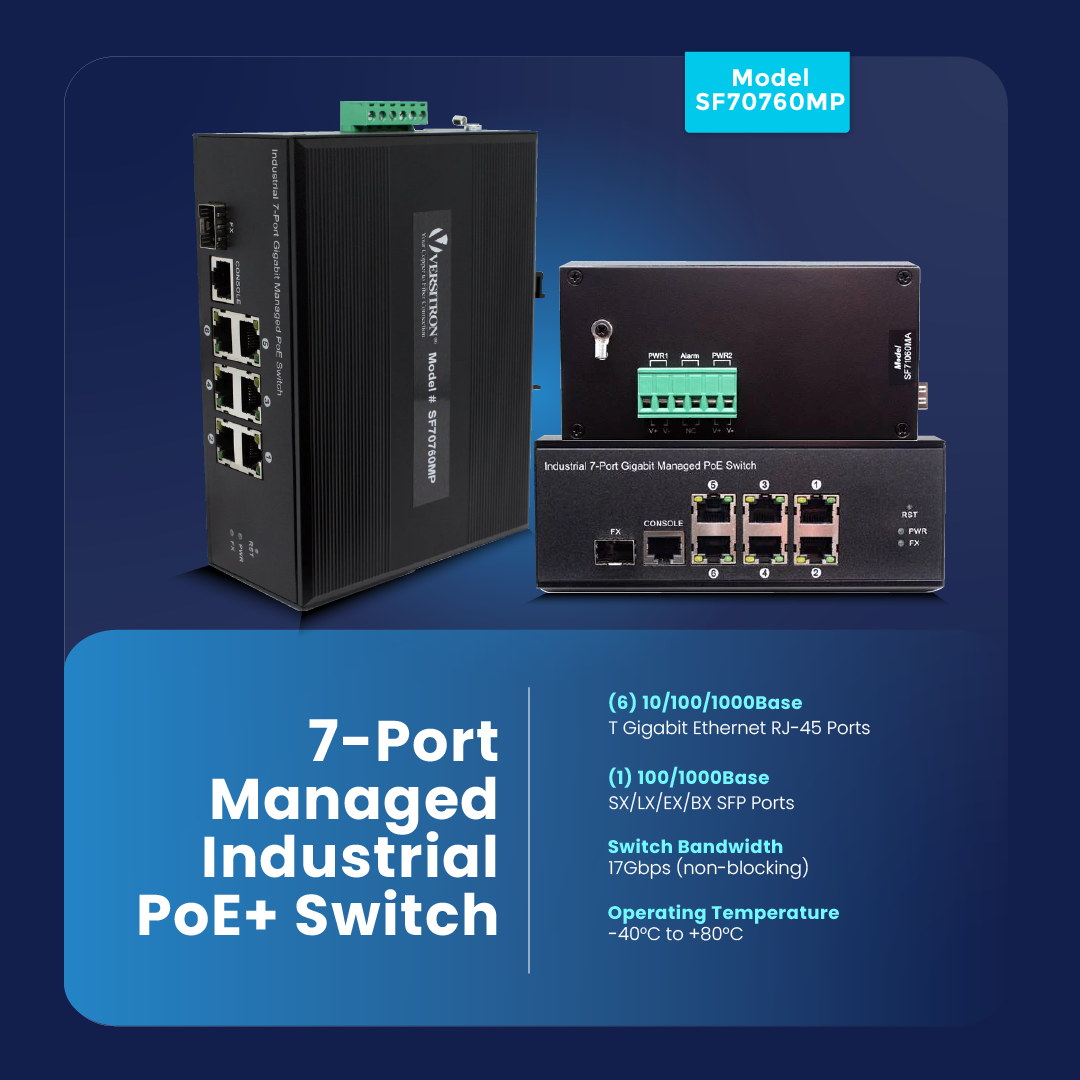

For efficient and reliable connectivity from the network edge device to a backbone switch or server, 7 Port Fiber and Ethernet managed gigabit switch is designed to extend existing LANs through one 100/1000Base-SX/LX SFP interface using either one or two multimode or singlemode fibers. Full power PoE at 30W is applied to all six ports with no power sharing, and added port circuit protection isolates and prevents power interference between ports. The Industrial Managed Switches are fully managed Layer 2 switches not only incorporating the industry standard Rapid Spanning Tree Protocol (IEEE802.1w RST), but also a rapid ring recovery protocol enabling operational network recovery in the event of a network or power system failure. These switches are also designed with a redundant power supply to further enhance network reliability and stability. Housed in rugged DIN rail or wall mountable enclosures, the switches are well suited for harsh environments such as industrial security, system automation applications and ITS.
Typical Applications
PoE/PoE+ operation of IP Cameras, with pan-tilt-zoom capability
PoE/PoE+ operation of IP cameras with heated/cooled housings
PoE/PoE+ operation of transportation-specific/ITS field equipment
Any networks using Power over Ethernet devices such as IP cameras, intercoms,
Copper Ports (RJ45) 6-10/100/1000Base-T
SFP Uplink Ports 1-100/1000Base-SX/LX/EX/BX SFP
Port Configuration Auto MDI/MDI-X
Port Speed Auto-negotiate
Switch Architecture Store-and-forward
Switch Bandwidth 17Gbps (non-blocking)
MAC Address 8K Entries
Maximum Frame Size 9.6K Bytes (Jumbo Frames)
Flow Control Back pressure (Half-Duplex)
Fiber Data Rate 1000Base-SX/LX/EX/BX
Fiber Connector SFP (Mini-GBIC) port
Fiber Type/Distance Varies by SFP Module
PoE Standard IEEE 802.3af
Power Supply Type End-Span (PSE)
PoE Power Output 48VDC, 15.4 Watts
Power Pin Assignment ½ (+), 3/6(-) default
LED Indicators Power: On/Green
Management Interface Console CLI, telnet, Web browser, SSH/SSL secure access
Port Configuration Enable/disable; Auto-negotiation;
Port Mirroring TX/RX Both; Many to 1 monitoring
Bandwidth Control Ingress/Egress rate control:
VLAN IEEE 802.1q tagged-based VLAN
Link Aggregation IEEE 802.3ad LACP / Static Trunk;
QoS 8 priority queue
Multicasting/IGMP IGMP/MLD Snooping (v1,v2,v3)
Access Control List IP-Based ACL/MAC-Based ACL,
SNMP MIBs RFC-1213 MIB-II
DC Power Input Voltage DC~52V, Auto-sensing
Full Load Power Consumption
9 Watts
Dimensions 156 x 114.8 x 60mm
Case IP44 Metal Case
Housing DIN Rail Mounting
MTBF >100,000 hours
Operating Temperature -40°C ~ +80°C
Storage Temperature -40°C ~ +80°C
Relative Humidity 0% ~ 95% (non-condensing)
6-Port 10/100/1000Base-T Gigabit Ethernet RJ-45 Ports
1-Port 100/1000Base-SX/LX/EX/BX SFP Type Ports
PoE Compatible: IEEE 802.3af and 802.3at compliant for PoE and PoE Plus
Non-blocking store-and-forward switching
RJ45 Port Supports 10/100/1000Mbps‐Full/Half‐duplex, Auto‐negotiation, Auto‐MDI/MDIX
Prevents Packet Loss w/Back Pressure (Half‐Duplex) and IEEE 802.3x PAUSE Frame Flow Control (Full‐Duplex)
Available for operation in Ring or point-to-point configuration
Real-time monitoring via Embedded Surveillance Device Management System
Uses interchangeable SFP for fiber type, distance and connector (Ordered separately).
Distances up to 100 km with optional SFPs
Available for operation over single mode or multimode fiber over a variety of link budget
Available for operation over 1 or 2 fibers
No in-field optical adjustment required
Redundant dual power supply inputs 48/52 VDC
4KV Ethernet Surge Protection for harsh environment
-40°C to 80°C (-40°F to 176°F) wide range operating temperature
Compact, corrosion resistant case attaches to a standard DIN Rails
