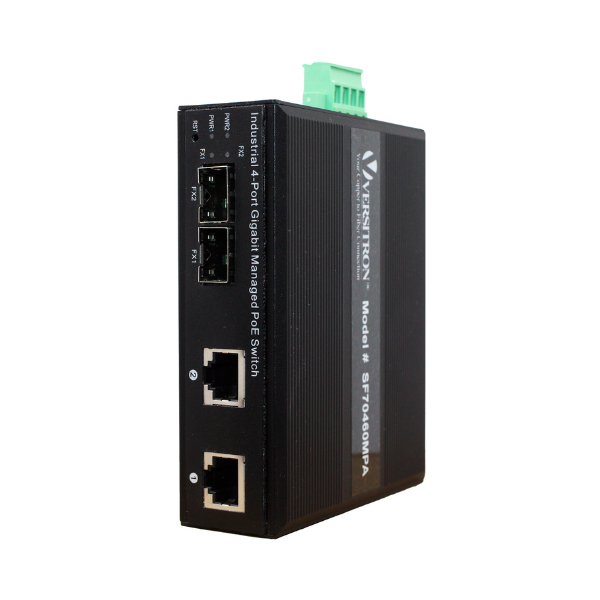

4-Port Managed Industrial PoE+ Switch | 2-RJ45 Ethernet Ports, 2-SFP Fiber Ports

Compact Managed PoE+ Connectivity for Industrial Networks

The SF70460MPA combines managed Gigabit Ethernet switching, PoE/PoE+ power, and fiber-optic connectivity in a compact industrial platform.

Two 10/100/1000Mbps RJ-45 ports provide network connectivity and PoE/PoE+ power to compatible Ethernet devices, while two 100/1000Mbps SFP slots provide fiber-optic connectivity to a network backbone, remote equipment, or another fiber-connected switch.

This combination makes the SF70460MPA well suited for applications where a small number of powered Ethernet devices need to connect to a fiber-based network while maintaining network management and redundancy capabilities.

60W PoE+ Power for Network Edge Devices

The SF70460MPA supports IEEE 802.3af and IEEE 802.3at and provides a total PoE power budget of 60 watts.

Each of the two copper PoE/PoE+ ports can provide:

• Up to 15.4W using IEEE 802.3af
• Up to 30W using IEEE 802.3at
• Power and data over the same Ethernet connection

The switch is classified as Power Source Equipment (PSE), allowing compatible powered devices to receive both Ethernet connectivity and electrical power through the network cable.

Typical PoE devices include:

• IP security cameras
• PTZ cameras
• Access-control equipment
• Intercom systems
• Industrial Ethernet devices
• Other IEEE 802.3af/802.3at powered devices

Two SFP Fiber Ports for Network Uplinks

The SF70460MPA provides two 100/1000Mbps SFP slots, allowing the switch to connect to fiber-optic infrastructure using compatible SFP transceivers.

The two SFP interfaces can support multimode or single-mode fiber depending on the selected optical module. This gives network designers flexibility to match the switch to the existing fiber infrastructure and required transmission distance.

VERSITRON's documented SFP options include Gigabit multimode modules as well as single-mode modules supporting distances from 10 km through 100 km. Bi-directional single-mode SFP options are also available for selected distances, along with CWDM and DWDM modules.

Fiber Connectivity from Short Reach to 100 km

The SF70460MPA supports a broad range of compatible VERSITRON SFP modules.

Available Gigabit options include:

• Multimode fiber up to 550 meters
• Single-mode fiber up to 10 km
• Single-mode fiber up to 20 km
• Single-mode fiber up to 40 km
• Single-mode fiber up to 70 km
• Single-mode fiber up to 100 km
• Bi-directional single-mode options
• CWDM and DWDM options

The appropriate SFP should be selected based on the required transmission speed, fiber type, distance, wavelength, and optical link requirements.

12Gbps Non-Blocking Gigabit Switching

The SF70460MPA uses a store-and-forward switching architecture with a 12Gbps non-blocking switching capacity.

The switch supports a 2K MAC address table and jumbo frames up to 9.6K bytes, providing the capacity needed to manage Gigabit Ethernet traffic between its copper and fiber interfaces.

Flow-control features include:

• IEEE 802.3x pause-frame flow control for full-duplex operation
• Back-pressure flow control for half-duplex operation
• Auto-negotiation
• Auto-MDI/MDI-X

Layer 2 Managed Network Functions

The SF70460MPA provides web-browser and SNMP management for configuring and monitoring the switch.

Management capabilities include:

• Web browser management
• SNMP v1, v2c, and v3c
• Port enable/disable
• Auto-negotiation
• Full- and half-duplex selection
• Flow-control configuration
• Bandwidth control
• VLAN
• Link aggregation
• QoS
• IGMP Snooping
• Access control
• DHCP Snooping
• Port loop detection
• Real-time network monitoring

These features provide network administrators with greater control over the network than an unmanaged Ethernet switch.

VLAN Support for Network Segmentation

The SF70460MPA supports both IEEE 802.1Q tag-based VLAN and port-based VLAN.

The switch supports up to 4,094 VLAN IDs, allowing network administrators to logically separate traffic across the same physical network infrastructure.

VLAN segmentation can be useful for separating surveillance, control, management, and other network traffic according to the requirements of the installation.

QoS and Traffic Management

The SF70460MPA supports Quality of Service with four priority queues and IEEE 802.1p-based traffic classification.

Ingress and egress rate control provides additional bandwidth-management capabilities, allowing network administrators to control traffic flow through individual interfaces.

Link Aggregation and Network Redundancy

The SF70460MPA supports IEEE 802.3ad LACP, allowing compatible network ports to be configured for link aggregation.

For redundant network architectures, the switch supports ITU-T G.8032/Y.1344 Ethernet Ring Protection Switching (ERPS). It also supports point-to-point or ring configurations, providing options for designing networks with greater path redundancy.

Network Security and Access Control

The SF70460MPA includes network security and access-control features for managed Ethernet environments.

Security capabilities include:

• Port-based ACL
• MAC-based ACL
• MAC address filtering
• Dynamic or static MAC address learning
• ARP learning
• ARP message speed limiting
• IP/MAC port binding
• IEEE 802.1x port-based network access control
• Port loop detection
• Login access authentication
• Password modification

These functions provide administrators with tools for controlling network access and managing connected devices.

Industrial Protection and Reliability

The SF70460MPA is designed for industrial environments where electrical protection, redundant power, and environmental durability are important.

The switch features:

• 4KV Ethernet surge protection
• Dual 9–52VDC power inputs
• Auto-sensing power input
• IP44 metal enclosure
• Corrosion-resistant construction
• Industrial-rated emission and immunity performance
• More than 100,000 hours MTBF

The dual DC inputs provide redundant power capability, while the industrial metal enclosure and surge protection help protect the switch in demanding installations.

Designed for Extreme Temperature Environments

The SF70460MPA is rated for an operating temperature range of -40°C to +80°C, making it suitable for installations exposed to significant temperature variation.

The switch also supports storage temperatures from -40°C to +80°C and relative humidity from 0% to 95%, non-condensing.

DIN-Rail Installation for Industrial Applications

The SF70460MPA features a compact 4.45 × 3.70 × 1.42-inch enclosure and supports DIN-rail mounting.

Its compact industrial form factor makes it suitable for control cabinets, equipment enclosures, field installations, and other applications where available space is limited.

Typical Applications

The SF70460MPA is designed for industrial and network infrastructure applications requiring managed Ethernet, PoE/PoE+, and fiber connectivity.

Typical applications include:

• Industrial automation
• IP video surveillance
• Security camera networks
• Telecommunications
• Transportation networks
• Intelligent transportation systems
• Smart city infrastructure
• Industrial control networks
• Remote Ethernet equipment
• Fiber-connected network infrastructure
• Maritime environments
• Healthcare facilities
• Educational institutions

Technical Capabilities

The SF70460MPA supports:

• 2 × 10/100/1000Mbps PoE/PoE+ RJ-45 ports
• 2 × 100/1000Mbps SFP slots
• IEEE 802.3af and IEEE 802.3at
• 60W total PoE power budget
• Up to 30W PoE+ output per port
• 12Gbps non-blocking switching capacity
• Store-and-forward switching
• 2K MAC address table
• 9.6K-byte jumbo frames
• IEEE 802.3x flow control
• Back-pressure flow control
• IEEE 802.1Q tag-based VLAN
• Port-based VLAN
• Up to 4,094 VLAN IDs
• IEEE 802.3ad LACP
• Four QoS priority queues
• IEEE 802.1p traffic classification
• IGMP Snooping v1/v2
• Port-based and MAC-based ACL
• DHCP Snooping and Option 82
• IEEE 802.1x
• Port loop detection
• Bandwidth control
• Web-browser management
• SNMP v1/v2c/v3c

Electrical, Mechanical, and Environmental Specifications

Why Choose the VERSITRON SF70460MPA?

The SF70460MPA combines managed Gigabit Ethernet switching, PoE+, dual SFP fiber connectivity, redundant power, industrial protection, and network redundancy in a compact platform.

With two PoE+ copper ports and two flexible SFP fiber ports, the switch is particularly well suited for installations that need to connect a small number of powered Ethernet devices while maintaining a fiber-optic connection to the network backbone.

Its -40°C to +80°C operating range, 4KV surge protection, IP44 metal enclosure, dual DC power inputs, and DIN-rail mounting make it well suited for demanding industrial and field environments.

VERSITRON Fiber Optic and Ethernet Solutions Since 1958

Since 1958, VERSITRON has provided fiber optic and Ethernet communication solutions for industrial, telecommunications, surveillance, transportation, and other demanding network applications.

The SF70460MPA combines that experience with managed PoE/PoE+ switching, flexible SFP fiber connectivity, and industrial protection for modern network infrastructure.

For pricing, availability, SFP selection, or assistance determining the appropriate configuration for your network, contact VERSITRON at sales@versitron.com or 1-800-537-2296.
