The Gigabit Ethernet RJ45 ports on the 18-port PoE switch support various half/full duplex mode, auto-negotiation, ensuring seamless connectivity and high-speed data transfer.It supports interchangeable SFP modules for various types of fiber, connectors, and distances facilitating connectivity over the distances up to 100 km. Whether you multimode or single-mode fiber, this switch can be easily adapted to your specific requirements without in-field optical adjustments.
This 18 port managed switch complies with IEEE 802.3af and 802.3at standards for Power over Ethernet (PoE) and PoE plus and delivers up to 30 watts of power to connected devices. The non-blocking store and forward switching architecture combined with Packet Loss w/Back Pressure (Half‐Duplex) and IEEE 802.3x PAUSE Frame Flow Control (Full‐Duplex) guarantees efficient data transmission with no packet loss.
Our 18-port gigabit switch is configurable in point-to-point and ring setups, making it suitable for different network topologies. Features like real-time monitoring capabilities via an Embedded Surveillance Device Management System enhance network management and visibility.
This 18-port PoE switch is a reliable choice, capable of withstanding harsh environmental conditions with ease. It is designed to operate consistently across a wide temperature range of -40°C to 80°C (-40°F to 176°F) and features like 4KV Ethernet Surge Protection and redundant dual power supply inputs, ensuring uninterrupted operation even in the event of power failure. You can trust this switch to keep your network running, no matter the conditions.
Typical Applications
Manufacturing
Surveillance
Access Control Systems
Industrial Automation
Traffic Management
Telecommunications
Environmental Monitoring
Energy Management
Industrial IoT (IIoT)
Critical Infrastructure
18-Port Managed Industrial PoE/PoE+ Switch (SF71860MP) Review
Gregory Simonis
4.0 out of 5 stars
Feb 20, 2025
The SF71860MP has been a game-changer for my industrial setup. With 18 PoE/PoE+ ports, it powers all my cameras, sensors and other devices without any extra wiring, making everything way easier to manage. Even in tough conditions like high vibrations and extreme temperatures, it runs smoothly without any issues. The management tools are simple to use and help me keep an eye on the network without hassle. If you need a reliable and powerful switch for an industrial setup, this one’s a great choice.
Copper Ports (RJ45)
16-10/100/1000Base-T
SFP Uplink Ports
2-100/1000Base-SX/LX/EX/BX SFP
Port Configuration
Auto MDI/MDI-X
Port Speed
Auto-negotiate
Switch Architecture
Store-and-forward
Switch Bandwidth
36Gbps (non-blocking)
MAC Address
8K Entries
Maximum Frame Size
9.6K Bytes (Jumbo Frames)
Flow Control
Back pressure (Half-Duplex) IEEE 802.3x Pause Frame (Full-Duplex)
Fiber Data Rate
1000Base-SX/LX/EX/BX
Fiber Connector
SFP (Mini-GBIC) port
Fiber Type/Distance
Varies by SFP Module
PoE Standard
IEEE 802.3af IEEE 802.3at
Power Supply Type
End-Span (PSE)
PoE Power Output
48VDC, 15.4 Watts 52VDC, 30 Watts
Power Pin Assignment
½ (+), 3/6(-) default
LED Indicators
Power: On/Green Ethernet: 10/100 LNK/ACT – Amber 1000 LNK/ACT – Green SFP Port: On/Blink – Green
Management Interface
Console CLI, telnet, Web browser, SSH/SSL secure access SNMPv1 and v2c and v3c
Port Configuration
Enable/disable; Auto-negotiation; 10/100/1000Mbps full-and-half duplex mode selection; Flow control
Port Mirroring
TX/RX Both; Many to 1 monitoring
Bandwidth Control
Ingress/Egress rate control: Configure (100~1000000Kbps) Full Speed 1000000Kbps
VLAN
IEEE 802.1q tagged-based VLAN Up to 256 VLANs groups, out of 4094 VLAN IDs Port-Based VLAN, Q-in-Q tunneling Mac-based VLAN, up to 256 VLANs Protocol-based VLAN, up to 128 VLANs MVR (Multiple VLAN Registration)
Link Aggregation
IEEE 802.3ad LACP / Static Trunk; Up to 5 groups of trunk supported
QoS
8 priority queue Traffic classification based on: IEEE802.1p Based Cos, IP DSCP Based Cos,
Multicasting/IGMP
IGMP/MLD Snooping (v1,v2,v3) With Query supported
Access Control List
IP-Based ACL/MAC-Based ACL, 256 entries
SNMP MIBs
RFC-1213 MIB-II RFC-2819 RMON MIB (Group 1,2,3,9)
DC Power Input Voltage
DC 9~52Volts
Full Load Power Consumption
18 Watts
Dimensions
483 x 280 x 45mm
Case
IP30 Metal Case
Housing
DIN Rail Mounting
MTBF
>100,000 hours
Operating Temperature
-40°C ~ +80°C
Storage Temperature
-40°C ~ +80°C
Relative Humidity
0% ~ 95% (non-condensing)

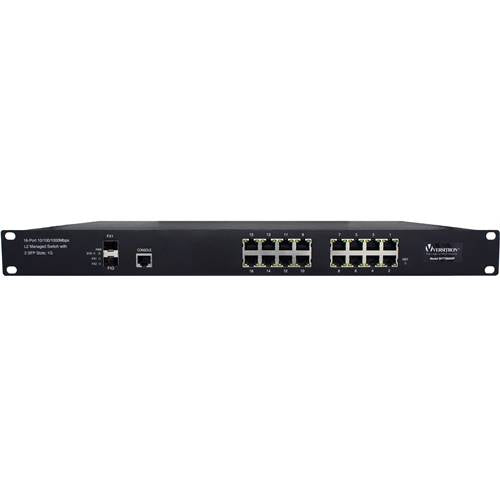

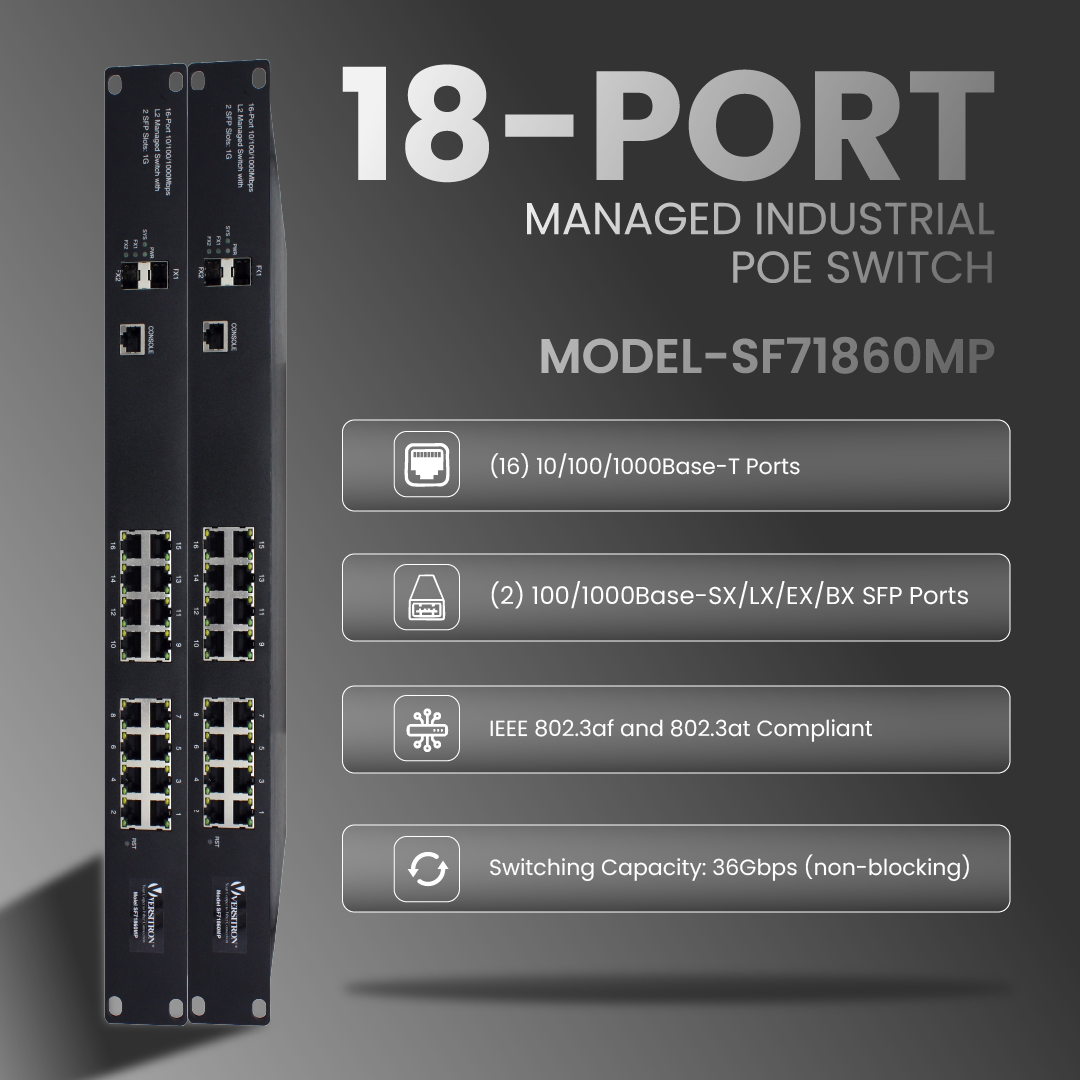

16-Port 10/100/1000Base-T Gigabit Ethernet RJ-45 Ports
2-Port 100/1000Base-SX/LX/EX/BX SFP Type Ports
PoE Compatible: IEEE 802.3af and 802.3at compliant for PoE and PoE Plus
Non-blocking store-and-forward switching
RJ45 Port Supports 10/100/1000Mbps‐Full/Half‐duplex, Auto‐negotiation, Auto‐MDI/MDIX
Prevents Packet Loss w/Back Pressure (Half‐Duplex) and IEEE 802.3x PAUSE Frame Flow Control (Full‐Duplex)
Available for operation in Ring or point-to-point configuration
Real-time monitoring via Embedded Surveillance Device Management System
Uses interchangeable SFP for fiber type, distance and connector (Ordered separately).
Distances up to 100 km with optional SFPs
Available for operation over single mode or multimode fiber over a variety of link budget
Available for operation over 1 or 2 fibers
No in-field optical adjustment required
Redundant dual power supply inputs 48/52 VDC
4KV Ethernet Surge Protection for harsh environment
-40°C to 80°C (-40°F to 176°F) wide range operating temperature
Compact, corrosion resistant case attaches to a standard DIN Rails
18 Port Managed Industrial PoE Switch is used across the following Industries:
Industrial Automation & Manufacturing
Production Line IP Surveillance
Sensor Hubs and Control Panels (PoE-powered)
Industrial Robotics and Conveyor Systems
Factory Floor Access Control & Intercoms
Fiber-Connected Assembly Zone Switches
Environmental and Safety Monitoring Stations
Video Surveillance & Security
Distributed IP Camera Networks with PoE
Gate or Perimeter Surveillance (Fiber Uplink)
PoE+ IR and PTZ Camera Clusters
Remote Guard Posts and Security NOCs
NVR Rack Cabinets with Fiber Connectivity
Healthcare & Medical Facilities
Nurse Call and Alert System Switches
Touchscreen Terminals in Patient Rooms
Secure Surveillance in Operating or ICU Areas
Medical Cart or Docking Station Connectivity
Fiber Backbone Between IDFs in Large Hospitals
Retail & Hospitality
PoE Digital Signage & IP Surveillance in Stores
In-Room IPTV and Wi-Fi (Hotels)
Access Control and Smart Lock Systems
Floor-level Switch for POS and Kiosk Networks
Fiber Uplink from Storefront to Data Closet
Enterprise & Office Networks
VoIP Phones and PoE Wireless APs
Conference Room AV and Video Conferencing Gear
Floor Distribution Switches for Open Offices
Fiber Uplinks from Branch to Core Switch
Access Control and Surveillance per Floor
Construction Sites & Temporary Installations
Mobile Office or Trailer-Based Networks
Temporary Surveillance and Perimeter Systems
Jobsite Access Control Panels
PoE APs for Site Connectivity
Command Trailer Fiber Backbone
Smart Cities & Municipalities
Intersection Surveillance Cabinets
Public Wi-Fi APs on Street Poles
Smart Lighting Controllers via PoE
Access Control in Government Buildings
Fiber Uplink from Remote Zones to City Core
Utilities, Energy & Power Distribution
Substation Switchboards (IP Cameras, Sensors)
Remote Monitoring Panels with PoE Devices
Field Control Cabinets with Fiber Uplinks
Smart Metering Systems
Redundant Power in Harsh Environments
Defense & Military Installations
Tactical Field Networks (PoE Radios, Cameras)
Fiber Backbone to Hardened Shelters
Anti-Tamper & Surge-Protected Installations
PoE Access Control at Base Perimeters
Secure VLAN Segmented Communication Networks
Maritime & Offshore
Surveillance on Ships or Oil Platforms
Communication Hubs with Fiber Uplink
Bridge Navigation and Control Panels
PoE Access Points in Tight/Rugged Spaces
Vessel Network Segmentation via VLAN
Transportation & Traffic Management
Signal Cabinet Controllers
Traffic Cameras and Environmental Sensors
PoE-Based Lane Management Systems
Tunnel Ventilation/Lighting Control Cabinets
Fiber Link to City Traffic Operation Center
Research Labs & Universities
Lab AV & Control Systems Powered via PoE
Campus Building IDF Switches
PoE+ Classroom Tech (Smartboards, Tablets)
VLAN Segmentation for Secure Lab Networks
Fiber Uplinks from Remote Labs to Core
Events, Stadiums & Exhibitions
Rapid Deploy Switch for Ticketing & AV Gear
PoE Cameras in Entry/Exit Points
Wi-Fi APs in Dense Crowd Areas
Fiber Uplink to Broadcast or Control Room
Temporary Venue Control Networks
Emergency Response & Disaster Recovery
Mobile Trailer Networks with PoE Cameras
Command Post Communications Backbone
PoE Environmental Sensors in Shelters
Fiber Uplink to Satellite or HQ
Segmented VLANs for Response Teams
Versitron is one of the leading 18 Port Managed Industrial PoE Switch manufacturing companies in the USA (based in Delaware). If your industry or installation location isn't listed above, feel free to reach out to us!
