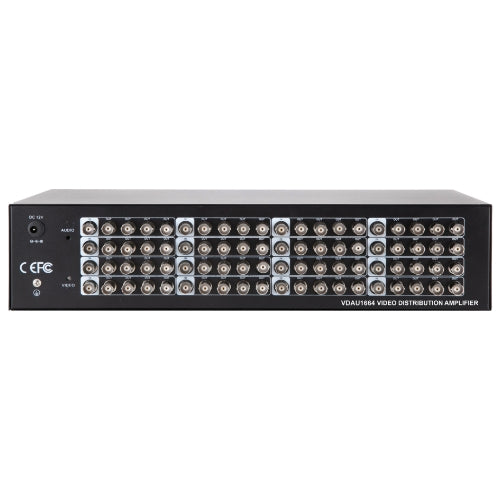

Video Distribution Amplifiers - Analog/HD Interface, 16 video inputs, 64 video outputs

SKU:VDAU1664

Free Ground Shipping For Online Store Orders
Free Unlimited Support
Lifetime Warranty

The VERSITRON VDAU1664 Universal Video Distribution Amplifier distributes up to 16 video inputs to 64 video outputs, allowing multiple monitoring locations or video devices to access the same video sources. The built-in video amplifier boosts signals to the required level to help prevent signal loss and picture degradation when distributing video to multiple outputs.

The VDAU1664 supports Analog, HD-CVI, HD-TVI, and AHD video signals and uses standard BNC video connections, making it a flexible solution for CCTV cameras and other compatible video equipment. It can also be integrated with fiber optic video links for extended video transmission applications.

Product Highlights

16 video inputs / 64 video outputs
Supports Analog, HD-CVI, HD-TVI, and AHD video signals
Built-in video amplification helps maintain signal levels
Standard BNC video connections
1 V p-p, 75Ω video input/output
Video bandwidth of <300 MHz
Signal-to-ratio of ≥70 dB
Supports multiple monitoring locations
Easy connection to fiber optic video links
Standalone or 19-inch rack-mountable
12VDC power
2U enclosure

View full details

Distribute Video to Multiple Monitoring Locations

The VDAU1664 is designed to distribute video from multiple sources to multiple destinations. With 16 video inputs and 64 video outputs, it provides the highest output capacity in the VERSITRON Universal VDA Series.

This configuration allows a larger number of monitoring stations, displays, recording systems, or other compatible video devices to access the same video sources. The VERSITRON Universal Video Distribution Amplifier family is specifically designed for applications requiring multiple monitoring locations.

Analog and HD Video Signal Support

The VDAU1664 supports several commonly used CCTV and video formats, including:

Analog video
HD-CVI
HD-TVI
AHD

This universal video interface allows the VDAU1664 to work with compatible CCTV cameras and other video devices with suitable connections.

Built-In Video Amplification

When one video source must be distributed to multiple outputs, maintaining the appropriate signal level is essential. The VDAU1664 incorporates a built-in amplifier circuit designed to boost video signals to the required level, helping prevent signal loss and picture degradation.

This provides a practical way to distribute video to numerous destinations while maintaining the signal level required by connected equipment.

Standard BNC Video Connections

The VDAU1664 uses standard BNC video connections for its video inputs and outputs. The Universal VDA specifications identify a 1 V p-p, 75Ω video input/output interface.

The standard BNC interface makes the amplifier easy to integrate with compatible CCTV cameras, displays, monitoring equipment, and other video devices.

Connect Video Distribution Systems to Fiber Optic Links

The VDAU1664 can be incorporated into fiber optic video transmission systems. VERSITRON specifically identifies the Universal VDA Series as permitting easy connectivity to fiber optic video links.

This makes the VDAU1664 useful in systems where video sources are distributed locally and then extended to remote monitoring locations using fiber optic transmission equipment.

16 Video Inputs and 64 Video Outputs

The VDAU1664 is the highest-output model in the VERSITRON Universal VDA family.

Model	Video Inputs	Video Outputs
VDAU1632	16	32
VDAU1648	16	48
VDAU1664	16	64

All three models support the same basic Universal VDA video formats and connection technology, with the primary difference being the available output capacity.

Video Distribution Amplifier Specifications

Video Input/Output: 1 V p-p, 75Ω BNC connector
Signal-to-Ratio: ≥70 dB
Video Bandwidth: <300 MHz
Power Supply: 12VDC
Power Consumption: <20W
Operating Temperature: -10°C to +55°C
Humidity: ≤90%
Dimensions: 15.75 x 8.27 x 3.47 inches
Form Factor: 2U

Video Distribution Amplifier Applications

The VDAU1664 is suited for video systems requiring a large number of video outputs and monitoring locations, including:

CCTV video surveillance
Centralized security monitoring
Multiple monitoring stations
Analog and HD CCTV systems
HD-CVI, HD-TVI, and AHD video systems
Video distribution systems connected to fiber optic links
Control rooms and centralized monitoring installations

Standalone or Rack-Mount Installation

The VDAU1664 can be installed as a standalone video distribution amplifier or mounted in a 19-inch rack. The 2U enclosure accommodates the 16-input/64-output configuration while providing a practical form factor for centralized video equipment installations.

Why Choose the VERSITRON VDAU1664?

The VDAU1664 provides a straightforward solution for distributing 16 video sources to 64 outputs while supporting Analog, HD-CVI, HD-TVI, and AHD video signals.

With built-in signal amplification, standard BNC connections, support for multiple monitoring locations, and compatibility with fiber optic video links, the VDAU1664 provides the highest output capacity in the VERSITRON Universal VDA Series.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has provided communication and signal transmission solutions for demanding applications. The VERSITRON VersiVision Universal Video Distribution Amplifier Series continues that focus by providing practical solutions for distributing analog and HD video signals to multiple locations.

For help selecting the appropriate video distribution amplifier or integrating the VDAU1664 with a fiber optic video system, contact VERSITRON for technical support.

16*64 analog/h video distribution amplifier

16 Visual Inputs / 64 Visual Outputs
Distributes "visual image display" Signals to Multiple Displays
Uses Standard BNC Connections
Standalone or 19″ Rackmountable
Installs Quickly and Easily

VERSITRON UNIVERSAL VDA UNITS

Video Distribution Amplifier – Analog/HD Interface, 16 Video Inputs, 64 Video Outputs (VDAU1664) Review:

Effortless Video Expansion: VDAU1664 Sets the StandardI recently integrated the Video Distribution Amplifier – Analog/HD Interface, 16 Video Inputs, 64 Video Outputs (VDAU1664) into our surveillance system, and can clearly say that it is a game changer. It flawlessly distributes 16 video inputs to 64 video outputs, and my team finds it more than suitable for our expanding visual display needs. We have integrated this product with a wide range of CCTV equipment, such as HD-CVI, Analog, HD-TVI, and HD-AHD interfaces, and are glad that the equipment has performed well.

The installation is quick and hassle-free, which has reduced the efforts of our team. Our security professionals are happy with the seamless viewing experience!

John arnott.
July 15, 2023

4.0 out of 5 stars
