SFP Module | 1000BaseLX, 1310nm, LC, SM

1000Base-LX SFP Module for Extended Fiber Networks

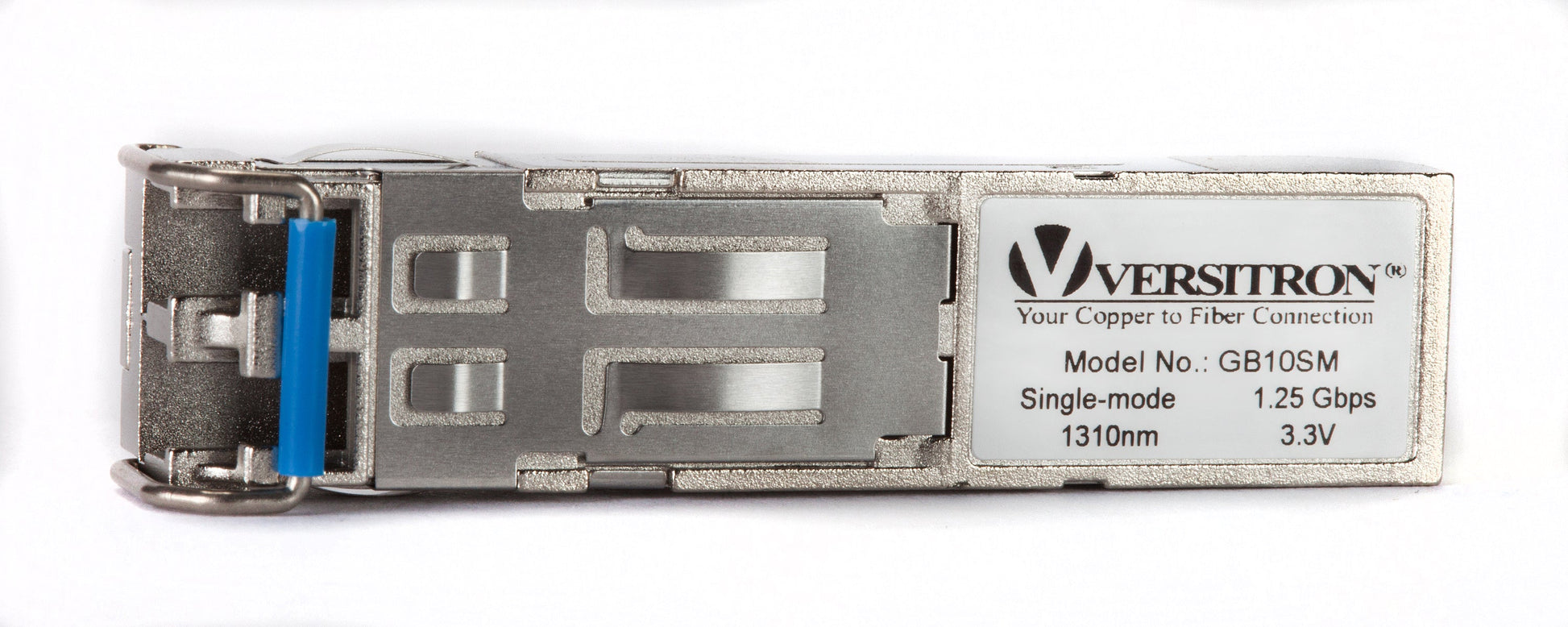

The GB10SM SFP module provides a 1000Mbps fiber optic interface for Gigabit Ethernet networks operating at 1310nm. With an LC fiber connector, the module provides flexible connectivity for both multimode and singlemode fiber applications.

For singlemode fiber, the GB10SM supports distances of up to 10 kilometers, making it well suited for extending Gigabit Ethernet networks between buildings, facilities, network rooms, and other locations where copper Ethernet cannot provide the required distance.

Flexible Multimode and Singlemode Fiber Support

One of the advantages of the GB10SM is its flexibility across fiber infrastructures. The VERSITRON datasheet specifies support for:

• 62.5µm multimode fiber: up to 220m
• 50µm multimode fiber: up to 550m
• 9µm singlemode fiber: up to 10km

This makes the GB10SM useful for networks that require a 1310nm Gigabit fiber interface but may have different fiber types within the existing infrastructure.

Industry-Standard Hot-Pluggable SFP

The GB10SM uses an industry-standard Small Form Pluggable (SFP) form factor. The hot-pluggable design allows the transceiver to be installed or replaced in compatible networking equipment without replacing the entire switch or media converter.

VERSITRON SFP modules use a single 3.3V power supply and include a TTL signal detect indicator. The modules also use Class 1 laser technology compliant with EN 60825-1.

GB10SM Fiber Specifications

These specifications are taken from the VERSITRON Fiber Optic SFP Modules datasheet.

Typical Applications

The GB10SM is well suited for Gigabit Ethernet networks requiring reliable fiber connectivity and extended transmission distances.

• Building-to-Building Networks – Extend Gigabit Ethernet between buildings using singlemode fiber.
• Campus Networks – Connect network equipment across extended campus facilities.
• Enterprise Networks – Provide fiber uplinks between switches and network infrastructure.
• Industrial Networks – Extend Ethernet connectivity where fiber provides advantages over copper.
• Security and Surveillance Networks – Provide fiber connectivity for network infrastructure supporting IP cameras and other security devices.
• Data Center Networks – Connect compatible switches and networking equipment using fiber optic links.
• Remote Network Connectivity – Extend Gigabit Ethernet to remote locations using singlemode fiber.
• Network Upgrades – Add fiber connectivity to compatible SFP-enabled equipment without replacing the network device.

Choosing the Right VERSITRON SFP Module

The correct SFP module depends on the network's data rate, fiber type, wavelength, connector, and required transmission distance.

The GB10SM is a strong choice when a network requires a 1000Mbps, 1310nm LC SFP with support for both multimode and singlemode fiber, including singlemode distances up to 10km.

VERSITRON offers a broad selection of fiber optic SFP modules for 100Mbps, 1000Mbps, and 10Gbps applications. Options include multimode SX, multimode LX, singlemode LX, single-fiber bidirectional modules, and extended-distance singlemode modules up to 100km.

Why Choose VERSITRON SFP Modules?

VERSITRON SFP modules provide a flexible way to configure fiber connectivity in compatible switches, media converters, and other networking equipment. By selecting the appropriate SFP based on fiber type, wavelength, connector, speed, and distance, network designers can build fiber links around their existing infrastructure.

The GB10SM provides 1000Mbps Gigabit Ethernet at 1310nm with an LC connector, supporting both specified multimode applications and singlemode fiber distances up to 10km.

VERSITRON's SFP product family also includes solutions for shorter multimode links, extended singlemode links, single-fiber bidirectional transmission, and 10Gbps applications.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has provided fiber optic communication and networking solutions for commercial, industrial, government, military, security, transportation, and telecommunications applications.

Our SFP modules are part of a complete fiber optic networking portfolio that includes media converters, industrial Ethernet switches, fiber optic switches, and other connectivity solutions.

Need help selecting the right SFP module? Contact VERSITRON for assistance with fiber type, wavelength, connector, transmission distance, and network speed.
