14 Slot Media Converter Chassis

14-Slot Rack-Mount Chassis for Media Converters

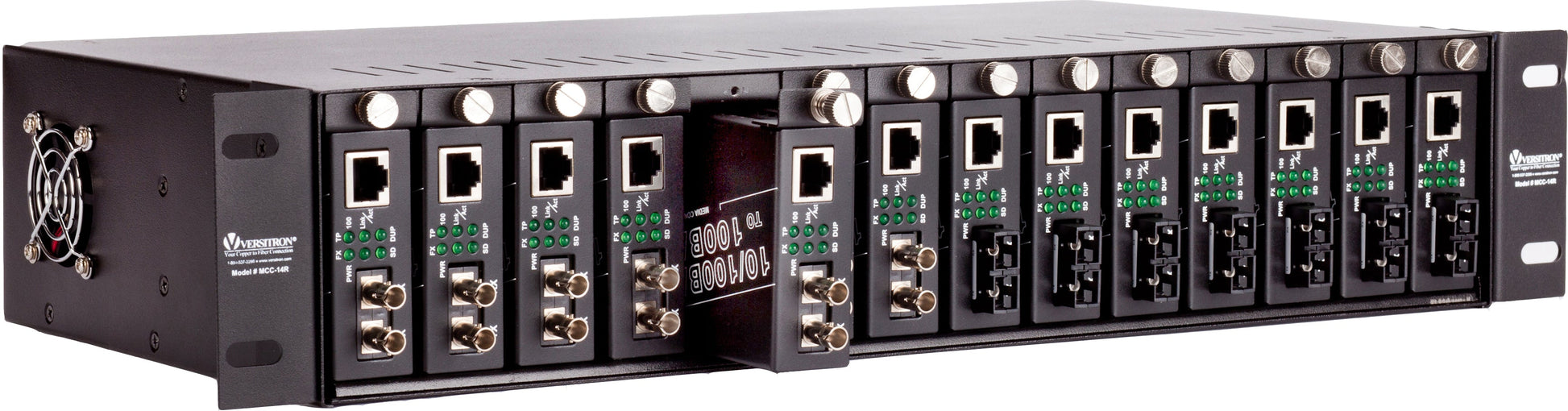

The MCC-14R media converter chassis is designed for network installations where multiple media converters need to be housed and powered from a centralized location. Instead of deploying individual power adapters and separate standalone units throughout a rack, the MCC-14R accommodates up to 14 compatible VERSITRON media converters in a single 19-inch, 2U rack-mount chassis.

Its modular design helps simplify network organization while providing a centralized location for fiber optic media conversion equipment. The chassis provides two power supplies for redundant operation and supports 85–265VAC input power. An optional -48VDC version is also available for applications requiring DC power.

Centralized Power for a Cleaner Network Installation

One of the primary advantages of the MCC-14R is its unified power architecture. Multiple compatible media converters can be installed within the chassis while sharing the centralized power system.

This eliminates the need to manage a collection of individual external power adapters and helps create a cleaner, more organized rack installation. The redundant power supply design also provides an additional level of reliability for network installations where continuous operation is important.

Redundant Power for Network Reliability

The MCC-14R incorporates two power supplies and supports 85–265VAC, 50/60Hz input power. An optional -48VDC version is available for applications that use DC power infrastructure.

The front-panel status indicators provide an at-a-glance indication of chassis status, with green indicating normal operation and red indicating a fault.

High-Density Media Converter Deployment

With 14 available slots in a 2U rack-mount chassis, the MCC-14R is well suited for installations requiring a large number of copper-to-fiber or fiber-to-fiber media converters in a centralized location.

The chassis is compatible with several VERSITRON media converter families, including:

• M727xSA / M727xSB
• M7275-xSFxA / M7275-xSFxB
• M7260A

This modular approach allows network designers to deploy different media conversion configurations within the same rack-mounted platform.

Applications for the MCC-14R

The 14-slot media converter chassis is well suited for:

• Enterprise Fiber Networks – Centralize multiple media converters in network equipment racks.
• Data Centers – Organize high-density copper-to-fiber connectivity in a compact 2U footprint.
• Telecommunications Networks – Consolidate multiple fiber optic interfaces in a centralized rack location.
• Industrial Networks – Provide an organized central location for compatible media converters.
• Campus Networks – Support multiple fiber links between buildings and network locations.
• Security and Surveillance Networks – Centralize media converters used to extend IP camera and security network connections.
• Network Backbone Deployments – Simplify installation where multiple fiber optic links converge at a central network location.

Designed for Rack-Mount Network Infrastructure

The MCC-14R measures 16.75 × 3.50 × 9.00 inches and is designed for installation in a standard 19-inch equipment rack. Its 2U height provides a compact way to consolidate up to 14 compatible media converters without occupying multiple rack positions.

The chassis is rated for an operating temperature range of 0°C to 60°C, with storage temperatures from -20°C to 70°C and relative humidity of 5–95% non-condensing.

Why Choose the VERSITRON MCC-14R?

The MCC-14R is an efficient choice when a network requires multiple VERSITRON media converters in a centralized, rack-mounted installation. Its 14-slot capacity, redundant power supplies, modular architecture, and unified power system help simplify network infrastructure while keeping media conversion equipment organized and accessible.

Rather than installing each media converter as an independent standalone device, the MCC-14R provides a single rack-mounted platform for consolidating compatible VERSITRON converters and their power requirements.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has provided fiber optic communication and networking solutions for commercial, industrial, government, telecommunications, security, and other demanding applications.

Our experience in fiber optic communications is reflected in products designed for practical network deployment, long-term reliability, and flexible integration. The MCC-14R extends that approach by providing a centralized, modular platform for deploying multiple VERSITRON media converters in a professional rack environment.

Need help determining which VERSITRON media converters are compatible with the MCC-14R? Contact our technical team for assistance with your fiber optic network application.

Versitron Product Compatibility

The MCC-14R 14-slot media converter chassis is fully compatible with the following VERSITRON media converters:

• M7273SB
• M7274SB
• M7275S-2B
• M7275S-2SFAA

• M7275S-2SFBA
• M7260A

Key Features of 14-Slot Chassis For Media Converter

• Dual Power Supplies: The chassis features two power supplies that can operate individually or together. Using both reduces the load on each, extending their lifespan. In case of a failure, the second power supply ensures uninterrupted operation.
• Hot-Swappable Media Converters: Easily replace or add media converters without disrupting network performance.
• 2U, 19" Rack-Mountable Design: Standardized size for seamless integration into existing server racks.
• Supports Up to 14 Media Converters: Provides a central hub for managing multiple network connections.
• Redundant Power for Reliability: Ensures a stable and continuous power supply.
• Universal Power Compatibility: Supports 85-265VAC and an optional -48VDC version.
• System Monitoring: Equipped with LED indicators (Green = Normal, Red = Fault).
• Neat & Clean Installation: Unified power system minimizes cable clutter.

MCC-14R Datasheet and User Manual

MCC-14R Product Specification

MCC-14R Product Specification

14 Slot Media Converter Chassis Datasheet

14 Slot Media Converter Chassis Datasheet

14 Slot User Manual

14 Slot User Manual

14 Slot Media Converter Chassis (MCC-14R) is used across the following Industries:

Versitron is one of the leading 14 Slot media converter chassis manufacturing companies in the USA (based in Delaware). If your industry or installation location isn't listed above, feel free to reach out to us!

Buy the Best 14 Slot Media Converter Chassis from VERSITRON at a Competitive Price!!
