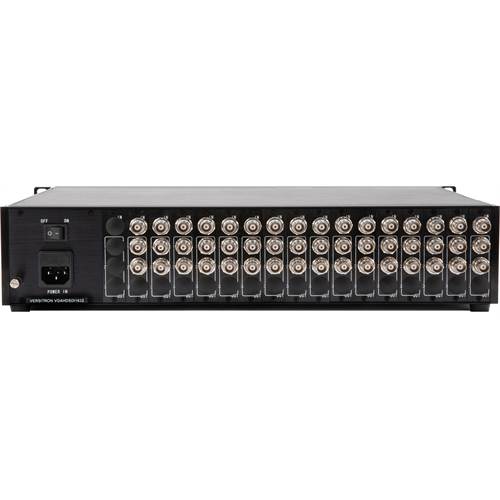

Video Distribution Amplifier - HDSDI

SKU:VDAHDSDI1632

Free Ground Shipping For Online Store Orders
Free Unlimited Support
Lifetime Warranty

The VERSITRON VDAHDSDI1632 HD-SDI Video Distribution Amplifier distributes 16 HD-SDI video inputs to 32 HD-SDI video outputs, providing a practical solution for sending HD-SDI video sources to multiple monitoring or video equipment locations.

The built-in amplifier circuit boosts the video signals to the required level to help prevent signal loss and picture degradation when distributing HD-SDI video to multiple outputs. The VDAHDSDI1632 uses standard 75Ω BNC connections and supports HD-SDI transmission at 1.485 Gbps, along with SDI transmission at 270 Mbps.

Product Highlights

16 HD-SDI video inputs / 32 HD-SDI video outputs
Built-in video amplification helps maintain signal levels
Supports 1.485 Gbps HD-SDI transmission
Supports 270 Mbps SDI transmission
Standard 75Ω BNC video connections
Distributes HD-SDI video to multiple outputs
Designed for applications requiring multiple monitoring locations
12VDC power supply
Less than 5W power consumption
Standalone or 19-inch rack-mountable
2U rack-mount form factor

View full details

16-Input, 32-Output HD-SDI Video Distribution

The VDAHDSDI1632 is designed to distribute 16 HD-SDI video inputs to 32 outputs, allowing multiple video equipment or monitoring locations to receive the same HD-SDI sources.

This makes the amplifier particularly useful when a centralized HD-SDI video system needs to provide the same video sources to multiple destinations. The VERSITRON HD-SDI Video Distribution Amplifier is designed specifically for applications requiring multiple monitoring locations.

Built-In HD-SDI Signal Amplification

The VDAHDSDI1632 incorporates a built-in amplifier circuit that boosts incoming video signals to the required level. This helps prevent signal loss and picture degradation when distributing video signals across multiple outputs.

Rather than simply splitting an HD-SDI signal, the VDAHDSDI1632 is designed to maintain the signal level needed for reliable distribution to multiple connected video devices.

High-Speed HD-SDI and SDI Transmission

The VDAHDSDI1632 supports a transmission speed of:

1.485 Gbps for HD-SDI
270 Mbps for SDI

This provides the bandwidth required for compatible HD-SDI and SDI video distribution applications.

Standard 75Ω BNC Video Connections

The VDAHDSDI1632 uses standard 75Ω BNC connectors for its video inputs and outputs. The specified video input/output level is 1 V p-p, providing a standard interface for compatible SDI and HD-SDI video equipment.

Distribute HD-SDI Video to Multiple Locations

The VDAHDSDI1632 is designed for systems where multiple monitoring locations need access to the same HD-SDI video sources.

By providing 32 outputs from 16 inputs, the unit can distribute multiple HD-SDI sources throughout a centralized monitoring or video equipment installation.

HD-SDI Video Distribution Amplifier Applications

The VDAHDSDI1632 is suited for applications requiring distribution of HD-SDI video to multiple destinations, including:

HD-SDI video monitoring
CCTV and security video systems
Multiple monitoring locations
Centralized video equipment installations
HD-SDI video distribution systems
Video systems requiring multiple outputs from shared sources

Standalone or 19-Inch Rack-Mount Installation

The VDAHDSDI1632 can be installed as a standalone unit or mounted in a 19-inch rack. The amplifier uses a 2U-high enclosure, providing a practical form factor for centralized video distribution installations.

HD-SDI Video Distribution Amplifier Specifications

Video Inputs: 16 HD-SDI
Video Outputs: 32 HD-SDI
Video Input/Output: 1 V p-p, 75Ω BNC connector
HD-SDI Transmission Speed: 1.485 Gbps
SDI Transmission Speed: 270 Mbps
Power Supply: 12VDC
Power Consumption: <5W
Operating Temperature: -10°C to +55°C
Humidity: ≤90%
Dimensions: 17.05 x 9.84 x 3.54 inches
Form Factor: 2U

Why Choose the VERSITRON VDAHDSDI1632?

The VDAHDSDI1632 provides a straightforward solution for distributing 16 HD-SDI video sources to 32 outputs. Its built-in amplification helps maintain signal levels, while standard 75Ω BNC connections simplify integration with compatible HD-SDI video equipment.

With support for 1.485 Gbps HD-SDI transmission, 32 video outputs, and standalone or rack-mount installation, the VDAHDSDI1632 is designed for centralized HD-SDI video distribution where multiple monitoring locations are required.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has provided communication and signal transmission solutions for demanding applications. The VERSITRON VersiVision HD-SDI Video Distribution Amplifier continues that tradition by providing a practical solution for distributing high-speed SDI and HD-SDI video signals to multiple locations.

For help selecting or integrating the VDAHDSDI1632 into your HD-SDI video system, contact VERSITRON for technical support.

Video Input/Output

1 Volt p-p, 75Ω BNC Connector

SDI Transmission Speed

1.485Gbps (HD-SDI) / 270Mbps (SDI)

Power Supply

12VDC

Power Consumption

<5W

Operating Temp

-10°C to +55°C

Humidity

≤ 90%

Dimensions

17.05 x 9.84 x 3.54 Inches (2U)

16 Visual Inputs / 32 Visual Outputs
Distributes "visual image display" Signals to Multiple Displays
Uses Standard BNC Connections
Standalone or 19″ Rackmountable
Installs Quickly and Easily

Product Model:

Model	Product Name	RFQ
VDAHDSDI1632	16 HD-SDI Video Inputs / 32 HD-SDI Video Outputs	Request a Quote
VDAHDSDI1648	16 HD-SDI Video Inputs / 48 HD-SDI Video Outputs	Request a Quote

Yes, the device is fully compatible with industry-standard HD-SDI and SDI equipment for seamless integration into existing setups.

This device is ideal for broadcasting, surveillance systems, professional video production, and signal distribution where HD-SDI video transmission is required.

The device operates at 1.485 Gbps for HD-SDI and 270 Mbps for standard SDI transmission.

While it is designed for efficient power consumption, it is recommended to use it in a well-ventilated area to maintain optimal performance.

Yes, with its 2U size, it is suitable for standard rack-mount installations.

hdsdi video distribution datasheet

HDSDI Video Distribution Amplifier is used across the following Industries:

Government

Emergency operations centers (EOCs)
Law enforcement monitoring rooms
Public access channel control rooms
Courtroom AV systems
City-wide surveillance monitoring hubs
Municipal video broadcast control

Military & Defense

Command and control centers
Live training video monitoring
Base perimeter surveillance rooms
Tactical operation rooms
Mission briefing and debriefing rooms
Radar station video feed distribution

System Integrators / AV Contractors

Large-scale AV distribution projects
Multi-zone surveillance systems
Multi-room SDI-based AV integration
Event-based video replication setups
Control center design and implementation

Broadcast & Media Production

TV station master control rooms
Live production switching rooms
Studio-to-editing room replication
OB van video distribution
Video wall feed distribution
Backup and recording systems

Security & Surveillance

Centralized video monitoring centers
Multi-display CCTV surveillance rooms
Traffic monitoring centers
Correctional facility video replication
Border surveillance monitoring stations
Public transport video control centers

Healthcare

Operating room video feeds
Medical training and simulation labs
Hospital monitoring stations
Telemedicine broadcast studios
Healthcare security monitoring

Transportation

Airport control room displays
Rail and metro surveillance centers
Port security camera replication
Traffic video distribution systems
Intelligent Transportation System (ITS) centers

Education

Lecture capture systems
Broadcasting media classrooms
University AV control rooms
Campus-wide video distribution
Simulation training environments

Aerospace & Aviation

Aerospace mission control rooms
Pilot training simulation centers
UAV testing and telemetry rooms
Launch monitoring facilities
Airport AV and security management

Event Venues & Sports Arenas

Live video feeds to VIP suites
Stadium control rooms
Backstage production video feeds
Event security monitoring
Scoreboard and replay distribution
Concert touring AV systems

Banking & Finance

Security operations centers (SOCs)
High-security surveillance areas
Trading floor monitoring
Video review and auditing stations

Utilities / Industrial Facilities

SCADA center video distribution
Power plant surveillance monitoring
Substation control room feeds
Water treatment video replication
Utility security management centers

Smart Cities

Traffic surveillance command centers
Central video wall distribution
Emergency response video systems
Multi-agency integrated monitoring
Smart lighting and transport monitoring

Enterprise / Corporate AV

Internal training broadcasts
Company townhall AV distribution
Executive boardroom video routing
Multi-office video monitoring
Campus-wide corporate surveillance

Versitron is one of the leading HDSDI Video Distribution Amplifier manufacturing companies in the USA (based in Delaware). If your industry or installation location isn't listed above, feel free to reach out to us!
