Description
Technical Specification
Key Features
Resources & Downloads
Applications
Typical Applications
Any network utilizing a mix of copper and fiber
Industrial IP connectivity and communication
Self-healing Fast Ethernet backbone networks
Networks using Ethernet devices such as network cameras, access control, intercoms, etc.

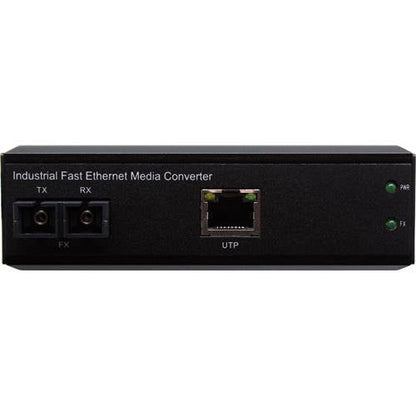

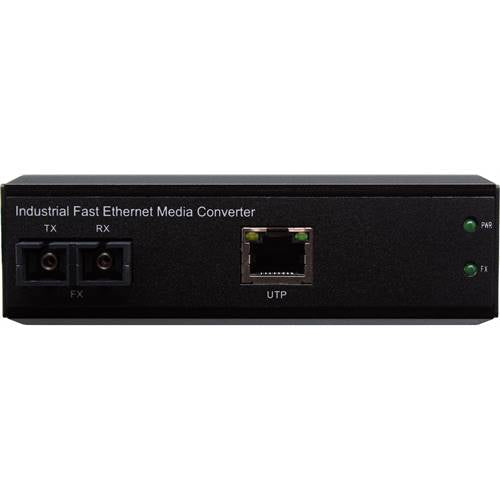

Copper Ports 1 x 10/100Base-T
Optical Ports 1 x 100Base-FX
Port Configuration Auto MDI/MDI-X
Port Speed Auto-negotiate
Switch Architecture Store-and-forward
Switch Bandwidth 0.4Gbps (non-blocking)
MAC Address 2K entries
Maximum Frame Size 1536 Bytes (Jumbo Frames)
Flow Control Back pressure (Half-Duplex);
Optical Wavelength 1310nm
Multimode 2KM
Optical Emitter Laser Diode
Number of Fibers 2
Connector SC
LED Indicators Power: On/Green
DC Power Input Voltage DC 9~52V, Auto-sensing
Full Load Power Consumption 9 Watts
Dimensions 112.7 x 94 x 36mm
Case IP44 Metal Case
Housing Din Rail Mounting
MTBF >100,000 hours
Operating Temperature -40°C ~ +80°C
Storage Temperature -40°C ~ +80°C
Relative Humidity 0% to 95% (non-condensing)
1-Port 10/100Base-TX Fast Ethernet RJ-45 Port
1-Port 100Base-FX Optical Port
Non-blocking store-and-forward switching
RJ45 Port Supports 10/100Mbps-Full/Half-duplex, Auto-negotiation, Auto-MDI/MDIX
Prevents Packet Loss w/Back Pressure (Half-Duplex) and IEEE 802.3x PAUSE Frame Flow Control (Full-Duplex)
SC fiber connector
Operation over duplex multimode fiber over a variety of link budgets
No in-field optical adjustment required

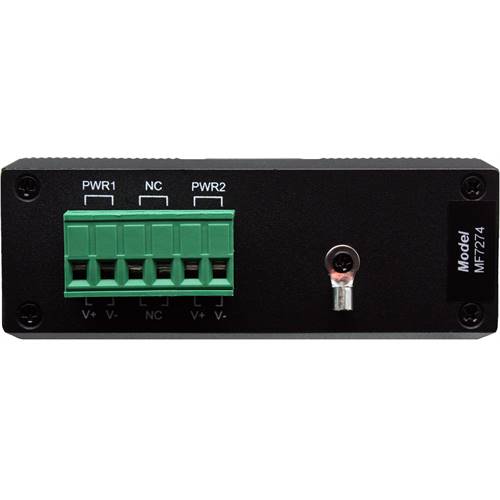

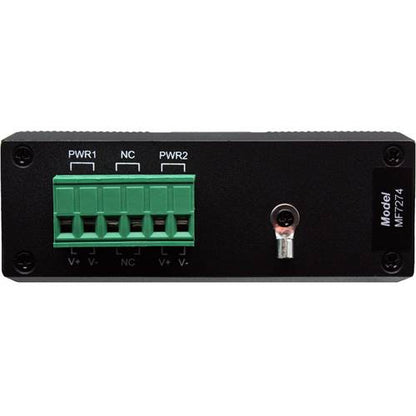

Redundant dual power supply inputs 48/52 VDC
4KV Ethernet Surge Protection for harsh environment
-40°C to 80°C wide range operating temperature

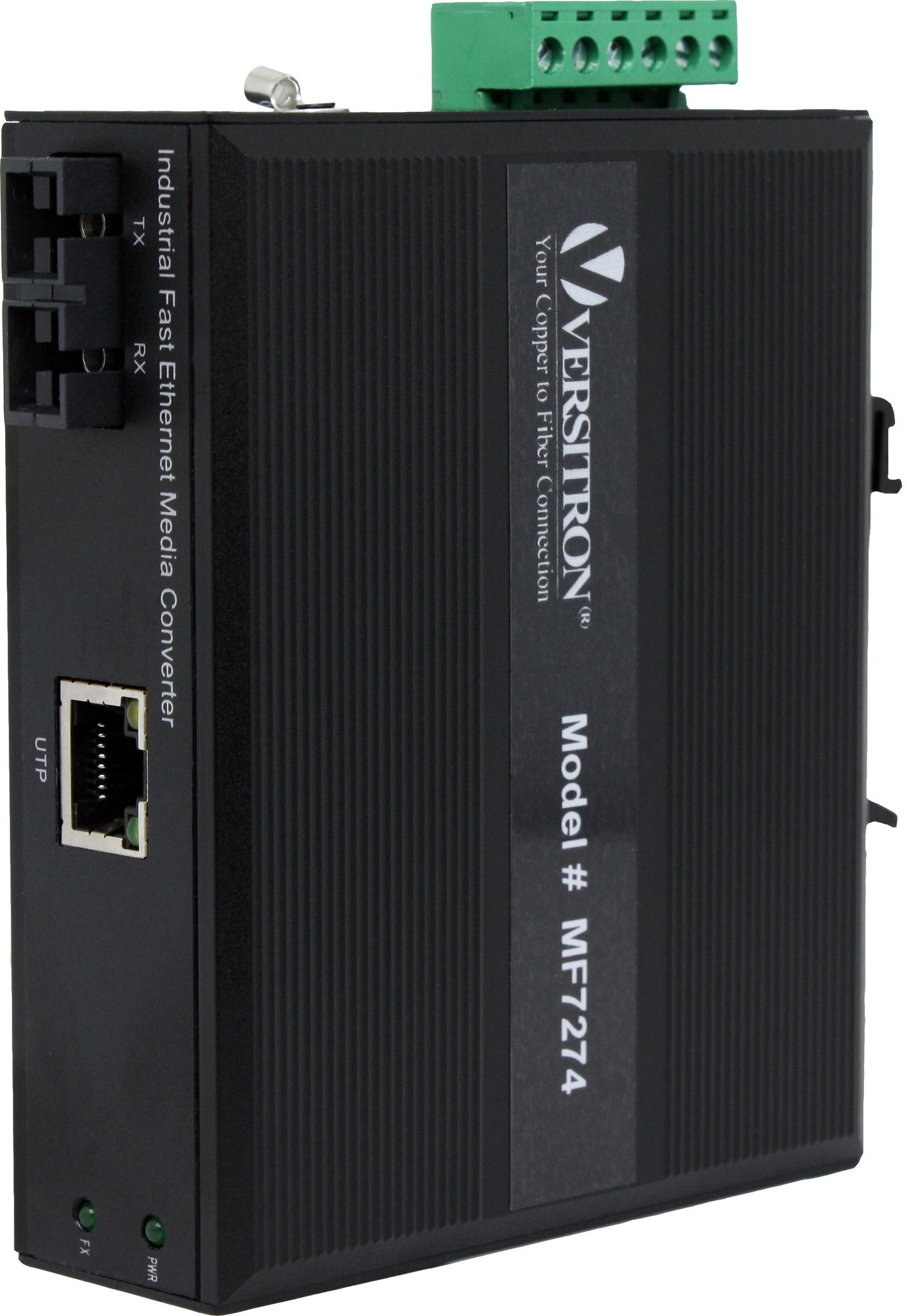

Compact, corrosion resistant case attaches to a standard DIN Rail
10/100TX-FX Industrial Media Converter (MF7274) is used across the following Industries:
Factory Floor Networking
Machine-to-machine communication
Short-range fiber isolation
Noise-resistant Ethernet links
DIN-rail control cabinet deployment
Building Automation Systems
BMS controller connectivity
HVAC and lighting networks
Fiber links between control panels
Stable Ethernet extension
Industrial Security Installations
IP camera fiber backhaul
Access control networking
Intercom system connectivity
Reliable short-distance fiber links
Warehouse Automation
Sorting and conveyor systems
Local fiber network extensions
Control room connectivity
Industrial Ethernet reliability
Manufacturing Test Labs
Equipment monitoring networks
Low-latency fiber conversion
Electrically isolated communication
Compact DIN-rail installation
Transportation Control Rooms
Signal monitoring systems
Local fiber aggregation
Fast Ethernet backbone support
Reliable industrial operation
Smart Parking Systems
Entry and exit monitoring
Camera and sensor networks
Short-range fiber connectivity
Noise-free data transmission
Industrial Control Panels
Panel-to-panel fiber links
Electrical noise isolation
Compact network extensions
Reliable Ethernet conversion
Commercial Surveillance Networks
Indoor camera deployments
Security system aggregation
Multimode fiber infrastructure
Stable video transmission
Campus Utility Facilities
Control room interconnection
Short-distance fiber links
Electrically isolated Ethernet
Reliable industrial operation
Industrial R&D Facilities
Test equipment connectivity
Lab-to-lab networking
Low-latency fiber conversion
Flexible network deployment
System Integration Projects
Hybrid copper-fiber networks
Industrial Ethernet expansion
Reliable media conversion
Plug-and-play installation
Indoor Industrial Facilities
Production area networking
Noise-resistant communication
Short-range fiber extension
Rugged industrial deployment
Process Monitoring Systems
Sensor data transmission
Control system connectivity
Reliable Ethernet-to-fiber links
Stable industrial communication
Local Fiber Backbone Extensions
Fast Ethernet backbone support
Short-distance multimode fiber
Electrical isolation
High-reliability networking
Versitron is one of the leading 10/100TX-FX Industrial Media Converter manufacturing companies in the USA (based in Delaware). If your industry or installation location isn't listed above, feel free to reach out to us!
Buy the Best 10/100TX-FX Industrial Media Converter from VERSITRON at a Competitive Price!!
