The VersiVision platform supports digitally encoded high-definition video and is compatible with NTSC, PAL, and SECAM camera systems. It is designed for plug-and-play installation without electrical or optical adjustments.
Product Highlights
- 8-channel AHD video transmission
- 8-bit digitally encoded video
- Singlemode fiber optic transmission
- Includes 100 meters of singlemode fiber
- ST optical connectors
- BNC video connections
- Compatible with NTSC, PAL, and SECAM
- Supports 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F formats
- Plug-and-play installation
- No electrical or optical adjustments required
- LED indicators for system status monitoring
- Standalone or rack-mount installation
- One-fiber optical transmission
8-Channel AHD Video Over Singlemode Fiber
The AHDTR8005 provides a fiber optic connection for transmitting multiple AHD camera signals to a remote monitoring location. The installation kit includes the transmitter, receiver, power supplies, and 100 meters of singlemode fiber optic cable.
A typical VersiVision installation places the transmitter at the camera end of the fiber link and the receiver at the monitoring end. The system uses a single optical fiber for the connection and is designed for adjustment-free installation and operation.
Digitally Encoded AHD Video Transmission
The AHDTR8005 supports 8 channels of 8-bit digitally encoded AHD video. The VersiVision platform is designed to support 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F video formats and is directly compatible with NTSC, PAL, and SECAM camera systems.
Singlemode Fiber Optic Transmission
The AHDTR8005 uses singlemode fiber optic cable and includes 100 meters of singlemode fiber as part of the installation kit.
The VersiVision technical specifications identify 1310/1550nm operation for singlemode versions and a single optical fiber for the video link.
Plug-and-Play Installation
The VersiVision platform is designed for straightforward installation without electrical or optical adjustments. LED indicators provide instant system status monitoring, while the units can be deployed as standalone devices or installed in the FVC18 18-slot chassis.
Video Technical Specifications
| Specification | AHDTR8005 |
|---|---|
| Video | 8-Channel AHD |
| Video Encoding | 8-Bit Digitally Encoded |
| Fiber Type | Singlemode |
| Fiber Wavelength | 1310/1550nm |
| Number of Fibers | 1 |
| Optical Emitter | Laser Diode |
| Video Input | 0.6–2.0 Vp-p (75 Ohms) |
| Bandwidth | 5 Hz–8 MHz |
| Bit Resolution | 8-Bit |
| Differential Gain | < ±1% |
| Differential Phase | < ±1° |
| Tilt | < 1% |
| S/N Ratio | 60 dB (Weighted) |
| Optical Connector | ST |
| Video Connector | BNC |
| Power Supply | 5VDC, 2A |
| Operating Temperature | -35°C to +65°C |
| Storage Temperature | -45°C to +85°C |
| Relative Humidity | 0% to 95% (Non-Condensing) |
| Included Fiber | 100 Meters Singlemode |
The technical specifications above are from the VersiVision HD-CVI/AHD/HD-TVI datasheet.
AHD Video Surveillance Applications
The AHDTR8005 is suitable for applications requiring multiple AHD camera signals to be transported over singlemode fiber, including:
- CCTV security systems
- Video surveillance systems
- Commercial security installations
- Industrial video monitoring
- Remote camera installations
- Centralized video monitoring
- Long-distance camera links
- Security and monitoring infrastructure
Complete AHD Video Installation Kit

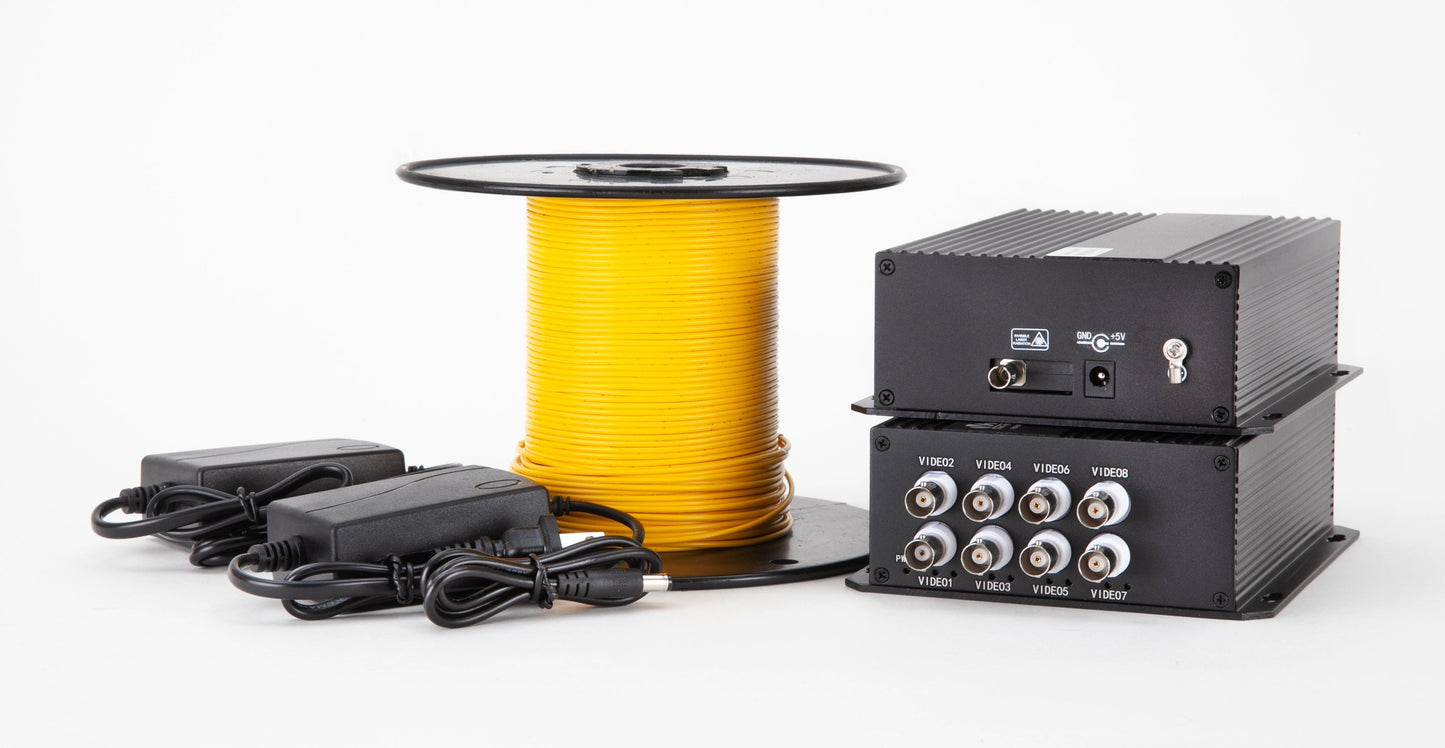

The AHDTR8005 includes the primary components needed to establish the fiber optic video link:
- AHD video transmitter
- AHD video receiver
- Power supplies
- 100 meters of singlemode fiber optic cable
Why Choose the VERSITRON AHDTR8005?
The AHDTR8005 combines 8-channel AHD video transmission with a complete singlemode fiber installation kit. With digitally encoded 8-bit video, compatibility with common analog HD video formats, plug-and-play operation, and included fiber cable, it provides a convenient solution for extending multiple AHD camera signals over fiber.
VERSITRON — Safeguarding Communications Since 1958
Since 1958, VERSITRON has developed fiber optic communication solutions for video, data, and networking applications. The VersiVision platform supports HD-CVI, AHD, and HD-TVI video transmission over fiber optic cable.
Video Input
0.6 ~ 2.0 Volt pk-pk (75 Ohms)
Video Interface
AHD
Input/Output Channels
8
Bandwidth
5 Hz – 8 MHz
Bit Resolution
8-Bit
Differential Gain
<±1%
Differential Phase
<±1°
Tilt
<1%
S/N Ratio
60dB (Weighted)
Wavelength
1310nm
Number of Fibers
1
Optical Connector
ST
Video Connector
BNC
Power Supply
5VDC, 2A
MTBF
>100,000 Hours
Operating Temperature
-35°C to +65°C
Storage Temperature
-45°C to +85°C
Relative Humidity
0% to 95% (non-condensing)
Key Features of 8 Channels AHD Video Installation Kit
- 8-Bit Uncompressed Video Transmission
- Digitally Encoded
- NTSC, PAL, SECAM Video Compatible
- Simplex or Full Duplex Data
- WDM Technology for Higher Reliability
- Standalone or Rackmount into FVC18 Chassis (Hot Pluggable) Simultaneous Transmission of Video and Data VersiVision Chassis, HD-SDI, HDMI
