1-Channel AHD Video Installation Kit | Data, ST, SM

1-Channel AHD Video Installation Kit | Data, ST, SM

SKU:AHDTR1A05

  • Free Ground Shipping For Online Store Orders
  • Free Unlimited Support
  • Lifetime Warranty
Quantity
The VERSITRON AHDTR1A05 is a 1-channel AHD video installation kit designed to transmit digitally encoded AHD video and bi-directional data over singlemode fiber optic cable. The complete kit includes a transmitter, receiver, power supplies, and 100 meters of singlemode fiber, providing a convenient fiber optic solution for extending AHD camera signals over long distances.

The AHDTR1A05 supports 8-bit digitally encoded AHD video plus 1 channel of bi-directional RS-485 data. The singlemode version supports transmission distances up to 30 km and is compatible with NTSC, PAL, and SECAM camera systems. RS-232 and RS-422 data interfaces are also available as options. The VersiVision datasheet identifies the AHD 1-channel singlemode video-plus-data models with a maximum distance of 30 km.

Product Highlights

  • 1-channel AHD video transmission
  • 8-bit digitally encoded video
  • 1 channel of bi-directional data
  • Singlemode fiber optic transmission
  • Up to 30 km transmission distance
  • 1310/1550nm optical wavelength
  • ST optical connector
  • BNC video connector
  • RS-485 data interface
  • Data rates up to 300 Kbps
  • RS-232 or RS-422 available as options
  • Compatible with NTSC, PAL, and SECAM
  • Supports 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F
  • Plug-and-play installation
  • No electrical or optical adjustments required
  • LED indicators for system status monitoring
  • Standalone or rack-mount installation
  • Includes transmitter, receiver, power supplies, and 100 meters of singlemode fiber
View full details

1-Channel AHD Video and Data Over Singlemode Fiber

The AHDTR1A05 combines 1-channel AHD video transmission with a bi-directional data channel over a single singlemode fiber optic link. A transmitter is installed at the camera end of the connection and a receiver is installed at the monitoring end.

The VersiVision platform is designed for adjustment-free installation and operation and can be deployed as a standalone unit or in the FVC18 18-slot rack-mount chassis.

Digitally Encoded AHD Video

The AHDTR1A05 supports 8-bit digitally encoded AHD video and is directly compatible with NTSC, PAL, and SECAM camera systems. The optimized optical modules support 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F video formats.

Bi-Directional Data Transmission

In addition to video, the AHDTR1A05 supports one bi-directional RS-485 data channel at data rates up to 300 Kbps. RS-232 and RS-422 interfaces are available as options.

30 km Singlemode Fiber Transmission

The AHDTR1A05 uses singlemode fiber with 1310/1550nm optical wavelengths and ST simplex connectivity. The VersiVision model table specifies a maximum transmission distance of 30 km for the AHD 1-channel singlemode video-plus-data transmitter and receiver.

Technical Specifications

Specification AHDTR1A05
Video 1-Channel AHD
Video Encoding 8-Bit Digitally Encoded
Video Input 0.6–2.0 Vp-p (75 Ohms)
Bandwidth 5 Hz–8 MHz
Bit Resolution 8-Bit
Differential Gain < ±1%
Differential Phase < ±1°
Tilt < 1%
S/N Ratio 60 dB (Weighted)
Fiber Type Singlemode
Maximum Distance 30 km
Optical Wavelength 1310/1550nm
Number of Fibers 1
Optical Emitter Laser Diode
Optical Connector ST
Video Connector BNC
Data Interface RS-485
Data Rate Up to 300 Kbps
Data Channels 1 Bi-Directional
Bit Error Rate 10⁻⁹
Optional Data Interface RS-232 or RS-422
Data Connector Screw Terminal Strip
Power Supply 5VDC, 2A
Installation Standalone or Rack-Mount
Rack-Mount Chassis FVC18 18-Slot Chassis
Operating Temperature -35°C to +65°C
Storage Temperature -45°C to +85°C
Relative Humidity 0% to 95% (Non-Condensing)
MTBF >100,000 Hours

The technical specifications above are from the VersiVision datasheet; the wavelength section specifies 1310/1550nm for singlemode, while the general specifications identify the ST optical connector, BNC video connector, RS-485 data interface, 5VDC power supply, and environmental ratings.

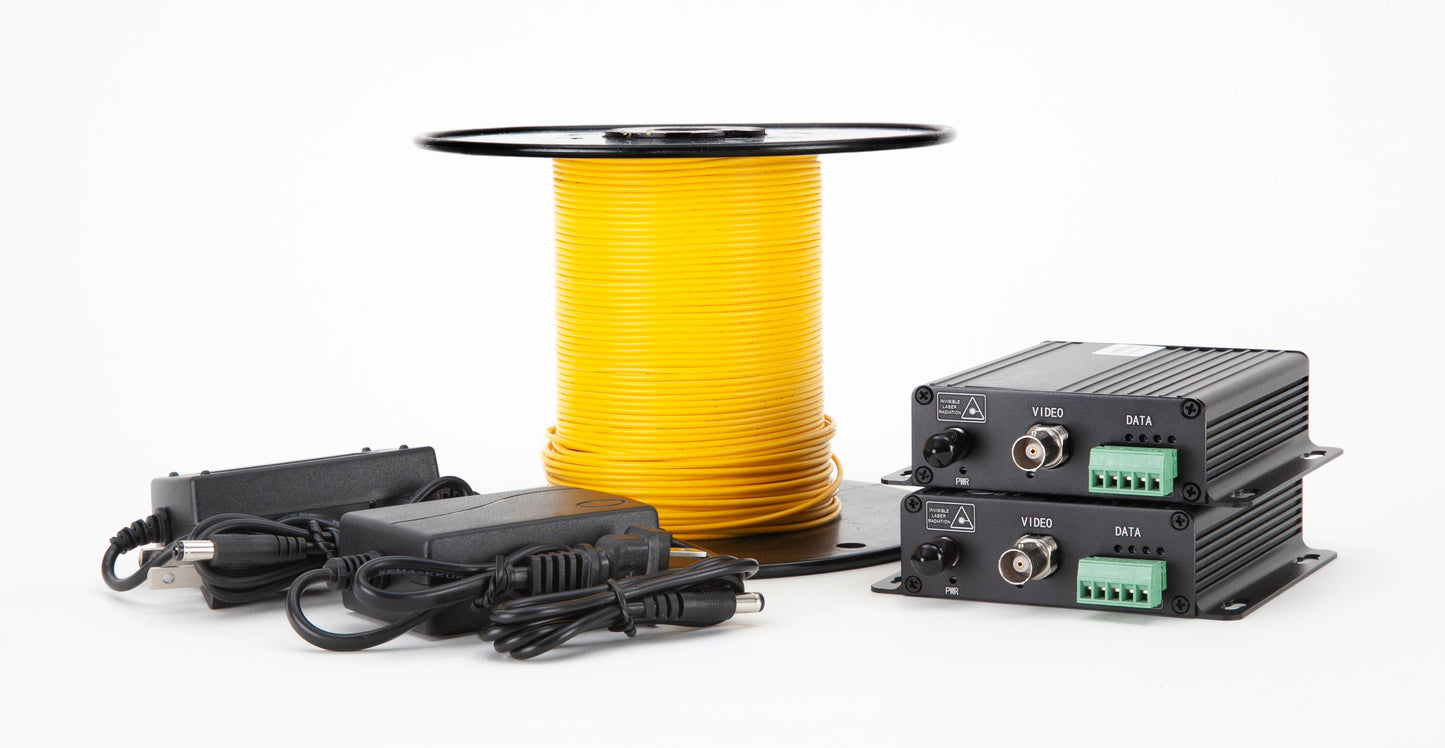

Complete AHD Fiber Optic Installation Kit

The AHDTR1A05 installation kit includes:

  • AHD video transmitter
  • AHD video receiver
  • Power supplies
  • 100 meters of singlemode fiber optic cable

This provides the primary components needed to establish an AHD video and data fiber optic connection.

Plug-and-Play Fiber Optic Installation

The VersiVision system is designed for adjustment-free installation and operation. No electrical or optical adjustments are required, while LED indicators provide convenient monitoring of system operating status.

AHD Video and Data Applications

The AHDTR1A05 is suited for applications requiring long-distance AHD video and control/data transmission over singlemode fiber, including:

  • CCTV security systems
  • Video surveillance
  • Remote camera installations
  • Commercial security systems
  • Industrial monitoring
  • Transportation monitoring
  • Centralized video monitoring
  • Long-distance AHD camera connections

Why Choose the VERSITRON AHDTR1A05?

The AHDTR1A05 combines 1-channel AHD video, bi-directional data transmission, and singlemode fiber connectivity in a complete installation kit. With up to 30 km of fiber transmission, 300 Kbps data capability, plug-and-play operation, and support for standalone or rack-mount installation, it provides a practical way to extend AHD camera systems over long-distance fiber optic links.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has developed fiber optic communication solutions for video, data, and networking applications. The VersiVision platform supports HD-CVI, AHD, and HD-TVI video transmission over fiber optic cable.

Technical Specifications:

Video Input

0.6 ~ 2.0 Volt pk-pk (75 Ohms)

Video Interface

AHD

Input/Output Channels

1

Bandwidth

5 Hz ~ 8 MHz

Bit Resolution

8-Bit

Differential Gain

<±1%

Differential Phase

<±1°

Tilt

< 1%

S/N Ratio

60dB (Weighted)

Wavelength

1310/1550nm

Number of Fibers

1

Optical Connector

ST

Video Connector

BNC

Power Supply

5VDC, 2A

MTBF

>100,000 Hours

Operating Temperature

-35°C to +65°C

Storage Temperature

-45°C to +85°C

Relative Humidity

0% to 95% (non-condensing)

Data Interface

RS-485 (RS-422 or RS-232 Optional)

Data Rate

Up to 300 Kbps

Data Channels

1 Bi-Directional

Bit Error Rate

10⁻⁹

Data Contact

Screw Terminal Strip

All of the VersiVision HD installation kits are available for standalone applications and include: Transmitter, Receiver, Power Supplies & 100 meters of fiber. Please give us a call (1-800-537-2296) or open a chat with any questions. We look forward to discussing your application with you!

Key Features of 1 Channels AHD Video Installation Kit

  • 8-Bit Uncompressed Video Transmission
  • Digitally Encoded
  • NTSC, PAL, SECAM Video Compatible
  • Simplex or Full Duplex Data
  • WDM Technology for Higher Reliability
  • Standalone or Rackmount into FVC18 Chassis (Hot Pluggable) Simultaneous Transmission of Video and Data VersiVision Chassis, HD-SDI, HDMI.

1-Channel AHD Video Installation Kit (AHDTR1A05) is used across the following Applications:

Single-Camera AHD Fiber Transmission

  • Connect one AHD camera to compatible monitoring equipment over a single optical fiber.
  • Use the BNC interface for the supported analog high-definition video connection.
  • Transmit video alongside one bidirectional data channel.
  • Integrate compatible RS-485 equipment through the screw terminal connection.

Remote Utility Control Room Monitoring

  • Connect an AHD camera monitoring a utility control room entrance or equipment area.
  • Use the fiber link to connect the camera with compatible video equipment.
  • Support serial data communication at rates up to 300 Kbps.
  • Check the optical wavelength and endpoint compatibility before deployment.

Railway Equipment Area Surveillance

  • Provide a fiber connection for one AHD camera monitoring a railway equipment area.
  • Use the 1310/1550 nm wavelength specification for optical compatibility checks.
  • Connect compatible serial devices through the RS-485 interface.
  • Deploy where the operating environment remains within -35°C to +65°C.

Perimeter Access Point Monitoring

  • Link a single AHD camera positioned at a designated perimeter access point.
  • Transmit the video signal through the kit's ST optical connector.
  • Use the bidirectional data channel with compatible serial equipment where required.
  • Connect the video endpoint using the specified BNC interface.

Industrial Process Area Observation

  • Connect one AHD camera monitoring a defined industrial process area.
  • Use the specified 5 Hz to 8 MHz video bandwidth.
  • Support video transmission with 8-bit resolution and a 60 dB weighted S/N ratio.
  • Use the kit within its specified temperature and non-condensing humidity limits.

Power Substation Access Surveillance

  • Connect an AHD camera monitoring an access area at a power substation.
  • Carry the camera's video feed over one fiber to compatible receiving equipment.
  • Provide an RS-485 data path for compatible equipment that requires serial communication.
  • Verify installation conditions and endpoint specifications before use.

Municipal Facility Camera Links

  • Connect one AHD camera at a municipal facility entrance or service area.
  • Use the fiber-optic connection to link the camera with compatible monitoring equipment.
  • Support optional RS-422 or RS-232 interfaces when the appropriate version is supplied.
  • Use BNC video connections and ST optical connectors as specified.

Warehouse Dispatch Area Monitoring

  • Provide a fiber link for an AHD camera observing a dispatch or staging area.
  • Connect the camera through the kit's BNC video interface.
  • Use the bidirectional data channel for compatible serial equipment if needed.
  • Confirm that the connected video equipment supports the AHD interface.

Government Facility Entry Cameras

  • Connect one AHD camera monitoring a designated government facility entry.
  • Transmit video over a single fiber using compatible optical endpoints.
  • Support compatible RS-485 communication through the screw terminal strip.
  • Use a suitable 5VDC, 2A power supply for the kit.

Water Infrastructure Equipment Monitoring

  • Link an AHD camera monitoring a designated area within a water facility.
  • Use the optical connection to carry video to compatible monitoring equipment.
  • Support one bidirectional data channel for compatible serial communication.
  • Ensure the installation meets the kit's environmental specifications.

Airport Service Area Surveillance

  • Connect one AHD camera monitoring an airport service or restricted access area.
  • Use fiber transmission between compatible camera-side and monitoring-side equipment.
  • Support a data rate of up to 300 Kbps for the specified data interface.
  • Confirm that the selected equipment and installation meet site requirements.

Manufacturing Facility Entry Monitoring

  • Provide a dedicated fiber connection for one AHD camera at a factory entrance.
  • Use the ST optical connector and BNC video connector for their specified interfaces.
  • Integrate compatible RS-485 devices through the data terminal strip.
  • Operate within the specified temperature range of -35°C to +65°C.

Critical Equipment Room Surveillance

  • Connect a single AHD camera observing a designated equipment room.
  • Use the specified video signal parameters for compatible AHD equipment.
  • Support video transmission and one bidirectional serial data channel over one fiber.
  • Reference the specified MTBF of more than 100,000 hours during equipment evaluation.

Port Operations Access Monitoring

  • Link an AHD camera monitoring a port facility access point.
  • Use the single-fiber optical interface to connect compatible video endpoints.
  • Provide compatible serial data communication where the installation requires it.
  • Verify the selected fiber and optical equipment support the specified wavelengths.

Campus Research Building Surveillance

  • Connect one AHD camera monitoring a research building entrance or equipment zone.
  • Transmit video through the kit's optical fiber connection.
  • Use the data interface for compatible RS-485, RS-422, or RS-232 equipment as configured.
  • Maintain the specified 0% to 95% non-condensing relative humidity conditions.

Traffic Operations Facility Monitoring

  • Connect one AHD camera monitoring an entrance or equipment area at a traffic facility.
  • Use the BNC connection for the supported video signal.
  • Provide a bidirectional data path for compatible serial devices when needed.
  • Confirm video format, data interface, and optical compatibility before installation.

Oil and Gas Facility Access Cameras

  • Connect an AHD camera monitoring a designated access area at an oil and gas facility.
  • Use the fiber link to connect compatible video transmission equipment.
  • Support serial data communication through the kit's specified data interface.
  • Verify environmental suitability and all site-specific installation requirements.

Existing AHD System Fiber Conversion

  • Adapt a compatible single-channel AHD camera link for fiber-optic transmission.
  • Retain the specified BNC video connection at compatible equipment.
  • Use the single-fiber link for the kit's supported video and data signals.
  • Check the 1310/1550 nm wavelength specification and ST connector compatibility before upgrading.

Remote Facility Security Monitoring

  • Connect one AHD camera at a remote facility location to compatible monitoring equipment.
  • Use one optical fiber for the supported video connection.
  • Provide one bidirectional data channel for compatible serial communication.
  • Ensure both endpoints support the required video, data, and optical interfaces.

Single-Camera Surveillance System Expansion

  • Add a dedicated AHD camera link to an existing compatible surveillance installation.
  • Use the one-channel video interface for the individual camera feed.
  • Support RS-485 data communication or compatible optional serial interfaces.
  • Confirm power, connectors, wavelengths, and operating conditions before deployment.

Versitron is one of the leading (AHDTR1A05) AHD Video Installation Kit manufacturing companies in the USA (based in Delaware). If your industry or installation location isn't listed above, feel free to reach out to us!

Buy the Best 1-Channel AHD Video Installation Kit with Data over Singlemode Fiber from VERSITRON at a Competitive Price!

Call Icon

Call / Chat With Us During Business Hours

Talk To A Real Person - No Phone Loops, Just The Support You Need.

VERSITRON SINCE 1958

Why Choose Us

We offer free and unlimited telephone, email, and LiveChat technical support to assist you with your fiber project planning, along with after-sale support for installation and operation of your equipment.
Technical Support

Technical Support

Life Time Warranty

Life Time Warranty

NDAA / TAA Compliant

NDAA / TAA Compliant

Free Consultation on Networking Projects

Contact us →

Submit Enquiry

Schedule an Appointment
