1-Channel AHD Video Installation Kit | Data, ST, MM

SKU:AHDTR1A03

Free Ground Shipping For Online Store Orders
Free Unlimited Support
Lifetime Warranty

The VERSITRON AHDTR1A03 is a 1-channel AHD video installation kit designed to transmit digitally encoded AHD video and bi-directional data over multimode fiber optic cable. The complete kit includes a transmitter, receiver, power supplies, and 100 meters of multimode fiber, providing a convenient fiber optic solution for extending AHD camera signals beyond the limitations of copper cabling.

The AHDTR1A03 supports 8-bit digitally encoded AHD video plus 1 channel of bi-directional RS-485 data. The multimode version supports transmission distances up to 2 km and is compatible with NTSC, PAL, and SECAM camera systems. RS-232 and RS-422 data interfaces are also available as options.

Product Highlights

1-channel AHD video transmission
8-bit digitally encoded video
1 channel of bi-directional data
Multimode fiber optic transmission
Up to 2 km transmission distance
850/1310nm optical wavelength
ST optical connector
BNC video connector
RS-485 data interface
Data rates up to 300 Kbps
RS-232 or RS-422 available as options
Compatible with NTSC, PAL, and SECAM
Supports 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F
Plug-and-play installation
No electrical or optical adjustments required
LED indicators for system status monitoring
Standalone or rack-mount installation
Includes transmitter, receiver, power supplies, and 100 meters of multimode fiber

View full details

1-Channel AHD Video and Data Over Multimode Fiber

The AHDTR1A03 combines AHD video transmission with a bi-directional data channel over a single multimode fiber optic link. A transmitter is installed at the camera end of the connection and a receiver is installed at the monitoring end.

The VersiVision platform is designed for adjustment-free installation and supports standalone or rack-mount deployment using the FVC18 18-slot chassis.

Digitally Encoded AHD Video

The AHDTR1A03 supports 8-bit digitally encoded AHD video and is directly compatible with NTSC, PAL, and SECAM camera systems. The optimized optical modules support 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F video formats.

Bi-Directional Data Transmission

In addition to video, the AHDTR1A03 supports one bi-directional data channel using RS-485 at data rates up to 300 Kbps. The datasheet also identifies RS-232 and RS-422 as optional interfaces.

2 km Multimode Fiber Transmission

The AHDTR1A03 uses multimode fiber with 850/1310nm optical wavelengths and ST simplex connectivity. The VersiVision model table specifies a maximum transmission distance of 2 km for the AHD 1-channel multimode video-plus-data transmitter and receiver.

Technical Specifications

Specification	AHDTR1A03
Video	1-Channel AHD
Video Encoding	8-Bit Digitally Encoded
Video Input	0.6–2.0 Vp-p (75 Ohms)
Bandwidth	5 Hz–8 MHz
Bit Resolution	8-Bit
Differential Gain	< ±1%
Differential Phase	< ±1°
Tilt	< 1%
S/N Ratio	60 dB (Weighted)
Fiber Type	Multimode
Maximum Distance	2 km
Optical Wavelength	850/1310nm
Number of Fibers	1
Optical Emitter	Laser Diode
Optical Connector	ST
Video Connector	BNC
Data Interface	RS-485
Data Rate	Up to 300 Kbps
Data Channels	1 Bi-Directional
Bit Error Rate	10⁻⁹
Optional Data Interface	RS-232 or RS-422
Data Connector	Screw Terminal Strip
Power Supply	5VDC, 2A
Installation	Standalone or Rack-Mount
Rack-Mount Chassis	FVC18 18-Slot Chassis
Operating Temperature	-35°C to +65°C
Storage Temperature	-45°C to +85°C
Relative Humidity	0% to 95% (Non-Condensing)
MTBF	>100,000 Hours

These specifications are based on the VersiVision technical specifications in the datasheet.

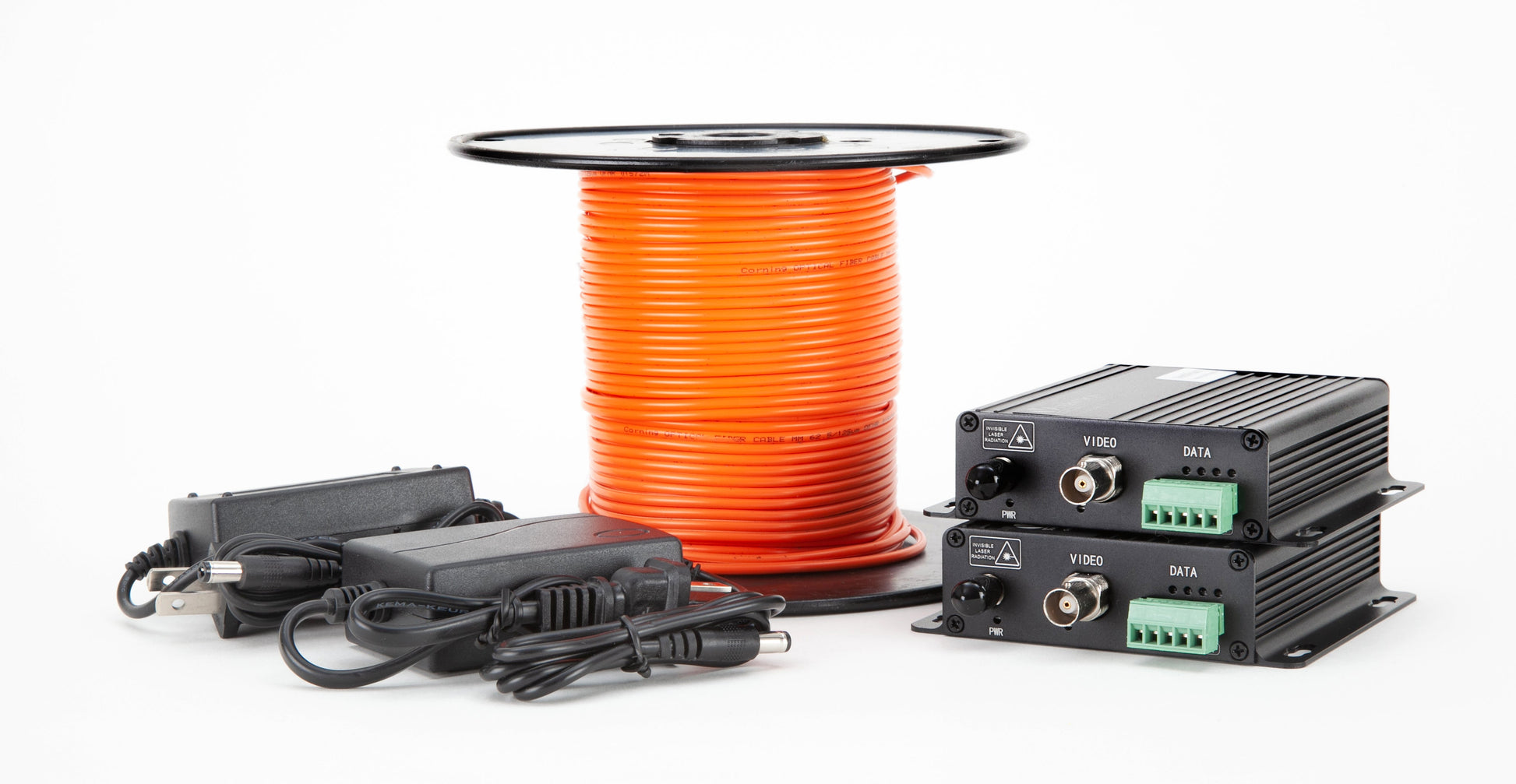

Complete AHD Fiber Optic Installation Kit

The AHDTR1A03 installation kit includes:

AHD video transmitter
AHD video receiver
Power supplies
100 meters of multimode fiber optic cable

This provides the primary components needed to establish an AHD video and data fiber optic connection.

Plug-and-Play Fiber Optic Installation

The VersiVision system is designed for adjustment-free installation and operation. No electrical or optical adjustments are required, while LED indicators provide convenient monitoring of system operating status.

AHD Video and Data Applications

The AHDTR1A03 is suited for applications requiring AHD video and control/data transmission over multimode fiber, including:

CCTV security systems
Video surveillance
Remote camera installations
Commercial security systems
Industrial monitoring
Transportation monitoring
Centralized video monitoring
Long-distance AHD camera connections

Why Choose the VERSITRON AHDTR1A03?

The AHDTR1A03 combines 1-channel AHD video, bi-directional data transmission, and multimode fiber connectivity in a complete installation kit. With up to 2 km of fiber transmission, 300 Kbps data capability, plug-and-play operation, and support for standalone or rack-mount installation, it provides a practical way to extend AHD camera systems over fiber optic cable.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has developed fiber optic communication solutions for video, data, and networking applications. The VersiVision platform supports HD-CVI, AHD, and HD-TVI video transmission over fiber optic cable.

Technical Specifications:

Video Input

0.6 ~ 2.0 Volt pk-pk (75 Ohms)

Video Interface

AHD

Input/Output Channels

Bandwidth

5 Hz ~ 8 MHz

Bit Resolution

8-Bit

Differential Gain

<±1%

Differential Phase

<±1°

Tilt

< 1%

S/N Ratio

60dB (Weighted)

Wavelength

850/1310nm

Number of Fibers

Optical Connector

Video Connector

BNC

Power Supply

5VDC, 2A

MTBF

>100,000 Hours

Operating Temperature

-35°C to +65°C

Storage Temperature

-45°C to +85°C

Relative Humidity

0% to 95% (non-condensing)

Data Interface

RS-485 (RS-422 or RS-232 Optional)

Data Rate

Up to 300 Kbps

Data Channels

1 Bi-Directional

Bit Error Rate

10⁻⁹

Data Contact

Screw Terminal Strip

All of the VersiVision HD installation kits are available for standalone applications and include: Transmitter, Receiver, Power Supplies & 100 meters of fiber. Please give us a call (1-800-537-2296) or open a chat with any questions. We look forward to discussing your application with you!
