1-Channel AHD Video Installation Kit | ST, SM

1-Channel AHD Video Over Singlemode Fiber

The AHDTR1005 provides a reliable fiber optic transmission solution for extending a single AHD camera signal over long distances. A transmitter is positioned at the camera end of the link and connected through a single fiber optic cable to the receiver at the monitoring location.

The VersiVision platform supports 1, 2, or 4 channels of digitally encoded HD-CVI, AHD, and HD-TVI video, with standalone or rack-mount installation available through the FVC18 chassis.

Digitally Encoded AHD Video

The AHDTR1005 supports 8-bit digitally encoded AHD video and is compatible with NTSC, PAL, and SECAM camera systems. The optimized optical modules support 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F video formats.

30 km Singlemode Fiber Transmission

The AHDTR1005 uses singlemode fiber with a 1310nm optical wavelength and ST simplex optical connectivity. The VersiVision product model table specifies a maximum distance of 30 km for the AHD 1-channel singlemode transmitter and receiver.

Plug-and-Play Installation

The VersiVision AHD video platform is designed for adjustment-free installation and operation. No electrical or optical adjustments are required, while integrated LED indicators provide convenient monitoring of system operating status.

Technical Specifications

The core video, optical, connector, power, environmental, and reliability specifications above are from the VersiVision datasheet.

Complete AHD Fiber Optic Installation Kit

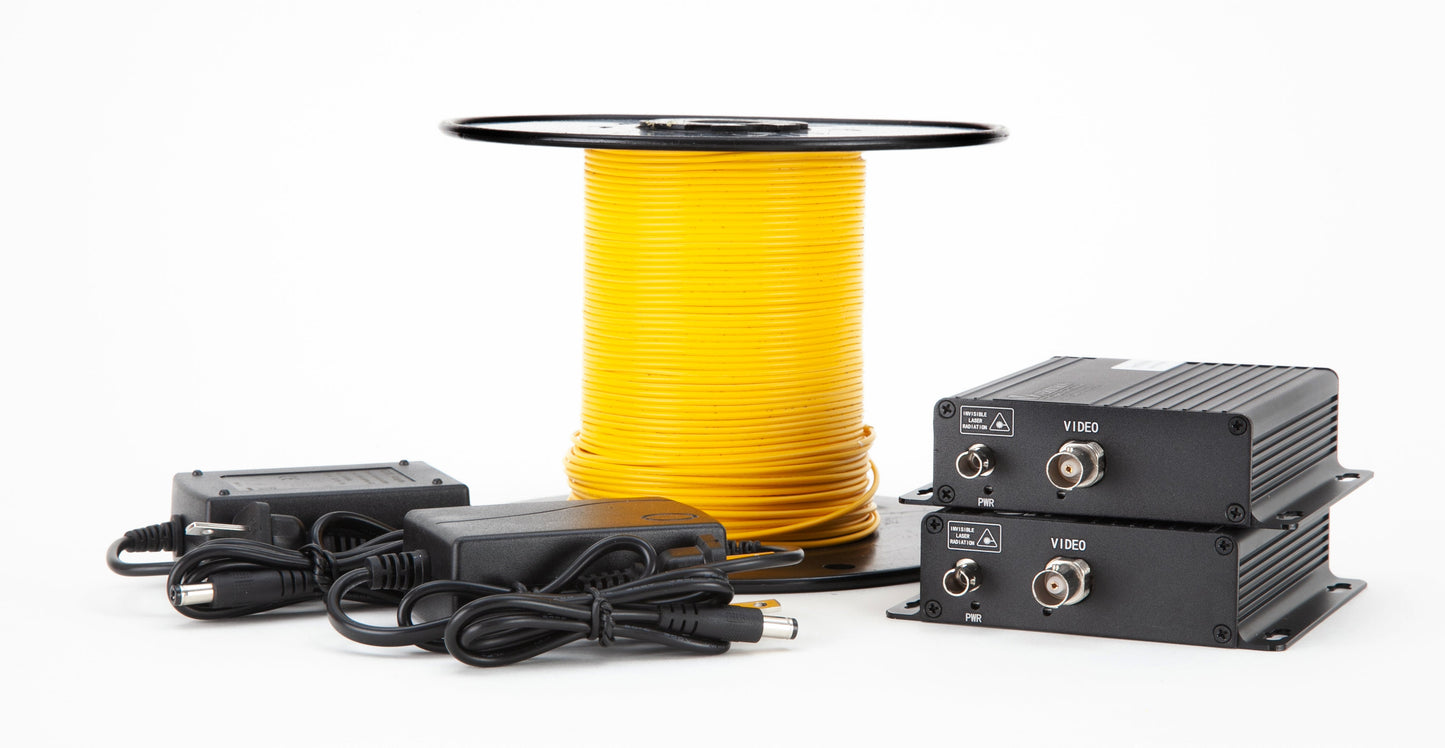

The AHDTR1005 installation kit includes:

• AHD video transmitter
• AHD video receiver
• Power supplies
• 100 meters of singlemode fiber optic cable

This provides the primary components needed to connect an AHD camera to monitoring equipment over a fiber optic link.

Standalone or Rack-Mount Installation

The AHDTR1005 can be deployed as a standalone fiber optic video solution or installed in the FVC18 18-slot chassis for centralized rack-mounted applications. The VersiVision platform supports both installation configurations.

AHD Video Fiber Optic Applications

The AHDTR1005 is suitable for applications requiring long-distance AHD video transmission over singlemode fiber, including:

• CCTV security systems
• Video surveillance
• Commercial security installations
• Industrial monitoring
• Transportation and infrastructure monitoring
• Remote camera installations
• Centralized video monitoring
• Long-distance AHD camera connections

Why Choose the VERSITRON AHDTR1005?

The AHDTR1005 combines 1-channel AHD video transmission, 30 km singlemode fiber capability, plug-and-play installation, and a complete installation kit in one solution. ST optical connectivity, LED status indicators, and standalone or rack-mount deployment make it a practical choice for extending AHD video over long fiber optic distances.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has developed fiber optic communication solutions for video, data, and networking applications. The VersiVision platform supports HD-CVI, AHD, and HD-TVI video transmission over fiber optic cable.

Technical Specifications:

All of the VersiVision HD installation kits are available for standalone applications and include: Transmitter, Receiver, Power Supplies & 100 meters of fiber. Please give us a call (1-800-537-2296) or open a chat with any questions. We look forward to discussing your application with you!

Key Features of 1 Channel Single Mode Bi-directional Transmitter and Receiver

• 8-Bit Uncompressed Video Transmission
• Digitally Encoded
• NTSC, PAL, SECAM Video Compatible
• Simplex or Full Duplex Data
• WDM Technology for Higher Reliability
• Standalone or Rackmount into FVC18 Chassis (Hot Pluggable) Simultaneous Transmission of Video and Data VersiVision Chassis, HD-SDI, HDMI.
