1-Channel AHD Video Installation Kit | ST, MM

1-Channel AHD Video Over Multimode Fiber

The AHDTR1003 provides a fiber optic transmission solution for extending a single AHD camera signal over multimode fiber. A transmitter is installed at the camera end of the link and connected through a single optical fiber to the receiver at the monitoring location.

The VersiVision platform supports 1, 2, or 4 channels of digitally encoded HD-CVI, AHD, and HD-TVI video and is designed for adjustment-free installation and operation.

Digitally Encoded AHD Video

The AHDTR1003 supports 8-bit digitally encoded AHD video and is compatible with NTSC, PAL, and SECAM camera systems. The optimized optical modules support 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F formats.

Multimode Fiber Optic Transmission

The AHDTR1003 uses multimode fiber with a 1310nm optical wavelength and an ST simplex optical connection. The AHD model table in the VersiVision datasheet specifies a maximum transmission distance of 2 km for the AHD 1-channel multimode transmitter and receiver.

Plug-and-Play Installation

VersiVision AHD video transmitters and receivers are designed for plug-and-play installation. No electrical or optical adjustments are required during installation or operation, while LED indicators provide convenient system status monitoring.

Technical Specifications

The video, optical, connector, power, environmental, and reliability specifications are taken from the VersiVision technical specifications.

Complete AHD Fiber Optic Installation Kit

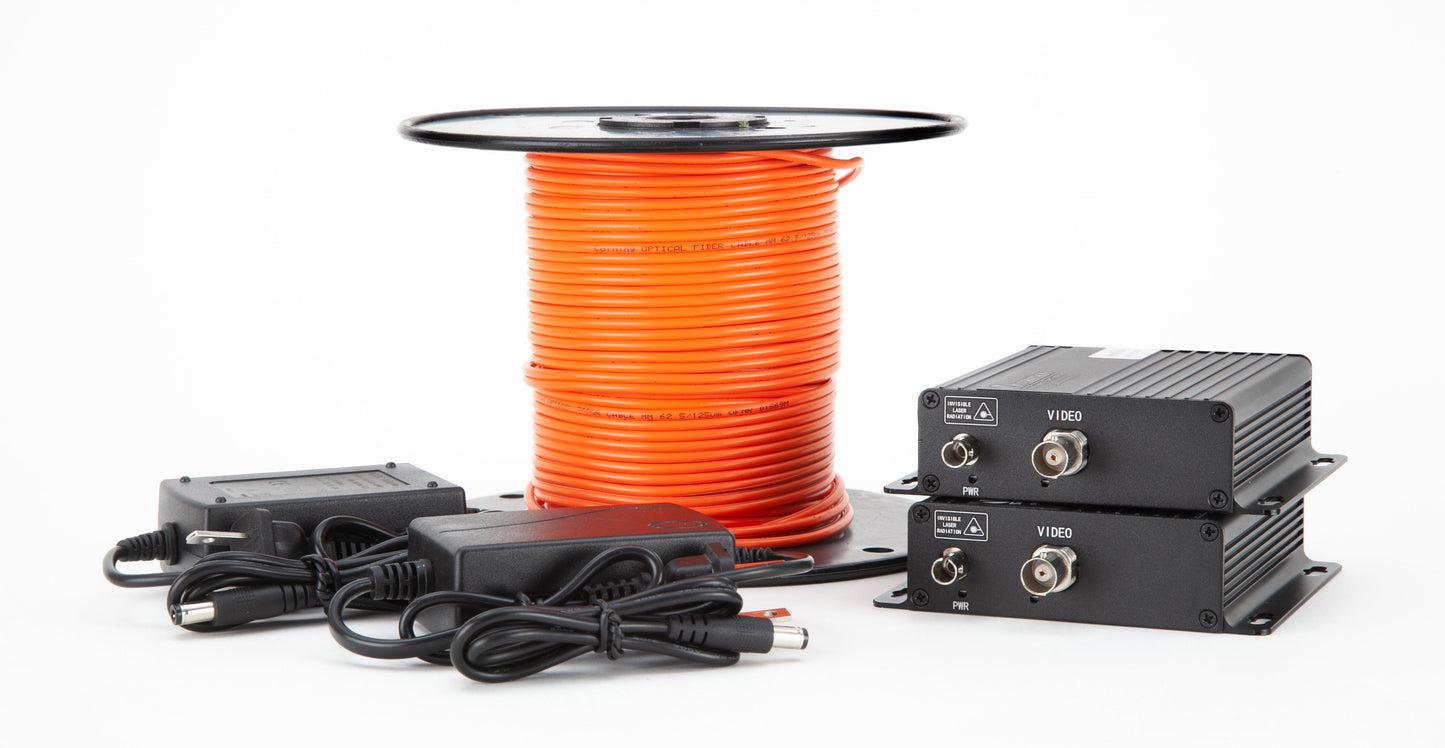

The AHDTR1003 installation kit includes:

• AHD video transmitter
• AHD video receiver
• Power supplies
• 100 meters of multimode fiber optic cable

This provides the primary components needed to establish a fiber optic connection between an AHD camera and its monitoring equipment.

Standalone or Rack-Mount Installation

The AHDTR1003 can be deployed as a standalone video transmission solution or installed in the FVC18 18-slot chassis for centralized rack-mounted applications. The VersiVision platform supports both standalone and rack-mount configurations.

AHD Video Fiber Optic Applications

The AHDTR1003 is suitable for applications requiring reliable AHD video transmission over multimode fiber, including:

• CCTV security systems
• Video surveillance
• Commercial security installations
• Industrial monitoring
• Transportation and infrastructure monitoring
• Remote camera installations
• Centralized video monitoring
• Long-distance AHD camera connections

Why Choose the VERSITRON AHDTR1003?

The AHDTR1003 combines 1-channel AHD video transmission, multimode fiber connectivity, plug-and-play installation, and a complete installation kit in one solution. With support for transmission distances up to 2 km, ST optical connectivity, LED status indicators, and standalone or rack-mount deployment, it provides a straightforward way to extend AHD video over fiber.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has developed fiber optic communication solutions for video, data, and networking applications. The VersiVision platform supports HD-CVI, AHD, and HD-TVI video transmission over fiber optic cable.

Technical Specifications:

All of the VersiVision HD installation kits are available for standalone applications and include: Transmitter, Receiver, Power Supplies & 100 meters of fiber. Please give us a call (1-800-537-2296) or open a chat with any questions. We look forward to discussing your application with you!

Key Features of 1 Channel AHD Video Transmitter & Receiver

• 8-Bit Uncompressed Video Transmission
• Digitally Encoded
• NTSC, PAL, SECAM Video Compatible
• Simplex or Full Duplex Data
• WDM Technology for Higher Reliability
• Standalone or Rackmount into FVC18 Chassis (Hot Pluggable) Simultaneous Transmission of Video and Data VersiVision Chassis, HD-SDI, HDMI.
