The VERSITRON VersiVision HDTVITR8A03 is an 8-channel HDTVI video installation kit designed to transmit digitally encoded HD-TVI video and bidirectional data over multimode fiber optic cable. The kit includes the transmitter, receiver, power supplies, and 100 meters of multimode fiber, providing a convenient fiber optic solution for multi-camera surveillance and monitoring applications.

The system supports 8-bit digitally encoded HD-TVI video and is compatible with NTSC, PAL, and SECAM camera systems. The video + data configuration supports one channel of bidirectional RS-485 data, with RS-232 and RS-422 available upon request.

Product Highlights

8-channel HDTVI video transmission
8-bit digitally encoded video
1 channel of bidirectional data
Multimode fiber optic transmission
ST optical connector
BNC video connectors
RS-485 data interface
RS-232 or RS-422 available upon request
Data rates up to 300 Kbps
Compatible with NTSC, PAL, and SECAM
Supports 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F
Plug-and-play operation
No electrical or optical adjustments required
LED system status indicators
Standalone or rack-mount installation
Compatible with the FVC18 18-slot chassis
Includes transmitter, receiver, power supplies, and 100 meters of multimode fiber

View full details

8-Channel HDTVI Video and Data Over Multimode Fiber

The HDTVITR8A03 provides a fiber optic transmission solution for applications requiring multiple HDTVI video channels together with bidirectional data communication. A transmitter is installed at the camera end of the fiber link while the receiver is installed at the monitoring end.

VersiVision transmitters and receivers use digitally encoded video transmission and are designed for plug-and-play installation without electrical or optical adjustments. LED indicators provide convenient monitoring of system operating status.

Digitally Encoded HDTVI Video

The VersiVision platform supports 8-bit digitally encoded HD-TVI video and is directly compatible with NTSC, PAL, and SECAM camera systems. Optimized optical modules support 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F formats.

Bidirectional Data Transmission

The HDTVITR8A03 supports one channel of bidirectional RS-485 data. The data interface supports rates up to 300 Kbps, with RS-232 or RS-422 available as optional interfaces.

Multimode Fiber Optic Transmission

The HDTVITR8A03 uses multimode fiber with ST optical connectivity. The VersiVision data-equipped multimode models use 850/1310nm optical wavelengths and a single optical fiber.

Plug-and-Play Fiber Optic Installation

VersiVision HD video equipment is designed for adjustment-free installation and operation. No electrical or optical adjustments are required, and LED indicators provide instant system operating status.

Technical Specifications

Specification	HDTVITR8A03
Video	8-Channel HD-TVI
Video Encoding	8-Bit Digitally Encoded
Video Input	0.6–2.0 Vp-p (75 Ohms)
Bandwidth	5 Hz–8 MHz
Bit Resolution	8-Bit
Differential Gain	< ±1%
Differential Phase	< ±1°
Tilt	< 1%
S/N Ratio	60 dB (Weighted)
Fiber Type	Multimode
Optical Wavelength	850/1310nm
Number of Fibers	1
Optical Emitter	Laser Diode
Optical Connector	ST
Video Connector	BNC
Data Interface	RS-485
Data Rate	Up to 300 Kbps
Data Channels	1 Bidirectional
Bit Error Rate	10⁻⁹
Optional Data Interface	RS-232 or RS-422
Data Connector	Screw Terminal Strip
Power Supply	5VDC, 2A
Installation	Standalone or Rack-Mount
Rack-Mount Chassis	FVC18 18-Slot Chassis
Operating Temperature	-35°C to +65°C
Storage Temperature	-45°C to +85°C
Relative Humidity	0% to 95% (Non-Condensing)
MTBF	>100,000 Hours

The underlying technical specifications above come from the VersiVision HD-CVI/AHD/HD-TVI datasheet.

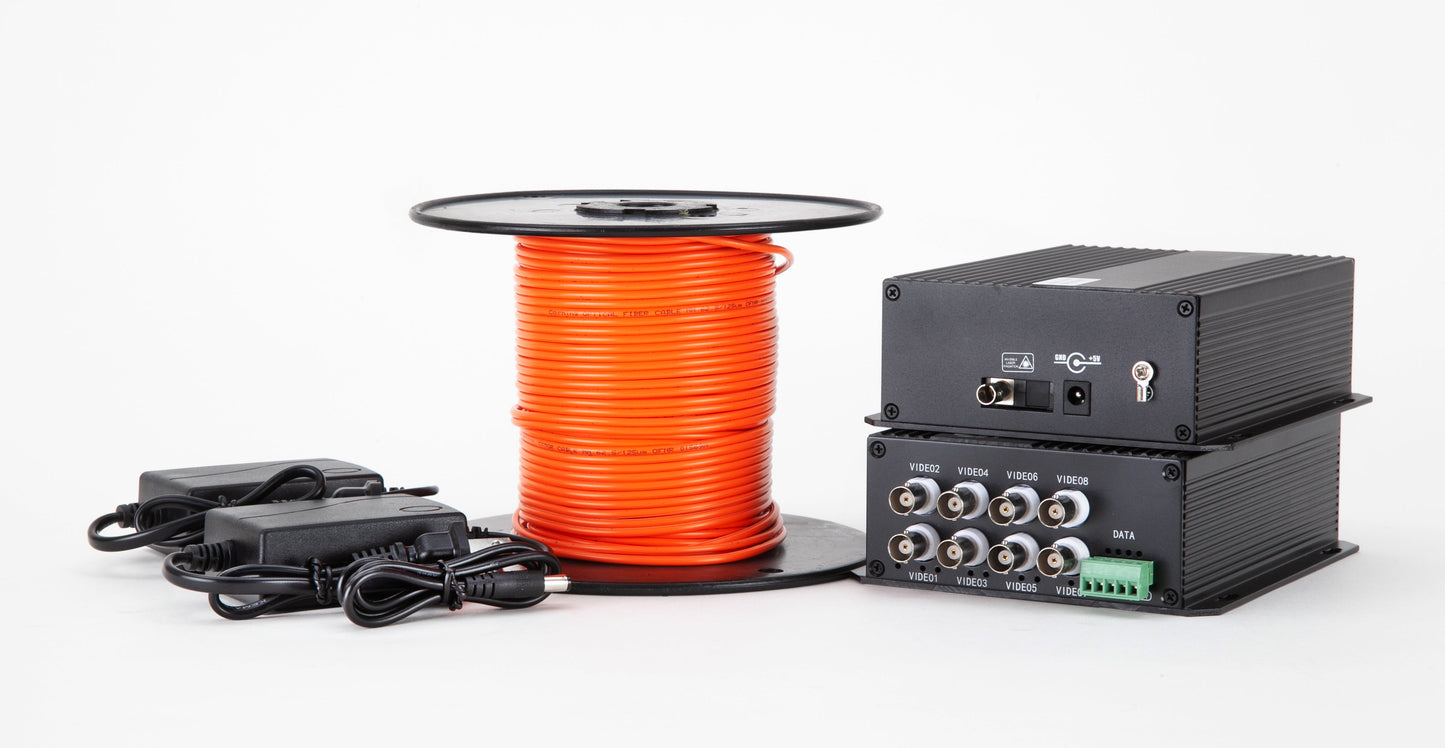

Complete HDTVI Fiber Optic Installation Kit

The HDTVITR8A03 installation kit includes:

HDTVI video and data transmitter
HDTVI video and data receiver
Power supplies
100 meters of multimode fiber optic cable

This complete kit provides the primary components needed to establish a fiber optic connection between the camera and monitoring locations.

Standalone or Rack-Mount Installation

VersiVision equipment can be deployed as standalone units or integrated into the FVC18 18-slot chassis for centralized fiber optic video installations. The platform also supports hot-pluggable installation within the FVC18 chassis.

HDTVI Video and Data Applications

The HDTVITR8A03 can be used for applications requiring multi-channel HDTVI video and bidirectional data communication over multimode fiber, including:

CCTV security systems
Multi-camera video surveillance
Commercial security installations
Industrial video monitoring
Transportation and infrastructure monitoring
Remote camera installations
Centralized security monitoring
Video systems requiring RS-485 control or data communication

Why Choose the VERSITRON HDTVITR8A03?

The HDTVITR8A03 combines multi-channel HDTVI video transmission with bidirectional data communication over multimode fiber. Its plug-and-play design, ST fiber connectivity, RS-485 data support, LED status indicators, and complete installation kit make it a practical solution for extending HDTVI surveillance systems over fiber optic cable.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has developed fiber optic communication solutions for video, data, and networking applications. The VersiVision platform supports HD-CVI, AHD, and HD-TVI video transmission over fiber and provides standalone and rack-mount deployment options.

Video Input

0.6 ~ 2.0 Volt pk-pk (75 Ohms)

Video Interface

HD-TVI

Input/Output Channels

Bandwidth

5 Hz – 8 MHz

Bit Resolution

8-Bit

Differential Gain

<±1%

Differential Phase

<±1°

Tilt

<1%

S/N Ratio

60dB (Weighted)

Wavelength

850/1310nm

Number of Fibers

Optical Connector

Video Connector

BNC

Power Supply

5VDC, 2A

MTBF

>100,000 Hours

Operating Temperature

-35°C to +65°C

Storage Temperature

-45°C to +85°C

Relative Humidity

0% to 95% (non-condensing)

Data Interface

RS-485 (RS-422 or RS-232 Optional)

Data Rate

Up to 300 Kbps

Data Channels

1 Bi-Directional

Bit Error Rate

10⁻⁹

Data Contact

Screw Terminal Strip

All of the VersiVision HD installation kits are available for standalone applications and include: Transmitter, Receiver, Power Supplies & 100 meters of fiber. Please give us a call (1-800-537-2296) or open a chat with any questions. We look forward to discussing your application with you!

Key Features of Bi Directional Data Transmitter and Receiver

8-Bit Uncompressed Video Transmission
Digitally Encoded
NTSC, PAL, SECAM Video Compatible
Simplex or Full Duplex Data
WDM Technology for Higher Reliability
Standalone or Rackmount into FVC18 Chassis (Hot Pluggable) Simultaneous Transmission of Video and Data VersiVision Chassis, HD-SDI, HDMI

HD Units Spec

HD Video Data Manual

Triad

8-Channel HDTVI Video Installation Kit | Data, ST, MM (HDTVITR8A03) is used across the following Applications:

Centralized Security Monitoring

Connects up to eight HDTVI camera feeds through one fiber link.
Suitable for centralized monitoring of multiple security areas.
RS-485 provides a bidirectional data channel for compatible equipment.
ST optical and BNC interfaces support structured video installation.

Large Campus Surveillance

Supports eight HDTVI camera channels across campus locations.
Suitable for monitoring building entrances, walkways, and designated areas.
One fiber consolidates multiple camera video connections.
RS-485 data supports compatible control communication requirements.

Airport Security Monitoring

Provides eight HDTVI channels for selected airport surveillance areas.
Suitable for entrances, access zones, and facility monitoring points.
Up to 300 Kbps data rate supports compatible bidirectional data communication.
60dB weighted S/N ratio supports the specified video performance.

Railway Facility Surveillance

Connects multiple HDTVI cameras across railway facilities.
Suitable for platforms, entrances, service areas, and controlled locations.
One bidirectional data channel supports compatible RS-485 communication.
850/1310nm wavelength options support the specified optical transmission.

Highway Monitoring Systems

Supports eight HDTVI camera feeds at selected roadway monitoring points.
Suitable for multiple camera positions across highway infrastructure.
Single-fiber connectivity consolidates the eight video channels.
Operating temperature from -35°C to +65°C supports varied outdoor installations.

Toll Plaza Surveillance

Provides multiple HDTVI channels for toll-area camera coverage.
Suitable for lane areas, entry points, and facility surroundings.
RS-485 data supports compatible control communication over the installation.
Screw terminal strip provides the specified data connection interface.

Port and Terminal Security

Connects eight HDTVI cameras across selected port security zones.
Suitable for gates, access areas, and monitored facility sections.
8-bit video resolution supports the specified HDTVI signal format.
One fiber carries the consolidated video transmission.

Distribution Center Monitoring

Supports eight camera feeds across distribution facility areas.
Suitable for receiving, dispatch, storage, and access locations.
Four? No, eight HDTVI channels provide broader camera coverage.
High MTBF exceeding 100,000 hours supports long-term installation requirements.

Manufacturing Facility Security

Provides eight HDTVI video inputs for manufacturing areas.
Suitable for production zones, facility entrances, and monitored work areas.
RS-485 supports one bidirectional data channel for compatible devices.
Operating temperature range supports industrial facility environments.

Utility Infrastructure Surveillance

Connects multiple HDTVI cameras at utility infrastructure sites.
Suitable for facility entrances, equipment areas, and monitored zones.
850/1310nm optical transmission supports the specified multimode configuration.
Non-condensing humidity operation supports varied installation conditions.

Substation Camera Systems

Supports eight HDTVI cameras for substation security monitoring.
Suitable for gates, equipment areas, and facility perimeter viewpoints.
Single-fiber architecture consolidates multiple camera connections.
RS-485 provides a bidirectional data interface for compatible equipment.

Government Campus Surveillance

Provides eight-channel HDTVI connectivity for government facilities.
Suitable for entrances, access areas, and building surroundings.
Low differential gain below ±1% supports accurate video transmission.
ST optical connectivity supports organized fiber installation.

Stadium Security Monitoring

Connects multiple HDTVI cameras across stadium security areas.
Suitable for entrances, exterior areas, and designated access zones.
Eight video channels support broader surveillance coverage from one fiber.
Up to 300 Kbps data transmission supports compatible control communication.

Hospital Facility Surveillance

Supports eight HDTVI cameras across selected hospital areas.
Suitable for entrances, service areas, and facility access points.
60dB weighted S/N ratio supports the specified video transmission quality.
5VDC, 2A power supply supports the installation requirement.

Warehouse Aisle Monitoring

Provides eight HDTVI camera channels for warehouse surveillance.
Suitable for separate aisles, loading areas, and access locations.
One optical fiber carries the consolidated video connection.
BNC video connectors support direct connection with compatible HDTVI equipment.

Critical Infrastructure Monitoring

Connects eight HDTVI camera feeds at critical infrastructure facilities.
Suitable for monitoring multiple designated facility zones.
Bit error rate of 10⁻⁹ supports the specified data transmission performance.
RS-485 with optional RS-422 or RS-232 supports compatible data interfaces.

Mining Facility Surveillance

Supports multiple HDTVI cameras across selected mining facility areas.
Suitable for access points, facility surroundings, and monitored work zones.
Wide operating range supports temperatures from -35°C to +65°C.
Up to 95% non-condensing relative humidity supports varied site conditions.

Municipal Traffic Camera Networks

Provides eight HDTVI channels for municipal traffic monitoring locations.
Suitable for multiple roadway and intersection camera positions.
One fiber consolidates the video feeds into a centralized connection.
Low differential phase below ±1° supports video signal fidelity.

Multi-Building Security Links

Connects multiple HDTVI cameras across separate building areas.
Suitable for facilities requiring centralized video transmission.
Eight channels maximize the camera capacity of the installation.
ST fiber connectivity supports a single-fiber video infrastructure.

Fiber-Based HDTVI System Expansion

Supports expansion of compatible HDTVI surveillance systems to eight channels.
Suitable for adding multiple camera feeds through one optical fiber.
RS-485 data provides an additional bidirectional communication path.
Video and data connections use the specified BNC and screw terminal interfaces.
