PoE+ Gigabit Media Converter | 1-RJ45 Ethernet Port, 1-SFP Fiber Port

PoE+ Gigabit Ethernet-to-Fiber Conversion

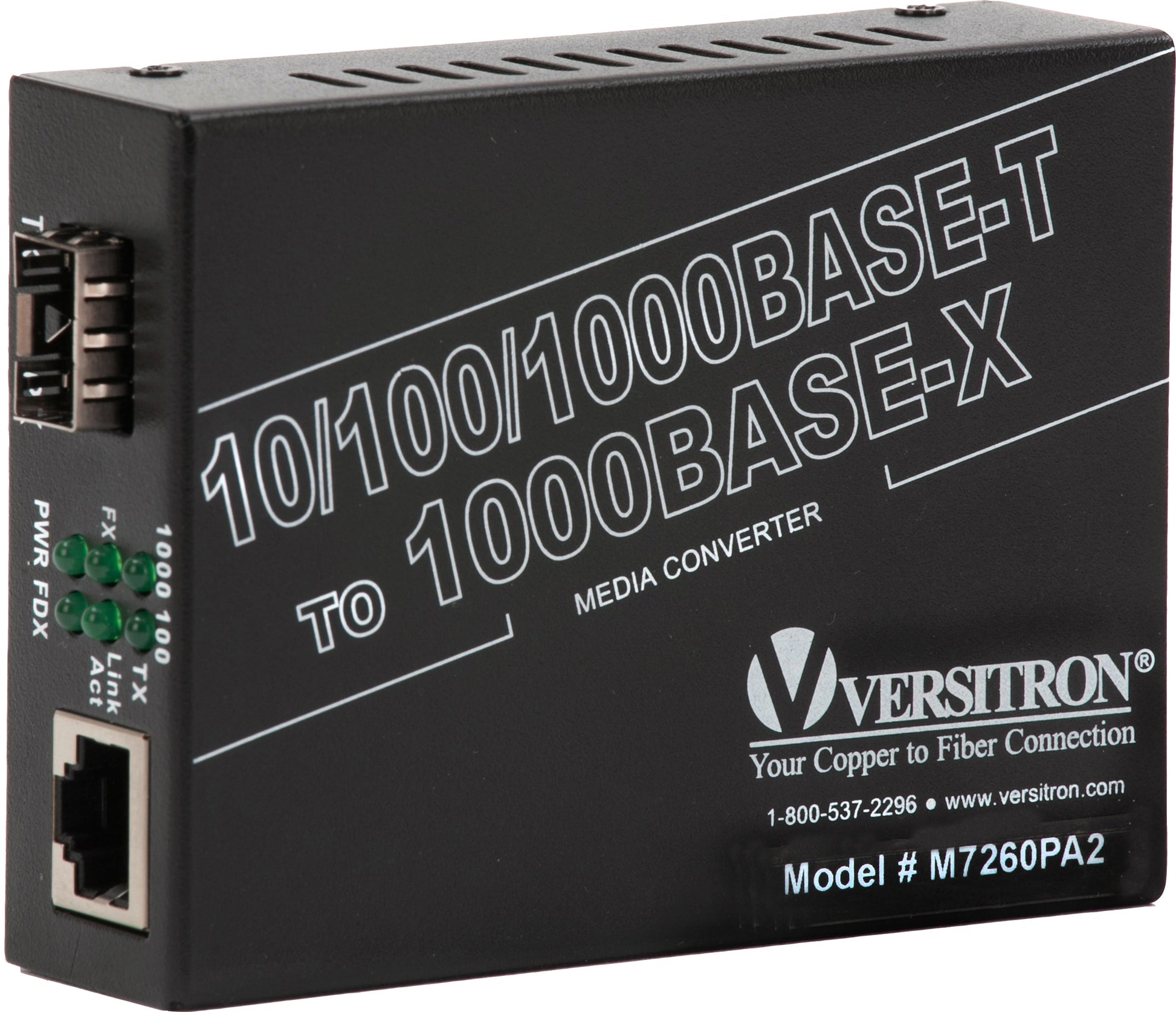

The M7260PA2 PoE+ Gigabit Media Converter provides a practical way to extend Ethernet connectivity over fiber while delivering power to a compatible network device over the copper connection.

The RJ45 port supports 10/100/1000Base-T Ethernet, while the fiber interface accepts a 100/1000Base-X SFP module. This allows copper Ethernet equipment to communicate across a fiber optic link while the converter supplies PoE power to the connected device.

This makes the M7260PA2 particularly useful for installations where a network device is located beyond the normal reach of copper Ethernet or where fiber is preferred for its immunity to electromagnetic interference.

IEEE802.3af and 802.3at PoE+

The M7260PA2 supports both major PoE standards:

• IEEE 802.3af: Up to 15.4W
• IEEE 802.3at: Up to 30W

The converter operates as Power Sourcing Equipment (PSE) and automatically detects connected powered devices. Its PoE power supply provides 48–57VDC with a 36W output, supporting compatible PoE and PoE+ network devices.

This eliminates the need for a separate power connection at the remote network device when the connected equipment supports the appropriate PoE standard.

Extend PoE Devices Over Fiber

One of the primary advantages of the M7260PA2 is the ability to combine fiber network extension and PoE power delivery in a single device.

A typical installation can connect:

NetworkSwitch → Fiber → M7260PA2 → PoE Device

The fiber connection provides the network path while the RJ45 port provides both Ethernet data and PoE power to the remote device.

This configuration is well suited for applications such as:

• IP surveillance cameras
• Network security devices
• Wireless access points
• Remote Ethernet devices
• Industrial network equipment
• Transportation and traffic monitoring equipment

Flexible SFP Fiber Connectivity

The M7260PA2 uses a 100/1000Base-X SFP interface, allowing the fiber connection to be configured according to the requirements of the network. The converter supports both multimode and single-mode fiber through compatible SFP modules.

Available VERSITRON SFP modules provide a range of fiber speeds and transmission distances. The M7260PA2 datasheet lists 100Mbps and 1000Mbps SFP options ranging from short multimode connections to 100 km single-mode connections, depending on the selected module.

SFP options include:

• 100Mbps multimode
• 100Mbps single-mode
• 1000Mbps multimode
• 1000Mbps single-mode
• Single-fiber bi-directional options
• Extended-distance fiber options

CWDM and DWDM modules are also available for specialized fiber network applications.

Reliable Data Transmission

The M7260PA2 uses store-and-forward switching with wire-speed filtering and forwarding rates for efficient Ethernet transmission. The converter also supports Auto MDI/MDI-X, simplifying copper network installation by automatically adapting to the connected Ethernet device.

The device supports up to 8K MAC addresses and includes a 2M packet buffer, providing the capacity needed to manage Ethernet traffic efficiently.

Circuit Protection and Power Reliability

The M7260PA2 incorporates circuit protection designed to prevent interference between the PoE-powered device and the network connection. This is particularly valuable in installations where reliable operation of remote powered equipment is important.

The converter also supports redundant DC power capability, providing an additional option for installations where power reliability is a priority.

Industrial and Commercial Network Applications

The M7260PA2 provides a compact solution for extending powered Ethernet devices over fiber in applications such as:

• IP Video Surveillance: Extend network cameras over fiber while supplying PoE power.
• Industrial Automation: Connect remote Ethernet equipment where fiber is preferred for electrical isolation and EMI/RFI immunity.
• Transportation Systems: Connect cameras, monitoring equipment, and other Ethernet devices in distributed transportation networks.
• Wireless Networks: Extend fiber connectivity to remote PoE-powered wireless access points.
• Security Systems: Connect remote PoE-enabled security equipment over long-distance fiber.
• Building-to-Building Connectivity: Extend Ethernet networks between buildings using fiber while powering compatible remote equipment.
• Remote Network Locations: Provide both network connectivity and power where local AC power is limited.

Flexible Installation

The compact M7260PA2 is designed for convenient deployment in a variety of network environments. Its small form factor makes it suitable for space-constrained installations, while its SFP-based fiber interface provides flexibility when selecting the appropriate optical transceiver.

The unit measures approximately 3.74 × 2.76 × 1.02 inches. The datasheet specifies an operating temperature range of -10°C to 55°C and storage temperature of -40°C to 85°C.

Technical Specifications

Specifications above are based on the provided M7260PA2 datasheet.

Why Choose the M7260PA2?

The M7260PA2 combines three important functions in one compact device: Gigabit Ethernet connectivity, fiber optic network extension, and PoE/PoE+ power delivery.

Instead of installing a separate media converter and PoE injector, the M7260PA2 provides the fiber conversion and power sourcing required for compatible remote Ethernet devices. Its SFP-based fiber interface also allows the fiber connection to be configured for the required fiber type, speed, and transmission distance.

With support for 10/100/1000Mbps copper Ethernet, 100/1000Mbps SFP fiber, IEEE 802.3af/at, automatic powered-device detection, full wire-speed forwarding, and flexible SFP options, the M7260PA2 is a practical solution for extending powered Ethernet connectivity over fiber.

VERSITRON— Safeguarding Communications Since 1958

Since 1958, VERSITRON has provided fiber optic communication and networking solutions for commercial, industrial, government, security, transportation, and telecommunications applications.

Our experience in fiber optic communications is reflected in products designed to provide reliable connectivity in demanding network environments. The M7260PA2 PoE+ Gigabit Media Converter combines copper Ethernet, fiber optic connectivity, and PoE power delivery in a single solution for applications where reliable remote network connectivity is essential.

For help selecting the appropriate SFP module, determining fiber compatibility, or designing a PoE-over-fiber connection, contact VERSITRON at 1-800-537-2296.

• 1-Port 10/100/1000Base-T Gigabit Ethernet RJ-45 Port
• 1-Port 1000Base-SX/LX Optical SFP Port
• Non-blocking store-and-forward switching
• RJ45 Port Supports 10/100/1000Mbps-Full/Half-duplex, Auto-negotiation, Auto-MDI/MDIX
• Prevents Packet Loss w/Back Pressure (Half-Duplex) and IEEE 802.3x PAUSE Frame Flow Control (Full-Duplex)
• Uses interchangeable SFP for fiber type, distance and connector (ordered separately)
• Distances up to 100km with optional SFPs.
• Operation over multimode or singlemode fiber over a variety of link budgets
• No in-field optical adjustment required
• Redundant dual power supply inputs 48/52 VDC
• 4KV Ethernet Surge Protection for harsh environment
• -40°C to 80°C wide range operating temperature
• Compact, corrosion resistant case attaches to a standard DIN Rail
