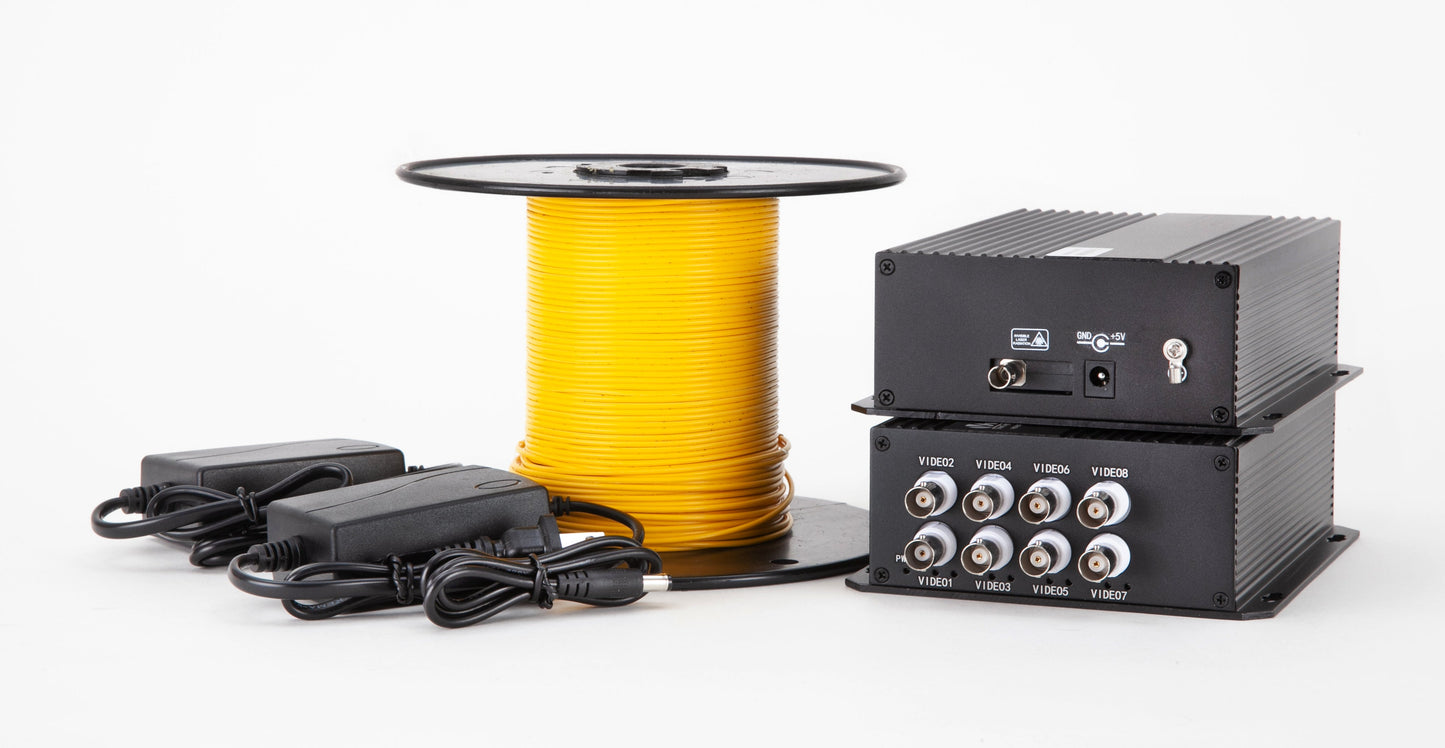

8-Channel HDTVI Video Installation Kit | ST, SM

SKU:HDTVITR8005

Free Ground Shipping For Online Store Orders
Free Unlimited Support
Lifetime Warranty

The VERSITRON VersiVision HDTVITR8005 is an 8-channel HDTVI video installation kit designed to transmit digitally encoded HD-TVI video over singlemode fiber optic cable. The complete kit includes the transmitter, receiver, power supplies, and 100 meters of singlemode fiber, providing a convenient fiber optic solution for centralized video monitoring and surveillance installations.

The VersiVision HD video platform supports 8-bit digitally encoded video and is compatible with NTSC, PAL, and SECAM camera systems. Its plug-and-play design requires no electrical or optical adjustments, while LED indicators provide convenient system status monitoring.

Product Highlights

8-channel HDTVI video transmission
8-bit digitally encoded video
Singlemode fiber optic transmission
One optical fiber
ST optical connector
BNC video connectors
Compatible with NTSC, PAL, and SECAM
Supports 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F
Plug-and-play installation
No electrical or optical adjustments required
LED indicators for system monitoring
Standalone or rack-mount installation
Compatible with the FVC18 18-slot chassis
Includes transmitter, receiver, power supplies, and 100 meters of singlemode fiber

View full details

8-Channel HDTVI Video Over Singlemode Fiber

The HDTVITR8005 provides a complete fiber optic installation solution for applications requiring multiple HDTVI camera signals to be transported over singlemode fiber. The transmitter and receiver connect through a single optical fiber, allowing video signals to be extended from the camera location to a remote monitoring or recording location.

The VersiVision platform uses digitally encoded video transmission and is designed for adjustment-free installation and operation. LED indicators provide instant system operating status.

Digitally Encoded HDTVI Video

The VersiVision HD video platform supports 8-bit digitally encoded HD-TVI video and is directly compatible with NTSC, PAL, and SECAM camera systems. The optimized optical modules support 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F video formats.

Singlemode Fiber Optic Transmission

The HDTVITR8005 is designed for use with singlemode fiber and an ST optical connection. The installation kit includes 100 meters of singlemode fiber optic cable, providing the fiber needed for the included transmitter and receiver.

The VersiVision datasheet identifies singlemode operation at 1310/1550nm for the platform.

Plug-and-Play Installation

The VersiVision HD video platform is designed for straightforward installation without electrical or optical adjustments. LED indicators provide instant system operating status, helping installers monitor the fiber optic video link.

Technical Specifications

Specification	HDTVITR8005
Video	8-Channel HD-TVI
Video Encoding	8-Bit Digitally Encoded
Video Input	0.6–2.0 Vp-p (75 Ohms)
Bandwidth	5 Hz–8 MHz
Bit Resolution	8-Bit
Differential Gain	< ±1%
Differential Phase	< ±1°
Tilt	< 1%
S/N Ratio	60 dB (Weighted)
Fiber Type	Singlemode
Optical Wavelength	1310/1550nm
Number of Fibers	1
Optical Emitter	Laser Diode
Optical Connector	ST
Video Connector	BNC
Power Supply	5VDC, 2A
Installation	Standalone or Rack-Mount
Rack-Mount Chassis	FVC18 18-Slot Chassis
Operating Temperature	-35°C to +65°C
Storage Temperature	-45°C to +85°C
Relative Humidity	0% to 95% (Non-Condensing)
MTBF	>100,000 Hours

The video, optical, connector, power, environmental, and reliability specifications are taken from the VersiVision technical specifications.

Important: The supplied VersiVision datasheet specifically lists HDTVI 1-, 2-, and 4-channel transmitter/receiver models, but does not list the HDTVITR8005 8-channel model or provide a maximum distance for it. Therefore, I would not add a 30 km claim to this page based solely on this datasheet.

Complete HDTVI Fiber Optic Installation Kit

The HDTVITR8005 includes:

HDTVI transmitter
HDTVI receiver
Power supplies
100 meters of singlemode fiber optic cable

This provides the primary equipment needed to establish a fiber optic connection between the camera and monitoring locations.

Standalone or Rack-Mount Installation

VersiVision HD video equipment can be deployed as standalone equipment or installed in the FVC18 18-slot chassis for centralized video systems. The VersiVision platform supports rack-mount installation and hot-pluggable operation within the FVC18 chassis.

HDTVI Fiber Optic Video Applications

The HDTVITR8005 can be used in applications requiring multiple HDTVI camera signals to be transported over singlemode fiber, including:

CCTV security systems
Video surveillance
Commercial security installations
Industrial video monitoring
Transportation and infrastructure monitoring
Centralized video monitoring
Remote camera installations

Why Choose the VERSITRON HDTVITR8005?

The HDTVITR8005 provides a complete fiber optic installation package for multi-channel HDTVI video. With digitally encoded video transmission, singlemode fiber connectivity, plug-and-play installation, LED status indicators, and included fiber cable and power supplies, it simplifies the deployment of fiber-based HDTVI surveillance systems.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has developed fiber optic communication solutions for video, data, and networking applications. The VersiVision platform supports HD-CVI, AHD, and HD-TVI video transmission over fiber and provides standalone and rack-mount deployment options.

Video Input

0.6 ~ 2.0 Volt pk-pk (75 Ohms)

Video Interface

HD-TVI

Input/Output Channels

Bandwidth

5 Hz ~ 8 MHz

Bit Resolution

8-Bit

Differential Gain

<±1%

Differential Phase

<±1°

Tilt

< 1%

S/N Ratio

60dB (Weighted)

Wavelength

1310nm

Number of Fibers

Optical Connector

Video Connector

BNC

Power Supply

5VDC, 2A

MTBF

>100,000 Hours

Operating Temperature

-35°C to +65°C

Storage Temperature

-45°C to +85°C

Relative Humidity

0% to 95% (non-condensing)

All of the VersiVision HD installation kits are available for standalone applications and include: Transmitter, Receiver, Power Supplies & 100 meters of fiber. Please give us a call (1-800-537-2296) or open a chat with any questions. We look forward to discussing your application with you!

Key Features of 8 Channel HDTVI Video Installation Kit

8-Bit Uncompressed Video Transmission
Digitally Encoded
NTSC, PAL, SECAM Video Compatible
Simplex or Full Duplex Data
WDM Technology for Higher Reliability
Standalone or Rackmount into FVC18 Chassis (Hot Pluggable) Simultaneous Transmission of Video and Data VersiVision Chassis, HD-SDI, HDMI

HD Units Spec

HD Video Only Manual

Triad

8-Channel HDTVI Video Installation Kit | ST, SM (HDTVITR8005) is used across the following Applications:

Highway Interchange Surveillance

Supports eight HDTVI camera feeds across interchange monitoring points.
Suitable for roadway approaches, ramps, and junction surveillance.
One fiber consolidates all eight video channels into a single optical link.
1310nm transmission supports the specified singlemode fiber configuration.

Railway Infrastructure Monitoring

Connects multiple HDTVI cameras across railway infrastructure areas.
Suitable for station approaches, crossings, and designated trackside locations.
Eight video channels support multiple camera viewpoints.
ST optical connectors support the specified fiber installation.

Airport Access Area Surveillance

Provides eight HDTVI channels for selected airport access areas.
Suitable for facility entrances, vehicle access points, and perimeter locations.
5 Hz–8 MHz bandwidth supports the specified HDTVI video interface.
BNC video connectors support compatible camera equipment.

Bridge and Tunnel Security

Supports multiple HDTVI cameras positioned around bridge and tunnel areas.
Suitable for monitoring separate roadway viewpoints.
Singlemode optical transmission uses the specified 1310nm wavelength.
Operating temperature from -35°C to +65°C supports varied infrastructure locations.

Port Infrastructure Monitoring

Connects eight HDTVI cameras across selected port facility areas.
Suitable for gates, access roads, and monitored infrastructure zones.
One optical fiber carries the eight video channels.
60dB weighted S/N ratio supports the specified video transmission performance.

Electrical Substation Surveillance

Provides eight-channel HDTVI connectivity for substation camera systems.
Suitable for monitoring facility entrances, equipment areas, and boundaries.
1310nm optical transmission matches the specified singlemode configuration.
Wide operating temperature range supports outdoor infrastructure installations.

Power Infrastructure Security

Supports multiple HDTVI cameras across power infrastructure sites.
Suitable for access areas and designated facility monitoring points.
Eight video channels reduce the need for separate optical links for each camera.
High MTBF exceeding 100,000 hours supports long-term deployment requirements.

Water Treatment Site Monitoring

Connects HDTVI cameras across selected water treatment facility areas.
Suitable for entrances, service areas, and facility surroundings.
One fiber provides consolidated transmission for eight video channels.
0% to 95% non-condensing humidity operation supports varied site conditions.

Oil and Gas Facility Surveillance

Provides eight HDTVI camera connections for designated facility areas.
Suitable for monitoring entrances, access points, and facility surroundings.
8-bit video resolution supports the specified HDTVI signal format.
Low differential gain below ±1% supports accurate video transmission.

Mining Facility Camera Systems

Supports eight HDTVI camera feeds across selected mining locations.
Suitable for access roads, facility entrances, and monitored operational areas.
Singlemode fiber transmission uses the specified 1310nm wavelength.
Operating range supports installations from -35°C to +65°C.

Municipal Road Monitoring

Connects multiple HDTVI cameras at municipal roadway locations.
Suitable for intersections, access roads, and public infrastructure areas.
Eight channels support multiple camera viewpoints through one fiber.
Low differential phase below ±1° supports the specified video performance.

Stadium Exterior Surveillance

Provides eight HDTVI video channels for stadium exterior areas.
Suitable for entrances, perimeter locations, and access routes.
Single-fiber connectivity consolidates multiple camera feeds.
ST optical connectivity supports the specified fiber infrastructure.

Industrial Campus Monitoring

Supports eight HDTVI cameras across industrial campus locations.
Suitable for building approaches, facility entrances, and designated zones.
60dB weighted S/N ratio supports the specified HDTVI video quality.
Operating temperature range supports demanding industrial environments.

Distribution Yard Surveillance

Connects multiple HDTVI cameras across distribution yard areas.
Suitable for vehicle access, loading zones, and facility entrances.
One fiber carries all eight video channels to the monitoring equipment.
BNC video interfaces support compatible HDTVI camera connections.

Public Transportation Facilities

Provides eight-channel HDTVI connectivity for transportation facilities.
Suitable for entrances, platforms, waiting areas, and access points.
1310nm wavelength supports the specified singlemode optical transmission.
8-bit video processing supports the specified HDTVI signal format.

Government Infrastructure Surveillance

Supports multiple HDTVI cameras at government infrastructure sites.
Suitable for facility entrances, perimeter viewpoints, and access areas.
Four? No, eight video channels provide centralized multi-camera connectivity.
MTBF greater than 100,000 hours supports extended installations.

Critical Infrastructure CCTV

Connects eight HDTVI cameras across critical infrastructure locations.
Suitable for monitoring multiple designated facility areas.
One optical fiber consolidates the complete eight-channel video link.
Less than 1% tilt supports the specified video transmission performance.

Remote Utility Building Monitoring

Provides eight HDTVI video channels for remote utility buildings.
Suitable for entrances, surrounding areas, and designated monitoring points.
Singlemode fiber supports the specified 1310nm optical transmission.
5VDC, 2A power supply supports the specified equipment requirement.

Construction Infrastructure Surveillance

Supports multiple HDTVI cameras across infrastructure construction areas.
Suitable for site entrances, equipment zones, and monitored work areas.
Storage temperature from -45°C to +85°C supports the specified storage range.
Single-fiber architecture consolidates eight camera video connections.

Eight-Channel HDTVI Fiber Expansion

Provides an eight-channel solution for expanding compatible HDTVI systems.
Suitable for installations requiring multiple camera feeds over one fiber.
ST optical and BNC video interfaces support the specified connections.
1310nm transmission supports the product's specified singlemode fiber link.
