8-Channel HDTVI Video Installation Kit | ST, MM

SKU:HDTVITR8003

Free Ground Shipping For Online Store Orders
Free Unlimited Support
Lifetime Warranty

The VERSITRON VersiVision HDTVITR8003 is an 8-channel HDTVI video installation kit designed for transmitting multiple digitally encoded HD-TVI video signals over multimode fiber optic cable. The complete kit includes the transmitter, receiver, power supplies, and 100 meters of multimode fiber, providing a convenient fiber optic solution for centralized video monitoring and surveillance installations.

The VersiVision HD video platform supports 8-bit digitally encoded video and is compatible with NTSC, PAL, and SECAM camera systems. Its plug-and-play design eliminates the need for electrical or optical adjustments, while LED indicators provide convenient system status monitoring.

Product Highlights

8-channel HDTVI video transmission
8-bit digitally encoded video
Multimode fiber optic transmission
One optical fiber
ST optical connector
BNC video connectors
Compatible with NTSC, PAL, and SECAM
Supports 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F
Plug-and-play installation
No electrical or optical adjustments required
LED indicators for system monitoring
Standalone or rack-mount installation
Compatible with the FVC18 18-slot chassis
Includes transmitter, receiver, power supplies, and 100 meters of multimode fiber

View full details

8-Channel HDTVI Video Over Multimode Fiber

The HDTVITR8003 provides a complete fiber optic installation solution for applications requiring multiple HDTVI camera signals to be transported over fiber. The transmitter and receiver are connected through a single optical fiber, allowing video signals to be extended from the camera location to a remote monitoring or recording location.

The VersiVision platform uses digitally encoded video transmission and is designed for adjustment-free installation and operation.

Digitally Encoded HDTVI Video

The VersiVision HD video platform supports 8-bit digitally encoded HD-TVI video and is directly compatible with NTSC, PAL, and SECAM camera systems. The optimized optical modules support 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F video formats.

Multimode Fiber Optic Transmission

The HDTVITR8003 is designed for use with multimode fiber and an ST optical connection. The supplied installation kit includes 100 meters of multimode fiber optic cable, making it a convenient package for new fiber-based video installations.

Plug-and-Play Installation

The VersiVision HD video platform is designed for straightforward installation without electrical or optical adjustments. LED indicators provide instant system operating status, helping installers monitor the condition of the fiber optic video link.

Technical Specifications

Specification	HDTVITR8003
Video	8-Channel HD-TVI
Video Encoding	8-Bit Digitally Encoded
Video Input	0.6–2.0 Vp-p (75 Ohms)
Bandwidth	5 Hz–8 MHz
Differential Gain	< ±1%
Differential Phase	< ±1°
Tilt	< 1%
S/N Ratio	60 dB (Weighted)
Fiber Type	Multimode
Optical Fiber	1
Optical Emitter	Laser Diode
Optical Connector	ST
Video Connector	BNC
Power Supply	5VDC, 2A
Installation	Standalone or Rack-Mount
Rack-Mount Chassis	FVC18 18-Slot Chassis
Operating Temperature	-35°C to +65°C
Storage Temperature	-45°C to +85°C
Relative Humidity	0% to 95% (Non-Condensing)
MTBF	>100,000 Hours

The general video, optical, connector, power, environmental, and reliability specifications above are taken from the VersiVision datasheet.

Note: The provided datasheet's model table lists HDTVI configurations through 4 channels and does not provide a specific maximum-distance specification for the HDTVITR8003 8-channel installation kit.

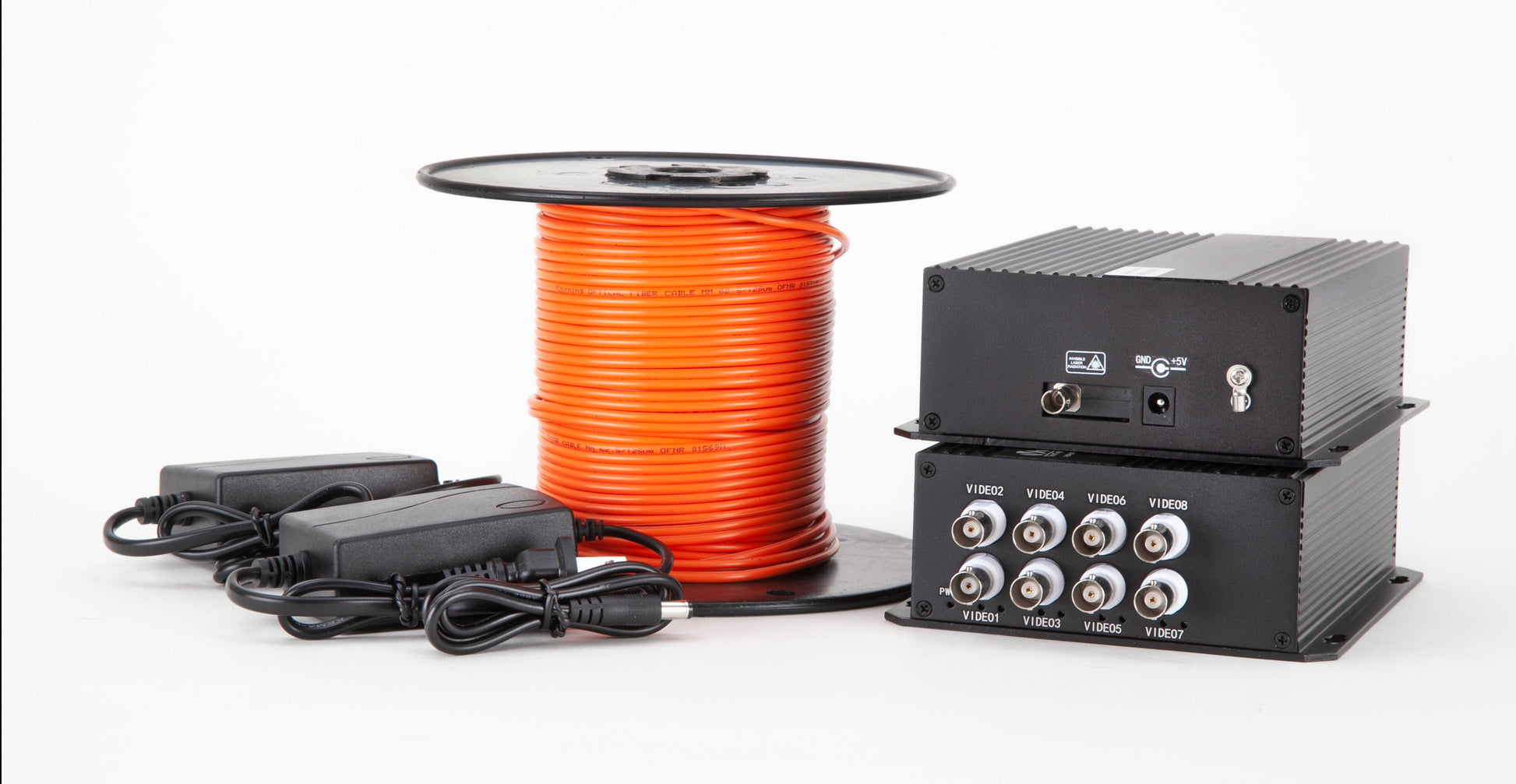

Complete HDTVI Fiber Optic Installation Kit

The HDTVITR8003 includes:

HDTVI transmitter
HDTVI receiver
Power supplies
100 meters of multimode fiber optic cable

This provides the primary equipment needed to establish a fiber optic connection between the camera and monitoring locations.

Standalone or Rack-Mount Installation

VersiVision HD video equipment can be deployed as standalone equipment or installed in the FVC18 18-slot chassis for centralized video systems. The VersiVision modules are designed for rack-mount applications in the FVC18 chassis and are hot-pluggable when installed in the chassis.

HDTVI Fiber Optic Video Applications

The HDTVITR8003 can be used in applications requiring multiple HDTVI camera signals to be transported over multimode fiber, including:

CCTV security systems
Video surveillance
Commercial security installations
Industrial video monitoring
Transportation and infrastructure monitoring
Centralized video monitoring
Remote camera installations

Why Choose the VERSITRON HDTVITR8003?

The HDTVITR8003 provides a complete fiber optic installation package for multi-channel HDTVI video. With digitally encoded video transmission, multimode fiber connectivity, plug-and-play installation, LED status indicators, and included fiber cable and power supplies, it is designed to simplify the deployment of fiber-based HDTVI surveillance systems.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has developed fiber optic communication solutions for video, data, and networking applications. The VersiVision platform supports HD-CVI, AHD, and HD-TVI video transmission over fiber and provides both standalone and rack-mount deployment options.

Video Input

0.6 ~ 2.0 Volt pk-pk (75 Ohms)

Video Interface

HD-TVI

Input/Output Channels

Bandwidth

5 Hz ~ 8 MHz

Bit Resolution

8-Bit

Differential Gain

<±1%

Differential Phase

<±1°

Tilt

< 1%

S/N Ratio

60dB (Weighted)

Wavelength

1310nm

Number of Fibers

Optical Connector

Video Connector

BNC

Power Supply

5VDC, 2A

MTBF

>100,000 Hours

Operating Temperature

-35°C to +65°C

Storage Temperature

-45°C to +85°C

Relative Humidity

0% to 95% (non-condensing)

All of the VersiVision HD installation kits are available for standalone applications and include: Transmitter, Receiver, Power Supplies & 100 meters of fiber. Please give us a call (1-800-537-2296) or open a chat with any questions. We look forward to discussing your application with you!

Key Features of 8 Channels HDTVI Video Installation Kit

8-Bit Uncompressed Video Transmission
Digitally Encoded
NTSC, PAL, SECAM Video Compatible
Simplex or Full Duplex Data
WDM Technology for Higher Reliability
Standalone or Rackmount into FVC18 Chassis (Hot Pluggable) Simultaneous Transmission of Video and Data VersiVision Chassis, HD-SDI, HDMI

HD Units Spec

HD Video Only Manual

Triad

8-Channel HDTVI Video Installation Kit | ST, MM (HDTVITR8003) is used across the following Applications:

Multi-Lane Traffic Surveillance

Supports eight HDTVI camera feeds across multiple roadway viewpoints.
Suitable for monitoring traffic lanes, approaches, and roadside areas.
One fiber carries all eight video channels to the monitoring location.
BNC video connectors support compatible HDTVI camera connections.

Airport Terminal Surveillance

Provides eight HDTVI channels for selected terminal surveillance areas.
Suitable for entrances, passenger areas, and facility access points.
5 Hz–8 MHz bandwidth supports the specified HDTVI video interface.
ST optical connectivity supports the fiber-based camera installation.

Railway Platform Monitoring

Connects multiple HDTVI cameras positioned around railway platforms.
Suitable for platform entrances, waiting areas, and station approaches.
Eight video channels allow multiple viewpoints through one fiber link.
1310nm optical transmission supports the specified fiber configuration.

Highway Interchange Cameras

Supports eight HDTVI cameras across highway interchange areas.
Suitable for monitoring ramps, junctions, and roadway approaches.
Single-fiber transmission consolidates multiple camera connections.
Operating temperature from -35°C to +65°C supports varied site conditions.

Toll Station Video Systems

Provides eight-channel HDTVI connectivity for toll station cameras.
Suitable for lane areas, station entrances, and surrounding locations.
60dB weighted S/N ratio supports the specified video transmission performance.
One optical fiber carries the consolidated video connection.

Port Perimeter Surveillance

Connects HDTVI cameras across selected port perimeter locations.
Suitable for gates, access roads, and designated facility boundaries.
Four? No, eight video channels provide broad camera coverage.
ST optical connectors support structured fiber installation at the monitoring site.

Factory Security Camera Networks

Supports eight HDTVI cameras across manufacturing facility areas.
Suitable for production zones, entrances, and equipment areas.
8-bit resolution supports the specified HDTVI video signal format.
Low differential gain below ±1% supports accurate video transmission.

Industrial Yard Monitoring

Provides multiple HDTVI camera connections across industrial yards.
Suitable for vehicle access areas, storage zones, and facility entrances.
One fiber simplifies the connection of eight separate video channels.
Wide temperature operation supports outdoor industrial installations.

Logistics Hub Surveillance

Connects eight HDTVI cameras across logistics facility zones.
Suitable for loading areas, vehicle routes, and building entrances.
5VDC, 2A power supply supports the specified installation requirement.
BNC video interfaces provide direct connectivity with compatible equipment.

Municipal Facility Cameras

Supports eight HDTVI video feeds at municipal facilities.
Suitable for public building entrances and designated security areas.
1310nm wavelength supports the specified optical transmission.
MTBF exceeding 100,000 hours supports long-term deployment requirements.

Stadium Access Surveillance

Provides eight HDTVI channels for stadium access areas.
Suitable for entrances, exterior walkways, and designated security viewpoints.
One fiber consolidates multiple camera feeds into a single optical connection.
60dB weighted S/N supports the specified video signal quality.

Warehouse Entry Monitoring

Connects HDTVI cameras around warehouse entrances and access points.
Suitable for receiving areas, dispatch zones, and storage facility entrances.
Eight channels provide multiple video viewpoints through one fiber.
Non-condensing humidity operation supports varied warehouse environments.

Campus Perimeter Cameras

Supports eight HDTVI cameras positioned around campus areas.
Suitable for building approaches, perimeter points, and facility entrances.
ST optical connectivity supports organized fiber-based video infrastructure.
Low differential phase below ±1° helps preserve video signal fidelity.

Utility Site Video Monitoring

Provides eight-channel HDTVI connectivity for utility facility cameras.
Suitable for monitored access points and designated infrastructure areas.
Operating temperatures from -35°C to +65°C support demanding site conditions.
0% to 95% non-condensing humidity tolerance supports varied environments.

Water Facility Surveillance

Connects multiple HDTVI cameras across water infrastructure facilities.
Suitable for entrances, service areas, and designated facility zones.
Eight video channels support centralized camera connectivity.
Single-fiber transmission helps consolidate the video infrastructure.

Mining Site Security Monitoring

Supports eight HDTVI camera feeds at selected mining locations.
Suitable for facility entrances, access roads, and monitored work areas.
1310nm optical transmission supports the specified fiber link.
Wide operating temperature range supports varied mining site conditions.

Public Transit Facility Cameras

Provides eight HDTVI video channels for transit facility monitoring.
Suitable for station entrances, platforms, and passenger access areas.
8-bit video resolution supports the specified HDTVI signal format.
ST fiber connectivity supports centralized video transmission.

Construction Site Surveillance

Connects multiple HDTVI cameras across construction site areas.
Suitable for site entrances, equipment zones, and monitored access points.
One fiber carries the eight video channels to the designated monitoring equipment.
Storage temperature of -45°C to +85°C supports the specified storage conditions.

Critical Facility CCTV Systems

Supports eight HDTVI camera feeds across critical facility areas.
Suitable for monitoring multiple designated security viewpoints.
Differential phase below ±1° supports the specified video performance.
High MTBF of over 100,000 hours supports extended installation requirements.

Multi-Camera HDTVI Expansion

Provides an eight-channel option for expanding compatible HDTVI systems.
Suitable for installations requiring additional camera connectivity over fiber.
One optical fiber supports consolidated transmission of all eight video channels.
BNC and ST interfaces support the specified camera and fiber connections.
