4-Channel HDTVI Video Installation Kit | Data, ST, SM

SKU:HDTVITR4A05

Free Ground Shipping For Online Store Orders
Free Unlimited Support
Lifetime Warranty

The VERSITRON VersiVision HDTVITR4A05 is a 4-channel HDTVI video installation kit designed to transmit four channels of digitally encoded HD-TVI video along with one channel of bi-directional data over a single singlemode fiber optic cable. The complete kit includes the transmitter, receiver, power supplies, and 100 meters of singlemode fiber, providing a convenient solution for extending multiple HDTVI camera signals and control data over fiber.

The HDTVITR4A05 supports 8-bit digitally encoded video and is directly compatible with NTSC, PAL, and SECAM camera systems. The singlemode version uses 1310/1550nm optics and supports transmission distances up to 30 km for the 4-channel configuration.

Product Highlights

4-channel HDTVI video transmission
8-bit digitally encoded video
1 channel of bi-directional data
Singlemode fiber optic transmission
Up to 30 km transmission distance
1310/1550nm optical wavelength
One optical fiber
ST optical connectors
BNC video connectors
RS-485 data interface
Data rates up to 300 Kbps
RS-232 or RS-422 available upon request
Compatible with NTSC, PAL, and SECAM
Supports 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F
Plug-and-play installation
No electrical or optical adjustments required
LED indicators for system status monitoring
Standalone or rack-mount installation
Compatible with the FVC18 18-slot chassis
Includes transmitter, receiver, power supplies, and 100 meters of singlemode fiber

View full details

4-Channel HDTVI Video and Data Over Singlemode Fiber

The HDTVITR4A05 combines four channels of HD-TVI video with one channel of bi-directional data transmission over a single singlemode optical fiber. It provides a practical way to connect multiple HDTVI cameras to remote monitoring, recording, or control equipment over extended distances.

A typical installation places the transmitter at the camera end of the link and the receiver at the monitoring end. The VersiVision design provides plug-and-play, adjustment-free installation, while LED indicators provide immediate system operating status.

Digitally Encoded HD-TVI Video

The HDTVITR4A05 supports 8-bit digitally encoded HD-TVI video and is directly compatible with NTSC, PAL, and SECAM camera systems. The optimized optical modules support 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F video formats.

Bi-Directional RS-485 Data Transmission

In addition to four HDTVI video channels, the HDTVITR4A05 provides one channel of bi-directional RS-485 data. The data interface supports rates up to 300 Kbps, with RS-232 or RS-422 available as optional interfaces.

This allows the fiber link to carry video together with compatible camera control or other serial data.

Singlemode Fiber Transmission

The 4-channel singlemode HDTVI + data configuration supports transmission over one singlemode optical fiber. The product model table identifies the HDTVIT4A05/HDTVIR4A05 transmitter and receiver pair as using 1310/1550nm optics with a maximum distance of 30 km.

Plug-and-Play Fiber Optic Installation

The VersiVision HD video platform is designed for straightforward installation without electrical or optical adjustments. LED indicators provide instant system monitoring, and the units can be deployed as standalone devices or installed in the FVC18 18-slot chassis. The modules are also hot-pluggable when installed in the FVC18 chassis.

Technical Specifications

Specification	HDTVITR4A05
Video	4-Channel HD-TVI
Video Input	0.6–2.0 Vp-p (75 Ohms)
Bandwidth	5 Hz–8 MHz
Bit Resolution	8-Bit
Differential Gain	< ±1%
Differential Phase	< ±1°
Tilt	< 1%
S/N Ratio	60 dB (Weighted)
Fiber Type	Singlemode
Optical Wavelength	1310/1550nm
Maximum Distance	30 km
Number of Fibers	1
Optical Emitter	Laser Diode
Data Interface	RS-485
Data Rate	Up to 300 Kbps
Data Channels	1 Bi-Directional
Bit Error Rate	10⁻⁹
RS-232 / RS-422	Available upon request
Optical Connector	ST
Video Connector	BNC
Data Connection	Screw Terminal Strip
Power Supply	5VDC, 2A
Dimensions	5.98 × 5.12 × 1.13 in.
MTBF	>100,000 Hours
Operating Temperature	-35°C to +65°C
Storage Temperature	-45°C to +85°C
Relative Humidity	0% to 95% (Non-Condensing)
Installation	Standalone or Rack-Mount
Rack-Mount Chassis	FVC18 18-Slot Chassis

The technical specifications are based on the VersiVision datasheet. Page 2 provides the general video, data, connector, power, environmental, and reliability specifications, while the model table on page 5 identifies the 4-channel HDTVI + bi-directional data singlemode configuration as 1310/1550nm with a maximum distance of 30 km.

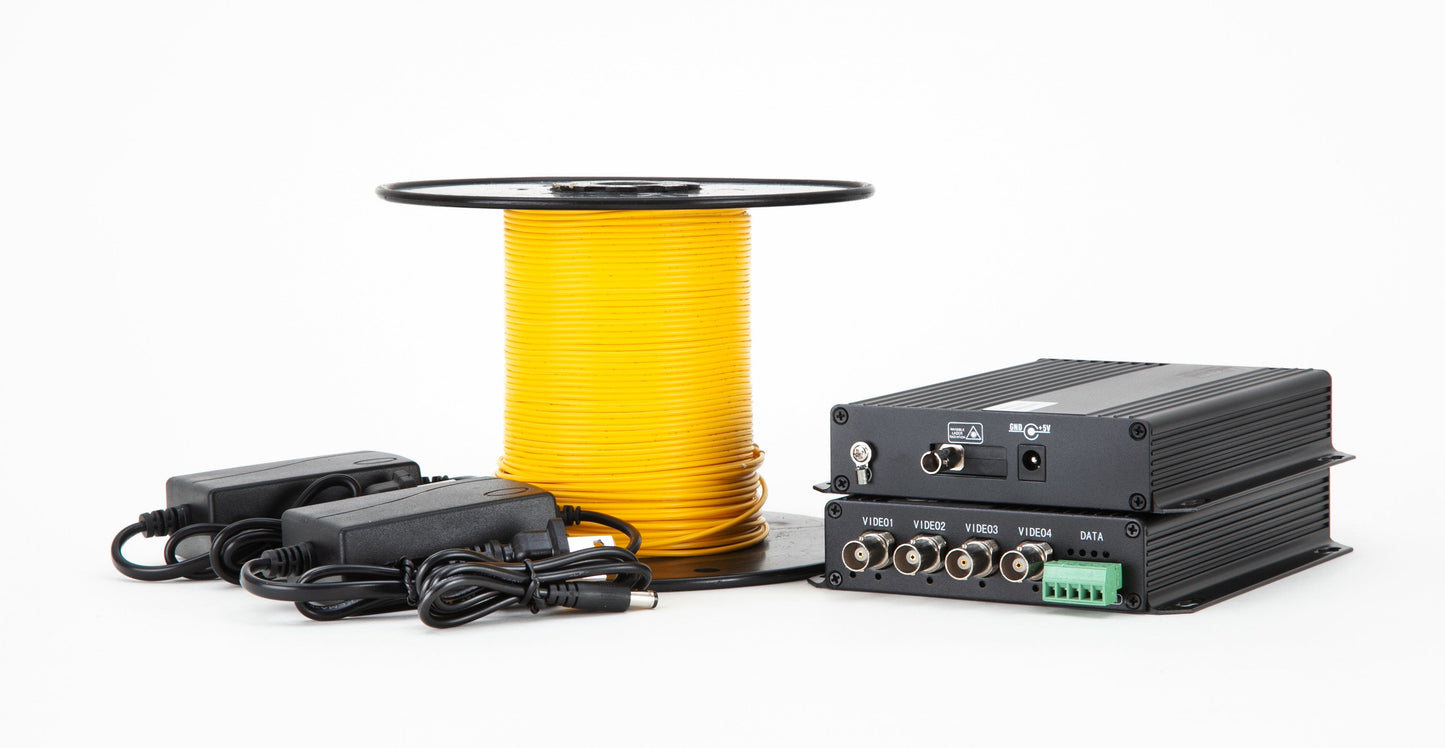

Complete HDTVI Video Installation Kit

The HDTVITR4A05 installation kit includes:

4-channel HDTVI transmitter
4-channel HDTVI receiver
Power supplies
100 meters of singlemode fiber optic cable

This provides the primary components needed to establish a four-channel HDTVI video and data fiber link.

Standalone or Rack-Mount Installation

The HDTVITR4A05 can be deployed as a standalone installation or mounted in the VERSITRON FVC18 18-slot chassis for centralized video systems. The VersiVision modules are hot-pluggable when installed in the FVC18 chassis.

HDTVI Fiber Optic Video and Data Applications

The HDTVITR4A05 can be used for applications requiring multiple HDTVI camera signals and serial data to be transported over singlemode fiber, including:

CCTV security systems
Video surveillance
Camera control and monitoring
Commercial security installations
Industrial video monitoring
Transportation and infrastructure monitoring
Centralized video monitoring

Why Choose the VERSITRON HDTVITR4A05?

The HDTVITR4A05 combines four channels of digitally encoded HDTVI video with one channel of bi-directional RS-485 data over a single singlemode fiber. With up to 30 km transmission distance, plug-and-play operation, LED status indicators, and a complete installation kit, it provides a straightforward solution for extending HDTVI video and data signals over long-distance fiber links.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has developed fiber optic communication solutions for video, data, and networking applications. The VersiVision platform supports HD-CVI, AHD, and HD-TVI video transmission over fiber in multiple channel configurations

Video Input

0.6 ~ 2.0 Volt pk-pk (75 Ohms)

Video Interface

HD-TVI

Input/Output Channels

Bandwidth

5 Hz – 8 MHz

Bit Resolution

8-Bit

Differential Gain

<±1%

Differential Phase

<±1°

Tilt

<1%

S/N Ratio

60dB (Weighted)

Wavelength

1310/1550nm

Number of Fibers

Optical Connector

Video Connector

BNC

Power Supply

5VDC, 2A

MTBF

>100,000 Hours

Operating Temperature

-35°C to +65°C

Storage Temperature

-45°C to +85°C

Relative Humidity

0% to 95% (non-condensing)

Data Interface

RS-485 (RS-422 or RS-232 Optional)

Data Rate

Up to 300 Kbps

Data Channels

1 Bi-Directional

Bit Error Rate

10⁻⁹

Data Contact

Screw Terminal Strip

All of the VersiVision HD installation kits are available for standalone applications and include: Transmitter, Receiver, Power Supplies & 100 meters of fiber. Please give us a call (1-800-537-2296) or open a chat with any questions. We look forward to discussing your application with you!
