4-Channel HDTVI Video Installation Kit | Data, ST, MM

SKU:HDTVITR4A03

Free Ground Shipping For Online Store Orders
Free Unlimited Support
Lifetime Warranty

The VERSITRON VersiVision HDTVITR4A03 is a 4-channel HDTVI video installation kit designed to transmit four channels of digitally encoded HD-TVI video along with one channel of bi-directional data over a single multimode fiber optic cable. The complete kit includes the transmitter, receiver, power supplies, and 100 meters of multimode fiber, providing a convenient solution for extending multiple HDTVI camera signals and control data over fiber.

The HDTVITR4A03 supports 8-bit digitally encoded video and is directly compatible with NTSC, PAL, and SECAM camera systems. The multimode version uses 850/1310nm optics and supports transmission distances up to 1 km for the 4-channel configuration.

Product Highlights

4-channel HDTVI video transmission
8-bit digitally encoded video
1 channel of bi-directional data
Multimode fiber optic transmission
Up to 1 km transmission distance
850/1310nm optical wavelength
One optical fiber
ST optical connectors
BNC video connectors
RS-485 data interface
Data rates up to 300 Kbps
RS-232 or RS-422 available upon request
Compatible with NTSC, PAL, and SECAM
Supports 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F
Plug-and-play installation
No electrical or optical adjustments required
LED indicators for system status monitoring
Standalone or rack-mount installation
Compatible with the FVC18 18-slot chassis
Includes transmitter, receiver, power supplies, and 100 meters of multimode fiber

View full details

4-Channel HDTVI Video and Data Over Multimode Fiber

The HDTVITR4A03 combines four channels of HD-TVI video with one channel of bi-directional data transmission over a single multimode optical fiber. It provides a practical way to connect multiple HDTVI cameras to remote monitoring, recording, or control equipment.

A typical installation places the transmitter at the camera end of the link and the receiver at the monitoring end. The VersiVision design provides plug-and-play, adjustment-free installation, while LED indicators provide immediate system operating status.

Digitally Encoded HD-TVI Video

The HDTVITR4A03 supports 8-bit digitally encoded HD-TVI video and is directly compatible with NTSC, PAL, and SECAM camera systems. The optimized optical modules support 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F video formats.

Bi-Directional RS-485 Data Transmission

In addition to four HDTVI video channels, the HDTVITR4A03 provides one channel of bi-directional RS-485 data. The data interface supports rates up to 300 Kbps, with RS-232 or RS-422 available as optional interfaces.

This allows the fiber link to carry video together with compatible camera control or other serial data.

Multimode Fiber Transmission

The 4-channel multimode HDTVI + data configuration supports transmission over one multimode optical fiber. The product model table identifies the HDTVIT4A03/HDTVIR4A03 transmitter and receiver pair as using 850/1310nm optics with a maximum distance of 1 km.

Plug-and-Play Fiber Optic Installation

The VersiVision HD video platform is designed for straightforward installation without electrical or optical adjustments. LED indicators provide instant system monitoring, and the units can be deployed as standalone devices or installed in the FVC18 rack-mount chassis.

Technical Specifications

Specification	HDTVITR4A03
Video	4-Channel HD-TVI
Video Input	0.6–2.0 Vp-p (75 Ohms)
Bandwidth	5 Hz–8 MHz
Bit Resolution	8-Bit
Differential Gain	< ±1%
Differential Phase	< ±1°
Tilt	< 1%
S/N Ratio	60 dB (Weighted)
Fiber Type	Multimode
Optical Wavelength	850/1310nm
Maximum Distance	1 km
Number of Fibers	1
Optical Emitter	Laser Diode
Data Interface	RS-485
Data Rate	Up to 300 Kbps
Data Channels	1 Bi-Directional
Bit Error Rate	10⁻⁹
RS-232 / RS-422	Available upon request
Optical Connector	ST
Video Connector	BNC
Data Connection	Screw Terminal Strip
Power Supply	5VDC, 2A
Dimensions	5.98 × 5.12 × 1.13 in.
MTBF	>100,000 Hours
Operating Temperature	-35°C to +65°C
Storage Temperature	-45°C to +85°C
Relative Humidity	0% to 95% (Non-Condensing)
Installation	Standalone or Rack-Mount
Rack-Mount Chassis	FVC18 18-Slot Chassis

The technical specifications above are from the VersiVision datasheet. The general specifications are listed on page 2, while the specific 4-channel HDTVI + bi-directional data model and its 1 km multimode / 850-1310nm configuration are listed on page 5.

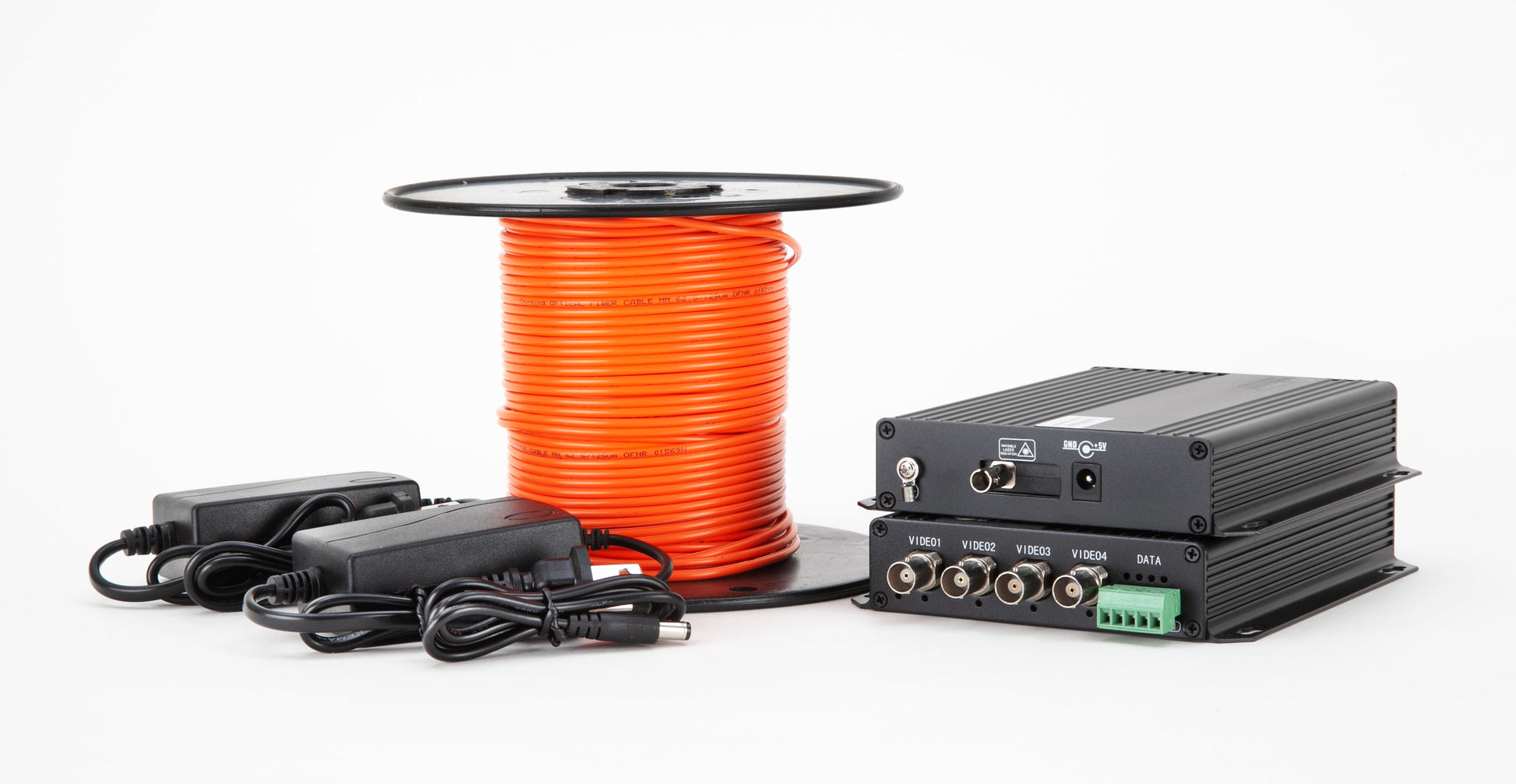

Complete HDTVI Video Installation Kit

The HDTVITR4A03 installation kit includes:

4-channel HDTVI transmitter
4-channel HDTVI receiver
Power supplies
100 meters of multimode fiber optic cable

This provides the primary components needed to establish a four-channel HDTVI video and data fiber link.

Standalone or Rack-Mount Installation

The HDTVITR4A03 can be deployed as a standalone installation or mounted in the VERSITRON FVC18 18-slot chassis for centralized video systems. The VersiVision modules are hot-pluggable when installed in the FVC18 chassis.

HDTVI Fiber Optic Video and Data Applications

The HDTVITR4A03 can be used for applications requiring multiple HDTVI camera signals and serial data to be transported over multimode fiber, including:

CCTV security systems
Video surveillance
Camera control and monitoring
Commercial security installations
Industrial video monitoring
Transportation and infrastructure monitoring
Centralized video monitoring

Why Choose the VERSITRON HDTVITR4A03?

The HDTVITR4A03 combines four channels of digitally encoded HDTVI video with one channel of bi-directional RS-485 data over a single multimode fiber. With up to 1 km transmission distance, plug-and-play operation, LED status indicators, and a complete installation kit, it provides a straightforward solution for extending HDTVI video and data signals over fiber.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has developed fiber optic communication solutions for video, data, and networking applications. The VersiVision platform supports HD-CVI, AHD, and HD-TVI video transmission over fiber in multiple channel configurations.

Video Input

0.6 ~ 2.0 Volt pk-pk (75 Ohms)

Video Interface

HD-TVI

Input/Output Channels

Bandwidth

5 Hz – 8 MHz

Bit Resolution

8-Bit

Differential Gain

<±1%

Differential Phase

<±1°

Tilt

<1%

S/N Ratio

60dB (Weighted)

Wavelength

850/1310nm

Number of Fibers

Optical Connector

Video Connector

BNC

Power Supply

5VDC, 2A

MTBF

>100,000 Hours

Operating Temperature

-35°C to +65°C

Storage Temperature

-45°C to +85°C

Relative Humidity

0% to 95% (non-condensing)

Data Interface

RS-485 (RS-422 or RS-232 Optional)

Data Rate

Up to 300 Kbps

Data Channels

1 Bi-Directional

Bit Error Rate

10⁻⁹

Data Contact

Screw Terminal Strip

All of the VersiVision HD installation kits are available for standalone applications and include: Transmitter, Receiver, Power Supplies & 100 meters of fiber. Please give us a call (1-800-537-2296) or open a chat with any questions. We look forward to discussing your application with you!

Key Features of 4 Channel bi directional transmitter and receiver

8-Bit Uncompressed Video Transmission
Digitally Encoded
NTSC, PAL, SECAM Video Compatible
Simplex or Full Duplex Data
WDM Technology for Higher Reliability
Standalone or Rackmount into FVC18 Chassis (Hot Pluggable) Simultaneous Transmission of Video and Data VersiVision Chassis, HD-SDI, HDMI

HD Units Spec

HD Video Data Manual

Triad

4-Channel HDTVI Video Installation Kit | Data, ST, MM (HDTVITR4A03) is used across the following Applications:

Traffic Intersection Surveillance

Supports four HDTVI camera channels for intersection monitoring.
Uses one fiber for the optical video connection.
RS-485 provides one bidirectional data channel.
Supports data transmission up to 300 Kbps.

Airport Access Area Monitoring

Connects four HDTVI cameras across selected airport access areas.
850/1310nm wavelengths support the specified optical interface.
ST connector provides the fiber connection.
60dB weighted S/N supports the specified video performance.

Railway Station Camera Systems

Provides four HDTVI video channels for station monitoring.
Single-fiber connectivity carries the optical video link.
RS-485 data is available through the screw terminal strip.
Operating temperature ranges from -35°C to +65°C.

Highway Monitoring Points

Supports four HDTVI cameras at selected highway monitoring points.
5 Hz to 8 MHz bandwidth supports the HDTVI video signal.
8-bit resolution supports the specified video transmission.
One bidirectional data channel supports compatible communication.

Toll Collection Area Surveillance

Connects four HDTVI cameras around toll collection areas.
BNC connectors support the specified video interface.
RS-485 supports bidirectional data communication.
10⁻⁹ bit error rate is specified for the data link.

Port and Terminal Security

Provides four HDTVI channels for port and terminal monitoring.
Uses one fiber for the optical connection.
Optional RS-422 or RS-232 supports compatible data interfaces.
Relative humidity operation is rated from 0% to 95% non-condensing.

Distribution Center Surveillance

Supports four camera views across distribution facility areas.
850/1310nm optical wavelengths support the specified fiber link.
Up to 300 Kbps data transmission supports compatible equipment.
ST optical connectivity supports the fiber-side installation.

Logistics Yard Monitoring

Links four HDTVI cameras across logistics yard areas.
Single-fiber transmission consolidates the optical video connection.
Video tilt is specified at less than 1%.
Operating temperatures support -35°C to +65°C installations.

Manufacturing Process Observation

Provides four HDTVI channels for selected manufacturing areas.
Supports 0.6 to 2.0 Volt pk-pk video input at 75 Ohms.
Differential gain is specified below ±1%.
Differential phase is specified below ±1°.

Power Generation Facility Monitoring

Connects four HDTVI cameras at selected power facility areas.
RS-485 provides one bidirectional data channel.
Screw terminal strip supports the data connection.
MTBF is rated at more than 100,000 hours.

Water Infrastructure Surveillance

Supports four HDTVI camera feeds for water infrastructure sites.
1310nm optical operation is supported within the specified wavelength range.
5VDC, 2A power supply supports the installation.
Storage temperature is rated from -45°C to +85°C.

Stadium Event Perimeter Monitoring

Provides four HDTVI channels for selected stadium perimeter areas.
One fiber carries the optical video connection.
60dB weighted S/N supports the specified video performance.
RS-485 data supports compatible bidirectional communication.

Campus Zone Surveillance

Connects four HDTVI cameras covering separate campus zones.
Supports 8-bit video transmission across the specified bandwidth.
ST optical connectors provide the fiber interface.
Data rate supports up to 300 Kbps.

Municipal Road Monitoring

Supports four HDTVI cameras for municipal roadway observation.
850/1310nm wavelengths support the optical transmission.
One fiber provides the optical connection.
Suitable for the specified -35°C to +65°C operating range.

Industrial Gate Camera Systems

Provides four HDTVI video channels for industrial gate areas.
RS-485 enables one bidirectional data connection.
Optional RS-422 or RS-232 interfaces support compatible equipment.
BNC connectors provide the specified video connection.

Warehouse Aisle Monitoring

Links four HDTVI cameras for selected warehouse zones.
Supports 5 Hz to 8 MHz video bandwidth.
Single-fiber architecture supports the optical connection.
Non-condensing humidity operation is rated up to 95%.

Government Campus Security

Connects four HDTVI cameras across selected government areas.
Supports 60dB weighted S/N for the specified video path.
RS-485 data is available at up to 300 Kbps.
ST optical connectivity supports the fiber installation.

Mining Facility Monitoring

Provides four HDTVI camera channels for selected mining areas.
Supports operation from -35°C to +65°C.
One fiber carries the optical video connection.
MTBF exceeds 100,000 hours under the specified conditions.

Critical Infrastructure Camera Aggregation

Aggregates four HDTVI camera feeds for infrastructure monitoring.
Supports one bidirectional data channel alongside the video connection.
Data transmission is specified up to 300 Kbps.
10⁻⁹ BER is specified for the data transmission path.

Multi-Camera HDTVI System Expansion

Adds four HDTVI video channels to compatible fiber-based systems.
Uses one ST-connected fiber for the optical link.
Supports RS-485 with optional RS-422 or RS-232 connectivity.
Provides four-channel video transmission through the HD-TVI interface.

Versitron is one of the leading (HDTVITR4A03) 4-Channel HDTVI Video Installation Kit | Data, ST, MM manufacturing companies in the USA (based in Delaware). If your industry or installation location isn't listed above, feel free to reach out to us!

Buy the Best 4-Channel HDTVI Video Installation Kit | Data, ST, MM with Data over Multimode Fiber from VERSITRON at a Competitive Price!
