4-Channel HDTVI Video Installation Kit | ST, SM

SKU:HDTVITR4005

Free Ground Shipping For Online Store Orders
Free Unlimited Support
Lifetime Warranty

The VERSITRON VersiVision HDTVITR4005 is a 4-channel HDTVI video installation kit designed to transmit four channels of digitally encoded HD-TVI video over one singlemode fiber optic cable. The complete kit includes the transmitter, receiver, power supplies, and 100 meters of singlemode fiber, providing a convenient solution for extending multiple HDTVI camera signals over long distances.

The HDTVITR4005 supports 8-bit digitally encoded video and is directly compatible with NTSC, PAL, and SECAM camera systems. The singlemode version uses 1310nm optics and supports transmission distances up to 30 km.

Product Highlights

4-channel HDTVI video transmission
8-bit digitally encoded video
Singlemode fiber optic transmission
Up to 30 km transmission distance
1310nm optical wavelength
One optical fiber
ST optical connectors
BNC video connectors
Compatible with NTSC, PAL, and SECAM
Supports 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F
Plug-and-play installation
No electrical or optical adjustments required
LED indicators for system status monitoring
Standalone or rack-mount installation
Compatible with the FVC18 18-slot chassis
Includes transmitter, receiver, power supplies, and 100 meters of singlemode fiber

View full details

4-Channel HDTVI Video Over Singlemode Fiber

The HDTVITR4005 provides a fiber optic transmission solution for four HDTVI video channels. It connects cameras at one location to monitoring or recording equipment at another location using a singlemode optical fiber.

A typical installation places the transmitter at the camera end of the link and the receiver at the monitoring end. The VersiVision design provides adjustment-free installation and operation, while LED indicators allow users to monitor system operating status.

Digitally Encoded HD-TVI Video

The HDTVITR4005 supports 8-bit digitally encoded HD-TVI video and is directly compatible with NTSC, PAL, and SECAM camera systems. The optimized optical modules support 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F video formats.

30 km Singlemode Fiber Transmission

The HDTVITR4005 is the singlemode version of the 4-channel HDTVI video-only configuration. The VersiVision model table identifies HDTVIT4005 and HDTVIR4005 as the 4-channel singlemode HDTVI transmitter and receiver, using 1310nm optics with a maximum transmission distance of 30 km.

Plug-and-Play Fiber Optic Installation

The VersiVision HD video platform is designed for plug-and-play, adjustment-free installation. No electrical or optical adjustments are required, and LED indicators provide instant system status monitoring.

Technical Specifications

Specification	HDTVITR4005
Video	4-Channel HD-TVI
Video Input	0.6–2.0 Vp-p (75 Ohms)
Bandwidth	5 Hz–8 MHz
Bit Resolution	8-Bit
Differential Gain	< ±1%
Differential Phase	< ±1°
Tilt	< 1%
S/N Ratio	60 dB (Weighted)
Fiber Type	Singlemode
Optical Wavelength	1310nm
Maximum Distance	30 km
Number of Fibers	1
Optical Emitter	Laser Diode
Optical Connector	ST
Video Connector	BNC
Power Supply	5VDC, 2A
Dimensions	5.98 × 5.12 × 1.13 in.
MTBF	>100,000 Hours
Operating Temperature	-35°C to +65°C
Storage Temperature	-45°C to +85°C
Relative Humidity	0% to 95% (Non-Condensing)
Installation	Standalone or Rack-Mount
Rack-Mount Chassis	FVC18 18-Slot Chassis

The general VersiVision technical specifications are provided in the datasheet, while the 30 km distance and 1310nm wavelength are specifically identified for the 4-channel singlemode HDTVI models.

Complete HDTVI Video Installation Kit

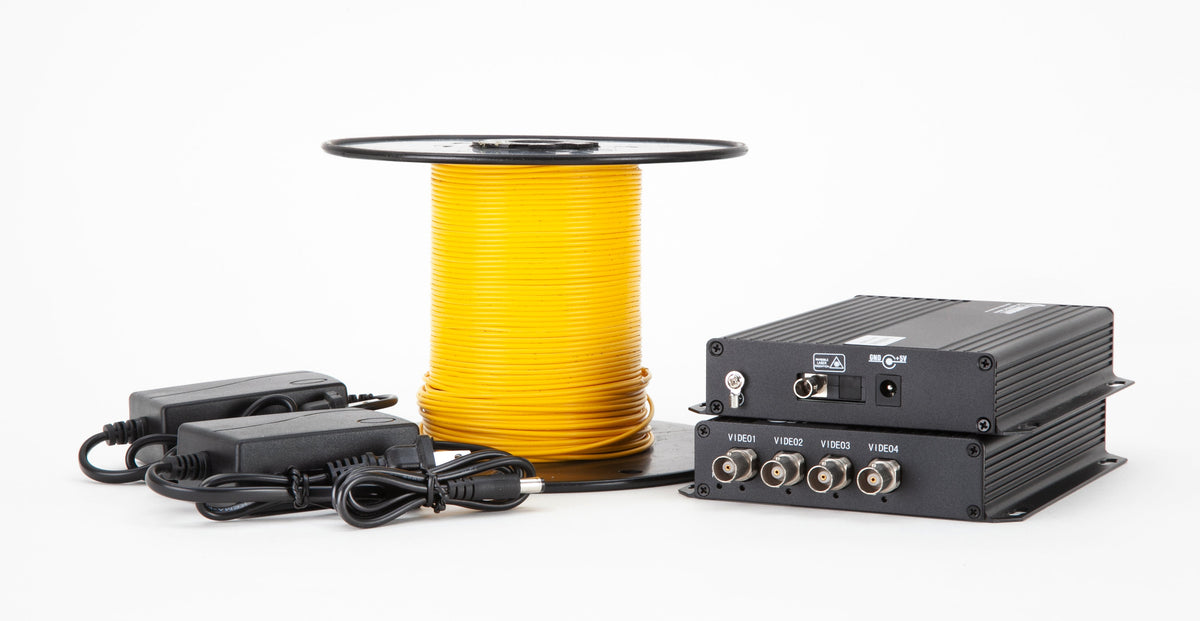

The HDTVITR4005 installation kit includes:

4-channel HDTVI transmitter
4-channel HDTVI receiver
Power supplies
100 meters of singlemode fiber optic cable

This complete package provides the primary components needed to establish a four-channel HDTVI fiber optic video link.

Standalone or Rack-Mount Installation

The HDTVITR4005 can be installed as a standalone solution or mounted in the VERSITRON FVC18 18-slot chassis for centralized video installations. The VersiVision modules are hot-pluggable when installed in the FVC18 chassis.

HDTVI Fiber Optic Video Applications

The HDTVITR4005 can be used for applications requiring multiple HDTVI camera signals to be transported over long-distance singlemode fiber, including:

CCTV security systems
Video surveillance
Commercial security installations
Industrial video monitoring
Transportation and infrastructure monitoring
Remote camera installations
Centralized video monitoring

Why Choose the VERSITRON HDTVITR4005?

The HDTVITR4005 combines four channels of digitally encoded HDTVI video with a complete singlemode fiber installation package. With 30 km transmission capability, plug-and-play operation, LED status indicators, and the transmitter, receiver, power supplies, and 100 meters of fiber included, it provides a straightforward way to extend multiple HDTVI camera signals over long distances.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has developed fiber optic communication solutions for video, data, and networking applications. The VersiVision platform supports HD-CVI, AHD, and HD-TVI video transmission over fiber in multiple channel configurations.

Video Input

0.6 ~ 2.0 Volt pk-pk (75 Ohms)

Video Interface

HD-TVI

Input/Output Channels

Bandwidth

5 Hz ~ 8 MHz

Bit Resolution

8-Bit

Differential Gain

<±1%

Differential Phase

<±1°

Tilt

< 1%

S/N Ratio

60dB (Weighted)

Wavelength

1310nm

Number of Fibers

Optical Connector

Video Connector

BNC

Power Supply

5VDC, 2A

MTBF

>100,000 Hours

Operating Temperature

-35°C to +65°C

Storage Temperature

-45°C to +85°C

Relative Humidity

0% to 95% (non-condensing)

Key Features of 4 Channel Single Mode Transmitter & Receiver

8-Bit Uncompressed Video Transmission
Digitally Encoded
NTSC, PAL, SECAM Video Compatible
Simplex or Full Duplex Data
WDM Technology for Higher Reliability
Standalone or Rackmount into FVC18 Chassis (Hot Pluggable) Simultaneous Transmission of Video and Data VersiVision Chassis, HD-SDI, HDMI

HD Units Spec

HD Video Only Manual

Triad

4-Channel HDTVI Video Installation Kit | ST, SM (HDTVITR4005) is used across the following Applications:
