4-Channel HDTVI Video Over Multimode Fiber

The HDTVITR4003 provides a fiber optic transmission solution for four HDTVI video channels. It is designed to connect cameras at one location to monitoring or recording equipment at another location using a single multimode optical fiber.

A typical installation places the transmitter at the camera end of the link and the receiver at the monitoring end. The VersiVision design provides adjustment-free installation and operation, while LED indicators allow users to monitor system operating status.

Digitally Encoded HD-TVI Video

The HDTVITR4003 supports 8-bit digitally encoded HD-TVI video and is directly compatible with NTSC, PAL, and SECAM camera systems. The optimized optical modules support 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F video formats.

1 km Multimode Fiber Transmission

The HDTVITR4003 is the multimode version of the 4-channel HDTVI video-only configuration. The VersiVision model table identifies HDTVIT4003 and HDTVIR4003 as the 4-channel multimode HDTVI transmitter and receiver, using 1310nm optics with a maximum transmission distance of 1 km.

Plug-and-Play Fiber Optic Installation

The VersiVision HD video platform is designed for plug-and-play, adjustment-free installation. No electrical or optical adjustments are required, and LED indicators provide instant system status monitoring.

Technical Specifications

The general VersiVision technical specifications are provided in the product datasheet, while the 1 km multimode distance and 1310nm wavelength are specifically identified for the 4-channel HDTVI models on the model table.

Complete HDTVI Video Installation Kit

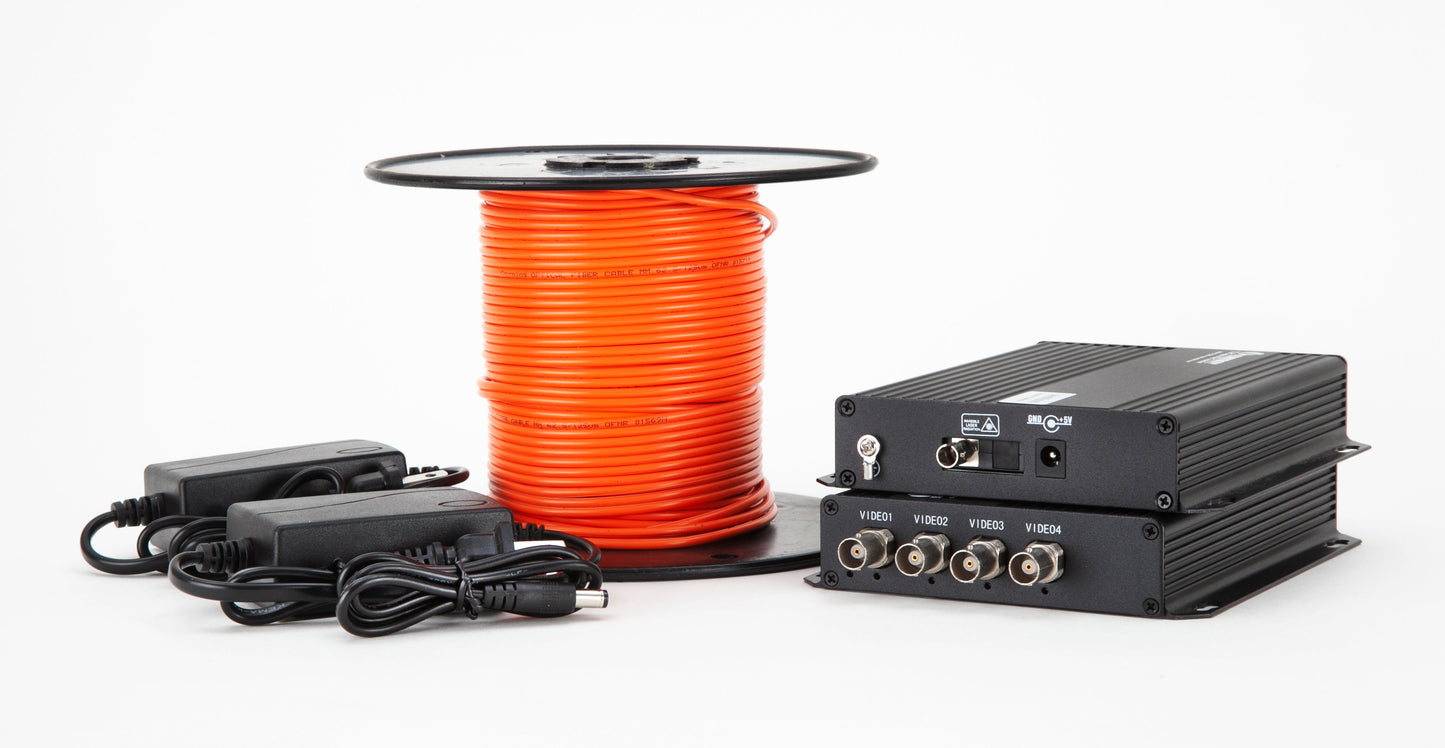

The HDTVITR4003 installation kit includes:

• 4-channel HDTVI transmitter
• 4-channel HDTVI receiver
• Power supplies
• 100 meters of multimode fiber optic cable

The complete kit provides the primary components needed to establish a four-channel HDTVI fiber optic video link.

Standalone or Rack-Mount Installation

The HDTVITR4003 can be installed as a standalone solution or mounted in the VERSITRON FVC18 18-slot chassis for centralized video installations. The VersiVision modules are hot-pluggable when installed in the FVC18 chassis.

HDTVI Fiber Optic Video Applications

The HDTVITR4003 can be used for applications requiring multiple HDTVI camera signals to be transported over multimode fiber, including:

• CCTV security systems
• Video surveillance
• Commercial security installations
• Industrial video monitoring
• Transportation and infrastructure monitoring
• Remote camera installations
• Centralized video monitoring

Why Choose the VERSITRON HDTVITR4003?

The HDTVITR4003 combines four channels of digitally encoded HDTVI video with a complete multimode fiber installation package. With 1 km transmission capability, plug-and-play operation, LED status indicators, and the transmitter, receiver, power supplies, and 100 meters of fiber included, it provides a straightforward way to extend multiple HDTVI camera signals over fiber.

VERSITRON— Safeguarding Communications Since 1958

Since 1958, VERSITRON has developed fiber optic communication solutions for video, data, and networking applications. The VersiVision platform supports HD-CVI, AHD, and HD-TVI video transmission over fiber in multiple channel configurations.

Key Features of 4 Channels HDTVI Video Installation Kit

• 8-Bit Uncompressed Video Transmission
• Digitally Encoded
• NTSC, PAL, SECAM Video Compatible
• Simplex or Full Duplex Data
• WDM Technology for Higher Reliability
• Standalone or Rackmount into FVC18 Chassis (Hot Pluggable) Simultaneous Transmission of Video and Data VersiVision Chassis, HD-SDI, HDMI
