2-Channel HDTVI Video Installation Kit | Data, ST, SM

SKU:HDTVITR2A05

Free Ground Shipping For Online Store Orders
Free Unlimited Support
Lifetime Warranty

The VERSITRON VersiVision HDTVITR2A05 is a 2-channel HDTVI video installation kit designed to transmit two channels of digitally encoded HD-TVI video along with 1 channel of bi-directional data over singlemode fiber optic cable. The complete kit includes the transmitter, receiver, power supplies, and 100 meters of singlemode fiber, providing a convenient solution for extending HDTVI camera signals and return data over long distances.

The HDTVITR2A05 supports 8-bit digitally encoded video, is compatible with NTSC, PAL, and SECAM camera systems, and supports transmission distances up to 30 km over singlemode fiber. The integrated data interface supports RS-485 at rates up to 300 Kbps, with RS-232 or RS-422 available as options. The singlemode version uses 1310/1550nm optics and one optical fiber.

Product Highlights

2-channel HDTVI video transmission
8-bit digitally encoded video
1-channel bi-directional data
RS-485 data up to 300 Kbps
RS-232 or RS-422 available as options
Up to 30 km over singlemode fiber
1310/1550nm singlemode optical wavelength
ST optical connectors
Compatible with NTSC, PAL, and SECAM video systems
Supports 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F
Plug-and-play installation
No electrical or optical adjustments required
LED indicators for system status monitoring
Standalone or rack-mount installation
Compatible with the FVC18 18-slot chassis
Includes transmitter, receiver, power supplies, and 100 meters of singlemode fiber

View full details

2-Channel HDTVI Video and Data Over Singlemode Fiber

The HDTVITR2A05 provides a fiber optic transmission solution for two HDTVI video channels and one bi-directional data channel. It allows camera video and return data to be transported between the camera and monitoring locations over a singlemode optical fiber.

A typical installation places the transmitter at the camera end of the link and the receiver at the monitoring end, connected by a single fiber optic cable. The VersiVision design provides plug-and-play, adjustment-free installation, while LED indicators provide instant system operating status.

Digitally Encoded HD-TVI Video

The HDTVITR2A05 supports 8-bit digitally encoded HD-TVI video and is directly compatible with NTSC, PAL, and SECAM camera systems. The optimized optical modules support 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F video formats.

Bi-Directional RS-485 Data

In addition to two channels of HDTVI video, the HDTVITR2A05 provides one channel of bi-directional RS-485 data. The data interface supports rates up to 300 Kbps, with RS-232 or RS-422 available as options.

30 km Singlemode Fiber Transmission

The HDTVITR2A05 is the singlemode version of the 2-channel HDTVI video + bi-directional data configuration. The VersiVision model table identifies HDTVIT2A05 and HDTVIR2A05 as the 2-channel singlemode HDTVI transmitter and receiver, with 1310/1550nm optics and a maximum transmission distance of 30 km.

Plug-and-Play Installation

The VersiVision HD video platform is designed for adjustment-free installation and operation. No electrical or optical adjustments are required, and LED indicators provide instant monitoring of system operating status.

Technical Specifications

Specification	HDTVITR2A05
Video	2-Channel HD-TVI
Video Input	0.6–2.0 Vp-p (75 Ohms)
Bandwidth	5 Hz–8 MHz
Bit Resolution	8-Bit
Differential Gain	< ±1%
Differential Phase	< ±1°
Tilt	< 1%
S/N Ratio	60 dB (Weighted)
Fiber Type	Singlemode
Optical Wavelength	1310/1550nm
Maximum Distance	30 km
Number of Fibers	1
Optical Emitter	Laser Diode
Data Interface	RS-485
Data Rate	Up to 300 Kbps
Data Channels	1 Bi-Directional
Bit Error Rate	10⁻⁹
RS-232 / RS-422	Optional
Optical Connector	ST
Video Connector	BNC
Data Contact	Screw Terminal Strip
Power Supply	5VDC, 2A
Dimensions	5.98 × 5.12 × 1.13 in.
MTBF	>100,000 Hours
Operating Temperature	-35°C to +65°C
Storage Temperature	-45°C to +85°C
Relative Humidity	0% to 95% (Non-Condensing)
Installation	Standalone or Rack-Mount
Rack-Mount Chassis	FVC18 18-Slot Chassis

The technical specifications above are from the VersiVision HD-CVI/AHD/HD-TVI datasheet, while the 30 km singlemode distance and 1310/1550nm wavelength are specifically identified for the HDTVI video + bi-directional data singlemode models on the model table.

Complete HDTVI Video Installation Kit

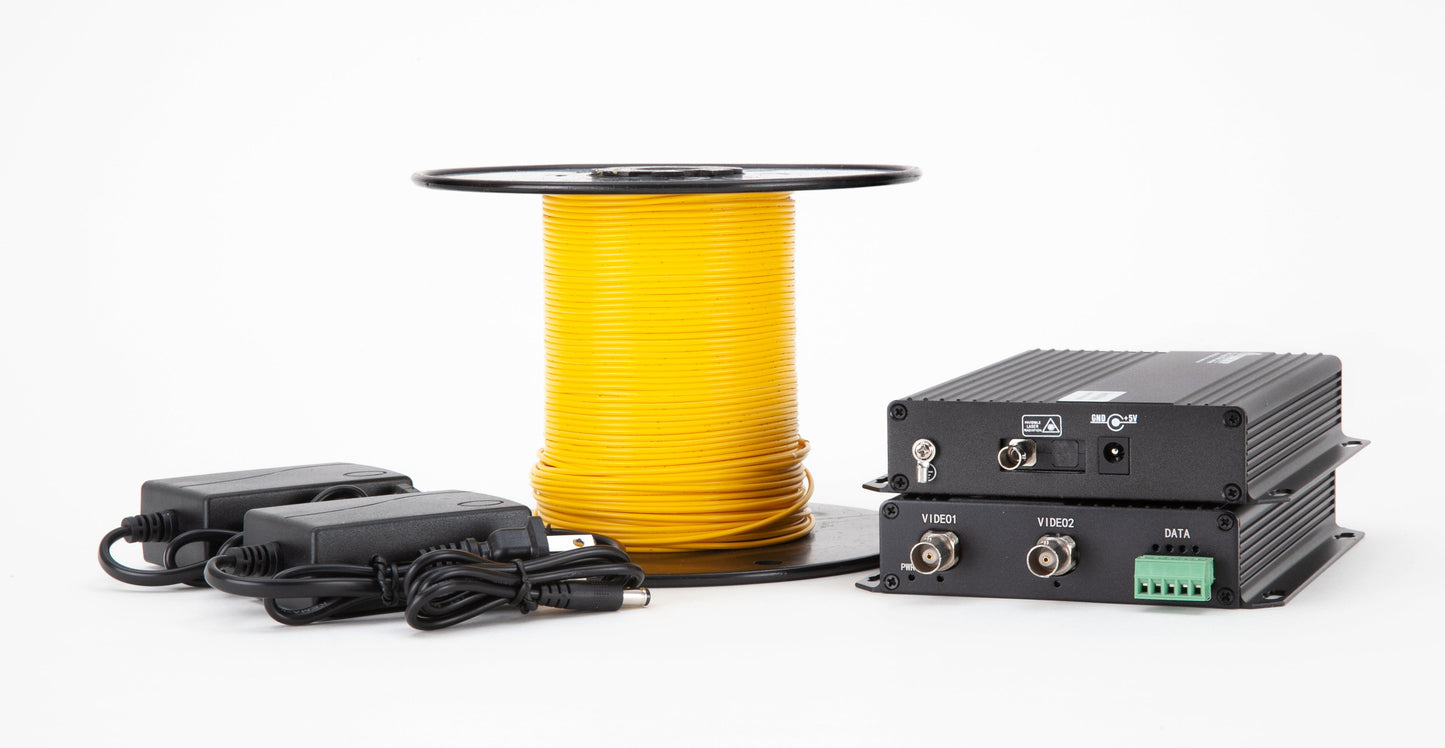

The HDTVITR2A05 installation kit includes:

2-channel HDTVI transmitter
2-channel HDTVI receiver
Power supplies
100 meters of singlemode fiber optic cable

This provides the primary components needed to establish a two-channel HDTVI video and data fiber optic link.

Standalone or Rack-Mount Installation

The HDTVITR2A05 can be deployed as a standalone installation or installed in the VERSITRON FVC18 18-slot rack-mount chassis for centralized video systems. VersiVision modules are hot-pluggable when installed in the FVC18 chassis.

HDTVI Fiber Optic Video and Data Applications

The HDTVITR2A05 is designed for applications requiring multiple HDTVI camera signals and bidirectional camera data to be transported over long-distance singlemode fiber, including:

Security and surveillance systems
CCTV monitoring
PTZ camera systems
Commercial security installations
Industrial video monitoring
Transportation and infrastructure monitoring
Remote camera installations
Centralized video monitoring

Why Choose the VERSITRON HDTVITR2A05?

The HDTVITR2A05 combines two channels of HDTVI video with a bi-directional RS-485 data channel in a complete singlemode fiber installation kit. With up to 30 km of fiber transmission, plug-and-play operation, and the transmitter, receiver, power supplies, and 100 meters of fiber included, it provides a straightforward solution for extending HDTVI video and camera data over long-distance fiber.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has developed fiber optic communication solutions for video, data, and networking applications. The VersiVision platform supports HD-CVI, AHD, and HD-TVI video transmission over fiber in multiple channel configurations.

Video Input

0.6 ~ 2.0 Volt pk-pk (75 Ohms)

Video Interface

HD-TVI

Input/Output Channels

Bandwidth

5 Hz – 8 MHz

Bit Resolution

8-Bit

Differential Gain

<±1%

Differential Phase

<±1°

Tilt

<1%

S/N Ratio

60dB (Weighted)

Wavelength

1310/1550nm

Number of Fibers

Optical Connector

Video Connector

BNC

Power Supply

5VDC, 2A

MTBF

>100,000 Hours

Operating Temperature

-35°C to +65°C

Storage Temperature

-45°C to +85°C

Relative Humidity

0% to 95% (non-condensing)

Data Interface

RS-485 (RS-422 or RS-232 Optional)

Data Rate

Up to 300 Kbps

Data Channels

1 Bi-Directional

Bit Error Rate

10⁻⁹

Data Contact

Screw Terminal Strip

All of the VersiVision HD installation kits are available for standalone applications and include: Transmitter, Receiver, Power Supplies & 100 meters of fiber. Please give us a call (1-800-537-2296) or open a chat with any questions. We look forward to discussing your application with you!

Key Features of 2 channel Single Mode bi directional transmitter and Receiver

8-Bit Uncompressed Video Transmission
Digitally Encoded
NTSC, PAL, SECAM Video Compatible
Simplex or Full Duplex Data
WDM Technology for Higher Reliability
Standalone or Rackmount into FVC18 Chassis (Hot Pluggable) Simultaneous Transmission of Video and Data VersiVision Chassis, HD-SDI, HDMI

HD Units Spec

HD Video Data Manual

Triad

2-Channel HDTVI Video Installation Kit | Data, ST, SM (HDTVITR2A05) is used across the following Applications:

Dual-Camera Security Entrances

Connects two HDTVI cameras for controlled facility entrances.
Uses one singlemode fiber for the optical connection.
Provides one bidirectional RS-485 data channel.
BNC connectors support the specified video interface.

Perimeter Security Monitoring

Supports two HDTVI camera feeds for perimeter observation.
1310/1550nm wavelengths support the specified optical link.
RS-485 data can be transmitted alongside the video connection.
Single-fiber connectivity simplifies the optical path.

Parking Access Surveillance

Provides two HDTVI channels for parking access areas.
Supports 5 Hz to 8 MHz video bandwidth.
Up to 300 Kbps data transmission supports compatible equipment.
ST optical connectors provide the fiber interface.

Warehouse Security Links

Connects two HDTVI cameras around warehouse access zones.
One fiber carries the specified optical connection.
RS-485 communication is available through the screw terminal strip.
Supports operation from -35°C to +65°C.

Industrial Area Surveillance

Links two HDTVI cameras for industrial-area monitoring.
8-bit video resolution supports the HDTVI signal path.
60dB weighted S/N supports the specified video performance.
Non-condensing humidity operation is rated up to 95%.

Manufacturing Floor Monitoring

Supports dual-camera HDTVI monitoring on manufacturing floors.
Singlemode fiber provides the specified optical transmission medium.
One bidirectional data channel supports compatible communication.
Data performance is specified at a 10⁻⁹ bit error rate.

Utility Facility Surveillance

Provides two HDTVI video channels for utility facility monitoring.
1310/1550nm wavelengths match the specified optical interface.
RS-485 is supported with optional RS-422 or RS-232.
5VDC, 2A power supply supports the installation.

Government Facility Monitoring

Connects two HDTVI cameras at government facilities.
ST optical connectivity supports the singlemode fiber link.
RS-485 data provides one bidirectional communication channel.
MTBF is specified at more than 100,000 hours.

Transportation Facility Security

Supports paired HDTVI cameras at transportation facilities.
One fiber provides the optical connection between endpoints.
Up to 300 Kbps supports the specified data rate.
Operating temperature supports -35°C to +65°C environments.

Critical Infrastructure Cameras

Provides dual HDTVI video connectivity for critical facilities.
Singlemode wavelengths of 1310/1550nm support the optical link.
Data communication uses an RS-485 interface.
Screw terminal contacts support data wiring connections.

Security Control Room Feeds

Brings two HDTVI camera feeds into a fiber-connected security system.
BNC interfaces support the specified video connections.
RS-485 provides a bidirectional data path.
5 Hz to 8 MHz bandwidth supports the HDTVI video signal.

Facility Gate Monitoring

Connects two HDTVI cameras positioned around facility gates.
Singlemode fiber supports the specified optical connection.
Optional RS-422 or RS-232 interfaces support compatible data equipment.
60dB weighted S/N supports the specified video signal quality.

Campus Security Camera Links

Supports two HDTVI cameras across selected campus security areas.
One fiber carries the optical connection.
RS-485 data is available at up to 300 Kbps.
ST connectors provide the optical interface.

Distribution Facility Monitoring

Links two HDTVI cameras for distribution facility areas.
8-bit video transmission supports the specified video interface.
Singlemode wavelengths support the optical connection.
Operating humidity is rated from 0% to 95% non-condensing.

Access Area Camera Systems

Provides two HDTVI channels for controlled access areas.
Uses BNC video connectors for compatible camera connections.
One bidirectional RS-485 channel supports data communication.
Data wiring uses the specified screw terminal strip.

Remote Facility Surveillance

Connects two HDTVI cameras through a singlemode fiber link.
1310/1550nm wavelengths match the specified optical operation.
Supports RS-485 communication alongside the video connection.
Storage temperature is rated from -45°C to +85°C.

Building Security Monitoring

Supports two HDTVI camera feeds for building security areas.
Provides 5 Hz to 8 MHz video bandwidth.
Differential gain is specified at less than ±1%.
Differential phase is specified at less than ±1°.

Outdoor Security Installations

Provides two HDTVI video channels for outdoor facility monitoring.
Operating temperature is rated from -35°C to +65°C.
Supports 0% to 95% non-condensing relative humidity.
One singlemode fiber supports the optical connection.

CCTV Fiber Upgrades

Supports migration of compatible two-camera HDTVI links to fiber.
Uses ST optical connectivity with one fiber.
Provides RS-485 with optional RS-422 or RS-232 data interfaces.
Maintains the specified HD-TVI video interface through BNC connections.

Dual-Camera Facility Expansion

Adds two HDTVI video channels to compatible surveillance installations.
Supports singlemode optical transmission at 1310/1550nm.
Provides one bidirectional data channel at up to 300 Kbps.
MTBF exceeds 100,000 hours under specified conditions.

Versitron is one of the leading (HDTVITR2A05) 2-Channel HDTVI Video Installation Kit | Data, ST, SM manufacturing companies in the USA (based in Delaware). If your industry or installation location isn't listed above, feel free to reach out to us!

Buy the Best 2-Channel HDTVI Video Installation Kit | Data, ST, SM with Data over Singlemode Fiber from VERSITRON at a Competitive Price!

```
