2-Channel HDTVI Video Installation Kit | Data, ST, MM

SKU:HDTVITR2A03

Free Ground Shipping For Online Store Orders
Free Unlimited Support
Lifetime Warranty

The VERSITRON VersiVision HDTVITR2A03 is a 2-channel HDTVI video installation kit designed to transmit two channels of digitally encoded HD-TVI video along with 1 channel of bi-directional data over multimode fiber optic cable. The complete kit includes the transmitter, receiver, power supplies, and 100 meters of multimode fiber, providing a convenient solution for extending HDTVI camera signals and return data over fiber.

The HDTVITR2A03 supports 8-bit digitally encoded video, is compatible with NTSC, PAL, and SECAM camera systems, and supports transmission distances up to 2 km over multimode fiber. The integrated data interface supports RS-485 at rates up to 300 Kbps, with RS-232 or RS-422 available as options.

Product Highlights

2-channel HDTVI video transmission
8-bit digitally encoded video
1-channel bi-directional data
RS-485 data up to 300 Kbps
RS-232 or RS-422 available as options
Multimode fiber transmission up to 2 km
850/1310nm multimode wavelength
ST optical connectors
Compatible with NTSC, PAL, and SECAM video systems
Supports 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F
Plug-and-play installation
No electrical or optical adjustments required
LED indicators for system status monitoring
Standalone or rack-mount installation
Compatible with the FVC18 18-slot chassis
Includes transmitter, receiver, power supplies, and 100 meters of multimode fiber

View full details

2-Channel HDTVI Video and Data Over Multimode Fiber

The HDTVITR2A03 provides a fiber optic transmission solution for two HDTVI video channels and one bi-directional data channel. It allows camera video and return data to be transported between the camera and monitoring locations over a single multimode optical fiber.

A typical installation places the transmitter at the camera end and the receiver at the monitoring end, connected by a single fiber optic cable. The VersiVision design provides plug-and-play, adjustment-free installation, while LED indicators provide instant system operating status.

Digitally Encoded HD-TVI Video

The HDTVITR2A03 supports 8-bit digitally encoded HD-TVI video and is directly compatible with NTSC, PAL, and SECAM camera systems. The optimized optical modules support 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F video formats.

Bi-Directional RS-485 Data

In addition to two channels of HDTVI video, the HDTVITR2A03 provides one channel of bi-directional RS-485 data. The data interface supports rates up to 300 Kbps, while RS-232 or RS-422 are available as options. This makes the kit suitable for camera systems requiring data communication between the camera location and monitoring equipment.

2 km Multimode Fiber Transmission

The HDTVITR2A03 uses multimode fiber with an 850/1310nm optical wavelength and supports transmission distances up to 2 km. The VersiVision model table identifies the HDTVIT2A03 transmitter and HDTVIR2A03 receiver as the 2-channel HDTVI + bi-directional data multimode versions.

Plug-and-Play Installation

The VersiVision HD video platform is designed for adjustment-free installation and operation. No electrical or optical adjustments are required, and LED indicators provide instant monitoring of system operating status.

Technical Specifications

Specification	HDTVITR2A03
Video	2-Channel HD-TVI
Video Input	0.6–2.0 Vp-p (75 Ohms)
Bandwidth	5 Hz–8 MHz
Bit Resolution	8-Bit
Differential Gain	< ±1%
Differential Phase	< ±1°
Tilt	< 1%
S/N Ratio	60 dB (Weighted)
Fiber Type	Multimode
Optical Wavelength	850/1310nm
Maximum Distance	2 km
Number of Fibers	1
Optical Emitter	Laser Diode
Data Interface	RS-485
Data Rate	Up to 300 Kbps
Data Channels	1 Bi-Directional
Bit Error Rate	10⁻⁹
RS-232 / RS-422	Optional
Optical Connector	ST
Video Connector	BNC
Data Contact	Screw Terminal Strip
Power Supply	5VDC, 2A
Dimensions	5.98 × 5.12 × 1.13 in.
MTBF	>100,000 Hours
Operating Temperature	-35°C to +65°C
Storage Temperature	-45°C to +85°C
Relative Humidity	0% to 95% (Non-Condensing)
Installation	Standalone or Rack-Mount
Rack-Mount Chassis	FVC18 18-Slot Chassis

The general technical specifications are from the VersiVision HD-CVI/AHD/HD-TVI datasheet. The model table on page 5 identifies HDTVIT2A03/HDTVIR2A03 as the 2-channel HDTVI video + bi-directional data multimode models, using ST connectors, 850/1310nm optics, and a maximum distance of 2 km.

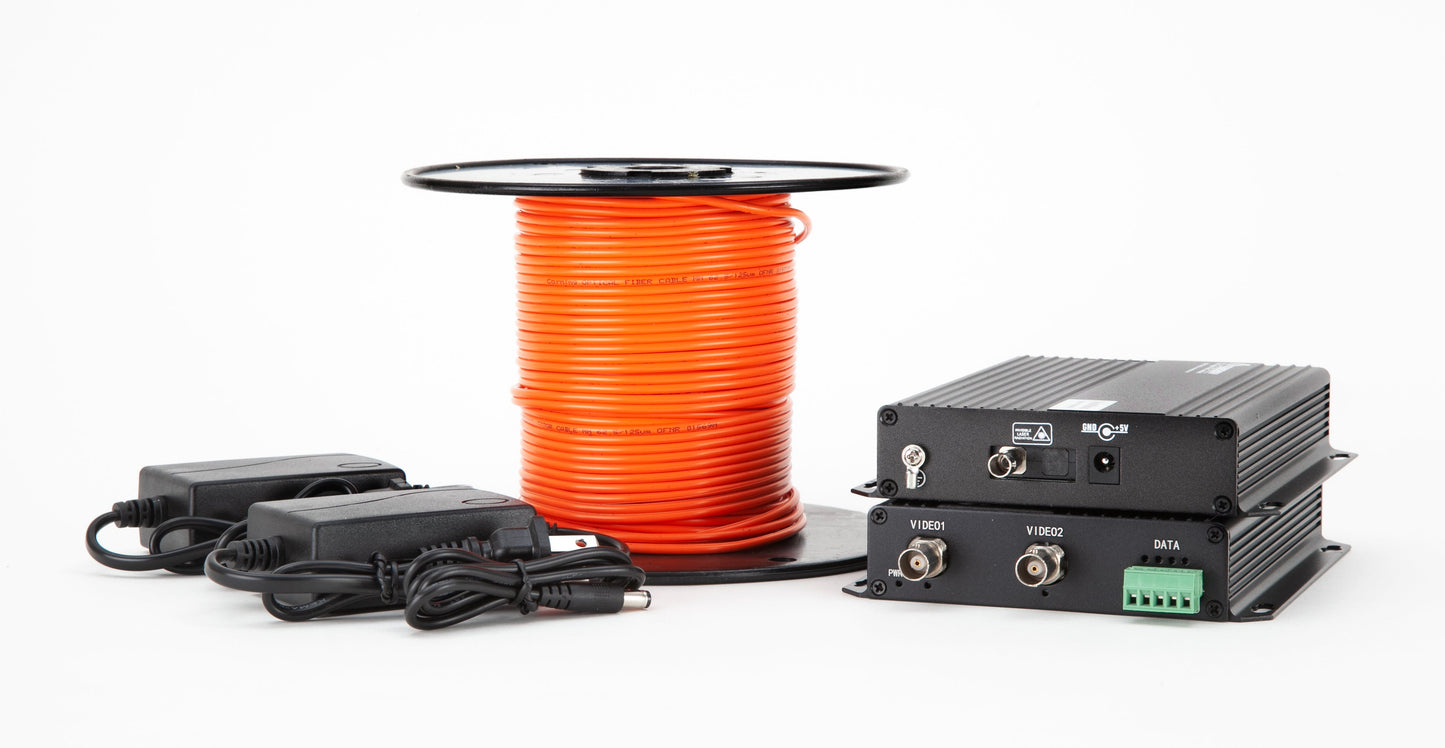

Complete HDTVI Video Installation Kit

The HDTVITR2A03 installation kit includes:

2-channel HDTVI transmitter
2-channel HDTVI receiver
Power supplies
100 meters of multimode fiber optic cable

This provides the primary components needed to establish a two-channel HDTVI video and data fiber optic link.

Standalone or Rack-Mount Installation

The HDTVITR2A03 can be deployed as a standalone installation or installed in the VERSITRON FVC18 18-slot rack-mount chassis for centralized video systems. VersiVision modules are hot-pluggable when installed in the FVC18 chassis.

HDTVI Fiber Optic Video and Data Applications

The HDTVITR2A03 is designed for applications requiring multiple HDTVI camera signals and bidirectional camera data to be transported over multimode fiber, including:

Security and surveillance systems
CCTV monitoring
PTZ camera systems
Commercial security installations
Industrial video monitoring
Transportation and infrastructure monitoring
Remote camera installations
Centralized video monitoring

Why Choose the VERSITRON HDTVITR2A03?

The HDTVITR2A03 combines two channels of HDTVI video with a bi-directional RS-485 data channel in a complete multimode fiber installation kit. With up to 2 km of fiber transmission, plug-and-play operation, and the transmitter, receiver, power supplies, and 100 meters of fiber included, it provides a straightforward solution for extending HDTVI video and camera data over fiber.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has developed fiber optic communication solutions for video, data, and networking applications. The VersiVision platform supports HD-CVI, AHD, and HD-TVI video transmission over fiber in multiple channel configurations.

Video Input

0.6 ~ 2.0 Volt pk-pk (75 Ohms)

Video Interface

HD-TVI

Input/Output Channels

Bandwidth

5 Hz – 8 MHz

Bit Resolution

8-Bit

Differential Gain

<±1%

Differential Phase

<±1°

Tilt

<1%

S/N Ratio

60dB (Weighted)

Wavelength

850/1310nm

Number of Fibers

Optical Connector

Video Connector

BNC

Power Supply

5VDC, 2A

MTBF

>100,000 Hours

Operating Temperature

-35°C to +65°C

Storage Temperature

-45°C to +85°C

Relative Humidity

0% to 95% (non-condensing)

Data Interface

RS-485 (RS-422 or RS-232 Optional)

Data Rate

Up to 300 Kbps

Data Channels

1 Bi-Directional

Bit Error Rate

10⁻⁹

Data Contact

Screw Terminal Strip

All of the VersiVision HD installation kits are available for standalone applications and include: Transmitter, Receiver, Power Supplies & 100 meters of fiber. Please give us a call (1-800-537-2296) or open a chat with any questions. We look forward to discussing your application with you!

Key Features of 2 Channels HDTVI Video Installation Kit

8-Bit Uncompressed Video Transmission
Digitally Encoded
NTSC, PAL, SECAM Video Compatible
Simplex or Full Duplex Data
WDM Technology for Higher Reliability
Standalone or Rackmount into FVC18 Chassis (Hot Pluggable) Simultaneous Transmission of Video and Data VersiVision Chassis, HD-SDI, HDMI

HD Units Spec

HD Video Data Manual

Triad

2-Channel HDTVI Video Installation Kit | Data, ST, MM (HDTVITR2A03) is used across the following Applications:

Dual-Camera Entry Monitoring

Connects two HDTVI cameras for entrance-area surveillance.
Supports video transmission through a single fiber.
RS-485 data supports bidirectional communication.
BNC interfaces simplify camera-side video connections.

Security Gate Surveillance

Combines two HDTVI camera feeds at security gates.
Uses ST optical connectivity for fiber integration.
RS-485 provides a bidirectional data path.
Suitable for installations operating from -35°C to +65°C.

Parking Facility Monitoring

Supports two-camera HDTVI monitoring for parking areas.
Transfers both video channels over one optical fiber.
Up to 300 Kbps supports connected data communication.
60dB weighted S/N supports clear video transmission.

Warehouse Access Surveillance

Links two HDTVI cameras at warehouse access points.
Single-fiber architecture helps consolidate the optical link.
RS-485 data is available through the screw terminal strip.
Designed for 0% to 95% non-condensing relative humidity.

Industrial Facility Monitoring

Connects paired HDTVI cameras for industrial-area monitoring.
Supports 5 Hz to 8 MHz video bandwidth.
8-bit video resolution supports the HDTVI signal path.
Operating temperature ranges from -35°C to +65°C.

Factory Floor Camera Links

Provides two HDTVI video channels for factory floor cameras.
Uses BNC video connectors for camera-side connections.
One bidirectional data channel supports connected equipment communication.
10⁻⁹ bit error rate supports the specified data link performance.

Campus Building Surveillance

Connects two HDTVI cameras within campus facilities.
850/1310nm optical wavelengths support the specified fiber interface.
ST connectors provide the optical connection.
Supports RS-485 with optional RS-422 or RS-232 interfaces.

Loading Area Monitoring

Supports paired HDTVI cameras around loading and receiving areas.
Two video channels are carried through one fiber.
5 Hz to 8 MHz bandwidth supports the HDTVI video signal.
5VDC, 2A power supply supports the installation.

Utility Facility Camera Systems

Provides two-channel HDTVI connectivity for utility facilities.
RS-485 enables bidirectional data communication.
Screw terminal contacts simplify data interface wiring.
Supports operation in temperatures from -35°C to +65°C.

Transportation Facility Monitoring

Connects two HDTVI cameras at transportation facilities.
Single-fiber transmission reduces the number of optical fibers required.
ST optical connectors support the specified fiber connection.
MTBF exceeds 100,000 hours under the specified conditions.

Government Facility Security

Supports dual HDTVI camera connections at government facilities.
Bidirectional RS-485 data provides an additional communication path.
Optional RS-422 or RS-232 supports compatible interfaces.
60dB weighted S/N supports the specified video performance.

Critical Infrastructure Monitoring

Links two HDTVI cameras for critical facility monitoring.
One fiber carries the optical connection between endpoints.
Data transmission supports rates up to 300 Kbps.
Designed for non-condensing humidity up to 95%.

Security Control Room Links

Aggregates two HDTVI camera feeds into a fiber-connected system.
BNC connectors support the video interface.
RS-485 provides one bidirectional data channel.
HDTVI video is supported across the specified 5 Hz to 8 MHz bandwidth.

Perimeter Camera Monitoring

Supports two HDTVI cameras positioned around facility perimeters.
850/1310nm wavelengths are used for the specified optical interface.
Single-fiber connectivity simplifies the optical transmission path.
Operating temperatures support installations from -35°C to +65°C.

Multi-Entrance Security

Provides two HDTVI channels for separate entrance camera views.
Supports HD-TVI video through BNC connections.
RS-485 data is available through a screw terminal strip.
Optional RS-422 or RS-232 interfaces support compatible equipment.

Retail Property Surveillance

Connects two HDTVI cameras for selected retail security areas.
8-bit video transmission supports the specified HDTVI interface.
Single-fiber architecture provides the optical connection.
60dB weighted S/N supports the specified signal quality.

Manufacturing Site Security

Provides dual HDTVI video channels for manufacturing areas.
Supports RS-485 communication at up to 300 Kbps.
10⁻⁹ BER specifies the data transmission performance.
MTBF is rated at more than 100,000 hours.

Facility Entrance and Exit Monitoring

Supports two HDTVI cameras covering entrance and exit areas.
One bidirectional data channel provides compatible control communication.
ST optical connectors support the fiber connection.
5VDC, 2A power is specified for the installation.

Remote Facility Camera Links

Connects two HDTVI video sources through a fiber-based link.
850/1310nm wavelengths match the specified optical interface.
Supports RS-485 data communication alongside video.
Storage temperature is rated from -45°C to +85°C.

CCTV System Expansion

Adds two HDTVI video channels to compatible surveillance installations.
Uses one fiber for the optical connection.
Supports HD-TVI video with 8-bit resolution.
Provides RS-485 with optional RS-422 or RS-232 data connectivity.

Versitron is one of the leading (HDTVITR2A03) 2-Channel HDTVI Video Installation Kit | Data, ST, MM manufacturing companies in the USA (based in Delaware). If your industry or installation location isn't listed above, feel free to reach out to us!
