2-Channel HDTVI Video Over Singlemode Fiber

The HDTVITR2005 provides a fiber optic transmission solution for two HDTVI video channels, allowing camera signals to be extended over singlemode fiber between a camera location and a monitoring or control location.

A typical installation places the transmitter at the camera end and the receiver at the monitoring end, connected by a single fiber optic cable. The VersiVision design provides plug-and-play installation and adjustment-free operation, with LED indicators for monitoring system status.

Digitally Encoded HD-TVI Video

The HDTVITR2005 supports 8-bit digitally encoded HD-TVI video and is directly compatible with NTSC, PAL, and SECAM camera systems. The optimized optical modules support 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F formats.

30 km Singlemode Fiber Transmission

The HDTVITR2005 uses singlemode fiber with a 1310nm optical wavelength and supports transmission distances up to 30 km. The VersiVision model table specifically identifies the HDTVIT2005 transmitter and HDTVIR2005 receiver as the 2-channel HDTVI singlemode versions.

Plug-and-Play Installation

The VersiVision HD video platform is designed for adjustment-free installation and operation. No electrical or optical adjustments are required, while integrated LED indicators provide instant system status monitoring.

Technical Specifications

The general video and environmental specifications come from the VersiVision HD-CVI/AHD/HD-TVI datasheet, while the model table on page 4 identifies the HDTVIT2005/HDTVIR2005 pair as 2-channel, ST, singlemode, 1310nm, with a 30 km maximum distance.

Complete HDTVI Video Installation Kit

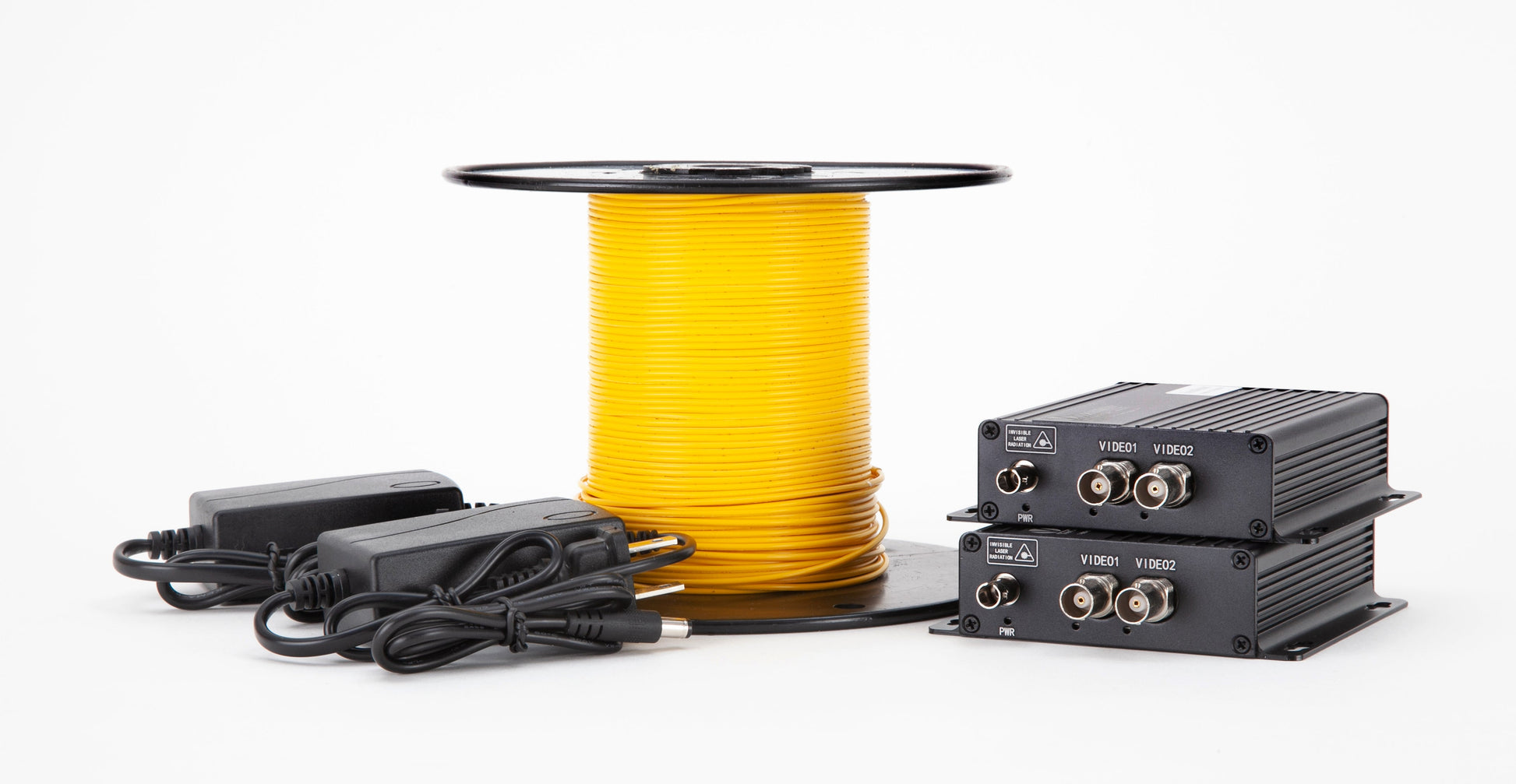

The HDTVITR2005 kit includes:

• 2-channel HDTVI transmitter
• 2-channel HDTVI receiver
• Power supplies
• 100 meters of singlemode fiber optic cable

This provides the primary components needed to establish a two-channel HDTVI fiber optic video link.

Standalone or Rack-Mount Installation

The HDTVITR2005 can be deployed as a standalone installation or used with the VERSITRON FVC18 18-slot rack-mount chassis for centralized video installations. The VersiVision HD modules are designed to be hot-pluggable when installed in the FVC18 chassis.

HDTVI Fiber Optic Video Applications

The HDTVITR2005 is suited for applications requiring multiple HDTVI camera signals to be transported over long-distance singlemode fiber, including:

• Security and surveillance systems
• CCTV monitoring
• Commercial security installations
• Industrial video monitoring
• Transportation and infrastructure monitoring
• Remote camera installations
• Centralized video monitoring

Why Choose the VERSITRON HDTVITR2005?

The HDTVITR2005 combines two channels of HDTVI video transmission with a complete singlemode fiber installation kit. With transmission distances up to 30 km, plug-and-play operation, and the transmitter, receiver, power supplies, and 100 meters of fiber included, it provides a straightforward way to extend HDTVI camera signals over long-distance fiber optic links.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has developed fiber optic communication solutions for video, data, and networking applications. The VersiVision platform supports HD-CVI, AHD, and HD-TVI video transmission over fiber in multiple channel configurations.

All of the VersiVision HD installation kits are available for standalone applications and include: Transmitter, Receiver, Power Supplies & 100 meters of fiber. Please give us a call (1-800-537-2296) or open a chat with any questions. We look forward to discussing your application with you!

Key Features of 2 Channels HDTVI Video Installation Kit

• 8-Bit Uncompressed Video Transmission
• Digitally Encoded
• NTSC, PAL, SECAM Video Compatible
• Simplex or Full Duplex Data
• WDM Technology for Higher Reliability
• Standalone or Rackmount into FVC18 Chassis (Hot Pluggable) Simultaneous Transmission of Video and Data VersiVision Chassis, HD-SDI, HDMI
