2-Channel HDTVI Video Installation Kit | ST, MM
2-Channel HDTVI Video Installation Kit | ST, MM
SKU:HDTVITR2003
-
Free Ground Shipping For Online Store Orders
-
Free Unlimited Support
-
Lifetime Warranty
Couldn't load pickup availability
The HDTVITR2003 supports 8-bit digitally encoded video and is compatible with NTSC, PAL, and SECAM camera systems. The multimode version provides transmission distances up to 2 km over a single optical fiber. The VersiVision platform supports 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F video formats.
Product Highlights
- 2-channel HDTVI video transmission
- 8-bit digitally encoded video
- Multimode fiber transmission up to 2 km
- 1310nm optical wavelength
- ST optical connectors
- Compatible with NTSC, PAL, and SECAM video systems
- Supports 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F
- Plug-and-play installation
- No electrical or optical adjustments required
- LED indicators for system status monitoring
- Standalone or rack-mount installation
- Compatible with the FVC18 18-slot chassis
- Includes transmitter, receiver, power supplies, and 100 meters of multimode fiber
2-Channel HDTVI Video Over Multimode Fiber
The HDTVITR2003 provides a fiber optic transmission solution for two HDTVI video channels, allowing camera signals to be extended over multimode fiber between a camera location and a monitoring or control location.
A typical installation places the transmitter at the camera end and the receiver at the monitoring end, connected by a single fiber optic cable. The VersiVision design provides plug-and-play installation and adjustment-free operation, with LED indicators for monitoring system status.
Digitally Encoded HD-TVI Video
The HDTVITR2003 supports 8-bit digitally encoded HD-TVI video and is directly compatible with NTSC, PAL, and SECAM camera systems. The optimized optical modules support 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F formats.
2 km Multimode Fiber Transmission
The HDTVITR2003 uses multimode fiber with a 1310nm optical wavelength and supports transmission distances up to 2 km. The VersiVision model table identifies the HDTVIT2003 transmitter and HDTVIR2003 receiver as the 2-channel HDTVI multimode versions.
Plug-and-Play Installation
The VersiVision HD video platform is designed for adjustment-free installation and operation. No electrical or optical adjustments are required, while integrated LED indicators provide instant system status monitoring.
Technical Specifications
| Specification | HDTVITR2003 |
|---|---|
| Video | 2-Channel HD-TVI |
| Video Input | 0.6–2.0 Vp-p (75 Ohms) |
| Bandwidth | 5 Hz–8 MHz |
| Bit Resolution | 8-Bit |
| Differential Gain | < ±1% |
| Differential Phase | < ±1° |
| Tilt | < 1% |
| S/N Ratio | 60 dB (Weighted) |
| Fiber Type | Multimode |
| Optical Wavelength | 1310nm |
| Maximum Distance | 2 km |
| Number of Fibers | 1 |
| Optical Emitter | Laser Diode |
| Optical Connector | ST |
| Video Connector | BNC |
| Power Supply | 5VDC, 2A |
| Dimensions | 4.33 × 4.09 × 1.10 in. |
| MTBF | >100,000 Hours |
| Operating Temperature | -35°C to +65°C |
| Storage Temperature | -45°C to +85°C |
| Relative Humidity | 0% to 95% (Non-Condensing) |
| Installation | Standalone or Rack-Mount |
| Rack-Mount Chassis | FVC18 18-Slot Chassis |
The core technical specifications are taken from the VersiVision HD-CVI/AHD/HD-TVI datasheet. The datasheet's model table specifically lists the 2-channel HDTVI multimode transmitter and receiver at 2 km and 1310nm.

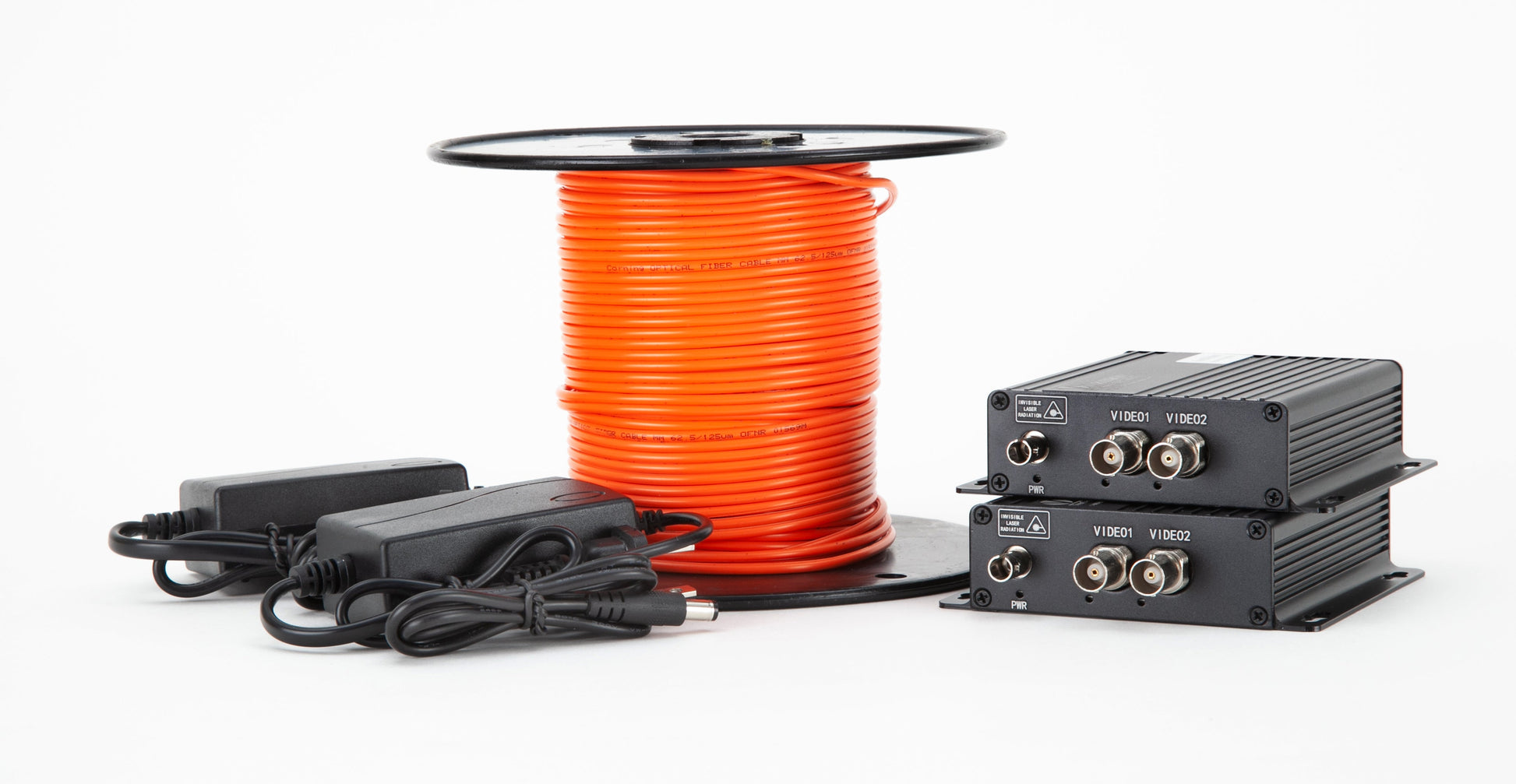

Complete HDTVI Video Installation Kit
The HDTVITR2003 kit includes:
- 2-channel HDTVI transmitter
- 2-channel HDTVI receiver
- Power supplies
- 100 meters of multimode fiber optic cable
This provides the primary components required to establish a two-channel HDTVI fiber optic video link.
Standalone or Rack-Mount Installation
The HDTVITR2003 can be deployed as a standalone installation or used with the VERSITRON FVC18 18-slot rack-mount chassis for centralized installations. The VersiVision HD modules are designed to be hot-pluggable when installed in the FVC18 chassis.
HDTVI Fiber Optic Video Applications
The HDTVITR2003 is suited for applications requiring multiple HDTVI camera signals to be transported over multimode fiber, including:
- Security and surveillance systems
- CCTV monitoring
- Commercial security installations
- Industrial video monitoring
- Transportation and infrastructure monitoring
- Remote camera installations
- Centralized video monitoring
Why Choose the VERSITRON HDTVITR2003?
The HDTVITR2003 combines two channels of HDTVI video transmission with the convenience of a complete fiber optic installation kit. With support for up to 2 km over multimode fiber, plug-and-play operation, and the transmitter, receiver, power supplies, and 100 meters of fiber included, it provides a straightforward way to extend HDTVI camera signals over fiber.
VERSITRON — Safeguarding Communications Since 1958
Since 1958, VERSITRON has developed fiber optic communication solutions for video, data, and networking applications. The VersiVision platform supports HD-CVI, AHD, and HD-TVI video transmission over fiber in a range of channel configurations.
Video Input
0.6 ~ 2.0 Volt pk-pk (75 Ohms)
Video Interface
HD-TVI
Input/Output Channels
2
Bandwidth
5 Hz – 8 MHz
Bit Resolution
8-Bit
Differential Gain
<±1%
Differential Phase
<±1°
Tilt
<1%
S/N Ratio
60dB (Weighted)
Wavelength
1310nm
Number of Fibers
1
Optical Connector
ST
Video Connector
BNC
Power Supply
5VDC, 2A
MTBF
>100,000 Hours
Operating Temperature
-35°C to +65°C
Storage Temperature
-45°C to +85°C
Relative Humidity
0% to 95% (non-condensing)
All of the VersiVision HD installation kits are available for standalone applications and include: Transmitter, Receiver, Power Supplies & 100 meters of fiber. Please give us a call (1-800-537-2296) or open a chat with any questions. We look forward to discussing your application with you!
Key Features of 2 Channels HDTVI Video Installation Kit
- 8-Bit Uncompressed Video Transmission
- Digitally Encoded
- NTSC, PAL, SECAM Video Compatible
- Simplex or Full Duplex Data
- WDM Technology for Higher Reliability
- Standalone or Rackmount into FVC18 Chassis (Hot Pluggable) Simultaneous Transmission of Video and Data VersiVision Chassis, HD-SDI, HDMI
2-Channel HDTVI Video Installation Kit | ST, MM (HDTVITR2003) is used across the following Applications:
Dual-Camera Entrance Surveillance
- Connects two HDTVI cameras for monitoring building entrances.
- Uses one fiber for the optical video connection.
- BNC interfaces support the specified HDTVI video connections.
- 60dB weighted S/N supports the specified video signal quality.
Parking Area Monitoring
- Supports two HDTVI cameras for parking-area observation.
- 1310nm wavelength supports the specified optical transmission.
- ST optical connectors provide the fiber interface.
- 5 Hz to 8 MHz bandwidth supports the HDTVI video signal.
Warehouse Camera Links
- Provides two HDTVI channels for warehouse monitoring areas.
- Single-fiber connectivity supports the optical video path.
- 8-bit video resolution supports the specified signal format.
- Operating temperature is rated from -35°C to +65°C.
Factory Floor Surveillance
- Connects two HDTVI cameras for factory-floor observation.
- Supports video input from 0.6 to 2.0 Volt pk-pk at 75 Ohms.
- Differential gain is specified at less than ±1%.
- Differential phase is specified at less than ±1°.
Building Security Monitoring
- Supports two HDTVI video feeds for building security.
- One fiber carries both video channels through the optical link.
- ST connectors provide the specified optical interface.
- 5VDC, 2A power is specified for the installation.
Campus Facility Surveillance
- Links two HDTVI cameras for selected campus facilities.
- 1310nm wavelength supports the specified fiber connection.
- BNC video connectors support compatible HDTVI equipment.
- MTBF is rated at more than 100,000 hours.
Security Gate Monitoring
- Supports two camera views at facility security gates.
- Uses a single optical fiber for video transmission.
- 8-bit resolution supports the specified HDTVI video path.
- Relative humidity is rated from 0% to 95% non-condensing.
Loading Dock Surveillance
- Provides dual HDTVI camera connectivity around loading areas.
- Supports 5 Hz to 8 MHz video bandwidth.
- Video tilt is specified at less than 1%.
- Storage temperature is rated from -45°C to +85°C.
Retail Property Security
- Connects two HDTVI cameras for selected retail areas.
- Single-fiber optical connectivity supports the video link.
- 60dB weighted S/N supports the specified signal performance.
- BNC connectors support the HDTVI video interface.
Utility Facility Monitoring
- Provides two HDTVI channels for utility-site video monitoring.
- 1310nm optical transmission supports the specified wavelength.
- ST optical connectivity supports the fiber connection.
- Operating temperatures range from -35°C to +65°C.
Transportation Facility Cameras
- Supports two HDTVI camera feeds at transportation facilities.
- One fiber provides the specified optical video connection.
- Differential gain remains below ±1% under the stated specification.
- Differential phase remains below ±1° under the stated specification.
Government Building Surveillance
- Links two HDTVI cameras for government facility monitoring.
- Supports 0.6 to 2.0 Volt pk-pk video input at 75 Ohms.
- 1310nm wavelength supports the specified optical connection.
- MTBF exceeds 100,000 hours.
Critical Facility Video Links
- Provides dual HDTVI video channels for critical facilities.
- One optical fiber carries the video connection.
- 5 Hz to 8 MHz bandwidth supports the specified video signal.
- Non-condensing humidity operation is rated up to 95%.
Perimeter Camera Systems
- Connects two HDTVI cameras positioned around facility perimeters.
- ST optical connectors support the specified fiber interface.
- 1310nm wavelength supports the optical transmission path.
- Operating temperature supports installations from -35°C to +65°C.
Manufacturing Facility Security
- Supports two HDTVI cameras for manufacturing-site monitoring.
- 8-bit video resolution supports the specified HD-TVI interface.
- Video tilt is specified at less than 1%.
- 60dB weighted S/N supports the specified video performance.
Hospitality Facility Monitoring
- Provides two HDTVI camera channels for hospitality facilities.
- BNC video connectors support compatible camera equipment.
- One fiber provides the optical connection.
- 5VDC, 2A power supports the specified installation requirements.
Remote Building Surveillance
- Links two HDTVI cameras at remote building locations.
- 1310nm wavelength supports the specified optical video path.
- Single-fiber connectivity supports both video channels.
- Storage temperatures are rated from -45°C to +85°C.
Facility Access Monitoring
- Supports two HDTVI cameras for facility access areas.
- Video input supports 0.6 to 2.0 Volt pk-pk at 75 Ohms.
- 5 Hz to 8 MHz bandwidth supports the video transmission.
- ST optical connectors support the fiber-side connection.
CCTV Fiber Retrofit
- Supports compatible two-camera HDTVI systems during fiber upgrades.
- Uses one fiber for the optical video connection.
- 1310nm wavelength matches the specified optical operation.
- BNC connectors maintain the specified video interface.
Dual-Camera Surveillance Expansion
- Adds two HDTVI video channels to compatible surveillance systems.
- Supports the specified 8-bit HDTVI video transmission.
- MTBF is rated at more than 100,000 hours.
- Designed for 0% to 95% non-condensing relative humidity.
Versitron is one of the leading (HDTVITR2003) 2-Channel HDTVI Video Installation Kit | ST, MM manufacturing companies in the USA (based in Delaware). If your industry or installation location isn't listed above, feel free to reach out to us!
