1-Channel HDTVI Video Installation Kit | ST, MM
1-Channel HDTVI Video Installation Kit | ST, MM
SKU:HDTVITR1003
-
Free Ground Shipping For Online Store Orders
-
Free Unlimited Support
-
Lifetime Warranty
Couldn't load pickup availability
The HDTVITR1003 supports 8-bit digitally encoded video and is compatible with NTSC, PAL, and SECAM camera systems. Its plug-and-play design requires no electrical or optical adjustments, while LED indicators provide convenient system status monitoring.
Product Highlights
- 1-channel HDTVI video transmission
- 8-bit digitally encoded video
- Multimode fiber optic transmission
- Up to 2 km transmission distance
- ST optical connectors
- 1310nm optical wavelength
- Compatible with NTSC, PAL, and SECAM video systems
- Supports 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F
- Plug-and-play installation
- No electrical or optical adjustments required
- LED indicators for system monitoring
- Standalone or rack-mount installation
- Compatible with the FVC18 18-slot chassis
- Includes transmitter, receiver, power supplies, and 100 meters of multimode fiber
1-Channel HDTVI Video Over Multimode Fiber
The HDTVITR1003 provides a complete fiber optic solution for extending one channel of HDTVI video from a camera location to a monitoring or recording location. The transmitter connects to the HDTVI camera, while the receiver is installed at the monitoring end of the fiber link.
VERSITRON's VersiVision HD platform transmits digitally encoded HD video over a single optical fiber and is designed for adjustment-free installation and operation.
Digitally Encoded HD-TVI Video
The VersiVision HD family supports 8-bit digitally encoded video and HD-TVI video systems. The equipment is directly compatible with NTSC, PAL, and SECAM camera systems.
The optimized optical modules support 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F video formats.
2 km Multimode Fiber Transmission
The HDTVITR1003 uses multimode fiber with a 1310nm optical wavelength and supports a maximum transmission distance of 2 km. The product model table in the datasheet identifies the HDTVIT1003 transmitter and HDTVIR1003 receiver as the 1-channel HDTVI multimode versions.
Plug-and-Play Installation
The VersiVision HD platform is designed for straightforward installation without electrical or optical adjustments. LED indicators provide immediate visibility into system operating status.
A typical installation places the transmitter at the camera end and the receiver at the monitoring end, connected by a single fiber optic cable.
Technical Specifications
| Specification | HDTVITR1003 |
|---|---|
| Video | 1-Channel HD-TVI |
| Video Input | 0.6–2.0 Vp-p (75 Ohms) |
| Bandwidth | 5 Hz–8 MHz |
| Bit Resolution | 8-Bit |
| Differential Gain | < ±1% |
| Differential Phase | < ±1° |
| Tilt | < 1% |
| S/N Ratio | 60 dB (Weighted) |
| Fiber Type | Multimode |
| Optical Wavelength | 1310nm |
| Maximum Distance | 2 km |
| Number of Fibers | 1 |
| Optical Connector | ST |
| Video Connector | BNC |
| Optical Emitter | Laser Diode |
| Power Supply | 5VDC, 2A |
| MTBF | >100,000 Hours |
| Operating Temperature | -35°C to +65°C |
| Storage Temperature | -45°C to +85°C |
| Relative Humidity | 0% to 95% (Non-Condensing) |
| Installation | Standalone or Rack-Mount |
| Rack-Mount Chassis | FVC18 18-Slot Chassis |
The technical specifications above are based on the VersiVision HD datasheet; the 1-channel dimensions are 4.33 × 4.09 × 1.10 inches.

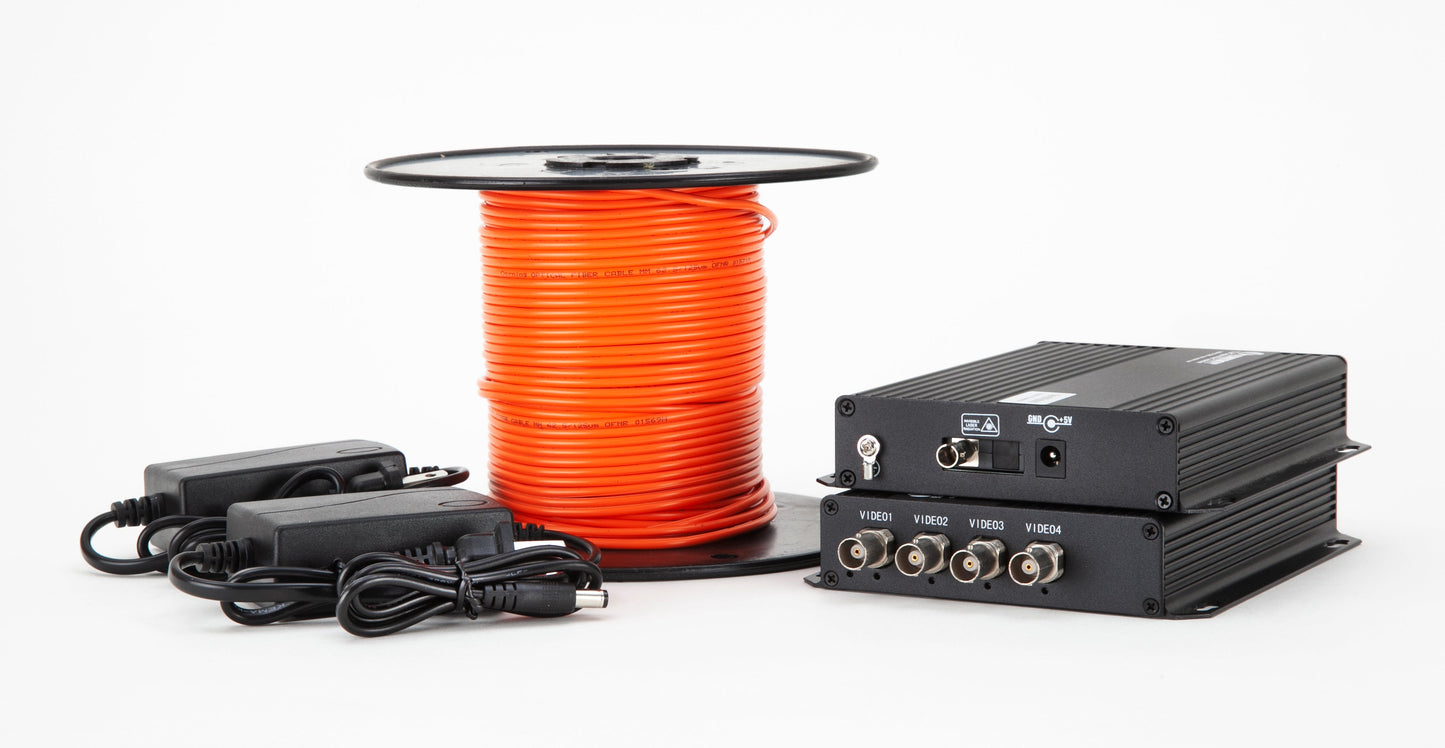

Complete HDTVI Installation Kit
The HDTVITR1003 installation kit includes:
- HDTVI transmitter
- HDTVI receiver
- Power supplies
- 100 meters of multimode fiber optic cable
This provides the core components needed to establish a 1-channel HDTVI fiber optic link.
Standalone or Rack-Mount Installation
The HDTVITR1003 can be deployed as a standalone installation or incorporated into the VERSITRON FVC18 18-slot rack-mount chassis. The VersiVision HD modules are also identified as hot-pluggable when installed in the FVC18 chassis.
HDTVI Fiber Optic Video Applications
The HDTVITR1003 is suited for applications requiring reliable extension of HDTVI camera signals over multimode fiber, including:
- Security and surveillance systems
- CCTV monitoring
- Commercial security installations
- Industrial video monitoring
- Transportation and infrastructure monitoring
- Remote camera installations
- Centralized video monitoring
Why Choose the VERSITRON HDTVITR1003?
The HDTVITR1003 combines 1-channel HD-TVI video transmission with a complete multimode fiber installation kit. With the transmitter, receiver, power supplies, and 100 meters of fiber included, it provides a straightforward way to extend HDTVI camera connections beyond the normal limitations of copper cabling.
VERSITRON — Safeguarding Communications Since 1958
Since 1958, VERSITRON has developed fiber optic communication solutions for video, data, and networking applications. The VersiVision product family supports HD-CVI, AHD, and HD-TVI video transmission over fiber.
Technical Specifications:
Video Input
0.6 ~ 2.0 Volt pk-pk (75 Ohms)
Video Interface
HD-TVI
Input/Output Channels
1
Bandwidth
5 Hz ~ 8 MHz
Bit Resolution
8-Bit
Differential Gain
<±1%
Differential Phase
<±1°
Tilt
< 1%
S/N Ratio
60dB (Weighted)
Wavelength
1310nm
Number of Fibers
1
Optical Connector
ST
Video Connector
BNC
Power Supply
5VDC, 2A
MTBF
>100,000 Hours
Operating Temperature
-35°C to +65°C
Storage Temperature
-45°C to +85°C
Relative Humidity
0% to 95% (non-condensing)
All of the VersiVision HD installation kits are available for standalone applications and include: Transmitter, Receiver, Power Supplies & 100 meters of fiber. Please give us a call (1-800-537-2296) or open a chat with any questions. We look forward to discussing your application with you!
Key Features of 1 Channel HDTVI Video Installation Kit
- 8-Bit Uncompressed Video Transmission
- Digitally Encoded
- NTSC, PAL, SECAM Video Compatible
- Simplex or Full Duplex Data
- WDM Technology for Higher Reliability
- Standalone or Rackmount into FVC18 Chassis (Hot Pluggable) Simultaneous Transmission of Video and Data VersiVision Chassis, HD-SDI, HDMI.
1-Channel HDTVI Video Installation Kit | ST, MM (HDTVITR1003) is used across the following Applications:
Dedicated HD-TVI Camera Links
- Provides a dedicated optical video connection for one HD-TVI camera.
- Supports the specified 0.6 to 2.0 Volt pk-pk video input.
- Uses one fiber with a 1310nm wavelength for the optical connection.
- BNC video and ST optical connectors match the specified interfaces.
Building Lobby Surveillance
- Suitable for a single HD-TVI camera monitoring a building lobby.
- 5 Hz to 8 MHz bandwidth supports the specified video interface.
- 8-bit resolution supports the stated HD-TVI video configuration.
- 60dB weighted S/N ratio supports the specified signal performance.
Entrance Camera Monitoring
- Connects one HD-TVI camera positioned at a building entrance.
- Single-fiber optical connectivity supports the specified video link.
- Less than 1% tilt supports the defined video transmission performance.
- 5VDC, 2A power supply matches the stated equipment requirement.
Retail Storefront Surveillance
- Supports a dedicated HD-TVI camera for storefront monitoring.
- 1310nm optical transmission matches the supplied wavelength specification.
- Less than 1% differential gain supports the specified video characteristics.
- BNC connectivity supports the HD-TVI video equipment interface.
Parking Entrance Cameras
- Provides optical video connectivity for one HD-TVI parking entrance camera.
- Suitable for a dedicated camera position rather than multi-channel aggregation.
- Operating temperature from -35°C to +65°C supports varied site conditions.
- ST optical connectivity supports the specified fiber connection.
Warehouse Door Monitoring
- Supports one HD-TVI camera monitoring a warehouse door or access area.
- One fiber provides the specified optical video transmission path.
- 60dB weighted S/N ratio supports the defined video signal quality.
- Greater than 100,000-hour MTBF supports long-term installation use.
Factory Floor Camera Links
- Provides a dedicated HD-TVI video connection for one factory-floor camera.
- Wide operating temperature capability supports temperature-variable locations.
- Less than 1° differential phase supports the specified video performance.
- 8-bit video resolution matches the supplied technical specification.
Equipment Area Surveillance
- Suitable for monitoring a defined equipment area with one HD-TVI camera.
- 5 Hz to 8 MHz bandwidth supports the specified HD-TVI signal.
- Less than 1% differential gain supports consistent video characteristics.
- Single-fiber connectivity keeps the optical video link dedicated to the camera.
Campus Building Monitoring
- Supports a dedicated HD-TVI camera at an individual campus location.
- 1310nm wavelength is specified for the optical transmission.
- ST optical connection supports the supplied fiber interface.
- 0% to 95% non-condensing humidity tolerance supports varied environments.
Government Facility Camera Links
- Provides one HD-TVI video channel for a dedicated facility camera.
- 60dB weighted S/N ratio supports the specified video signal quality.
- MTBF greater than 100,000 hours supports extended installation requirements.
- Storage temperature is specified from -45°C to +85°C.
Transportation Facility Cameras
- Suitable for one HD-TVI camera at a transportation facility location.
- One optical fiber supports the specified video transmission connection.
- Operating temperature ranges from -35°C to +65°C.
- BNC video connectivity supports compatible HD-TVI equipment.
Utility Site Video Monitoring
- Supports a dedicated HD-TVI camera at a utility site.
- 1310nm wavelength matches the specified optical transmission.
- Non-condensing relative humidity range is specified at 0% to 95%.
- Greater than 100,000-hour MTBF supports long-term video installations.
Facility Perimeter Camera
- Provides a dedicated HD-TVI connection for one perimeter camera.
- Operating temperature capability covers -35°C to +65°C.
- Single-fiber optical transmission supports the defined connection method.
- Less than 1% tilt supports the specified video transmission performance.
Parking Area Observation
- Supports a single HD-TVI camera for a defined parking observation area.
- 5 Hz to 8 MHz bandwidth supports the stated HD-TVI interface.
- 60dB weighted S/N ratio supports the specified video signal quality.
- 1310nm optical transmission uses one fiber as specified.
Hospitality Entrance Surveillance
- Connects one HD-TVI camera for monitoring a hotel or hospitality entrance.
- BNC video connection supports the specified camera interface.
- 8-bit resolution supports the defined video configuration.
- ST optical connectivity supports the specified single-fiber installation.
Critical Facility Video Links
- Provides a dedicated HD-TVI optical link for one critical-area camera.
- Less than 1° differential phase supports the specified signal performance.
- Less than 1% differential gain supports the stated video characteristics.
- Long-term operation is supported by an MTBF greater than 100,000 hours.
Outdoor Access Monitoring
- Suitable for a single HD-TVI camera monitoring an outdoor access location.
- Operating temperature range is -35°C to +65°C.
- Storage temperature range is -45°C to +85°C.
- Relative humidity support is 0% to 95% non-condensing.
HD-TVI Retrofit Projects
- Provides optical connectivity for compatible single-channel HD-TVI systems.
- Supports one video input and one video output channel.
- ST optical and BNC video interfaces match the specified equipment connections.
- 1310nm wavelength supports the supplied optical configuration.
Remote Building Camera Links
- Connects one HD-TVI camera for monitoring a remote building area.
- One fiber provides the specified optical video connection.
- 5 Hz to 8 MHz bandwidth supports the HD-TVI video signal.
- 60dB weighted S/N ratio supports the specified transmission quality.
Single-Camera Surveillance Expansion
- Adds one dedicated HD-TVI video channel to a compatible installation.
- Suitable where a single additional camera link is required.
- MTBF greater than 100,000 hours supports long-term deployment.
- 5VDC, 2A power supply matches the specified operating requirement.
Versitron is one of the leading (HDTVITR1003) 1-Channel HDTVI Video Installation Kit | ST, MM manufacturing companies in the USA (based in Delaware). If your industry or installation location isn't listed above, feel free to reach out to us!
Buy the Best 1-Channel HDTVI Video Installation Kit | ST, MM with Video over Multimode Fiber from VERSITRON at a Competitive Price!
