HDSDI-11 | Fiber Optic Video Transmitter & Receiver

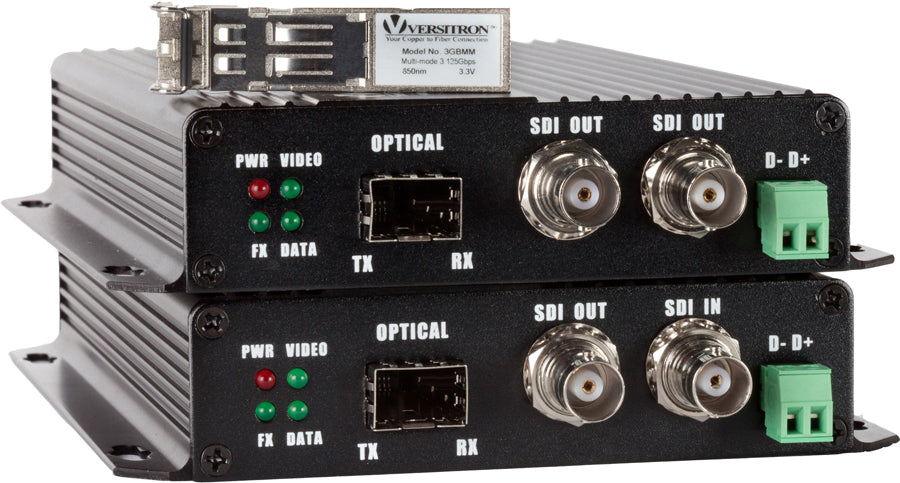

This HD SDI to fiber optic converter includes an HD SDI fiber optic transmitter and receiver, power pupplies, 2 SFPs & 100 meters of fiber. The hot-pluggable and adjustment free design allows for easy installation and operation. A typical installation utilizes a transmitter unit at the video source of the link, connected via fiber optic cable, to a receiver unit at the monitoring end of the link. Devices are available for either stand-alone or rack-mount installation with the FVC18 18-slot chassis.
Signal Type HD-SDI
Video Resolution 8 Bit / 10 Bit Audio
Data Rate 270 Mbps ~ 2.97 Gbps
TV Signal Standards SMPTE424M, SMPTE292M
SMPTE259M, DVB-ASI
ITU-R BT.601, ITU-R BT.1120
Video Input BNC (75 Ohms)
Input Channels (on Tx): 1
Output Channels (on Tx): 1 (for Local Viewing)
Data Rate 19 Mbps ~ 2.97 Gbps
Nominal Level 0.8 Vp-p
Min/Max Level 0.5V to 1.0 Vp-p
Return Loss ≥ 15 dB @ 5 MHz to 1.5 GHz
≥ 10 dB @ 1.5 GHz to 3.0 GHz
Input Cable Equalization Up to -30 dB of cable loss
Video Output BNC (75 Ohms)
Video Output Channels (on Rx): 2
Re-Clock 270 Mbps, 1.485 Gbps, 2.98 Gbps
Or bypassed for unrecognized rates
Nominal Level 0.8 Vp-p
Min/Max Level 0.5 V to 1.0 Vp-p
Return Loss < -25 dB @ 100 MHz
Data Interface RS-485
Data Rate Up to 300 Kbps
Data Channels 1 (Return Direction Only)
Bit Error Rate 10⁻⁹
Optical Connector LC
Video Connector BNC
Data Contact Screw Terminal Strip
As with all VERSITRON products, these devices carry a lifetime warranty. Please give us a call (1-800-537-2296) or open a chat with any questions. We would be delighted to speak with you!
Fiber Optic Video Transmitter & Receiver
High Definition Video Transmission
1G & 3G Fiber Optic SFP Modules Available
LED Indicators for System Monitoring
Hot-Pluggable into the FVC18 Chassis
RS-485 Return Data
Transmit up to 20km without Optical Attenuation No Electrical Or Optical Adjustments Required Standalone or Rackmount VersiVision Chassis HDMI HD-CVI, AHD, HD-TVI
