8-Channel HDCVI Video Installation Kit | ST, SM

8-Channel HDCVI Video Installation Kit | ST, SM

SKU:HDCVITR8005

  • Free Ground Shipping For Online Store Orders
  • Free Unlimited Support
  • Lifetime Warranty
Quantity
The VERSITRON VersiVision HDCVITR8005 is an 8-channel HD-CVI video installation kit designed to transmit multiple digitally encoded HD-CVI video signals over singlemode fiber. The complete kit includes the transmitter, receiver, power supplies, and 100 meters of singlemode fiber optic cable, providing a convenient fiber optic solution for extending HD-CVI camera signals between remote camera locations and monitoring equipment.

The VersiVision HD platform supports 8-bit digitally encoded video and is compatible with NTSC, PAL, and SECAM camera systems. Its plug-and-play design requires no electrical or optical adjustments, while LED indicators provide convenient system status monitoring.

Product Highlights

  • 8-channel HD-CVI video transmission
  • 8-bit digitally encoded video
  • Singlemode fiber optic transmission
  • ST optical connectors
  • Compatible with NTSC, PAL, and SECAM
  • Plug-and-play, adjustment-free installation
  • No optical adjustments required
  • LED indicators for system status monitoring
  • Standalone or rack-mount installation
  • Compatible with the FVC18 18-slot chassis
  • Complete installation kit
  • Includes transmitter, receiver, power supplies, and 100 meters of singlemode fiber
View full details

8-Channel HD-CVI Video Over Singlemode Fiber

The HDCVITR8005 provides a complete fiber optic installation solution for applications requiring multiple HD-CVI camera signals to be transported between a camera location and a monitoring site. Using singlemode fiber provides a reliable fiber-based connection for extending HD-CVI video beyond conventional copper cabling limitations.

A typical VersiVision installation places the transmitter at the camera end of the link and the receiver at the monitoring end, with the two units connected by a single fiber optic cable.

Digitally Encoded HD-CVI Video

The VersiVision HD video platform provides 8-bit digitally encoded video transmission and supports HD-CVI, AHD, and HD-TVI video formats. The equipment is directly compatible with NTSC, PAL, and SECAM camera systems.

Singlemode Fiber Connectivity

The HDCVITR8005 uses singlemode fiber with ST optical connectors. The VersiVision HD platform specifies singlemode optical wavelengths of 1310/1550nm, depending on the applicable configuration.

Plug-and-Play Installation

The VersiVision HD platform is designed for straightforward installation without electrical or optical adjustments. LED indicators provide immediate system status information for convenient monitoring and troubleshooting.

Technical Specifications

Specification HDCVITR8005
Video 8-Channel HD-CVI
Video Input 0.6–2.0 Vp-p (75 Ohms)
Bit Resolution 8-Bit
Video Bandwidth 5 Hz–8 MHz
Differential Gain < ±1%
Differential Phase < ±1°
Tilt < 1%
S/N Ratio 60 dB (Weighted)
Fiber Type Singlemode
Optical Wavelength 1310/1550 nm
Number of Fibers 1
Optical Connector ST
Video Connector BNC
Power Supply 5VDC, 2A
Operating Temperature -35°C to +65°C
Storage Temperature -45°C to +85°C
Relative Humidity 0% to 95% (Non-Condensing)
MTBF >100,000 Hours
Installation Standalone or Rack-Mount
Rack-Mount Chassis FVC18 18-Slot Chassis

The common VersiVision HD technical specifications above are provided in the product datasheet, including video performance, singlemode wavelength, connectors, power requirements, environmental ratings, and MTBF.

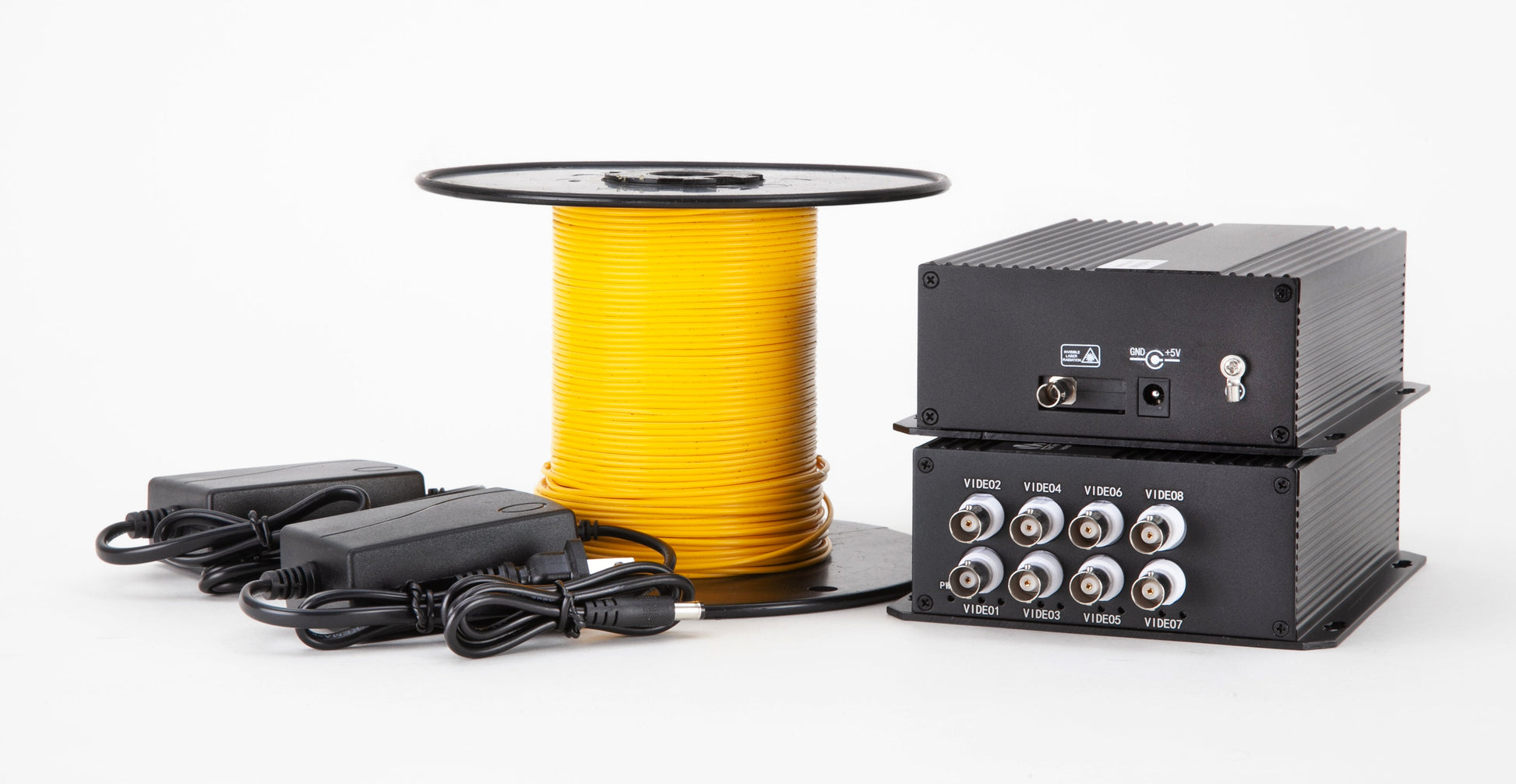

Complete HD-CVI Installation Kit

The HDCVITR8005 installation kit includes:

  • 8-channel HD-CVI transmitter
  • 8-channel HD-CVI receiver
  • Power supplies
  • 100 meters of singlemode fiber optic cable

This complete configuration simplifies deployment by providing the primary components needed for a fiber optic HD-CVI video link.

Standalone or Rack-Mount Installation

VersiVision HD equipment can be deployed in standalone applications or installed in the FVC18 18-slot rackmount chassis. The HD modules are hot-pluggable when installed in the FVC18 chassis.

HD-CVI Video Applications

The HDCVITR8005 can be used for fiber-based video transmission in applications such as:

  • Security and surveillance
  • CCTV monitoring
  • Commercial security systems
  • Industrial video monitoring
  • Transportation and infrastructure monitoring
  • Remote camera installations
  • Centralized video monitoring

Why Choose the VERSITRON HDCVITR8005?

The HDCVITR8005 provides a complete installation-kit solution for extending multiple HD-CVI video signals over singlemode fiber. With the transmitter, receiver, power supplies, and fiber cable included, the kit provides a straightforward way to connect HD-CVI cameras with remote monitoring equipment.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has developed fiber optic communication solutions for video, data, and networking applications. The VersiVision product family provides fiber optic transmission solutions for HD-CVI, AHD, and HD-TVI video systems, with multiple channel configurations and multimode or singlemode fiber options.

Video Input

0.6 ~ 2.0 Volt pk-pk (75 Ohms)

Video Interface

HD-CVI

Input/Output Channels

8

Bandwidth

5 Hz ~ 8 MHz

Bit Resolution

8-Bit

Differential Gain

<±1%

Differential Phase

<±1°

Tilt

< 1%

S/N Ratio

60dB (Weighted)

Wavelength

1310nm

Number of Fibers

1

Optical Connector

ST

Video Connector

BNC

Power Supply

5VDC, 2A

MTBF

>100,000 Hours

Operating Temperature

-35°C to +65°C

Storage Temperature

-45°C to +85°C

Relative Humidity

0% to 95% (non-condensing)

All of the VersiVision HD installation kits are available for standalone applications and include: Transmitter, Receiver, Power Supplies & 100 meters of fiber. Please give us a call (1-800-537-2296) or open a chat with any questions. We look forward to discussing your application with you!

Key Features of 8 Channel HDCVI Receiver & Transmitter

  • 8-Bit Uncompressed Video Transmission
  • Digitally Encoded
  • NTSC, PAL, SECAM Video Compatible
  • Simplex or Full Duplex Data
  • WDM Technology for Higher Reliability
  • Standalone or Rackmount into FVC18 Chassis (Hot Pluggable) Simultaneous Transmission of Video and Data VersiVision Chassis, HD-SDI, HDMI

8-Channel HDCVI Video Installation Kit | ST, SM (HDCVITR8005) is used across the following Applications:

Multi-Camera Security Monitoring

  • Supports eight HD-CVI video channels for centralized camera monitoring.
  • Suitable for installations requiring multiple video feeds over one fiber.
  • BNC video connectors provide direct connections to compatible HD-CVI equipment.
  • 8-bit resolution supports the specified HD-CVI video transmission.

Large Commercial Building Surveillance

  • Connects multiple HD-CVI cameras across commercial building areas.
  • Eight channels support several camera locations within one installation.
  • Single-fiber connectivity consolidates the optical video connection.
  • 60dB weighted S/N ratio supports the specified video signal quality.

School and Campus CCTV

  • Supports multiple HD-CVI cameras across campus buildings and common areas.
  • Eight video channels accommodate several surveillance points.
  • ST optical connectivity supports the specified fiber connection.
  • Operating temperature of -35°C to +65°C supports varied installation conditions.

Retail Store Security

  • Provides eight HD-CVI channels for monitoring different store areas.
  • Suitable for camera coverage at entrances, sales areas, and service zones.
  • 5 Hz to 8 MHz bandwidth supports the specified HD-CVI interface.
  • Single-fiber transmission helps consolidate multiple video feeds.

Parking Facility CCTV

  • Supports multiple HD-CVI cameras positioned throughout parking areas.
  • Eight channels allow several parking zones to be monitored together.
  • BNC interfaces support connections with compatible HD-CVI cameras and equipment.
  • Wide operating temperature capability suits temperature-variable installations.

Warehouse Camera Networks

  • Connects multiple HD-CVI cameras across warehouse monitoring locations.
  • Eight channels support separate camera feeds for different storage areas.
  • 1310nm optical transmission is provided through one fiber.
  • MTBF greater than 100,000 hours supports long-term deployment requirements.

Distribution Center Monitoring

  • Suitable for HD-CVI surveillance across loading and distribution areas.
  • Eight video channels provide capacity for multiple camera sources.
  • ST optical and BNC video interfaces support the specified connections.
  • Low differential gain and differential phase specifications support signal fidelity.

Manufacturing Facility Surveillance

  • Supports multiple HD-CVI cameras used across manufacturing areas.
  • Eight channels allow separate video feeds from different facility zones.
  • Suitable for installations operating across a -35°C to +65°C temperature range.
  • 5VDC, 2A power supply meets the specified equipment power requirement.

Factory Floor Monitoring

  • Provides eight HD-CVI video channels for production-area cameras.
  • Suitable for centralized viewing of multiple factory-floor locations.
  • Less than 1% tilt supports the specified video signal performance.
  • 8-bit video processing supports the stated HD-CVI configuration.

Building Entrance Surveillance

  • Supports multiple HD-CVI cameras positioned at building entry areas.
  • Eight channels allow several entrances and access points to be monitored.
  • BNC video connectors provide compatible video equipment connections.
  • 60dB weighted S/N ratio supports the specified video transmission quality.

Government Facility CCTV

  • Provides eight HD-CVI channels for government facility camera systems.
  • Suitable for consolidating multiple surveillance video feeds.
  • 1310nm wavelength supports the specified optical video connection.
  • Greater than 100,000-hour MTBF supports long-term installation requirements.

Transportation Facility Monitoring

  • Supports multiple HD-CVI cameras within transportation facilities.
  • Eight channels provide centralized capacity for separate camera feeds.
  • One fiber carries the specified optical video connection.
  • -35°C to +65°C operation supports varied facility temperatures.

Security Control Room Systems

  • Aggregates eight HD-CVI video channels for centralized security monitoring.
  • Suitable for control rooms receiving multiple camera feeds.
  • 5 Hz to 8 MHz bandwidth supports the specified HD-CVI video interface.
  • Single-fiber optical connectivity provides a consolidated video link.

Facility Perimeter Surveillance

  • Supports multiple HD-CVI cameras positioned around facility boundaries.
  • Eight channels accommodate separate perimeter camera locations.
  • ST optical connectivity supports the specified single-fiber installation.
  • Operating temperatures from -35°C to +65°C suit varied outdoor conditions.

Utility Facility Video Monitoring

  • Suitable for monitoring multiple HD-CVI camera locations at utility facilities.
  • Eight channels provide centralized video capacity for different areas.
  • 0% to 95% non-condensing humidity tolerance supports varied facility environments.
  • Long MTBF supports extended operational deployment of the video installation.

Critical Infrastructure CCTV

  • Supports multiple HD-CVI cameras used for infrastructure facility monitoring.
  • Eight channels allow several surveillance points to share one optical link.
  • Less than 1% differential gain supports consistent video signal transmission.
  • Less than 1° differential phase supports the specified video performance.

Hotel Property Surveillance

  • Supports HD-CVI cameras across multiple hotel and property areas.
  • Eight channels can accommodate separate video feeds from monitored locations.
  • Suitable for centralized video monitoring installations.
  • BNC video connectivity supports compatible HD-CVI equipment.

Healthcare Facility Monitoring

  • Provides eight HD-CVI video channels for monitored healthcare facility areas.
  • Suitable for consolidating camera feeds from multiple locations.
  • 60dB weighted S/N ratio supports the specified video signal quality.
  • Single-fiber optical transmission helps consolidate the video connection.

Multi-Building Security Systems

  • Supports multiple HD-CVI camera feeds across connected facility areas.
  • Eight channels provide capacity for several monitored locations.
  • 1310nm wavelength is specified for the optical video transmission.
  • ST optical connection supports the specified single-fiber configuration.

CCTV System Expansion

  • Adds eight HD-CVI video channels to compatible surveillance installations.
  • Suitable for expanding multi-camera video coverage.
  • 8-bit resolution and 5 Hz to 8 MHz bandwidth match the specified video configuration.
  • MTBF greater than 100,000 hours supports long-term system deployment.

Versitron is one of the leading (HDCVITR8005) 8-Channel HDCVI Video Installation Kit | ST, SM manufacturing companies in the USA (based in Delaware). If your industry or installation location isn't listed above, feel free to reach out to us!

Buy the Best 8-Channel HDCVI Video Installation Kit | ST, SM with Video over Singlemode Fiber from VERSITRON at a Competitive Price!
