1-Channel HDCVI Video Installation Kit | Data, ST, MM

1-Channel HD-CVI Video and Data Over Fiber

The HDCVITR1A03 combines HD-CVI video transmission with a bi-directional data channel, allowing both video and camera control data to travel over a single multimode fiber optic link. A typical installation places the transmitter at the camera location and the receiver at the monitoring or control location.

This makes the system particularly useful for applications where a PTZ camera or other remotely controlled video equipment requires both video transmission and a return data path.

8-Bit HD-CVI Video Transmission

The HDCVITR1A03 supports 8-bit digitally encoded HD-CVI video and is compatible with NTSC, PAL, and SECAM camera systems. The VersiVision HD platform supports optimized optical modules compatible with 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F formats.

The video interface supports one channel with a bandwidth of 5 Hz–8 MHz and an 8-bit resolution.

Bi-Directional RS-485 Data

In addition to HD-CVI video, the HDCVITR1A03 supports one channel of bi-directional RS-485 data at data rates up to 300 Kbps. RS-232 and RS-422 are available as optional interfaces.

This provides a fiber-based communication path for applications where cameras or other video equipment require return data, such as PTZ camera control.

Multimode Fiber Transmission Up to 2 km

The HDCVITR1A03 uses a single multimode optical fiber and supports transmission distances of up to 2 km. The datasheet identifies the multimode configuration with an 850/1310nm wavelength and one optical fiber.

Plug-and-Play Installation

The VersiVision HD-CVI platform is designed for plug-and-play, adjustment-free installation. No electrical or optical adjustments are required, while LED indicators provide instant visibility into system operating status.

ST Fiber Connections

The HDCVITR1A03 uses ST optical connectors and BNC video connections. The data interface uses a screw terminal strip. ST-SC adapters are also available for applications using SC fiber connectors.

Complete HD-CVI Video and Data Installation Kit

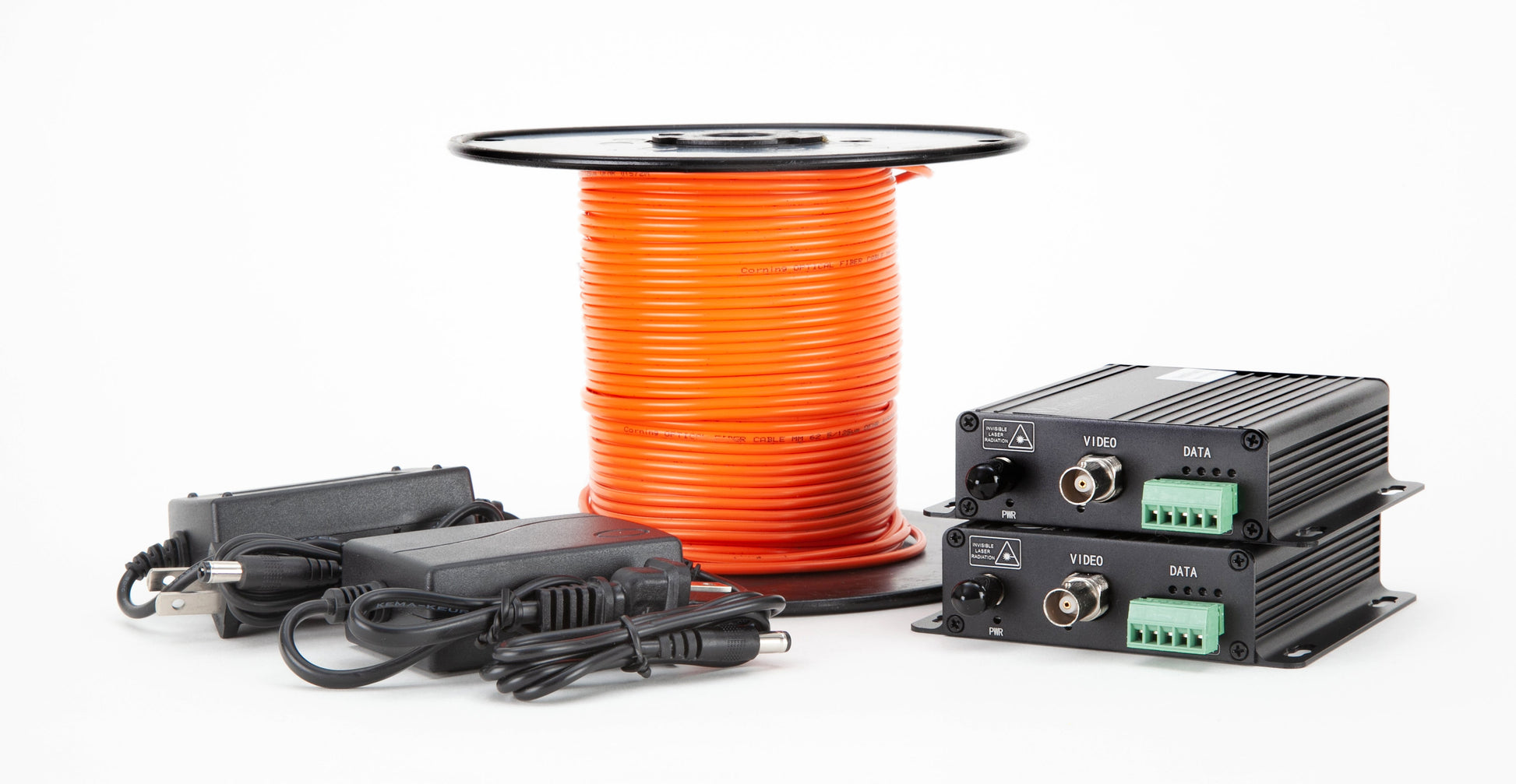

The HDCVITR1A03 provides the major components needed for a fiber optic HD-CVI video and data link:

• 1-channel HD-CVI transmitter
• 1-channel HD-CVI receiver
• Power supplies
• 100 meters of multimode fiber cable
• Bi-directional RS-485 data capability

Standalone or Rack-Mount Installation

VersiVision HD-CVI equipment can be installed as standalone units or integrated into the FVC18 18-slot chassis for centralized rack-mounted installations. The HD-CVI platform is also designed to be hot-pluggable into the FVC18 chassis.

Applications

The HDCVITR1A03 is suited for applications requiring both HD-CVI video and bi-directional data over fiber, including:

• PTZ Camera Systems
• Security and Surveillance
• Remote CCTV Monitoring
• Transportation and Infrastructure Monitoring
• Industrial Video Systems
• Government and Institutional Security
• Remote Camera Control
• Fiber Optic Video Networks

Technical Specifications

Why Choose the VERSITRON HDCVITR1A03?

The HDCVITR1A03 provides a convenient way to extend both HD-CVI video and camera control data over multimode fiber. With 2 km fiber transmission, bi-directional RS-485 data, support for multiple HD video formats, plug-and-play installation, and compatibility with the FVC18 chassis, it provides a flexible solution for professional video and surveillance installations.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has provided fiber optic communication solutions for video, data, and networking applications. The VersiVision HD-CVI series extends that experience into high-definition video transmission, providing reliable fiber optic connectivity for surveillance, monitoring, and camera control systems.

For assistance selecting the right HD-CVI video and data fiber optic transmitter, receiver, or installation kit, contact VERSITRON for technical support.

Technical Specifications:

Key Features of 1 Channel HDCVI Video Installation Kit

• 8-Bit Uncompressed Video Transmission
• Digitally Encoded
• NTSC, PAL, SECAM Video Compatible
• Simplex or Full Duplex Data
• WDM Technology for Higher Reliability
• Standalone or Rackmount into FVC18 Chassis (Hot Pluggable) Simultaneous Transmission of Video and Data VersiVision Chassis, HD-SDI, HDMI.
