1-Channel HDCVI Video Installation Kit | ST, MM

1-Channel HD-CVI Video Over Fiber

The HDCVITR1003 provides a straightforward way to extend HD-CVI camera video over fiber optic cable. The transmitter is installed at the camera location and sends the video signal over a single multimode optical fiber to the receiver at the monitoring or control location.

Fiber optic transmission eliminates the electrical limitations associated with long copper video runs and provides a reliable connection between cameras and remote monitoring equipment.

8-Bit HD-CVI Video Transmission

The HDCVITR1003 supports 8-bit digitally encoded HD-CVI video. The VersiVision HD video platform is designed to support HD-CVI, AHD, and HD-TVI video formats, with optimized optical modules compatible with 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F video signals.

Up to 2 km Over Multimode Fiber

This installation kit is designed for multimode fiber transmission up to 2 km at 1310nm. The product model table in the VERSITRON datasheet identifies the HDCVIT1003 transmitter and HDCVIR1003 receiver as the corresponding 1-channel HD-CVI multimode units, with a maximum distance of 2 km.

Compatible With NTSC, PAL, and SECAM

The HDCVITR1003 is compatible with NTSC, PAL, and SECAM camera systems, allowing it to integrate with a range of existing video equipment.

Plug-and-Play Fiber Optic Installation

The VersiVision HD-CVI platform uses a plug-and-play design, eliminating the need for electrical or optical adjustments during installation. LED indicators provide convenient visibility into system operating status.

ST Fiber Connections

The HDCVITR1003 uses ST optical connectors and a BNC video connection. The datasheet specifies ST for the optical interface and BNC for the video interface. ST-SC adapters are also available for installations using SC fiber connectors.

Complete HD-CVI Fiber Installation Kit

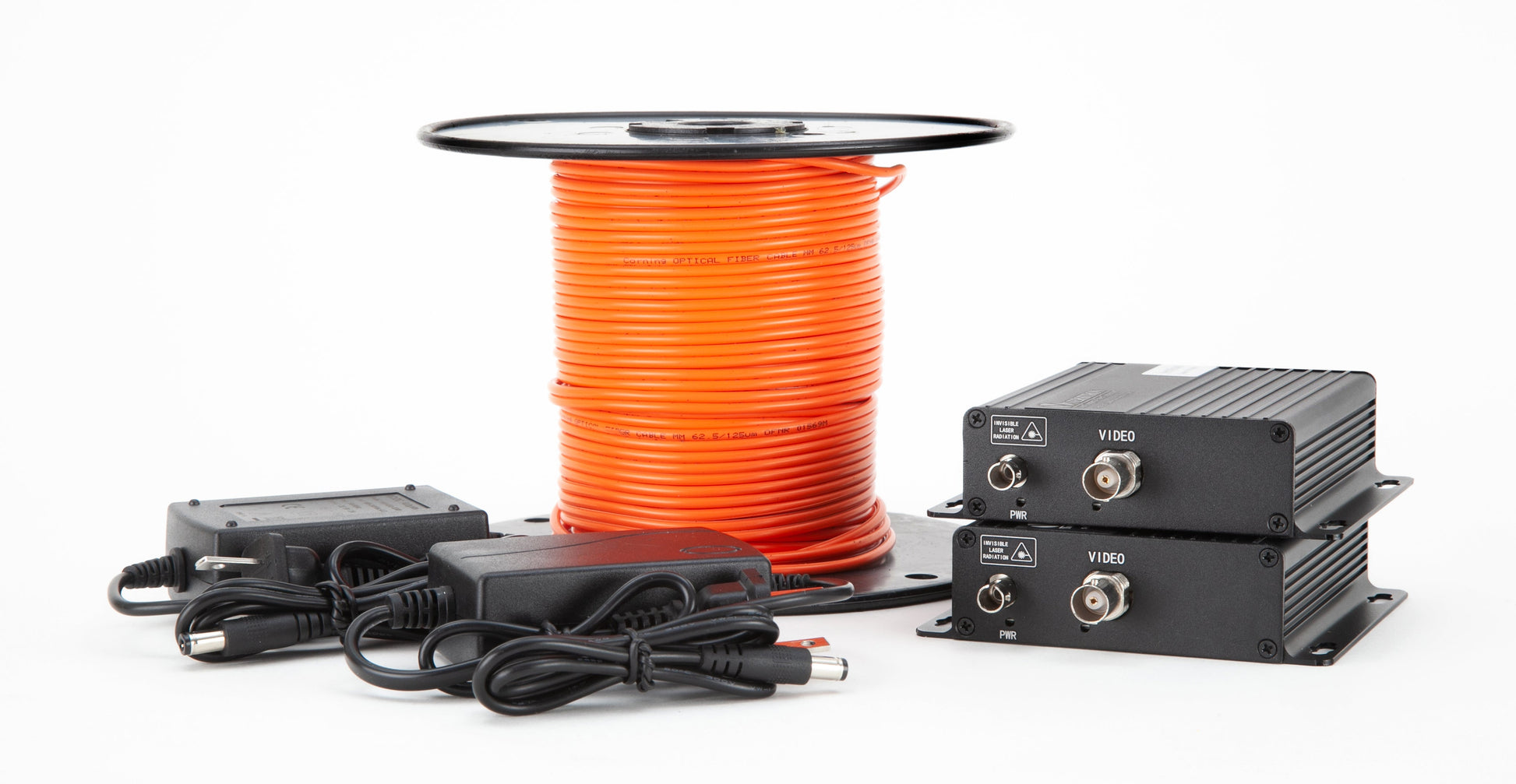

The HDCVITR1003 is supplied as a complete installation package, including:

• 1-channel HD-CVI transmitter
• 1-channel HD-CVI receiver
• Power supplies
• 100 meters of multimode fiber cable

This makes the kit convenient for installations requiring a complete camera-to-monitoring fiber link.

Standalone or Rack-Mount Installation

The HDCVITR1003 can be deployed as a standalone fiber optic video system or installed in the VERSITRON FVC18 18-slot chassis for centralized, rack-mounted video systems. The HD-CVI platform supports hot-pluggable installation into the FVC18 chassis.

Applications

The HDCVITR1003 is suitable for applications requiring HD-CVI video transmission over multimode fiber, including:

• CCTV surveillance
• Security monitoring
• Industrial video monitoring
• Manufacturing facilities
• Transportation monitoring
• Control rooms
• Remote camera installations
• Commercial security systems
• Fiber optic video networks
• Government and institutional facilities

Technical Specifications

Why Choose the VERSITRON HDCVITR1003?

The HDCVITR1003 combines HD-CVI video transmission, multimode fiber connectivity, and a complete installation package in a single solution. Its plug-and-play design, ST fiber connections, compatibility with multiple video standards, and support for distances up to 2 km make it well suited for extending HD-CVI cameras to remote monitoring locations.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has provided fiber optic communication solutions for demanding video, data, and networking applications. The VersiVision HD-CVI series extends that experience into high-definition video transmission, providing reliable fiber optic connectivity for professional surveillance and monitoring systems.

For help selecting the right HD-CVI fiber optic transmitter, receiver, or installation kit, contact VERSITRON for technical assistance.

All of the VersiVision HD installation kits are available for standalone applications and include: Transmitter, Receiver, Power Supplies & 100 meters of fiber. Please give us a call (1-800-537-2296) or open a chat with any questions. We look forward to discussing your application with you!

• 8-Bit Uncompressed Video Transmission
• Digitally Encoded
• NTSC, PAL, SECAM Video Compatible
• Simplex or Full Duplex Data
• WDM Technology for Higher Reliability
• Standalone or Rackmount into FVC18 Chassis (Hot Pluggable) Simultaneous Transmission of Video and Data VersiVision Chassis, HD-SDI, HDMI.
