8-Channel HDTVI Video Installation Kit | Data, ST, SM

SKU:HDTVITR8A05

Free Ground Shipping For Online Store Orders
Free Unlimited Support
Lifetime Warranty

The VERSITRON VersiVision HDTVITR8A05 is an 8-channel HDTVI video installation kit designed to transmit digitally encoded HD-TVI video and bidirectional data over singlemode fiber optic cable. The kit includes the transmitter, receiver, power supplies, and 100 meters of singlemode fiber, providing a convenient fiber optic solution for multi-camera surveillance and monitoring applications.

The VersiVision platform supports 8-bit digitally encoded video and is compatible with NTSC, PAL, and SECAM camera systems. The video + data configuration supports one channel of bidirectional RS-485 data, with RS-232 and RS-422 available as options. Plug-and-play operation eliminates the need for electrical or optical adjustments, while LED indicators provide convenient system status monitoring.

Product Highlights

8-channel HDTVI video transmission
8-bit digitally encoded video
1 channel of bidirectional data
Singlemode fiber optic transmission
ST optical connector
BNC video connectors
RS-485 data interface
RS-232 or RS-422 available as options
Data rates up to 300 Kbps
Compatible with NTSC, PAL, and SECAM
Supports 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F
Plug-and-play installation
No electrical or optical adjustments required
LED indicators for system monitoring
Standalone or rack-mount installation
Compatible with the FVC18 18-slot chassis
Includes transmitter, receiver, power supplies, and 100 meters of singlemode fiber

View full details

8-Channel HDTVI Video and Data Over Singlemode Fiber

The HDTVITR8A05 provides a fiber optic transmission solution for applications requiring multiple HDTVI video channels along with bidirectional data communication. The transmitter and receiver are connected through a single optical fiber, allowing video and data signals to be transported between the camera location and a remote monitoring or control location.

The VersiVision platform uses digitally encoded video transmission and is designed for adjustment-free installation and operation. LED indicators provide instant system operating status.

Digitally Encoded HDTVI Video

The VersiVision HD video platform supports 8-bit digitally encoded HD-TVI video and is directly compatible with NTSC, PAL, and SECAM camera systems. Optimized optical modules support 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F video formats.

Bidirectional Data Transmission

The HDTVITR8A05 also supports one channel of bidirectional RS-485 data. The data interface supports rates up to 300 Kbps, while RS-232 or RS-422 can be provided as optional interfaces.

This allows the fiber link to carry HDTVI video together with compatible control or communication data without requiring a separate fiber connection.

Singlemode Fiber Optic Transmission

The HDTVITR8A05 is designed for singlemode fiber with an optical wavelength of 1310/1550nm. The system uses one optical fiber and an ST optical connector.

Plug-and-Play Installation

VersiVision HD video transmitters and receivers are designed for plug-and-play installation. No electrical or optical adjustments are required, simplifying deployment and setup. LED indicators provide instant system operating status for convenient monitoring.

Technical Specifications

Specification	HDTVITR8A05
Video	8-Channel HD-TVI
Video Encoding	8-Bit Digitally Encoded
Video Input	0.6–2.0 Vp-p (75 Ohms)
Bandwidth	5 Hz–8 MHz
Bit Resolution	8-Bit
Differential Gain	< ±1%
Differential Phase	< ±1°
Tilt	< 1%
S/N Ratio	60 dB (Weighted)
Fiber Type	Singlemode
Optical Wavelength	1310/1550nm
Number of Fibers	1
Optical Emitter	Laser Diode
Optical Connector	ST
Video Connector	BNC
Data Interface	RS-485
Data Rate	Up to 300 Kbps
Data Channels	1 Bidirectional
Bit Error Rate	10⁻⁹
Optional Data Interface	RS-232 or RS-422
Data Connector	Screw Terminal Strip
Power Supply	5VDC, 2A
Installation	Standalone or Rack-Mount
Rack-Mount Chassis	FVC18 18-Slot Chassis
Operating Temperature	-35°C to +65°C
Storage Temperature	-45°C to +85°C
Relative Humidity	0% to 95% (Non-Condensing)
MTBF	>100,000 Hours

These technical specifications are based on the VersiVision HD-CVI/AHD/HD-TVI datasheet.

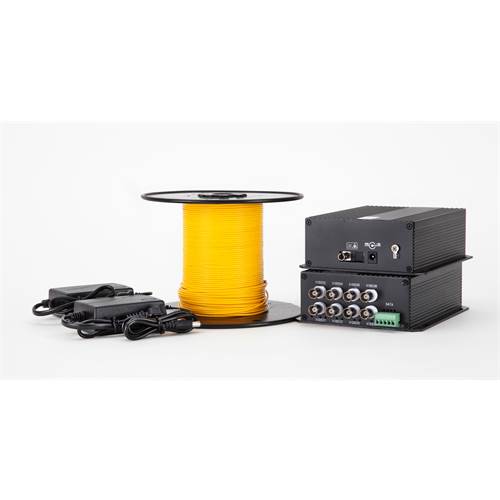

Complete HDTVI Fiber Optic Installation Kit

The HDTVITR8A05 installation kit includes:

HDTVI video and data transmitter
HDTVI video and data receiver
Power supplies
100 meters of singlemode fiber optic cable

The complete configuration simplifies deployment by providing the primary transmitter, receiver, power, and fiber components required for the installation.

Standalone or Rack-Mount Installation

VersiVision equipment can be deployed as standalone units or installed in the FVC18 18-slot chassis for centralized fiber optic video systems. The platform is designed for rack-mount deployment and hot-pluggable installation within the FVC18 chassis.

HDTVI Video and Data Applications

The HDTVITR8A05 can be used for applications requiring multi-channel HDTVI video and bidirectional data transmission over singlemode fiber, including:

CCTV security systems
Multi-camera video surveillance
Commercial security installations
Industrial video monitoring
Transportation and infrastructure monitoring
Remote camera installations
Centralized security monitoring
Video systems requiring RS-485 control or data communication

Why Choose the VERSITRON HDTVITR8A05?

The HDTVITR8A05 combines multi-channel HDTVI video transmission with bidirectional data communication over a singlemode fiber optic link. With plug-and-play operation, ST fiber connectivity, RS-485 data support, LED status indicators, and a complete installation kit that includes fiber and power supplies, it provides a straightforward solution for extending HDTVI surveillance systems over fiber.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has developed fiber optic communication solutions for video, data, and networking applications. The VersiVision platform supports HD-CVI, AHD, and HD-TVI video transmission over fiber and provides standalone and rack-mount deployment options.

Video Input

0.6 ~ 2.0 Volt pk-pk (75 Ohms)

Video Interface

HD-TVI

Input/Output Channels

Bandwidth

5 Hz – 8 MHz

Bit Resolution

8-Bit

Differential Gain

<±1%

Bit Error Rate

10⁻⁹

Data Contact

Screw Terminal Strip

Differential Phase

<±1°

Tilt

< 1%

S/N Ratio:

60dB (Weighted)

Wavelength

1310/1550nm

Number of Fibers

Optical Connector

Data Rate

Up to 300 Kbps

Data Channels

1 Bi-Directional

Video Connector

BNC

Power Supply

5VDC, 2A

MTBF

>100,000 Hours

Operating Temperature

-35°C to +65°C

Storage Temperature

-45°C to +85°C

Relative Humidity

0% to 95% (non-condensing)

Data Interface

RS-485 (RS-422 or RS-232 Optional)

All of the VersiVision HD installation kits are available for standalone applications and include: Transmitter, Receiver, Power Supplies & 100 meters of fiber. Please give us a call (1-800-537-2296) or open a chat with any questions. We look forward to discussing your application with you!

8-Bit Uncompressed Video Transmission
Digitally Encoded
NTSC, PAL, SECAM Video Compatible
Simplex or Full Duplex Data
WDM Technology for Higher Reliability
Standalone or Rackmount into FVC18 Chassis (Hot Pluggable) Simultaneous Transmission of Video and Data VersiVision Chassis, HD-SDI, HDMI

HD Unit Specs

HD Unit Specs Datasheet

HD Video Data Manual

Triad

Triad Datasheet

8-Channel HDTVI Video Installation Kit | Data, ST, SM (HDTVITR8A05) is used across the following Applications:

Highway Traffic Surveillance

Supports eight HDTVI camera feeds across roadway monitoring points.
Suitable for multiple traffic observation locations connected to one monitoring site.
One fiber carries the eight video channels through the optical link.
RS-485 provides one bidirectional data path for compatible equipment.

Airport Perimeter Monitoring

Connects multiple HDTVI cameras positioned around airport perimeter areas.
Suitable for designated access points and facility boundary monitoring.
1310/1550nm wavelengths support the specified singlemode fiber configuration.
ST optical connectors support the fiber-side installation.

Railway Crossing Surveillance

Provides eight HDTVI channels for selected railway crossing camera systems.
Suitable for monitoring separate approaches and crossing areas.
Up to 300 Kbps data transmission supports compatible communication requirements.
One bidirectional data channel is available through the specified data interface.

Toll Collection Area Monitoring

Supports multiple HDTVI cameras around toll collection areas.
Suitable for lane, entrance, and facility monitoring positions.
Eight video channels consolidate camera feeds through one optical fiber.
BNC video connectors support compatible HDTVI equipment connections.

Port Access Surveillance

Connects HDTVI cameras positioned around port access areas.
Suitable for monitoring gates, controlled entrances, and designated facility zones.
Singlemode optical transmission uses the specified 1310/1550nm wavelengths.
60dB weighted S/N ratio supports the specified video performance.

Oil and Gas Facility Security

Provides eight HDTVI camera channels for selected facility areas.
Suitable for monitoring entrances, access zones, and facility surroundings.
RS-485 supports compatible bidirectional control communication.
Operating temperatures from -35°C to +65°C support varied installation environments.

Power Generation Facility Monitoring

Supports multiple HDTVI cameras across power facility locations.
Suitable for equipment areas, entrances, and designated surveillance zones.
Eight channels allow multiple video feeds over one fiber connection.
High MTBF exceeding 100,000 hours supports long-term deployments.

Smart Grid Infrastructure Surveillance

Connects HDTVI cameras at selected smart grid infrastructure sites.
Suitable for monitoring facility access and designated infrastructure areas.
RS-485 provides one bidirectional data channel for compatible devices.
Screw terminal strip provides the specified data connection interface.

Water Infrastructure Monitoring

Provides eight-channel HDTVI video connectivity for water facilities.
Suitable for monitoring entrances, service areas, and facility surroundings.
1310/1550nm transmission supports the specified singlemode optical link.
Non-condensing humidity operation supports varied site conditions.

Mining Infrastructure Surveillance

Supports eight HDTVI cameras across selected mining facility locations.
Suitable for access points, facility boundaries, and monitored operational areas.
One optical fiber consolidates the eight video channels.
Wide temperature operation supports installations from -35°C to +65°C.

Municipal Traffic Monitoring

Connects multiple HDTVI cameras at municipal traffic locations.
Suitable for intersections, roadway approaches, and public infrastructure.
8-bit video resolution supports the specified HDTVI signal format.
Low differential phase below ±1° supports video signal fidelity.

Defense Facility Surveillance

Provides eight HDTVI channels for designated defense facility monitoring.
Suitable for entrances, controlled areas, and facility perimeter viewpoints.
Singlemode fiber supports the specified 1310/1550nm optical wavelengths.
Bit error rate of 10⁻⁹ supports the specified data transmission performance.

Industrial Control Area Monitoring

Supports multiple HDTVI cameras across industrial control environments.
Suitable for monitoring designated equipment and access areas.
RS-485 with optional RS-422 or RS-232 supports compatible data interfaces.
Up to 300 Kbps data rate supports the specified communication capability.

Data Center Facility Surveillance

Connects eight HDTVI cameras across selected data center areas.
Suitable for entrances, service areas, and controlled facility locations.
Four? No, eight video channels support broader camera coverage.
60dB weighted S/N ratio supports the specified HDTVI video performance.

Public Transit Security Monitoring

Provides eight HDTVI video channels for transit facilities.
Suitable for station entrances, platforms, and designated access areas.
One fiber consolidates multiple camera connections to the monitoring equipment.
ST optical connectivity supports the specified fiber infrastructure.

Manufacturing Campus Surveillance

Supports eight HDTVI cameras across manufacturing campus locations.
Suitable for production buildings, access roads, and facility entrances.
Low differential gain below ±1% supports accurate video transmission.
RS-485 data connectivity supports compatible bidirectional communication.

Critical Infrastructure Control Rooms

Connects eight HDTVI camera feeds to centralized monitoring equipment.
Suitable for critical facility areas requiring multiple camera viewpoints.
One bidirectional data channel supports compatible RS-485 equipment.
Screw terminal data connection supports the specified installation interface.

Remote Utility Site Cameras

Provides multiple HDTVI camera connections at utility sites.
Suitable for remote facility entrances and designated monitoring locations.
Singlemode fiber supports 1310/1550nm optical transmission.
MTBF above 100,000 hours supports extended deployment requirements.

Large Facility Security Expansion

Supports expansion of compatible HDTVI surveillance systems to eight channels.
Suitable for adding camera coverage across multiple facility zones.
Video and data transmission share the specified single-fiber architecture.
5VDC, 2A power supply supports the installation requirement.

Singlemode HDTVI Fiber Upgrades

Provides an eight-channel HDTVI solution for compatible fiber upgrades.
Suitable for consolidating multiple camera feeds over one optical fiber.
1310/1550nm wavelengths support the specified singlemode configuration.
RS-485 data capability adds a bidirectional communication path to the video link.

Versitron is one of the leading (HDTVITR8A05) 8-Channel HDTVI Video Installation Kit manufacturing companies in the USA (based in Delaware). If your industry or installation location isn't listed above, feel free to reach out to us!

Buy the Best 8-Channel HDTVI Video Installation Kit with Data over Singlemode Fiber from VERSITRON at a Competitive Price!
