Choosing the Right HD-SDI Video Amplifier for Your Security or Broadcast Setup

HD-SDI Video Distribution Amplifiers

Distributing a high-definition video signal to multiple destinations requires more than simply splitting the connection. In professional surveillance, broadcast, production, and control-room environments, every output must receive a stable signal without compromising the quality or reliability of the original video feed.

An HD-SDI video distribution amplifier provides an active method for distributing an SDI video signal to multiple destinations. Rather than passively dividing the signal, a properly designed distribution amplifier can buffer individual outputs and, depending on the equipment, provide signal equalization and reclocking to help maintain reliable video transmission.

These capabilities make HD-SDI distribution amplifiers useful for applications where a single video source must feed multiple monitors, recorders, production systems, or other compatible SDI equipment.

However, not every video distribution requirement is the same. The correct amplifier depends on factors such as the SDI format, number of inputs and outputs, cable distance, signal conditioning requirements, equipment architecture, and future expansion plans.

Understanding these considerations is the first step toward selecting the right HD-SDI video amplifier for your application.

What Is an HD-SDI Video Distribution Amplifier?

HD-SDI, or High-Definition Serial Digital Interface, is a professional digital video transmission standard commonly used in broadcast, production, surveillance, and other professional video environments.

SDI signals are typically transmitted over 75-ohm coaxial cable using BNC connectors.

An HD-SDI video distribution amplifier receives an incoming SDI video signal and creates multiple independently driven outputs that can be connected to compatible destination equipment.

Depending on the application, these destinations may include:

• Video monitors
• Recording equipment
• Production switchers
• Video routers
• Control-room displays
• Test and monitoring equipment
• Other compatible SDI devices

The important distinction is that a distribution amplifier does more than a passive splitter.

A passive device simply divides the incoming signal, which can affect signal integrity. An active distribution amplifier is designed to provide properly driven outputs so the same source can be distributed to multiple destinations more reliably.

What Does Reclocking Do in an SDI Distribution Amplifier?

Reclocking is an important feature in many professional SDI distribution systems.

As a digital video signal travels through coaxial cable and other components, signal quality can deteriorate. The signal may experience attenuation, timing variations, and jitter that can eventually affect reliable reception.

A reclocking distribution amplifier processes the incoming digital signal and regenerates its timing before sending it to the outputs.

This can help restore signal integrity and provide cleaner SDI outputs for downstream equipment.

Reclocking is particularly valuable when:

• Video signals travel across longer coaxial cable runs
• One source must feed numerous destinations
• The signal passes through multiple pieces of equipment
• Reliable operation is critical
• The distribution system is part of a larger professional video architecture

The exact reclocking capabilities depend on the equipment and supported SDI standards, so system designers should verify compatibility with the required video format.

Equalization and Cable Distance

Cable equalization is another important consideration when selecting an HD-SDI distribution amplifier.

As an SDI signal travels over coaxial cable, higher-frequency components of the signal experience attenuation. Equalization compensates for this cable-related loss within the supported operating limits of the equipment.

The maximum practical transmission distance depends on several factors, including:

• SDI data rate
• Cable type and quality
• Connector condition
• Number of interconnections
• Source signal quality
• Equalization capabilities of the receiving equipment

For this reason, claims such as "supports 100 meters" should always be evaluated in the context of the specified cable type and video format.

A cable distance achievable with one SDI format may not necessarily be achievable with a higher-data-rate format over the same coaxial cable.

When designing a system, the specifications of the distribution amplifier should be considered alongside the complete signal path.

Understanding SDI Formats and Data Rates

Before selecting a video distribution amplifier, determine exactly which SDI formats the system must support.

HD-SDI commonly refers to video transmission based on the SMPTE 292M standard, with a data rate of approximately 1.485 Gbps.

However, professional video systems may also use other SDI standards and data rates.

Depending on the equipment, this can include:

• SD-SDI
• HD-SDI
• 3G-SDI
• Higher-data-rate SDI formats

A distribution amplifier designed specifically for HD-SDI should not automatically be assumed to support every newer SDI format.

This is especially important when designing systems that may be upgraded in the future.

If the existing system operates at HD-SDI but future equipment may require a higher data rate, selecting a distribution platform with broader format compatibility may reduce the need for replacement later.

Always verify the supported standards and data rates of the specific amplifier before deployment.

How Many Inputs and Outputs Do You Need?

The required input and output configuration is one of the most important factors in choosing a video distribution system.

A simple application may involve one video source that needs to feed several destinations.

For example, a single camera feed might need to connect simultaneously to:

• A primary monitor
• A recording system
• A secondary monitoring station
• A video processing system

In this situation, a straightforward one-input, multiple-output distribution amplifier may be sufficient.

Larger systems may require multiple video sources to be distributed to numerous destinations.

For these applications, system designers should consider:

• Number of source signals
• Number of required destinations per source
• Current system requirements
• Expected future expansion
• Available rack space
• Cable management requirements

It is generally advisable to allow some expansion capacity rather than designing a system with every available input and output occupied from the beginning.

Distribution Amplifier vs. Passive Splitter

One of the most common mistakes in video distribution is treating an active distribution amplifier and a passive splitter as equivalent devices.

They serve fundamentally different purposes.

Passive Splitters

A passive splitter divides an incoming signal without active signal conditioning.

Although this approach may be appropriate for certain applications, dividing a signal passively can introduce signal loss and affect the electrical characteristics of the video connection.

Active Distribution Amplifiers

An active distribution amplifier receives the source signal and provides separately driven outputs.

Depending on the equipment, it may also provide:

• Input equalization
• Signal reclocking
• Output buffering
• Signal regeneration
• Status monitoring

For professional applications where consistent signal quality is important across multiple destinations, an active distribution amplifier is generally the more appropriate approach.

Distribution Amplifier vs. Video Switcher or Matrix Router

A distribution amplifier should also not be confused with a video switcher or matrix router.

Distribution Amplifier

A distribution amplifier is primarily used to replicate a source signal and distribute it to multiple destinations.

Video Switcher

A video switcher allows an operator or system to select between multiple sources.

Matrix Router

A matrix routing system provides greater flexibility by allowing multiple inputs to be independently routed to multiple outputs.

The correct equipment depends on what the system needs to accomplish.

If one source must appear simultaneously at several destinations, a distribution amplifier may be appropriate.

If operators need to select which source appears on a particular output, switching or routing functionality may be required instead.

Understanding this distinction can prevent organizations from purchasing a distribution amplifier for an application that actually requires dynamic signal routing.

HD-SDI Distribution for Security and Surveillance Systems

HD-SDI distribution amplifiers can play an important role in compatible professional surveillance systems.

A single SDI video feed may need to reach multiple destinations simultaneously, such as:

• A recording system
• A primary security monitor
• A secondary monitoring station
• A control-room display
• Video analysis or processing equipment

A distribution amplifier allows the source signal to be replicated without relying on passive splitting.

Potential applications include:

• Security operations centers
• Government facilities
• Transportation monitoring
• Industrial surveillance
• Critical infrastructure facilities
• Large commercial security operations

It is important to distinguish SDI surveillance from IP video networking.

An HD-SDI distribution amplifier operates with compatible SDI video signals. It does not distribute packetized IP camera streams in the same way as an Ethernet switch.

If an application uses IP cameras, the network infrastructure should be designed around Ethernet switching and IP video requirements unless the signals are converted into a compatible SDI format elsewhere in the system.

HD-SDI Distribution in Broadcast and Production Environments

Broadcast and professional production environments are another natural application for SDI distribution amplifiers.

A video source may need to feed several pieces of equipment simultaneously without repeatedly converting or rerouting the original signal.

Potential destinations may include:

• Production switchers
• Video monitors
• Recording equipment
• Test equipment
• Control-room displays
• Routing systems
• Additional production equipment

Signal integrity is especially important in these environments because video may pass through multiple stages before reaching its final destination.

Reclocking and equalization can therefore be valuable features when maintaining reliable SDI signal distribution throughout a larger production architecture.

Distribution amplifiers can also provide dedicated copies of important signals for monitoring or recording without changing the primary video path.

Control Rooms and Operations Centers

Control rooms often contain numerous displays, recording systems, and monitoring stations that require access to the same video sources.

Applications may include:

• Transportation control centers
• Security operations centers
• Government monitoring facilities
• Industrial control rooms
• Broadcast control rooms
• Emergency operations facilities

In these environments, a distribution amplifier can provide multiple copies of a source signal for different destinations.

For example, one SDI camera feed might be distributed simultaneously to a large monitoring display, recording system, operator workstation, and secondary control location.

For larger installations, the distribution amplifier may form one part of a broader video architecture that also includes switching, routing, fiber transmission, and recording equipment.

The key is to determine whether signals simply need to be replicated or whether they also need to be dynamically routed between different sources and destinations.

Standalone vs. Rack-Mount HD-SDI Distribution

The physical scale of the system should also influence equipment selection.

Standalone Distribution Amplifiers

Standalone units can be useful for smaller installations where only a limited number of signals need to be distributed.

They may be appropriate for:

• Individual production areas
• Small surveillance systems
• Local monitoring installations
• Equipment rooms with limited distribution requirements

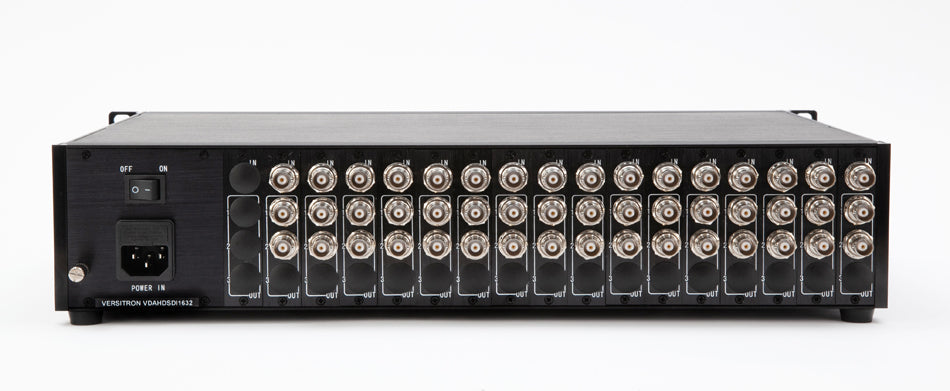

Rack-Mount Distribution Systems

Larger installations often benefit from rack-mounted equipment.

A rack-based architecture can provide:

• Higher channel density
• More organized cable management
• Centralized equipment installation
• Easier system expansion
• Simplified maintenance

Rack-mounted systems can be particularly useful in broadcast facilities, security operations centers, and other installations where numerous video signals are distributed from a centralized location.

The correct architecture depends on the number of signals, required outputs, available equipment space, and expected future growth.

Evaluating Output Capacity and System Expansion

The number of outputs required today is important, but system designers should also consider how the video infrastructure may expand over time.

A system that currently distributes one source to four destinations may eventually need to support additional monitors, recording systems, or processing equipment.

When evaluating output capacity, consider:

• Number of current destinations
• Expected future expansion
• Available rack space
• Number of independent video sources
• Whether each source requires the same number of outputs
• How the distribution system integrates with other video equipment

In larger systems, high-density distribution equipment can simplify installation by consolidating multiple video channels into a centralized platform.

However, output count alone should not determine equipment selection. The amplifier must also support the required SDI format, data rate, signal-conditioning capabilities, and system architecture.

Signal Monitoring and Status Indicators

In professional video environments, quickly identifying a signal problem can significantly reduce troubleshooting time.

Depending on the equipment, status indicators may provide information about:

• Input signal presence
• Power status
• Equipment operation
• Individual channel conditions

These indicators can be particularly useful in centralized equipment rooms containing numerous video connections.

If a monitor suddenly loses video, technicians can use available status information to begin determining whether the problem originates with the source, distribution equipment, cabling, or destination device.

For larger mission-critical installations, system monitoring requirements should be considered during equipment selection rather than after deployment.

The exact monitoring capabilities vary between products, so specifications should be reviewed carefully if remote or detailed status information is required.

Redundancy and Reliability Considerations

Video systems supporting security operations, transportation monitoring, broadcasting, or other critical functions may require additional measures to minimize downtime.

Redundancy can exist at several levels of the system.

Depending on the application, designers may consider:

• Redundant power supplies
• Backup video sources
• Alternate signal paths
• Spare distribution channels
• Redundant distribution equipment
• Backup recording or monitoring systems

A distribution amplifier with redundant power capabilities can help protect against certain power-related failures, but it does not eliminate every possible point of failure.

For highly critical applications, redundancy should be considered across the complete video architecture.

This may include the source equipment, cabling, distribution amplifiers, fiber links, routing equipment, power infrastructure, and destination systems.

The appropriate level of redundancy should be determined by the operational consequences of losing the video signal.

Choosing the Right Coaxial Cable and Connectors

An HD-SDI distribution amplifier cannot compensate for every problem caused by poor cabling or improper installation.

Professional SDI systems typically use 75-ohm coaxial cable and compatible 75-ohm BNC connectors.

Cable selection is particularly important because the maximum reliable transmission distance depends partly on the electrical characteristics of the cable.

When designing an SDI installation, consider:

• Supported SDI data rate
• Cable attenuation
• Total cable length
• Connector quality
• Number of intermediate connections
• Patch panels and other passive components

Higher-data-rate signals generally place greater demands on the transmission path.

For this reason, a cable run that performs reliably with HD-SDI should not automatically be assumed to support a higher-data-rate SDI format over the same distance.

Proper cable preparation and connector installation are equally important. Poorly terminated connectors can introduce signal degradation and make an otherwise properly designed system unreliable.

Long-Distance HD-SDI Transmission

Coaxial cable remains widely used for SDI video, but every coaxial transmission path has practical distance limitations.

Equalization can help compensate for cable-related signal loss within the supported capabilities of the equipment, but it cannot extend an SDI signal indefinitely.

When transmission distances exceed the practical limits of coaxial cable, fiber optic transmission may provide a better solution.

A typical long-distance architecture may include:

1. An SDI video source.
2. Compatible SDI-to-fiber transmission equipment.
3. A fiber optic link between locations.
4. Fiber-to-SDI receiving equipment.
5. An SDI distribution amplifier at the destination.

This approach can allow the video signal to travel over fiber between facilities or distant equipment locations before being distributed locally to multiple SDI devices.

Fiber can be particularly useful for:

• Building-to-building connections
• Large campuses
• Transportation facilities
• Government installations
• Industrial sites
• Remote monitoring locations

Fiber also provides immunity to electromagnetic and radio-frequency interference and electrical isolation between connected locations.

The distribution amplifier and fiber transmission system perform different functions and should be selected accordingly. The fiber equipment transports the signal between locations, while the distribution amplifier creates multiple locally driven outputs where required.

Choosing an Amplifier for Security Applications

Security and surveillance environments often prioritize continuous operation, straightforward monitoring, and integration with recording and display equipment.

When selecting an HD-SDI distribution amplifier for a compatible surveillance system, consider:

• Number of video sources
• Number of destinations per source
• Recording requirements
• Monitoring locations
• Required transmission distance
• Available rack space
• Signal status indication
• Power requirements
• Redundancy requirements

A centralized security operation may require the same video signal to reach several destinations simultaneously.

For example, a camera feed might be sent to a primary recording system, an operator display, a secondary monitoring station, and another processing device.

A distribution amplifier can provide these parallel outputs while maintaining the appropriate SDI signal path.

Security system designers should avoid assuming that a distribution amplifier provides cybersecurity, encryption, or access control simply because it is installed in a secure facility. Those functions must be provided by equipment specifically designed to support them.

Choosing an Amplifier for Broadcast and Production Applications

Broadcast and production environments may place different demands on video distribution equipment.

Signal compatibility and timing integrity are particularly important because video feeds often pass between cameras, production switchers, recorders, monitors, routers, and other professional equipment.

Important considerations may include:

• Supported SDI standards
• Reclocking capability
• Input equalization
• Output count
• Channel density
• Rack-mount architecture
• Power redundancy
• Status monitoring
• Future format requirements

A broadcast facility may also require significantly greater distribution density than a typical surveillance installation.

In these environments, system designers should consider how the distribution amplifiers fit into the complete production architecture rather than evaluating them as isolated components.

Common Mistakes When Selecting an HD-SDI Distribution Amplifier

Several common mistakes can lead to compatibility problems or unnecessary system limitations.

Assuming All SDI Formats Are Interchangeable

HD-SDI, 3G-SDI, and other SDI formats operate at different data rates.

Always verify that the amplifier supports the specific signal formats used by the system.

Choosing Based Only on Output Count

A large number of outputs is useful only if the equipment also supports the required signal format and system architecture.

Evaluate the complete specification rather than selecting equipment based solely on channel capacity.

Ignoring Cable Distance

The distribution amplifier may provide equalization and reclocking, but the complete signal path must still remain within the supported operating limits of the equipment and cable.

Using a Distribution Amplifier When Routing Is Required

A distribution amplifier replicates signals.

If the application requires operators to select different sources for different destinations, a matrix router or switching system may be necessary.

Treating SDI and IP Video as the Same Architecture

SDI distribution and IP video networking use fundamentally different transmission architectures.

An SDI distribution amplifier should not be treated as a replacement for an Ethernet switch in an IP surveillance system.

Assuming "Secure" Means Encrypted

SDI distribution equipment can be deployed within secure facilities, but that does not mean the amplifier itself provides encryption or cybersecurity capabilities.

Only claim these features when they are explicitly supported by the equipment.

A Practical HD-SDI Video Amplifier Selection Checklist

Before selecting an HD-SDI video distribution amplifier, answer the following questions:

What SDI formats must the system support?

Verify the required standards and data rates.

How many video sources are being distributed?

Determine the required number of inputs.

How many destinations need each source?

Calculate the required output capacity.

Is re-clocking required?

Consider signal integrity, cable distance, and the overall video path.

Does the equipment provide appropriate input equalization?

Evaluate this in relation to the cable type and transmission distance.

How far will the SDI signals travel over coaxial cable?

Confirm that the complete transmission path is within supported specifications.

Would fiber be more appropriate for longer distances?

Consider fiber when connecting distant facilities or equipment locations.

Is the system standalone or rack-mounted?

Choose an architecture appropriate for the size and density of the installation.

Are redundant power options required?

Determine the consequences of equipment downtime.

Does the system require simple distribution or dynamic routing?

A distribution amplifier may not be appropriate if flexible source-to-destination routing is required.

Answering these questions before selecting equipment helps ensure that the distribution system matches both current requirements and future expansion plans.

Building a Scalable Video Distribution Architecture

The best HD-SDI distribution amplifier is not necessarily the model with the greatest number of outputs.

The right solution is the one that fits logically into the broader video architecture.

A smaller installation may require only a single standalone distribution amplifier.

A larger system may combine:

• Multiple SDI distribution amplifiers
• Matrix routing equipment
• Production switchers
• Fiber optic transmission
• Recording systems
• Centralized monitoring
• Redundant power infrastructure

Designing the system as an integrated architecture makes future expansion easier and reduces the likelihood of creating unnecessary signal conversions or complicated cabling paths.

It also allows distribution amplifiers to perform the function for which they are best suited: reliably replicating compatible video signals for multiple destinations.

Conclusion

Choosing the right HD-SDI video distribution amplifier begins with understanding exactly how video signals need to move through the system.

For security and surveillance applications, the priority may be distributing important camera feeds to multiple monitoring and recording destinations. In broadcast and production environments, signal integrity, format compatibility, channel density, and integration with other professional video equipment may be the primary considerations.

In either case, system designers should evaluate the supported SDI standards, input and output requirements, reclocking and equalization capabilities, cable distances, equipment architecture, monitoring features, and redundancy requirements before selecting a solution.

It is equally important to understand what a distribution amplifier does—and what it does not do. A distribution amplifier replicates a video source for multiple destinations. It does not replace a matrix router when flexible signal routing is required, an Ethernet switch for IP video networking, or fiber transmission equipment when distances exceed the practical limits of coaxial cable.

By matching the amplifier to the actual signal format and system architecture, organizations can build reliable, scalable video distribution systems that support both current operational requirements and future expansion.
