PK8S:FXO/FXS to Fiber Multiplexer Installation Kit
The PK8S kit provides a turnkey solution for extending eight Plain Old Telephone Service (POTS) analog phone lines over Singlemode fiber . The FXO unit is installed at the PBX (exchange) side of the link and the FXS unit is installed at the telephone (subscriber) side of the link.
Technical Specifications of PK8S FXO/FXS to Fiber Multiplexer Installation Kit:
Power Requirements
12VDC, 2.0Amp
Connector (Tip & Ring)
RJ-11, 2-Wire Twisted Pair
Fiber Interface Connector
LC
Installation
Standalone
Fiber Cable
Singlemode: 9/125 (Duplex)
Link Margin
Singlemode: 19dBm
Audio Signal
Analog, 300Hz to 3.4KHz
Idle Channel Noise
-65dBm
Single Frequency Distortion
-46dBm
2nd Harmonic Distortion
-55dBm
Talk Battery
44 to 52VDC
Loop Current
40mA max. (off hook)
Ring Signal
92V peak (max), 15 to 67Hz
Line Impedance
600Ω
Operating Temperature
0° to 50°C (32° to 122°F)
Storage Temperature
-40° to 70°C (-40° to 158°F)
Humidity
Up to 95% relative humidity (non-condensing)
Altitude
Up to 10,000 ft

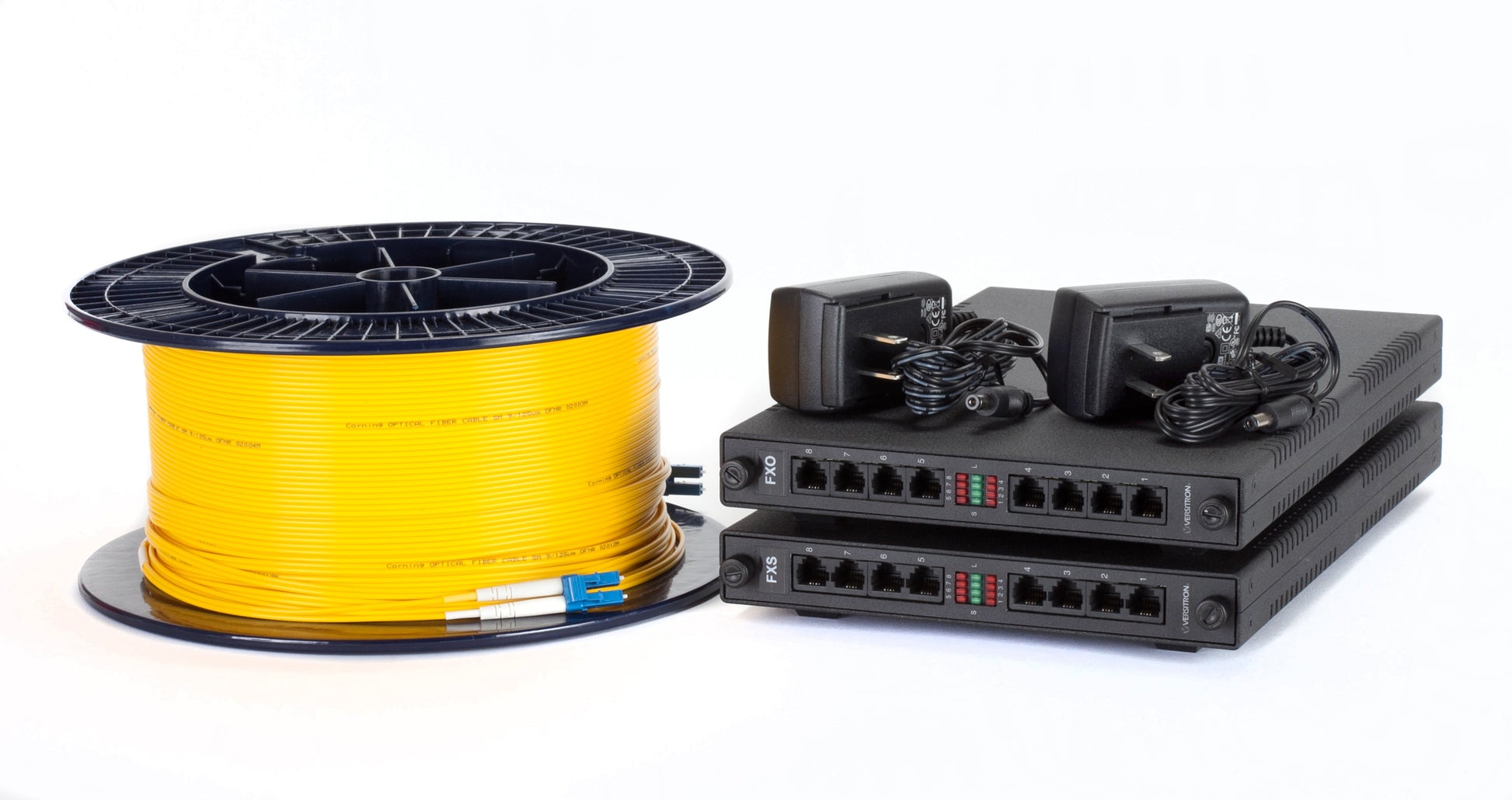

Each PK8S FXO/FXS to Fiber Multiplexer Installation Kit Includes:
FXO Unit
FXS Unit
External Power Supplies (90-240VAC)
100 Meters (328 ft) of Singlemode Cable - Duplex
As a complete package, you get everything you need in a plug & play solution for your phone-to-fiber requirements and you receive a Lifetime Warranty from a trusted manufacturer since 1958! Contact us for assistance by calling (1-800-537-2296) or opening a chat. We are here to help!
Model FXO FXS Function Fiber Installation Distance Capability* RFQ
PK8S
1
1
POTS
SM
Standalone
20 km
RFQ
PK8S-RM
1
1
POTS
SM
Rack-Mount
20 km
RFQ
PKR8S
-
2
Ring Down
SM
Standalone
20 km
RFQ
PKR8S-RM
-
2
Ring Down
SM
Rack-Mount
20 km
RFQ
Additional Installation Kits Are Available For:
Key Features of PK8S FXO/FXS to Fiber Multiplexer Installation Kit
RJ11
600 Ohms Impedance
LED Indicators
SFP Module Technology
300Hz to 3.4KHz
Rackmount Options Manuals for 2-Wire Products (See Bottom of Page)
8 Channel POTS to Fiber Installation Kit is used across the following Industries:
Healthcare
Hospital wings and clinics
Inter-building comms over fiber
Nurse station analog extensions
Emergency call points
Enterprise & Commercial Buildings
Corporate campuses
Security intercom systems
Elevator or service phones
Legacy PBX fiber extensions
Industrial & Manufacturing
Factory floor voice lines
Maintenance room phones
High EMI zone communication
Control room analog links
Utilities & Energy
Substations
Water treatment facilities
Grid monitoring stations
Voice lines across long distances
Transportation (Air, Rail, Metro)
Airport gates and hangars
Railway control centers
Transit station intercoms
Metro tunnel comms
Marine & Seaports
Ship terminals
Dockyard communication
Maritime control rooms
Port security phones
Government
City halls and municipal buildings
Courthouses
Emergency operation centers
Public utility offices
Military & Defense
Command bunkers
Forward operating bases
Barracks and secure facilities
Encrypted intercom systems
Education (Schools & Universities)
Campus-wide analog phones
Dormitory extensions
Inter-building PBX lines
Security gate phones
Public Safety & Emergency Services
Police station backup lines
Firehouse comm systems
Remote EMS station links
Dispatch room analog voice
Mining & Exploration
Underground mine phones
Remote exploration sites
Rugged analog installations
Fiber extensions for safety zones
Hospitality (Hotels & Resorts)
Large resort campus phone lines
Service hallway extensions
PBX backbone over fiber
Event facility intercoms
Construction & Temporary Sites
Portable office voice links
Temporary site-wide phones
Construction command trailers
Legacy PBX reuse in new builds
System Integrators
Legacy telecom upgrades
Remote site integration
Temporary communication builds
Analog voice backbone deployment
Telecom & Network Providers
Rural analog phone coverage
Fiber loopback systems
Last-mile voice service
PBX extension in hard-to-wire areas
Versitron is one of the leading 8 Channel POTS to Fiber Installation Kit manufacturing companies in the USA (based in Delaware). If your industry or installation location isn't listed above, feel free to reach out to us!
