1-Channel POTS to Fiber Rackmount Installation Kit | ST, SM

Extend POTS Telephone Service Over Singlemode Fiber

The PK1S-RM POTS-to-fiber converter installation kit provides a fiber optic solution for extending analog telephone service over longer distances. The FXO unit is installed at the exchange or PBX side, while the FXS unit is installed at the subscriber or telephone side of the connection.

The singlemode fiber configuration provides a transmission capability of up to 20 km, making the PK1S-RM suitable for longer-distance POTS connections.

FXO and FXS POTS Interfaces

The PK1S-RM provides one FXO interface and one FXS interface for a single POTS telephone connection.

• FXO: Exchange/PBX side
• FXS: Subscriber/telephone side
• Function: POTS
• Channels: 1

This provides a point-to-point analog telephone connection over singlemode fiber.

Singlemode Fiber Transmission

The PK1S-RM uses singlemode duplex fiber with a maximum transmission capability of 20 km. This makes it suitable for connecting telephone equipment across buildings, facilities, campuses, and other locations where longer-distance fiber transmission is required.

All units in the 1-channel POTS converter family use LC optical connectors.

Rack-Mount POTS Fiber Installation

The PK1S-RM is designed specifically for rack-mount installation. The VERSITRON selector guide specifies that rack-mount kits include one 2-slot chassis and one standalone enclosure, providing a flexible installation configuration for centralized communications equipment.

1-Channel POTS to Fiber Applications

The PK1S-RM can be used for:

• PBX-to-remote telephone connections
• Building-to-building telephone links
• Long-distance POTS extensions
• Centralized telephone equipment installations
• Remote subscriber connections
• Commercial and industrial facilities
• Fiber-based telephone infrastructure

Technical Specifications

These specifications are based on the VERSITRON 1-Channel POTS 2-Wire FXO/FXS to Fiber Converter Installation Kits Selector Guide.

Why Choose the VERSITRON PK1S-RM?

The PK1S-RM combines POTS telephone connectivity, FXO/FXS interfaces, 20 km singlemode fiber transmission, and rack-mount installation in a complete fiber optic telephone solution. It is designed for applications requiring centralized installation of POTS-to-fiber equipment over longer distances.

VERSITRON — Safeguarding Communications Since 1958

VERSITRON has been providing fiber optic communication solutions since 1958. Our product portfolio includes fiber optic solutions for voice, video, data, and network communications.

For assistance selecting the appropriate POTS-to-fiber converter, fiber type, or rack-mount configuration, contact VERSITRON for technical support and application guidance.

Technical Specifications of 2 POTS FXO/FXS Converter with Rackmount:

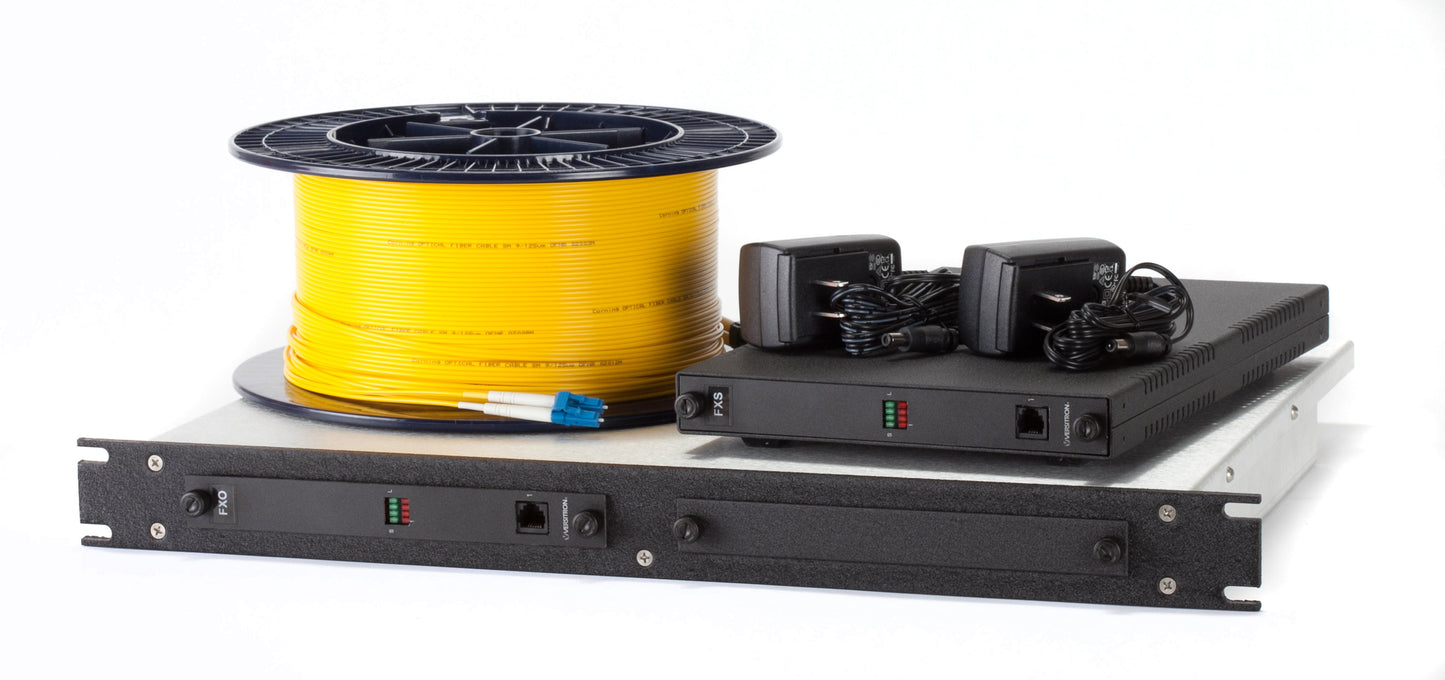

Each 2 POTS FXO/FXS Converter with Rackmount Includes:

• FXO Unit
• FXS Unit
• External Power Supplies (90-240VAC)
• 100 Meters (328 ft) of Singlemode Cable - Duplex

As a complete package, you get everything you need in a plug & play solution for your phone-to-fiber requirements and you receive a Lifetime Warranty from a trusted manufacturer since 1958! Contact us for assistance by calling (1-800-537-2296) or opening a chat. We are here to help!

Product Models:

Additional Installation Kits Are Available For:

• 1-Channel Phone
• 4-Channel Phone Multiplexer
• 4-Channel Phone Mux With RS-485 Data
• 8-Channel Phone Mux

Key Features of 2 POTS FXO/FXS Converter with Rackmount

• RJ11
• 600 Ohms Impedance
• LED Indicators
• SFP Module Technology
• 300Hz to 3.4KHz
• Rackmount Options Manuals for 2-Wire Products
  (See Bottom of Page)
